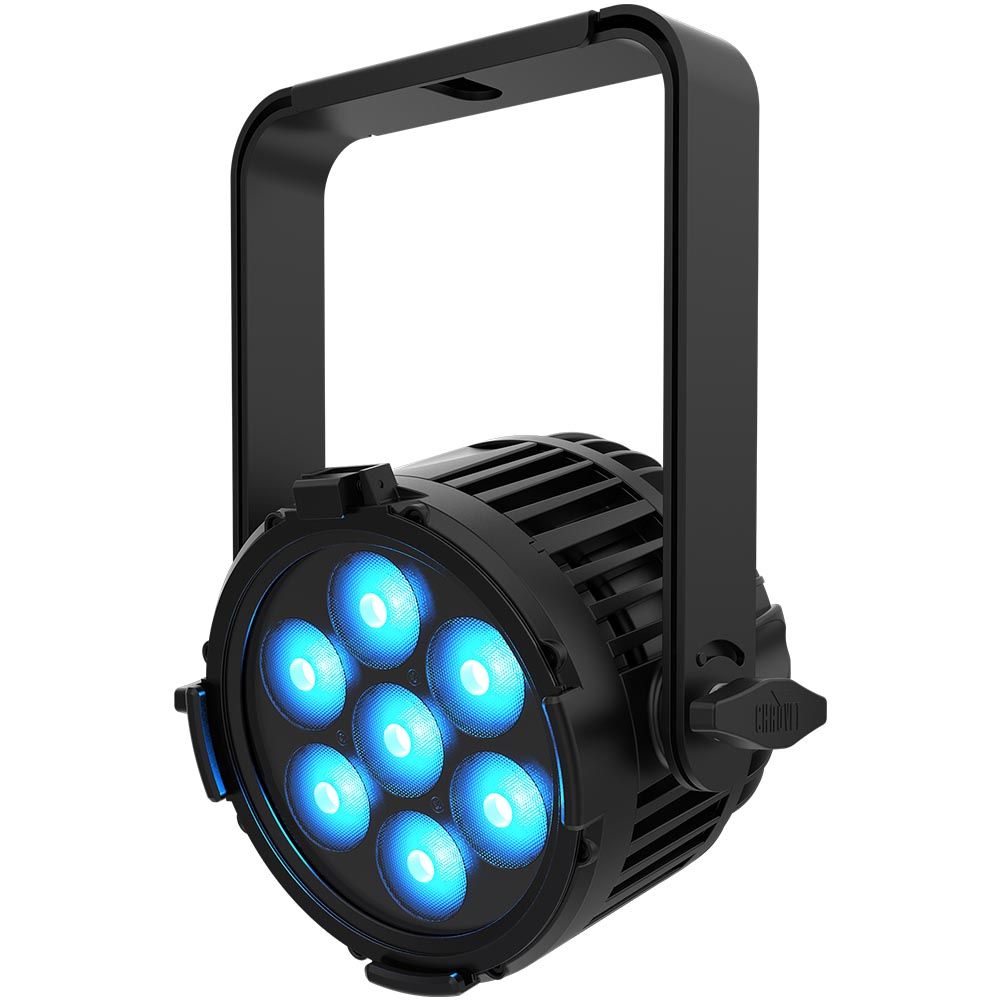

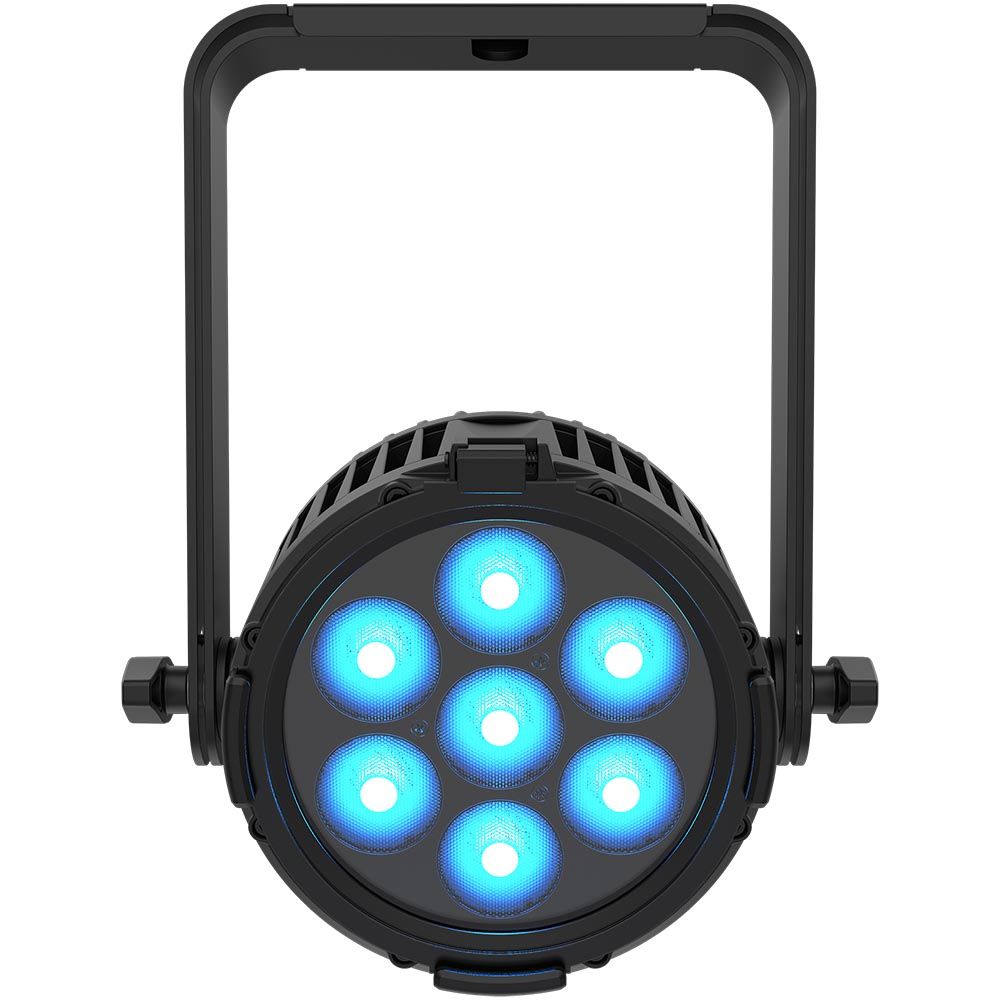

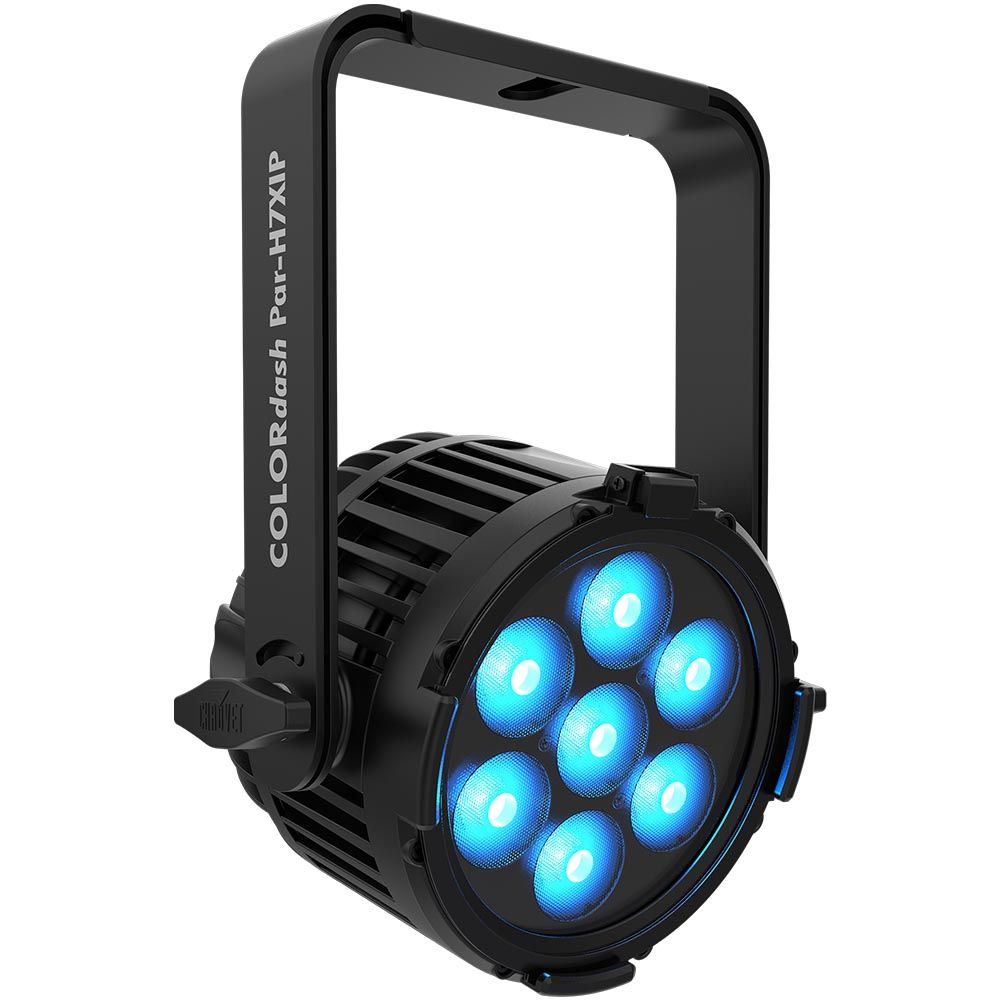

The Chauvet Pro COLORdash Par H7X IP is a compact RGBWAUV LED wash light for live events, broadcast, and theatrical productions. Seven hex-color LEDs provide 2,664 lumens, precise color mixing, and a 2800 to 10,000 K color temperature range. The IP65-rated die-cast housing, IP65 power and data connections, and -4 °F to 113 °F (-20 °C to 45 °C) ambient temperature range support temporary outdoor or wet use. Adjustable PWM, four selectable dimming curves, DMX/RDM control, and a double-bracketed yoke provide flexible operation and positioning.
Chauvet Pro COLORdash Par H7X IP RGBWAUV LED Wash Light
RRP: $831.00 ex. GST
Key Features:
- 7 LEDs (hex-color RGBAW+UV) with 2,664-lumen output
- IP65-rated die-cast housing for temporary outdoor/wet use
- 2800 to 10,000 K color temperature range
- Selectable PWM: 600, 1.2k, 2k, 4k, 6k, 25k Hz
- DMX and RDM control protocols
- Four selectable dimming curves
- 23° beam angle and 37.9° field angle
- Double-bracketed yoke functions as a floor stand
Technical Data
| Light Source | 7 LEDs (hex-color RGBAW+UV) 84 W, (513 mA), 50,000 hours life expectancy |
| Color Temperature (range) | 2800 to 10,000 K |
| Color Temperature (at full) | 11,477 K |
| Beam Angle | 23° |
| Field Angle | 37.9° |
| Lumens | 2664 |
| Illuminance (total) | 583 lux @ 5 m |
| Selectable PWM | 600, 1.2k, 2k, 4k, 6k, 25k Hz |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Strobe Rate | 0 to 20 Hz |
| Standalone Color Mixing | Yes |
| Color Temperature Presets | Yes |
| Dim Modes | 4 |
| Built-in Automated Programs | Yes |
| Customizable Programs | No |
| Dimensions | 6.7 x 9.6 x 9.8 in (170 x 243.4 x 248.1 mm) |
| Weight | 7.4 lbs (3.4 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum alloy, Aluminum die-cast |
| Power Connection | Edison (Local) plug to Seetronic Powercon IP65 |
| Power Output | Seetronic Powercon IP65 |

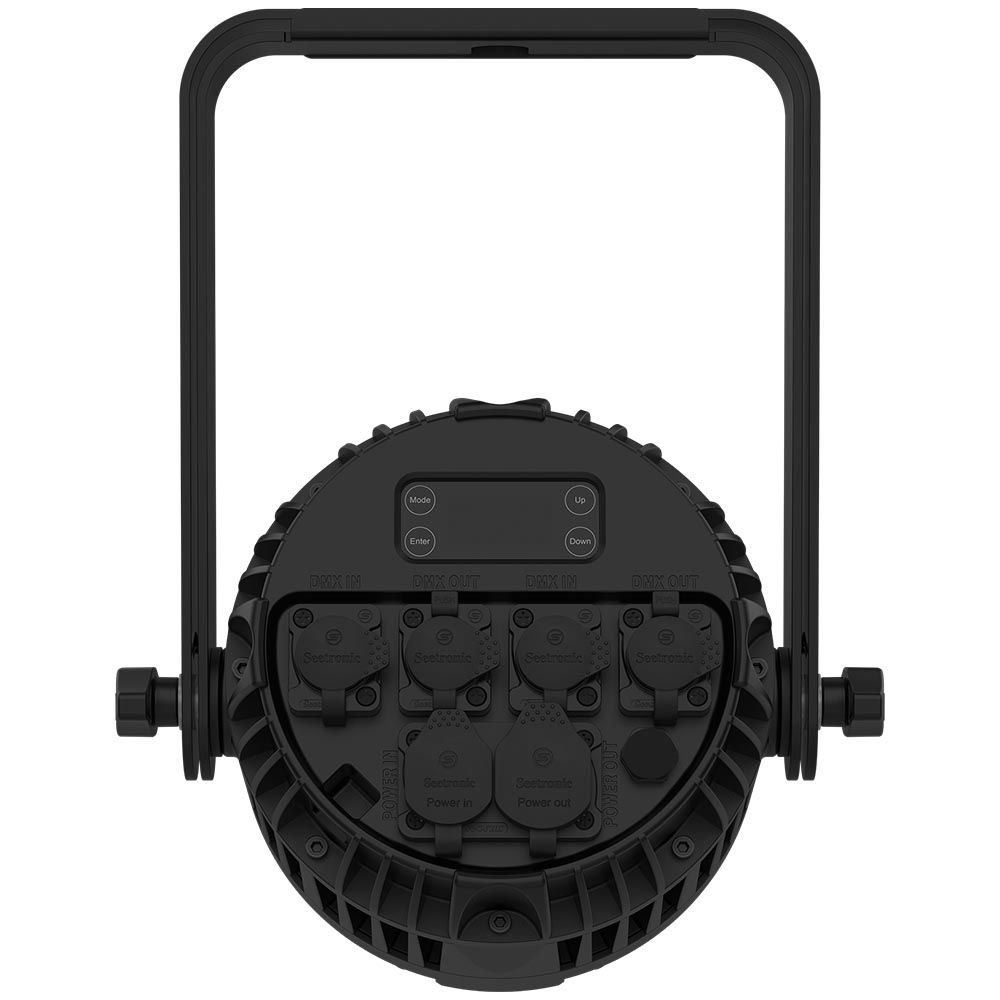

| Data Connectors | 3- and 5-pin XLR, 3- and 5-pin IP65 XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Control Protocol | DMX, RDM |
| DMX Channels | 6ch ,8ch ,9ch ,13ch, or 14ch |
| Modes/Personalities | 5 personalities (6ch ,8ch ,9ch ,13ch, or 14ch) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 19 units @ 120 V; 34 units @ 208 V; 37 units @ 230 V |
| Power and Current (120V) | 71 W, .604 A @ 120 V, 60 Hz |
| Power and Current (208V) | 69 W, .352 A @ 208 V, 60 Hz |
| Power and Current (230V) | 68 W, .318 A @ 230 V, 50 Hz |
| Certifications | CE, MET, FCC, UKCA |
| IP Rating | IP65, temporary outdoor/wet use |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
