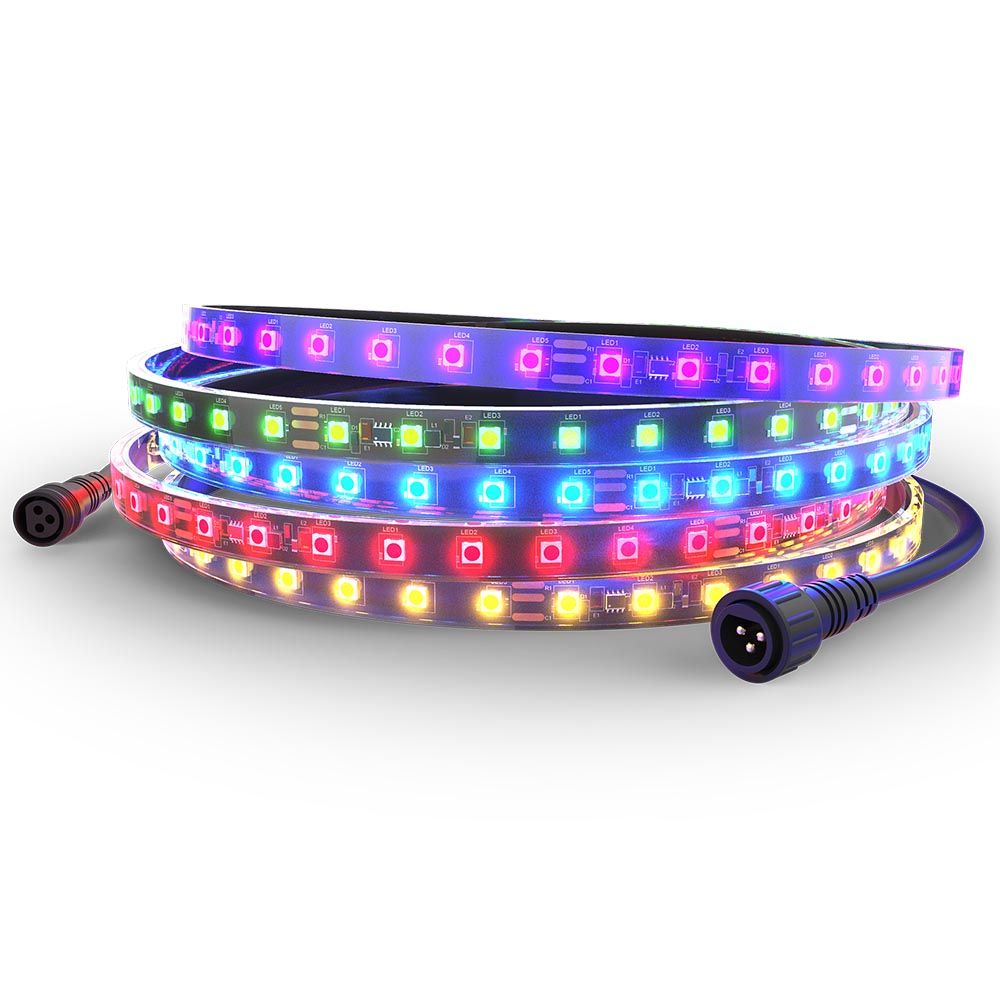

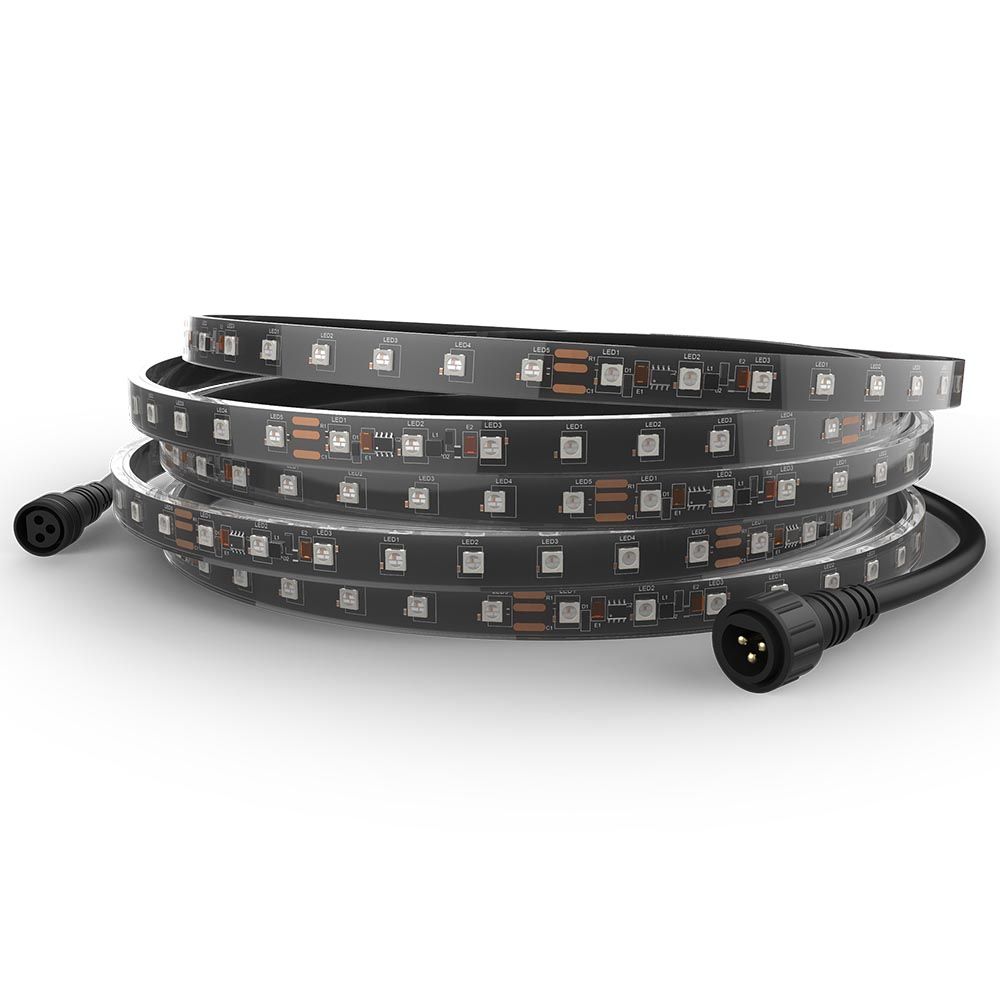

Chauvet Pro ÉPIX Flex 20 is a 5-meter flexible LED strip with 240 individually controllable, pixel-mappable RGB LEDs. Its IP67 rating and UV-protected silicone housing suit permanent outdoor architectural applications, nightclubs, and other entertainment venues. The strip supports DMX, Art-Net, and sACN, with 17, 34, and PIXEL control modes for simplified programming or video server integration. It can be cut to custom lengths and requires an ÉPIX Flex Drive for power and data.
Chauvet Pro ÉPIX Flex 20 Flexible Outdoor IP67 LED Strip
RRP: $791.00 ex. GST
Key Features:
- 240 individually controllable, pixel-mappable tri-color RGB LEDs
- IP67 rating for temporary outdoor and wet use
- Supports DMX, Art-Net, and sACN control protocols
- 17, 34, or PIXEL channel modes
- Can be cut to custom lengths for complex installations
- 160° viewing angle and 20 mm pixel pitch
- Includes 10 installation bracket sets and screws
Technical Data
| Light Source | 240 LEDs (tri-color RGB) SMD 50,000 hours life expectancy |
| Lumens | 140 lm/ft |
| Viewing Angle | 160° |
| Pixels | 240 x 1 |
| Pixel Pitch | 20 mm |
| Dimensions | 196.85 x 0.55 x 0.2 in (5,000 x 14 x 5 mm) |
| Weight | 1.2 lb (0.6 kg) |
| Exterior Color | Clear |
| Housing Material | high temperature silicone with UV protection |
| Data Connectors | 3-pin IP65 FLEX cable |
| Physical Linking | 2 ÉPIX Flex 20 (per output) (4 total) (without ÉPIX Flex Boost); 2 additional ÉPIX Flex 20 with ÉPIX Flex Boost (per output) (8 total) |
| Control Protocol | Art-Net, sACN, DMX |
| DMX Channels | 17, 34 or PIXEL |
| Art-Net Channels | 17, 34 or PIXEL |
| Power and Current | 79 W, 0.653 A @ 120 V, 60 Hz |
| Power and Current | 93 W, 0.450 A @ 208 V, 60 Hz |
| Power and Current | 95 W, 0.417 A @ 230 V, 50 Hz |
| Certifications | CE, MET |
| IP Rating | IP67, temporary outdoor/wet use |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
| Controller (required) | ÉPIX Flex Drive |
