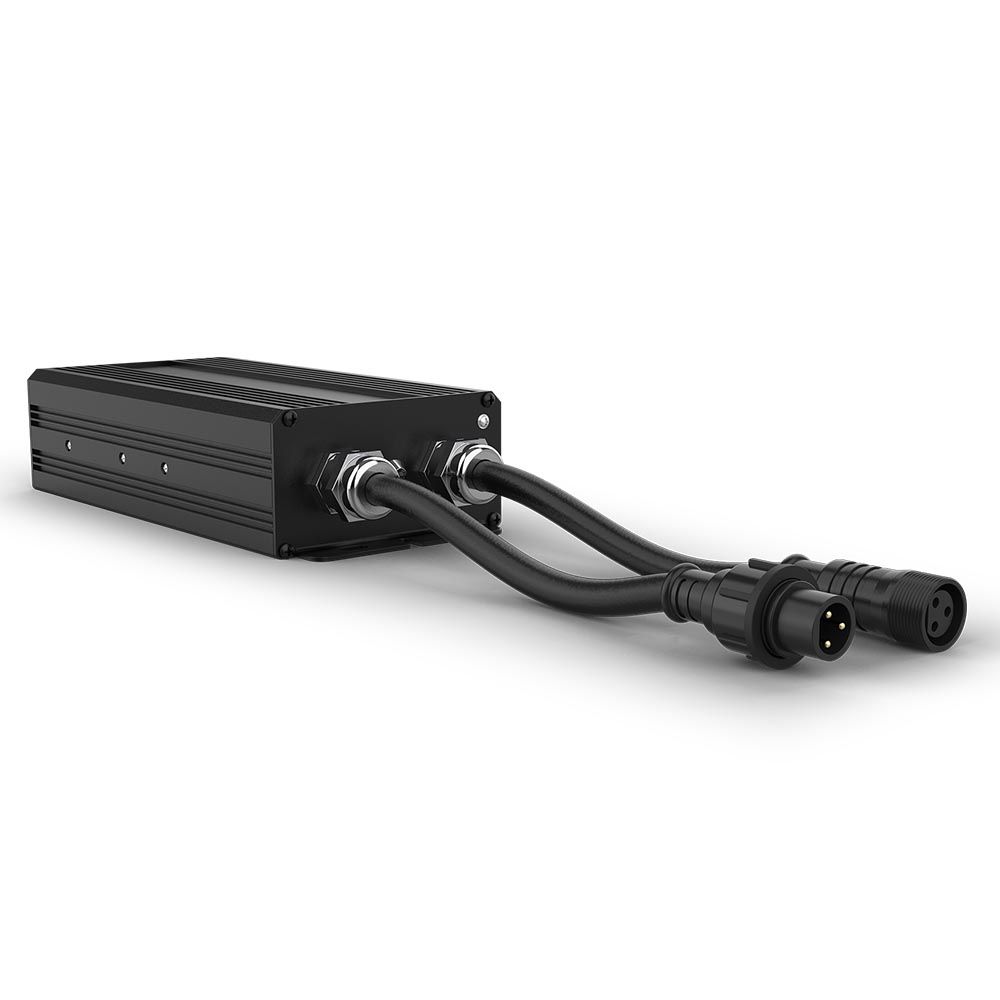

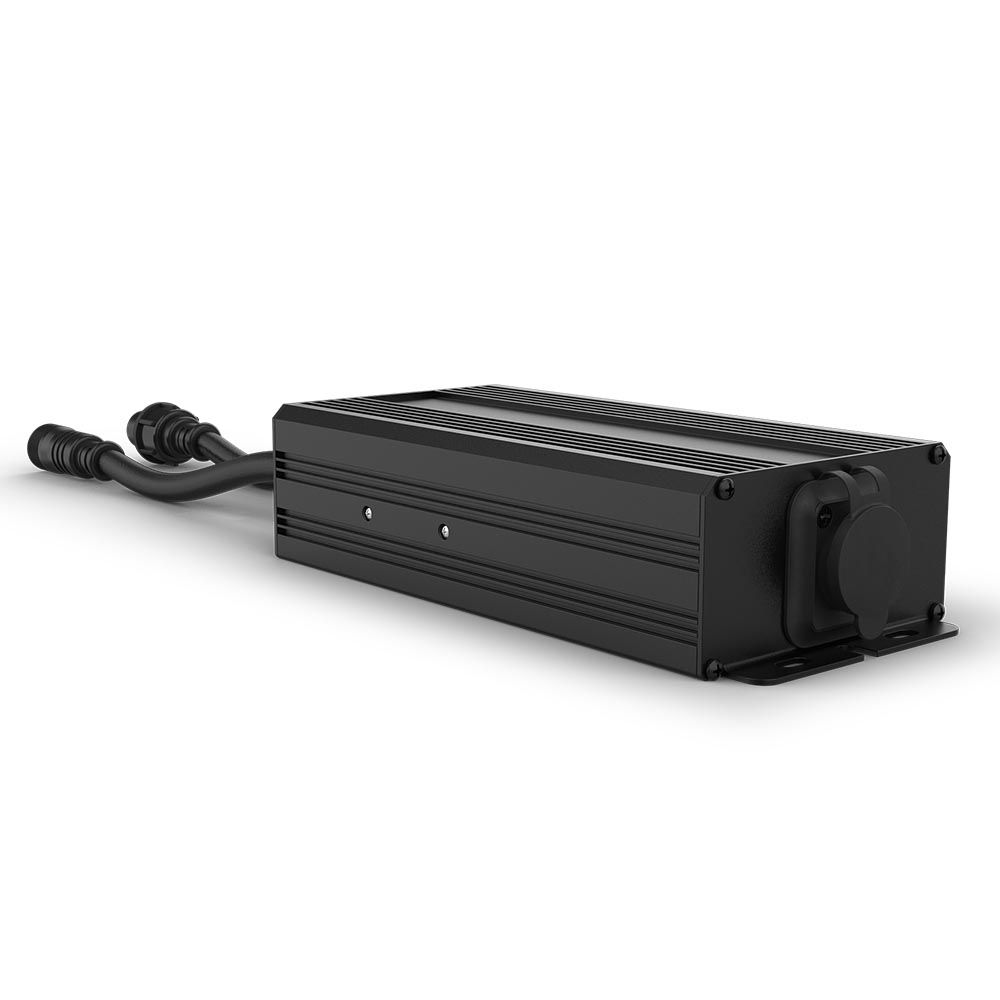

The Chauvet Pro ÉPIX Flex Boost is a plug-and-play, 24V in-line voltage booster for ÉPIX Flex 20 linear fixtures. It connects directly to the outputs of the required ÉPIX Flex Drive and doubles the capacity of each output for larger or extended-run installations. The unit has an IP65-rated aluminum housing for outdoor or wet environments and an auto-ranging 100 to 240 VAC power supply. It includes a Seetronic Powerkon power cord.
Chauvet Pro ÉPIX Flex Boost 24V In-Line Voltage Booster
RRP: $819.00 ex. GST
Key Features:
- Doubles the fixture capacity of each ÉPIX Flex Drive output
- Plug-and-play, solder-free system integration
- IP65-rated housing for outdoor or wet environments
- Designed for extended runs of ÉPIX Flex 20 linear fixtures
- Auto-ranging 100 to 240 VAC power supply
Technical Data
| Dimensions | 8.13 x 3.56 x 1.83 in (206.5 x 46.5 x 90.5 mm) |
| Weight | 4.4 lb (2 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum |
| Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Device inputs | (1) 3-pin male IP Flex |
| Device Outputs | (1) 3-pin female IP Flex |
| Physical Linking | 2 inline ÉPIX Flex 20 |
| Cable Length (signal) | 1.16 ft (0.355 m) |
| Cable Length (power) | 5 ft (1.5 m) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | 200 W, 1.6 A @ 120 V, 60 Hz |
| Power and Current | 200 W, 0.87 A @ 230 V, 50 Hz |
| Certifications | CE, MET |
| IP Rating | IP65, outdoor/wet, with pressure equalizing M14 GORE valve |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
| MET Listing Number | E114016-1144 |
| US Safety | UL 8750 |
| Canadian Safety | CSA C22.2 No. 250.13-12 |
| Accessories (required) | ÉPIX Flex Drive |
| Compatible Mounting Options | M12 Bolt/Clamp |
| Compatible Accessories | Clamps; IP Flex Cables; Seetronic Powerkon cables; DMX Cables |
| What’s Included | ÉPIX Flex Boost; Seetronic Powerkon power cord |
