Chauvet Pro ÉPIX Flex Drive is a dedicated driver for powering and controlling ÉPIX Flex 20 LED products in architectural, event, and stage installations. It supports DMX, Art-Net, and sACN control, with two outputs and configuration based on the pixel count assigned to each output. The unit natively supports up to four ÉPIX Flex 20 rolls, or up to eight rolls using the optional ÉPIX Flex Boost, and can be placed up to 75 feet from the first connected pixel strip. An onboard OLED display, full webserver interface, and RDM over Art-Net support provide local and remote configuration options.

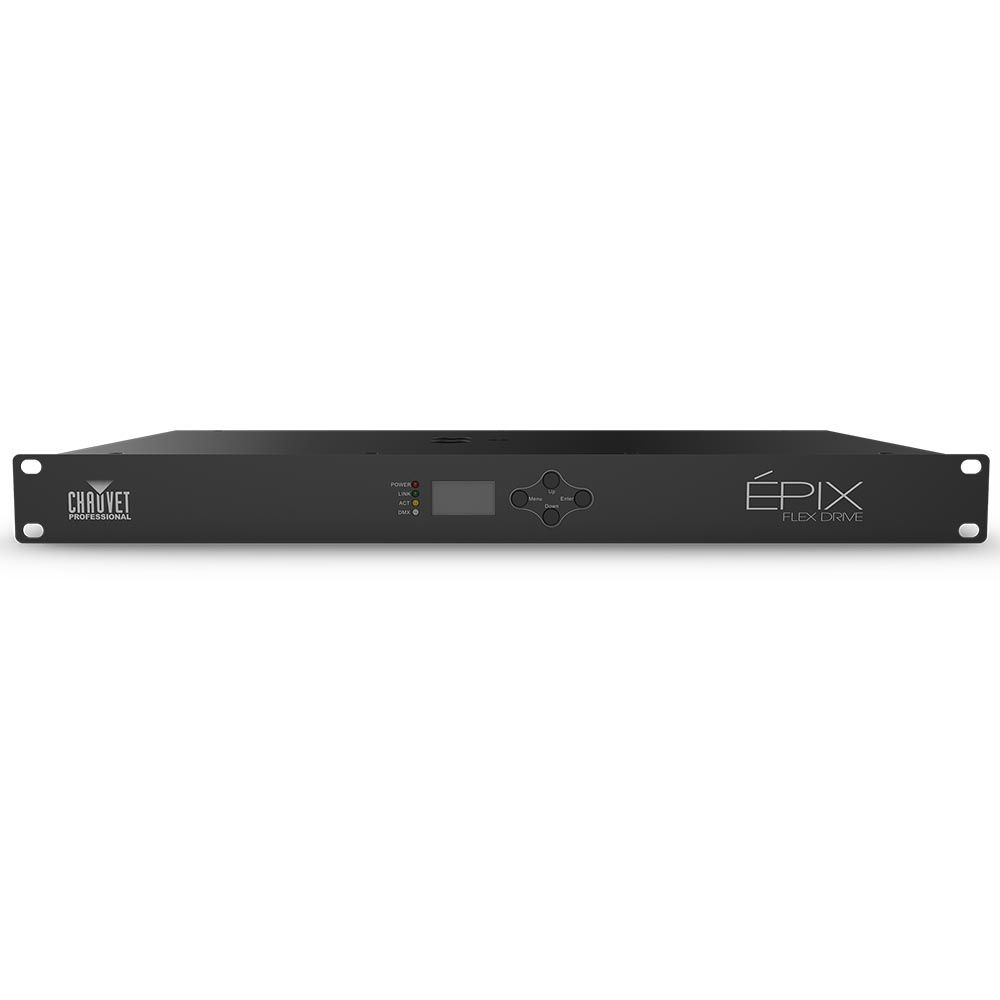

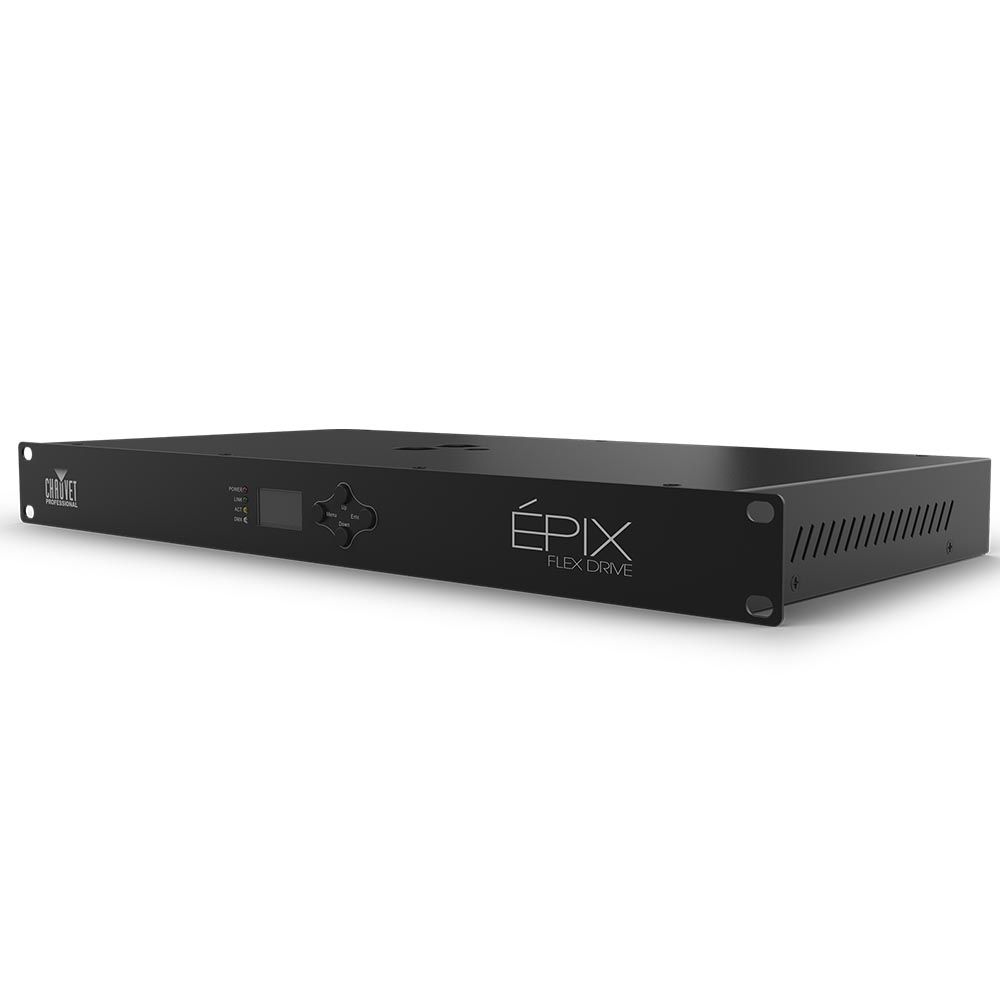

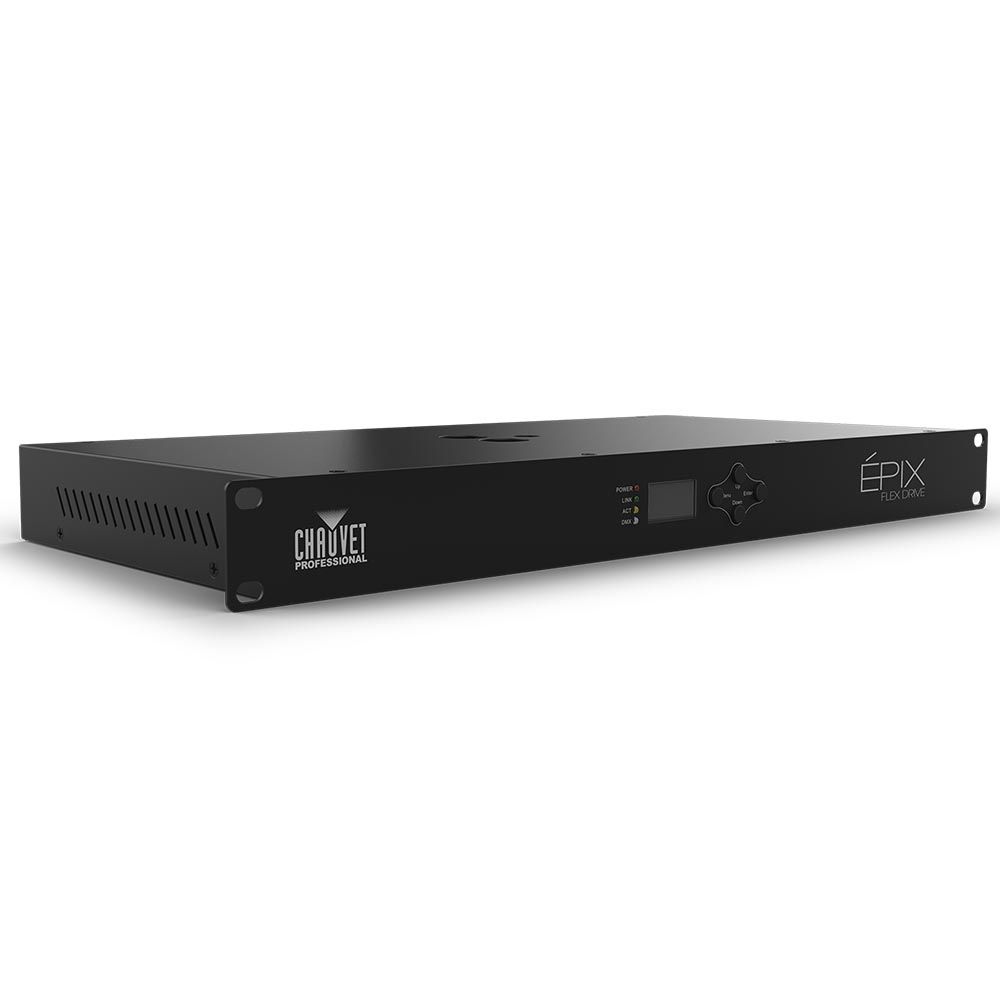

Chauvet Pro ÉPIX Flex Drive
RRP: $1,791.00 ex. GST
Key Features:
- Natively powers up to 1920 LEDs, with capacity doubled using the ÉPIX Flex Boost.
- Supports DMX, Art-Net, and sACN control protocols.
- Provides remote configuration and firmware updates through a full webserver and RDM support.
- Advanced power management allows placement up to 75 feet from the first connected LED strip.
- Onboard OLED display and menu system support local configuration.
- Integrates with ArKaos Media Master Express for plug-and-play pixel mapping with minimal setup.
Technical Data
| Dimensions | 19 x 17.52 x 1.7 in (483 x 445 x 44 mm) |
| Weight | 6 lb (2.7 kg) |
| Exterior Color | Black |
| Housing Material | Steel |
| Rackmount | 1U |
| Power Connection | Edison (local) plug to IEC |
| Power Input | IEC |
| Cable Length (power) | 5 ft (1.5 m) |

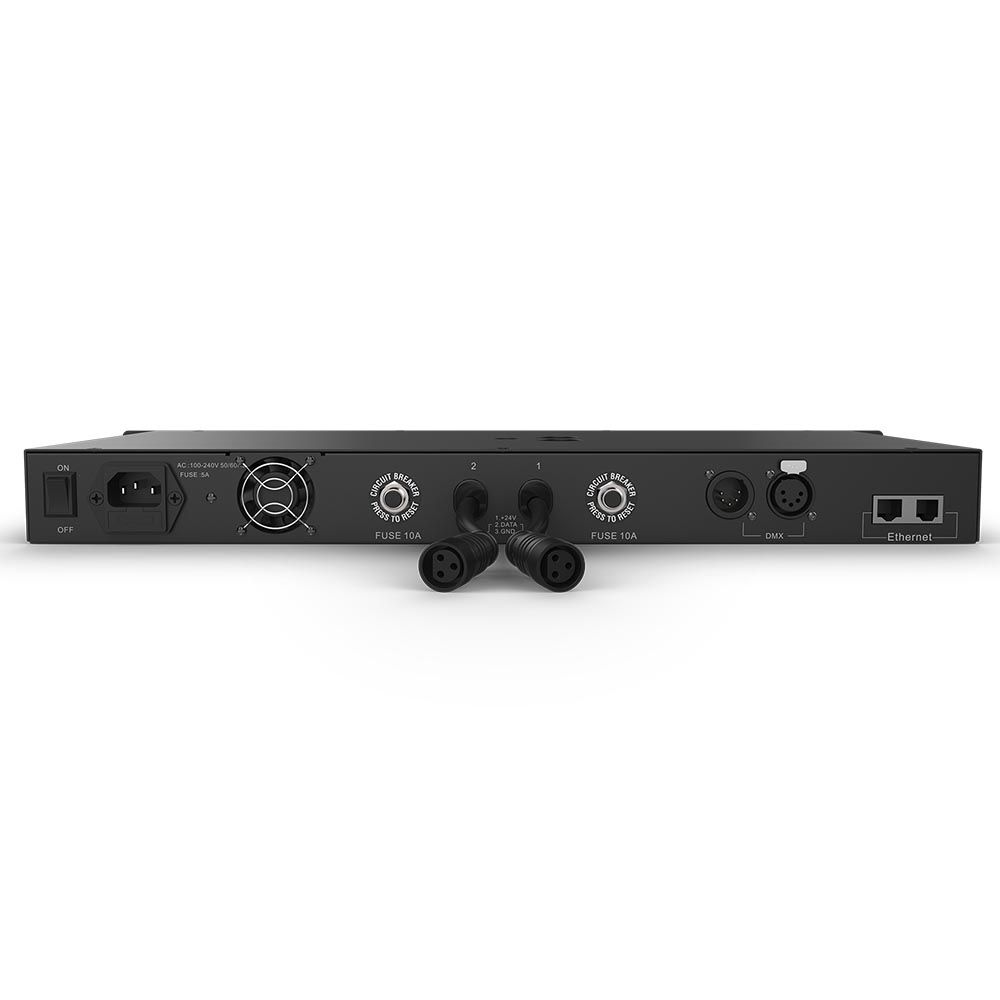

| Device Data Inputs | Ethernet (RJ45) (2 total) and 5-pin XLR (2 total) |
| Device Outputs (3-pin IP65 ports) | 2 |
| Physical Linking per port (without Flex Boost) | 2 inline ÉPIX Flex 20 |
| Physical Linking per port (with Flex Boost) | 4 inline ÉPIX Flex 20 |
| Total max. cable extension length (without Flex Boost) between ÉPIX Flex Drive and first ÉPIX Flex 20 | 75 ft (22.9 m) |
| Total max. cable extension length (with Flex Boost) between ÉPIX Flex 20 and ÉPIX Flex 20 | 10 ft (3 m) |
| Total max. cable extension length between ÉPIX Flex Boost and ÉPIX Flex 20 | 5 ft (1.5 m) |
| Control Protocol | Art-Net, sACN, DMX |
| DMX Channels | 17, 34 or PIXEL |
| Art-Net Channels | 17, 34 or PIXEL |
| Modes/Personalities | 3 personalities (17ch, 34ch, PIXEL) |
| Maximum Supported LEDs (per port) | 960 |
| Maximum Supported LEDs (total) | 1920 |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | 326 W, 2.75 A @ 120 V, 60 Hz 314 W, 1.64 A @ 208 V, 60 Hz 312 W, 1.50 A @ 230 V, 50 Hz |
| Certifications | CE, MET |
| IP Rating | IP20, dry location |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
| MET Listing Number | E114016-1144 |
| US Safety | UL 8750 |
| Canadian Safety | CSA C22.2 No. 250.13-12 |
| Compatible Accessories | ArKaos Media Master Express + KN software |
| What’s Included | ÉPIX Flex Drive IEC power cord |
