Chauvet Pro ÉPIX Strip IP is a one-meter outdoor-rated LED strip fixture with 100 tri-color RGB LEDs arranged as 100 x 1 pixels. It is intended for festivals, concert touring, and installations requiring pixel-mapped visual effects. The fixture supports Art-Net, Kling-Net, and sACN protocols, with 4800 Hz S-PWM for flicker-free camera performance. It requires the ÉPIX Drive 2000 IP for unified power and data control and includes interchangeable filters for different visual outputs.

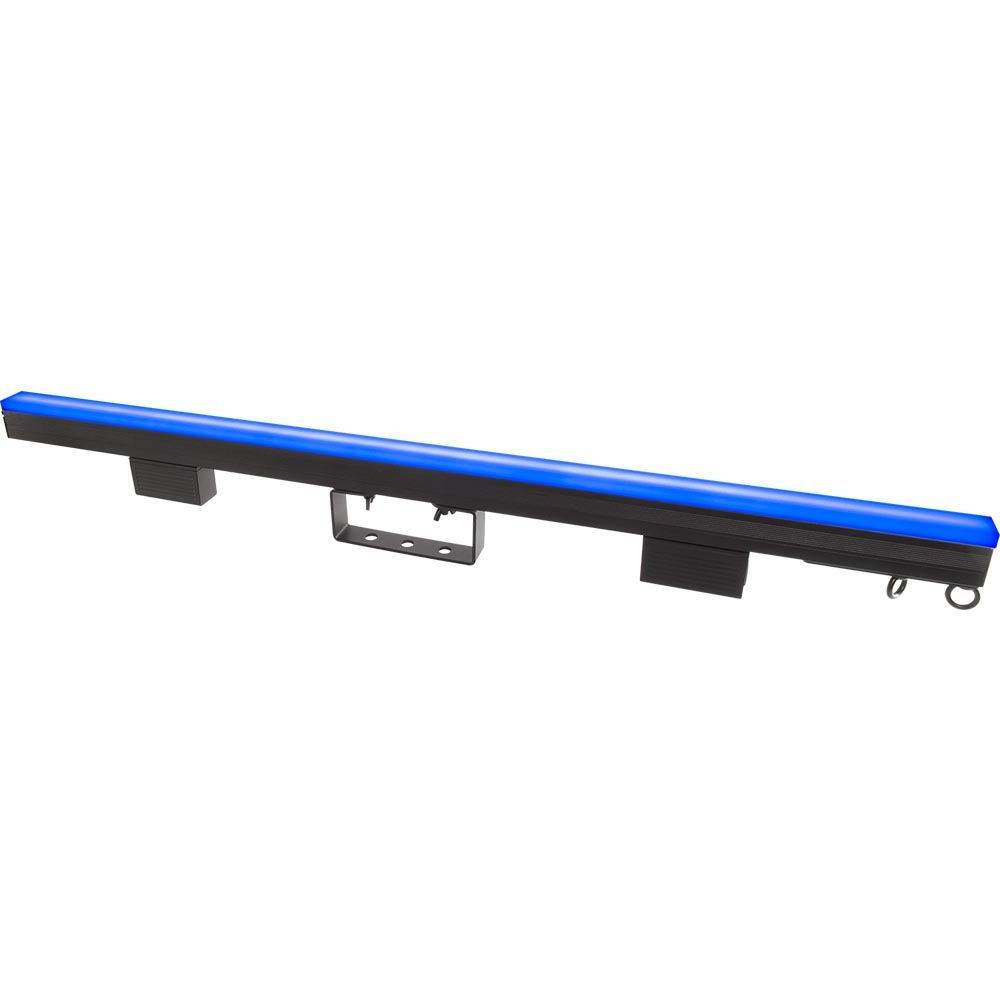

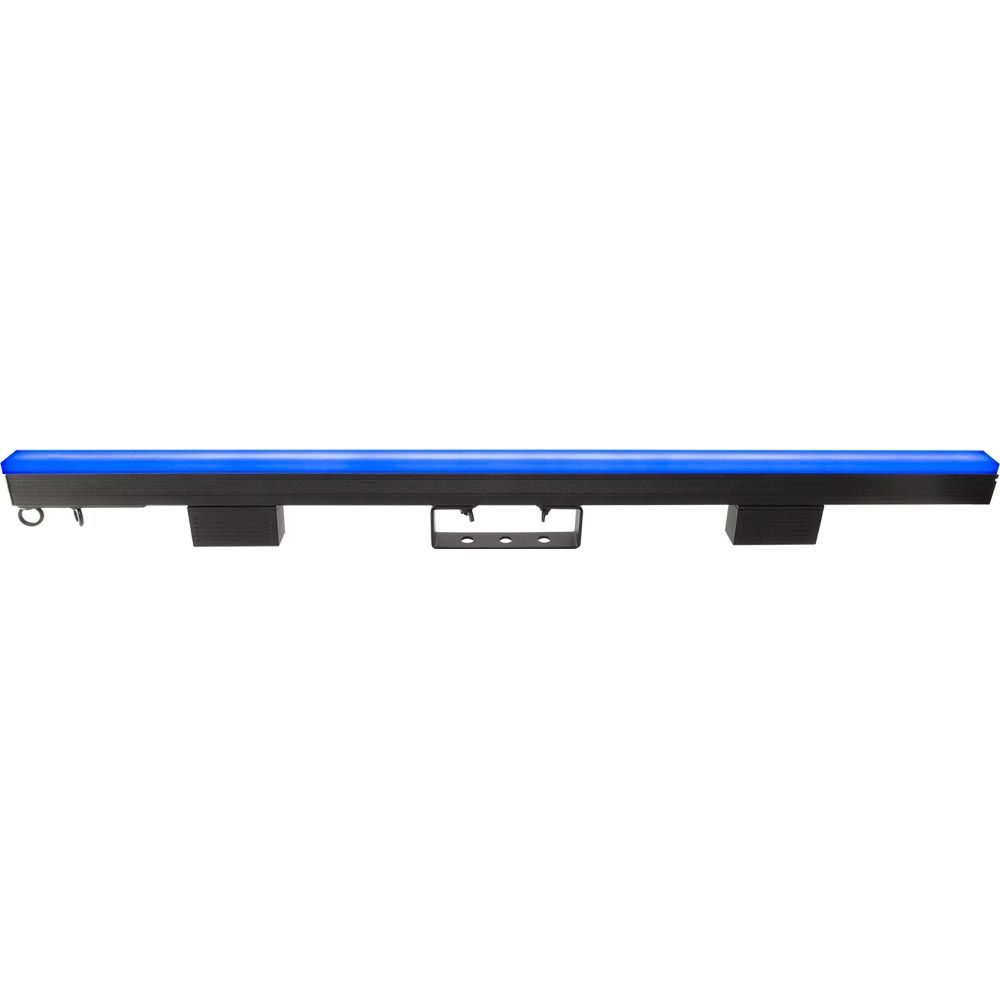

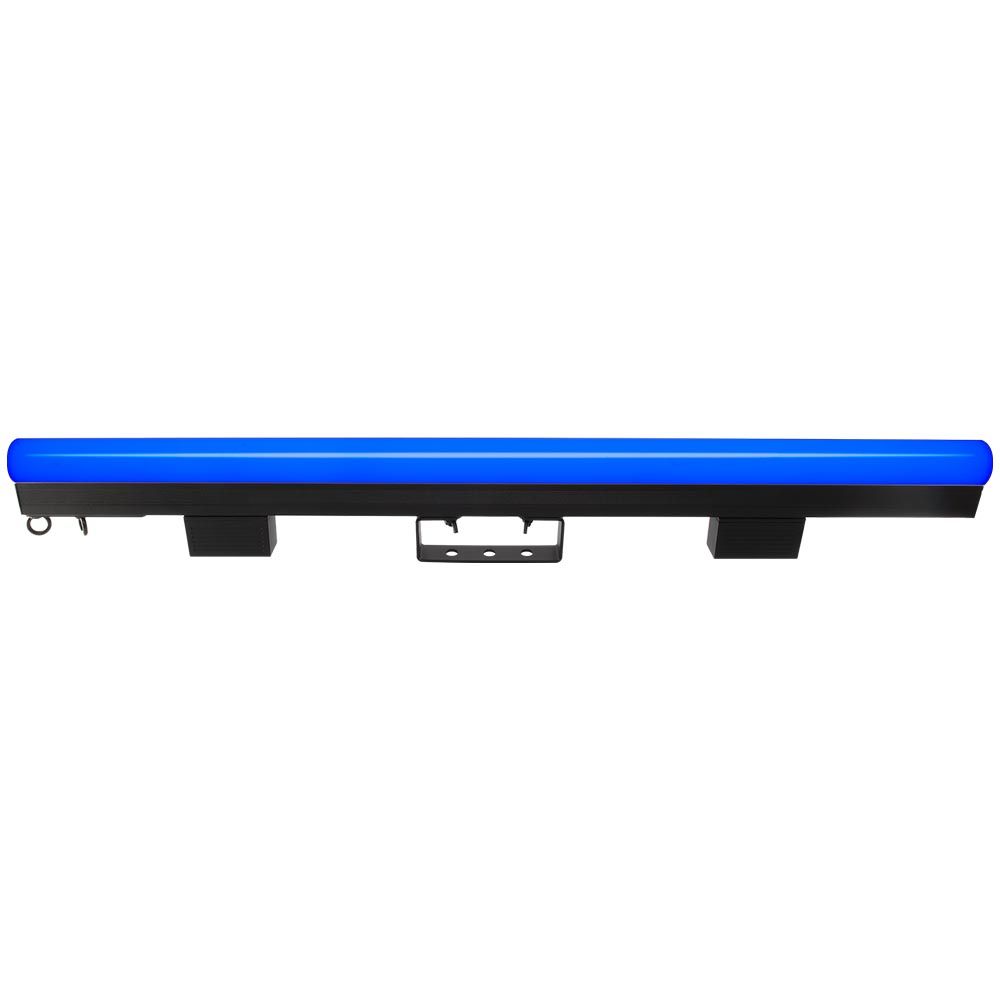

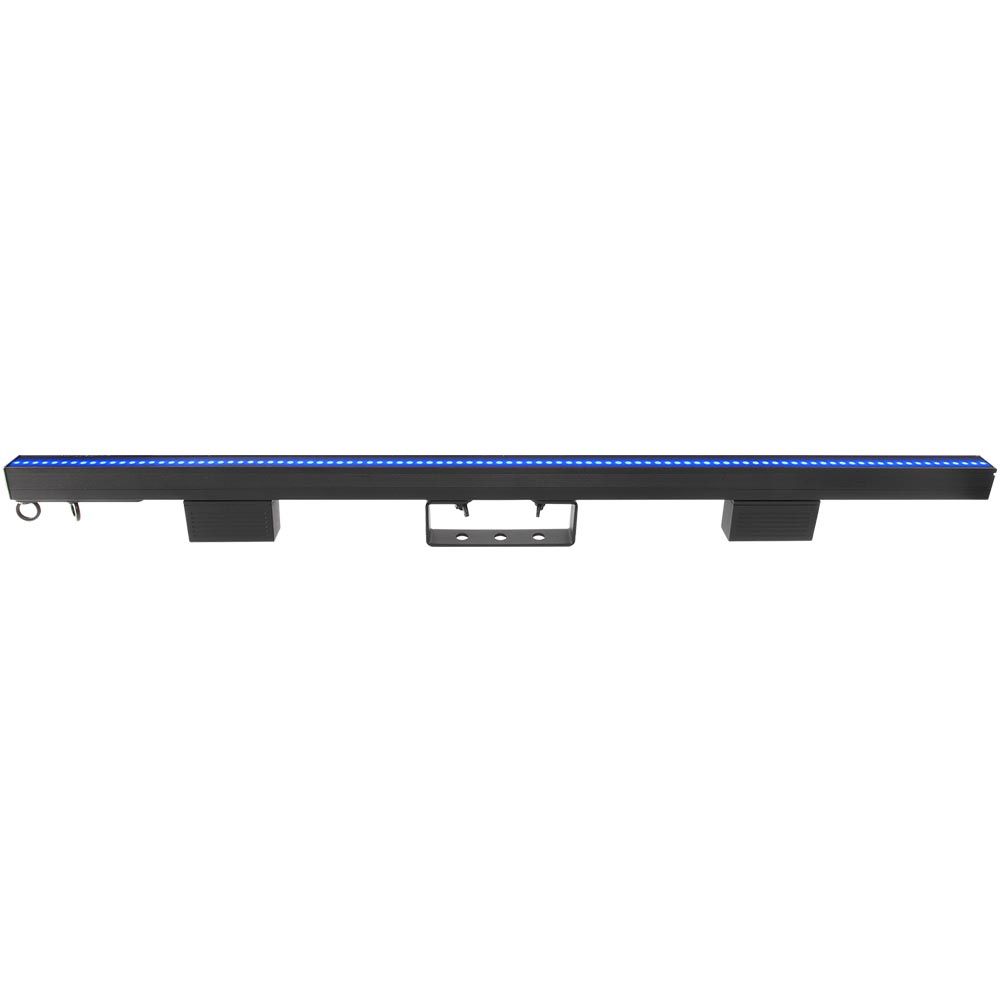

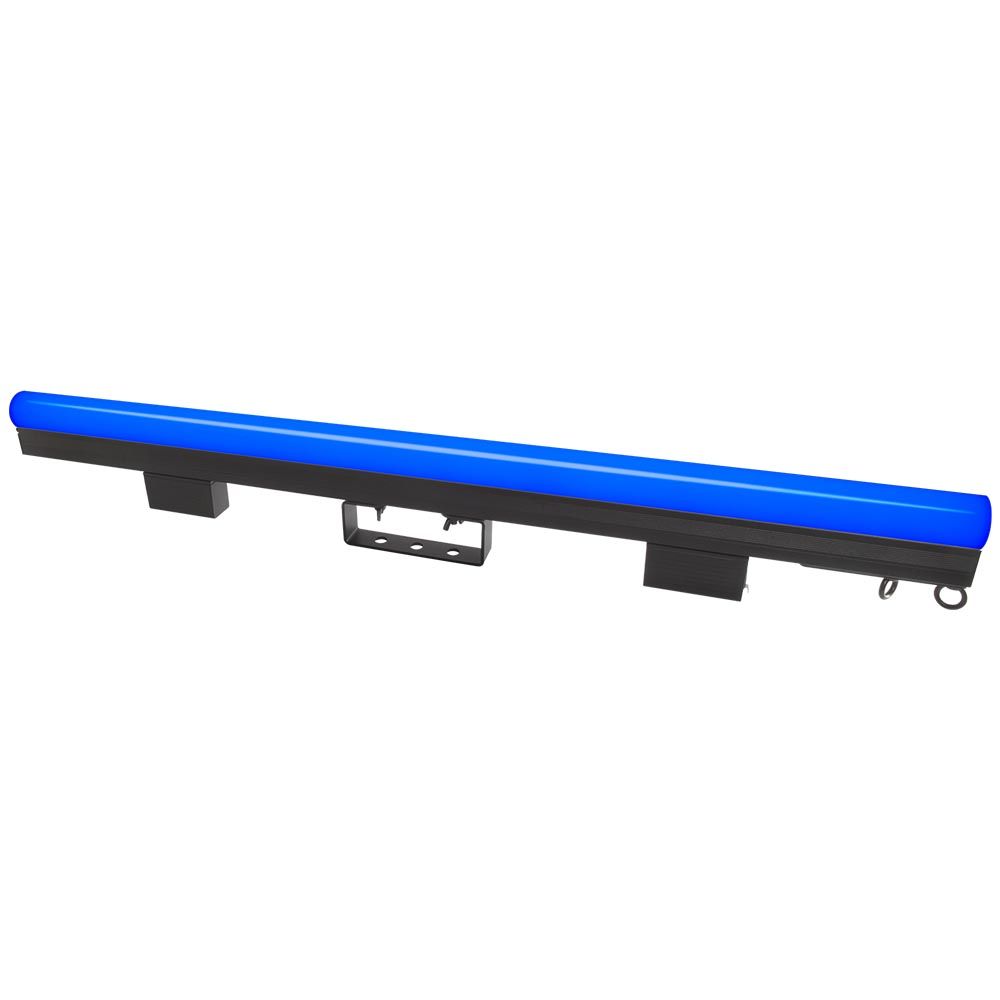

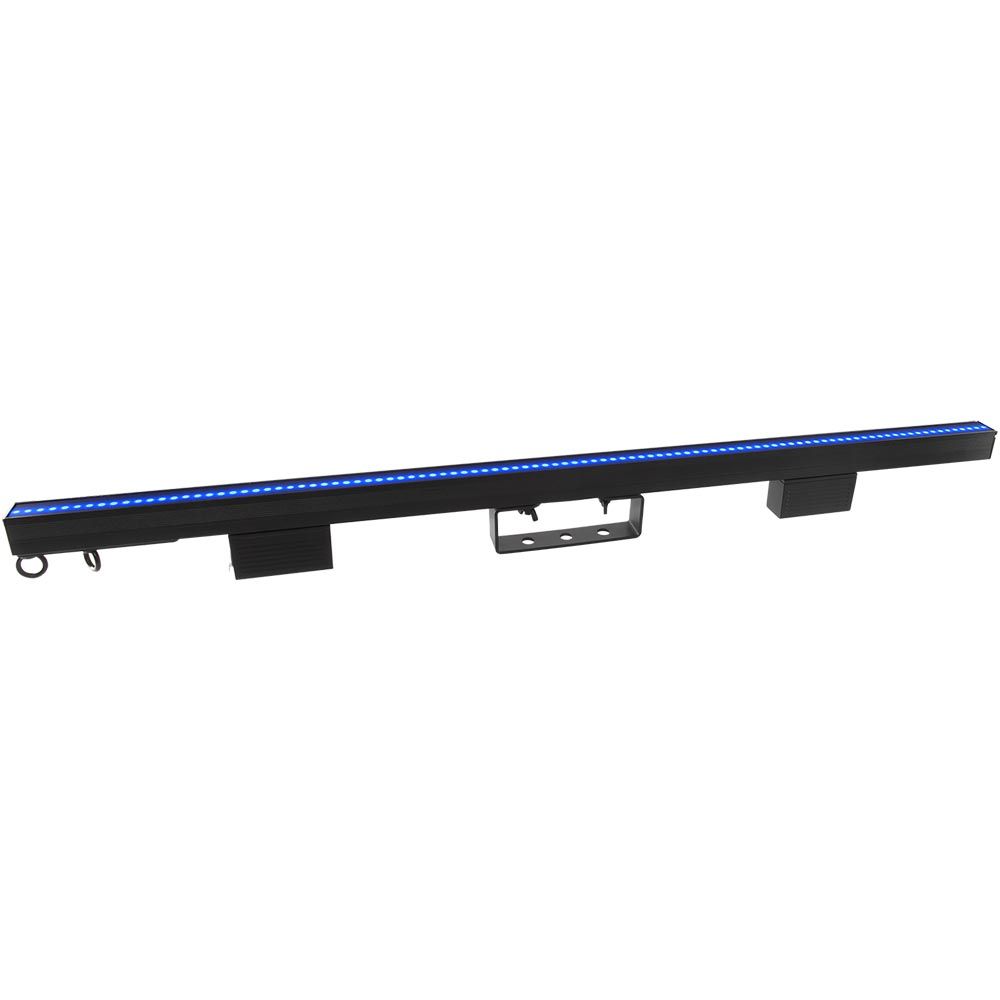

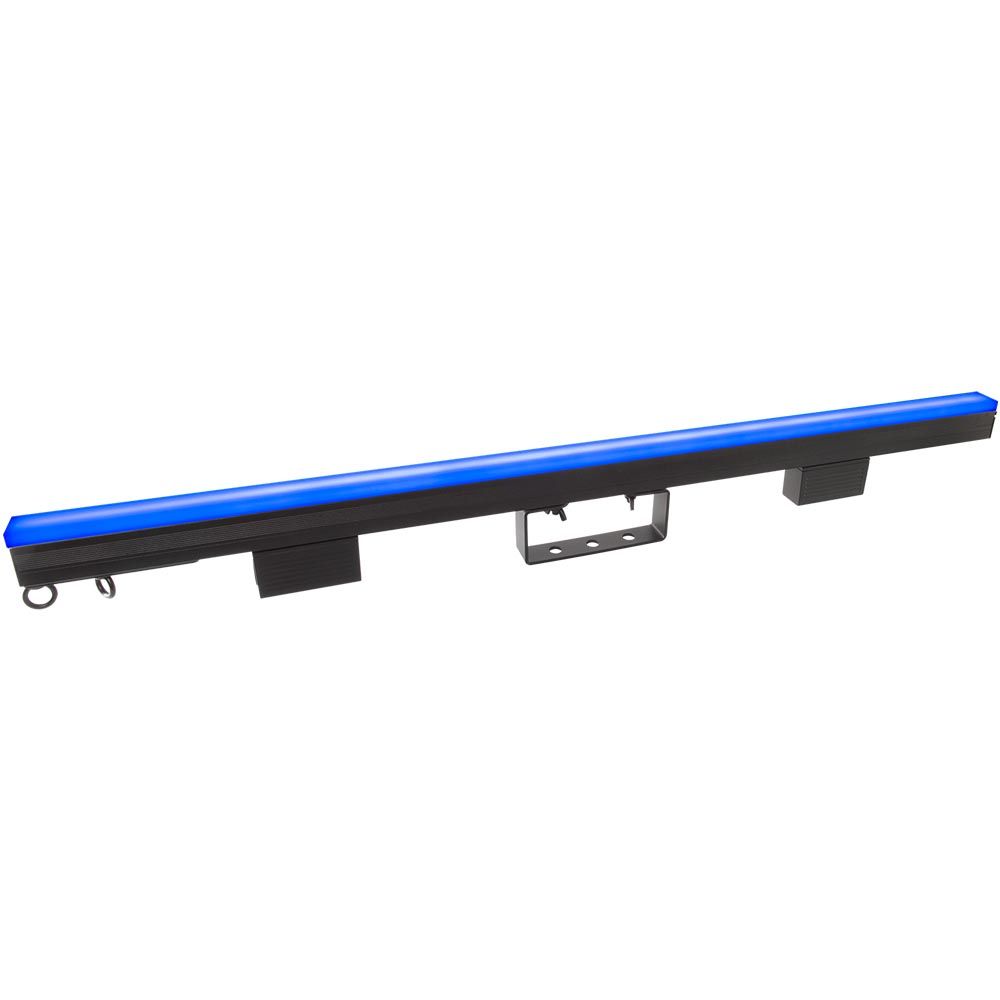

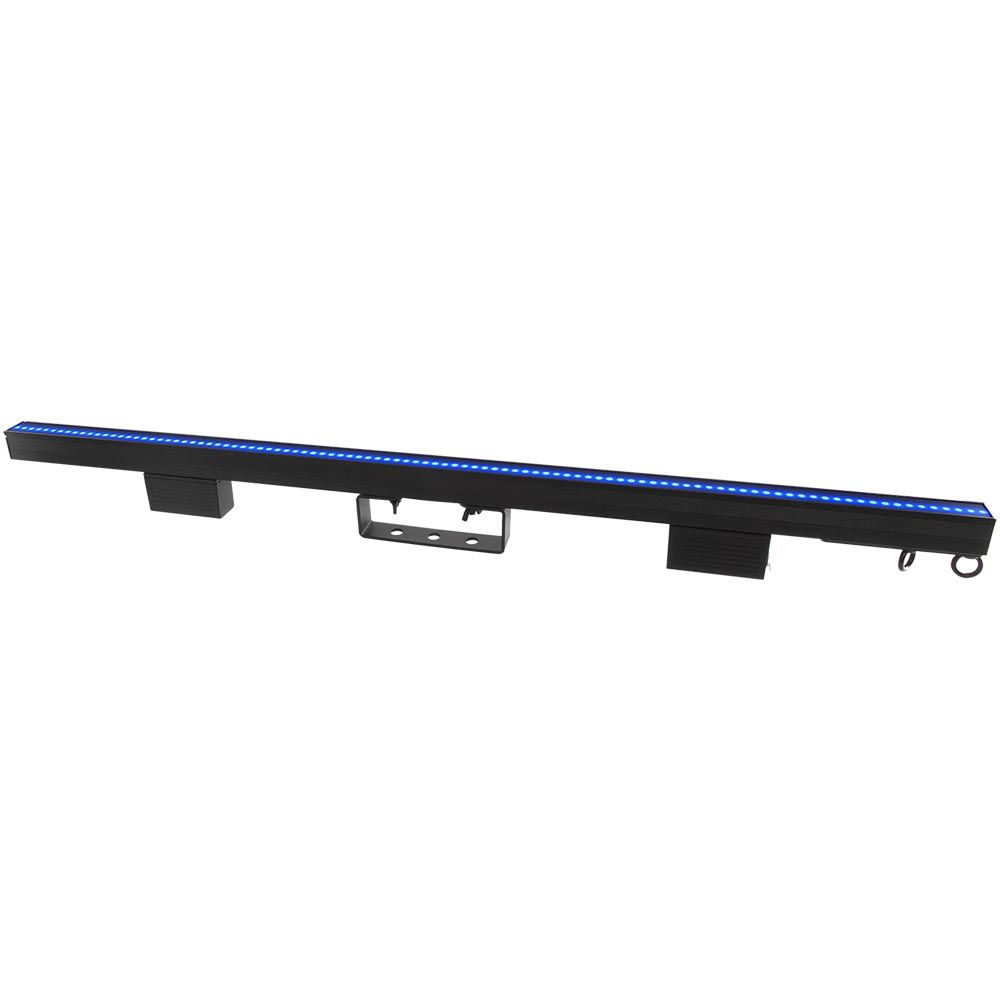

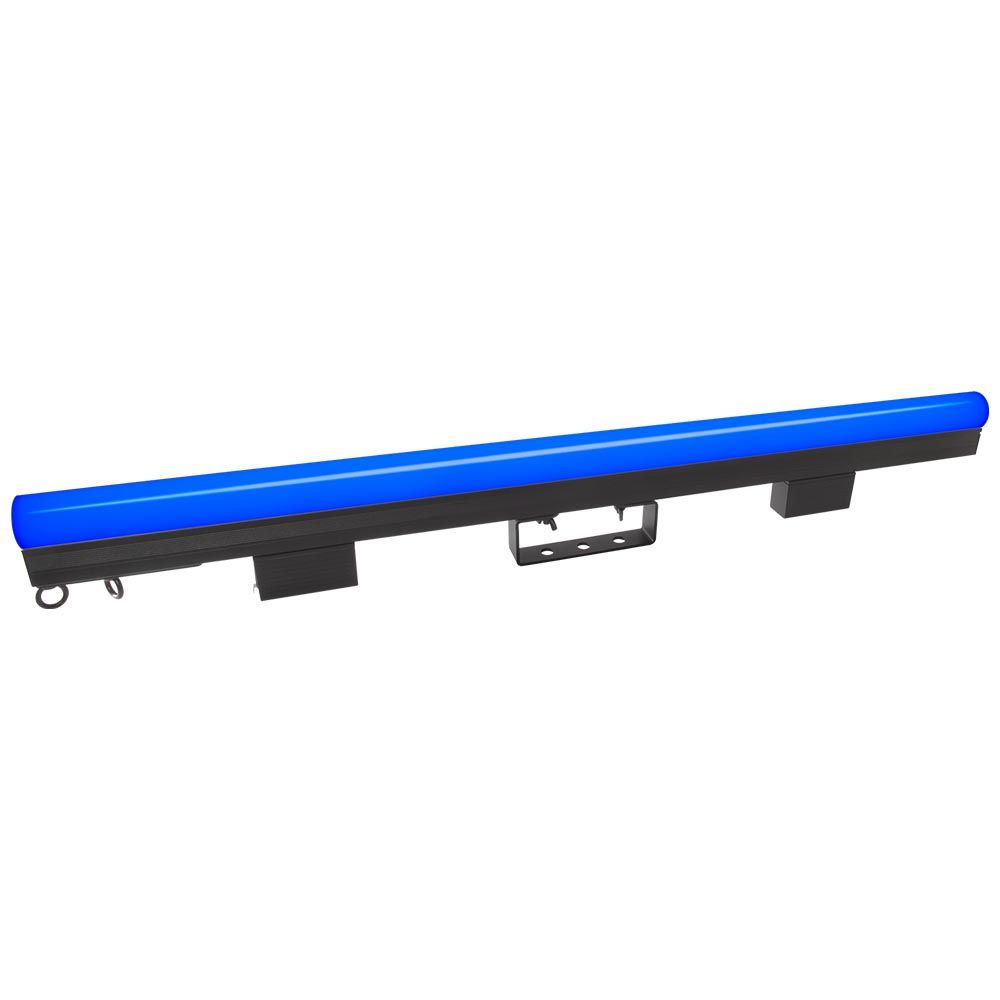

Chauvet Pro ÉPIX Strip IP IP65 Pixel-Mapping LED Strip Fixture
RRP: $1,224.00 ex. GST
Key Features:
- 100 tri-color RGB LEDs for pixel-mapping effects
- IP65-rated housing for temporary outdoor and wet use
- Supports Art-Net, Kling-Net, and sACN control protocols
- 4800 Hz S-PWM refresh rate for flicker-free camera performance
- Interchangeable filters for customized diffusion, contrast, and visual output
- Requires the ÉPIX Drive 2000 IP for power and data control
Technical Data
| Light Source | 100 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy |
| Pixels | 100 x 1 |
| Pixel Pitch | 10 mm |
| Refresh Rate | 4800 Hz (S-PWM) |
| Viewing Angle (with installed square milky filter) | 160° |
| Weight | 6 lb (2.7 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum |
| Data Connectors | 4-pin XLR |
| Physical Linking | 10 inline ÉPIX Strip IP per port of Drive 2000 IP |
| Control Protocol | Art-Net, Kling-Net, sACN |
| Control Channels (Art-net, sACN) | 7, 8, 15, 30, 75, 150 or 300 |
| Power and Current | 35 W, 0.292 A @ 120 V, 60 Hz |
| Power and Current | 44 W, 0.210A @ 208 V, 60 Hz |
| Power and Current | 44 W, 0.195 A @ 230 V, 50 Hz |
| Certifications | CE, MET |
| IP Rating | IP65, temporary outdoor/wet use |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
| Required Accessories | Controller (required): ÉPIX Drive 2000 IP |
