The Chauvet Pro Maverick Force X Profile (Moving LED) is a compact LED moving profile for short- and long-throw applications. Its 520W cool white LED engine produces 18,963 lumens, with a 3.5° to 57.3° zoom range and a flat field of focus. The fixture combines variable CMY color mixing, color filters, dual gobo wheels, a five-facet prism, iris, and frost for projection and effects work. Control is available through DMX, Art-Net, sACN, and CRMX.

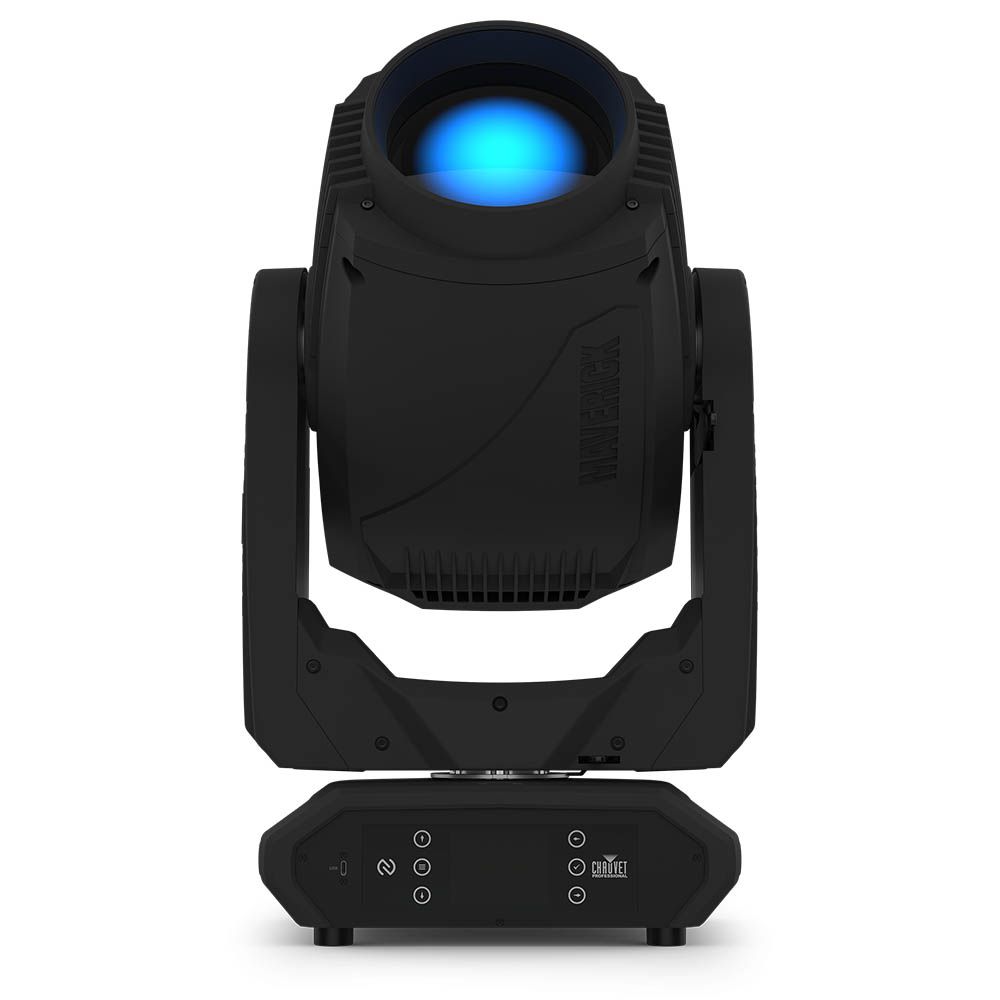

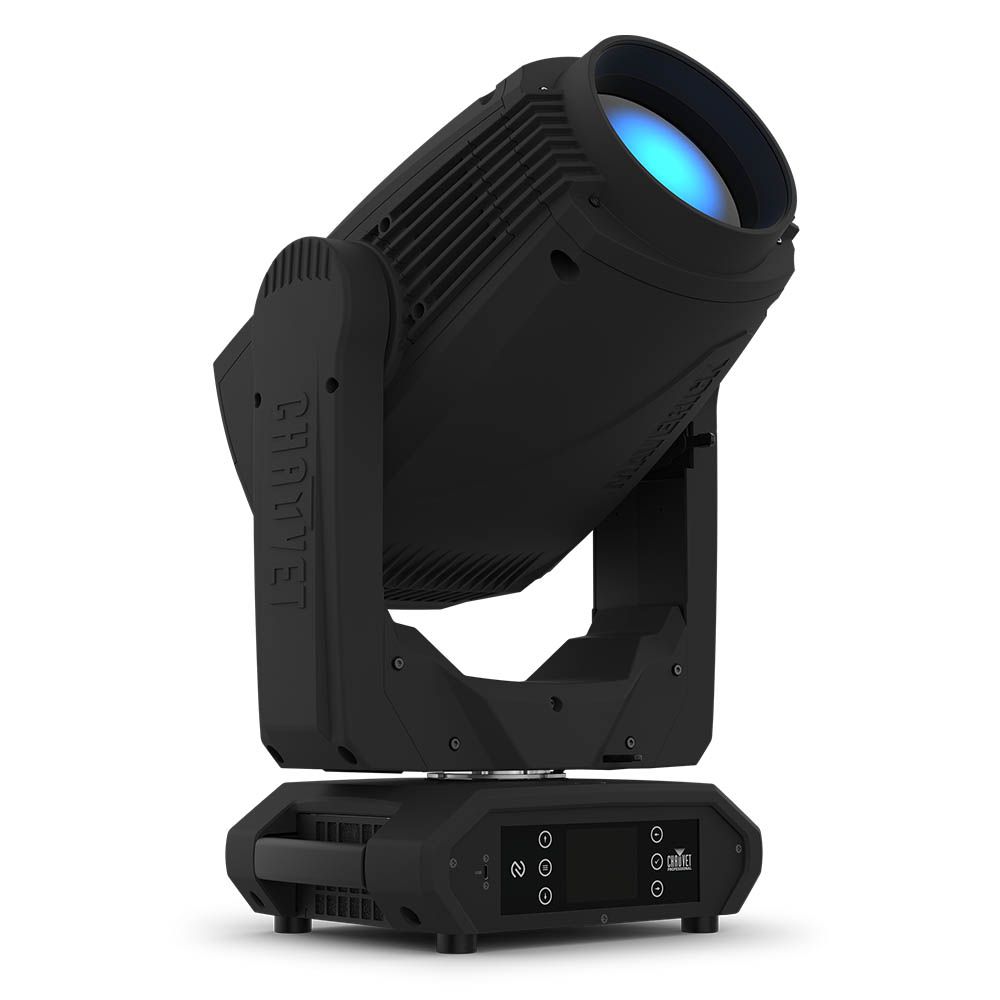

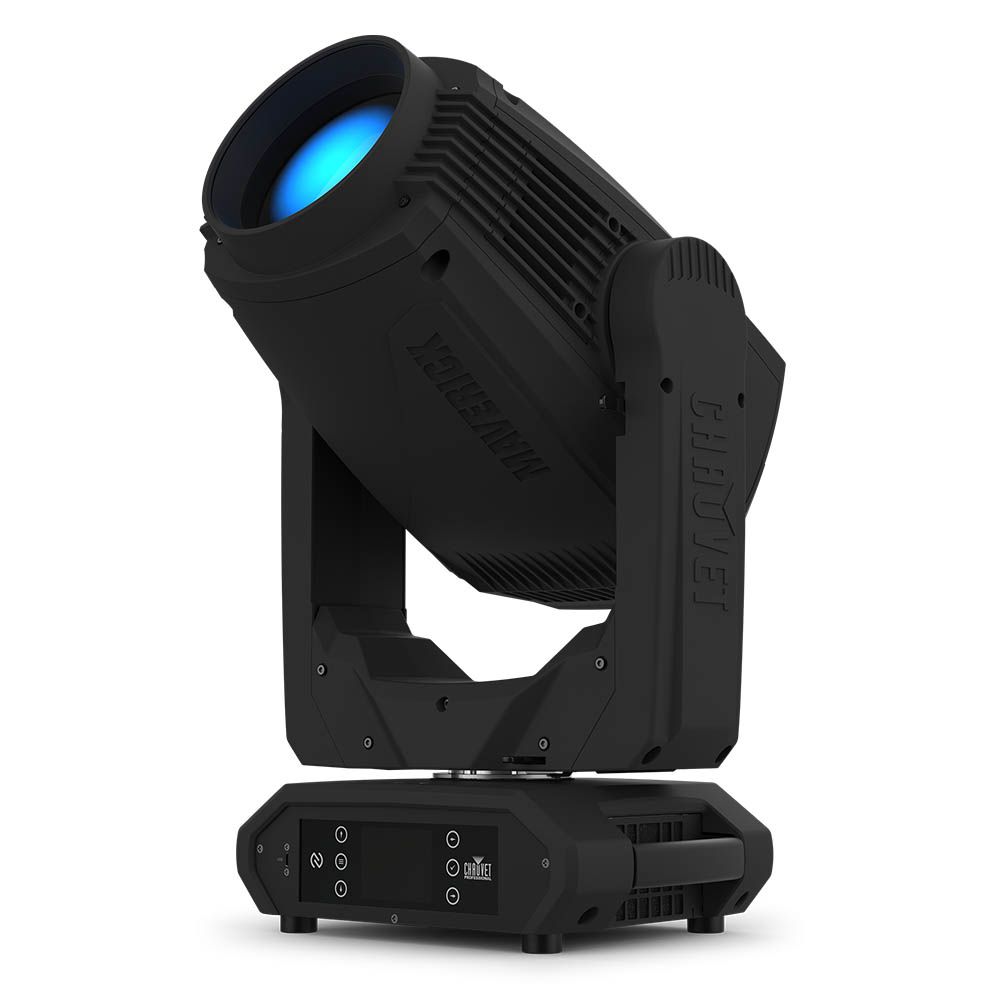

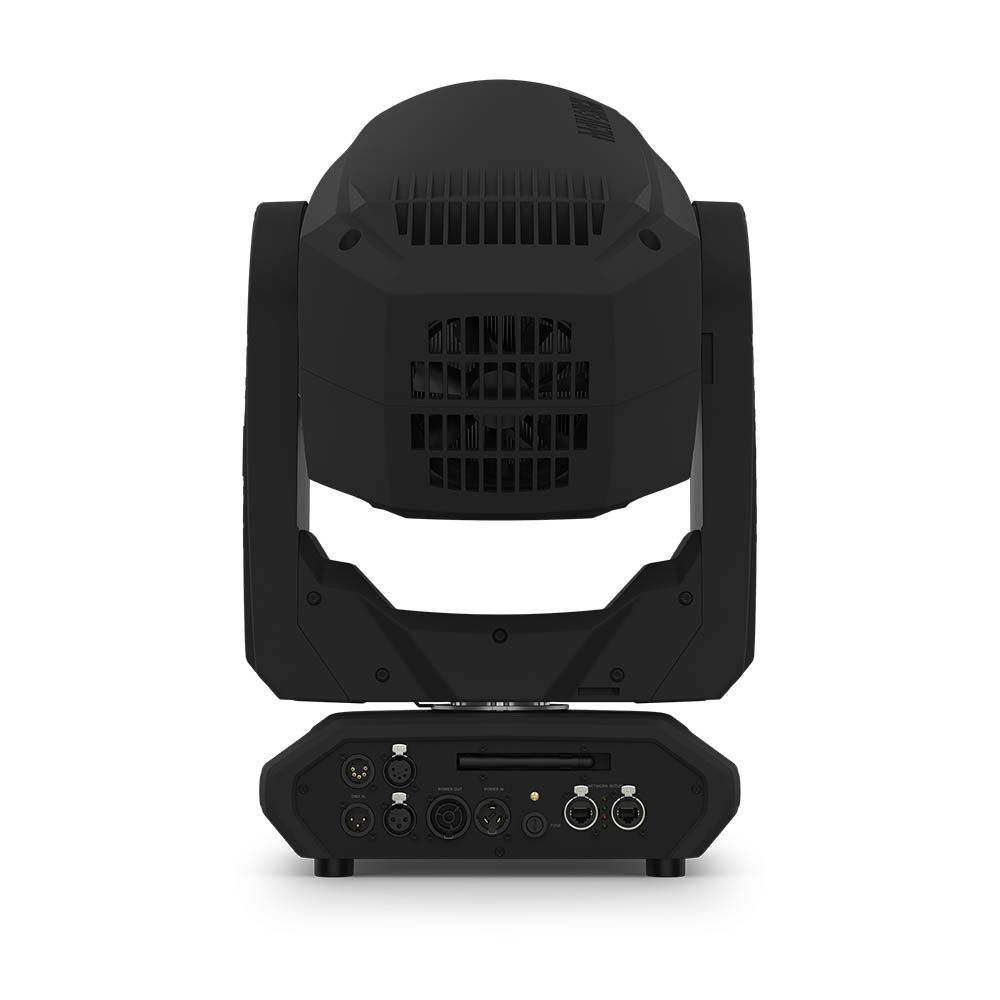

Chauvet Pro Maverick Force X Profile (Moving LED)
RRP: $9,915.00 ex. GST
Key Features:
- 520W cool white LED engine with 18,963 lumens output
- 3.5° to 57.3° zoom range with a flat field of focus
- Variable CMY system and color wheel with CRI and CTB filters
- Dual gobo wheels, 5-facet prism, iris, and frost
- Flicker-free operation on camera with high-speed PWM and 16-bit dimming
- DMX, Art-Net, sACN, and CRMX control
Technical Data
| Light Source | 1 LEDs (CW) 520 W, (4.2A), 6966 K, L70 rating: 22,938 Hours under LED manufactures test conditions (LM-80: 6,000 hrs) |
| Zoom Range | 3.5° to 57.3° |
| Lumens – Output | 18,963 |
| Colors | 7 (Red, Orange, Magenta, CTO 4300k, CTO 3200K, CRI and CTB filters) + white, split colors, continuous scroll at variable speeds |
| Gobos (1) | 7 + open (1 metal + 6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds |
| Gobos (2) | 9 + open (9 metal), continuous scroll at variable speeds |
| Gobo Wheel 1 (rotating) | 23.9 mm (outside), 14 mm (image), 1.1 mm (max. thickness) |
