The Chauvet Pro Maverick Force X Spot is a compact LED moving head spot fixture with 17,325 lumens of output and a motorized zoom range from 3.5° to 57.7°. It combines variable CMY color mixing with a color wheel, static and rotating gobo wheels, a five-facet prism, iris, frost, motorized focus, and electronic dimming. Control options include DMX, RDM, sACN, Art-Net, and CRMX, with 22 or 29 DMX channels. The fixture measures 14.21 x 9.40 x 25.43 in and weighs 44.2 lbs.

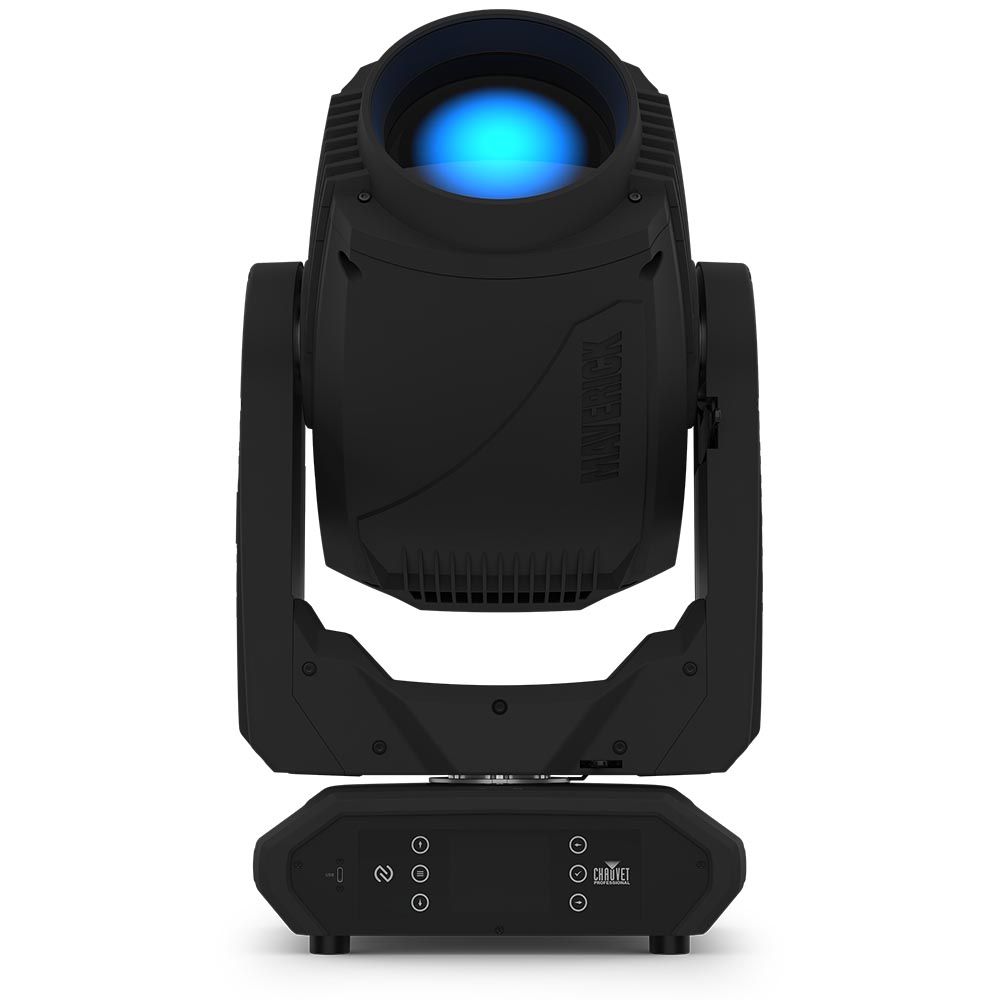

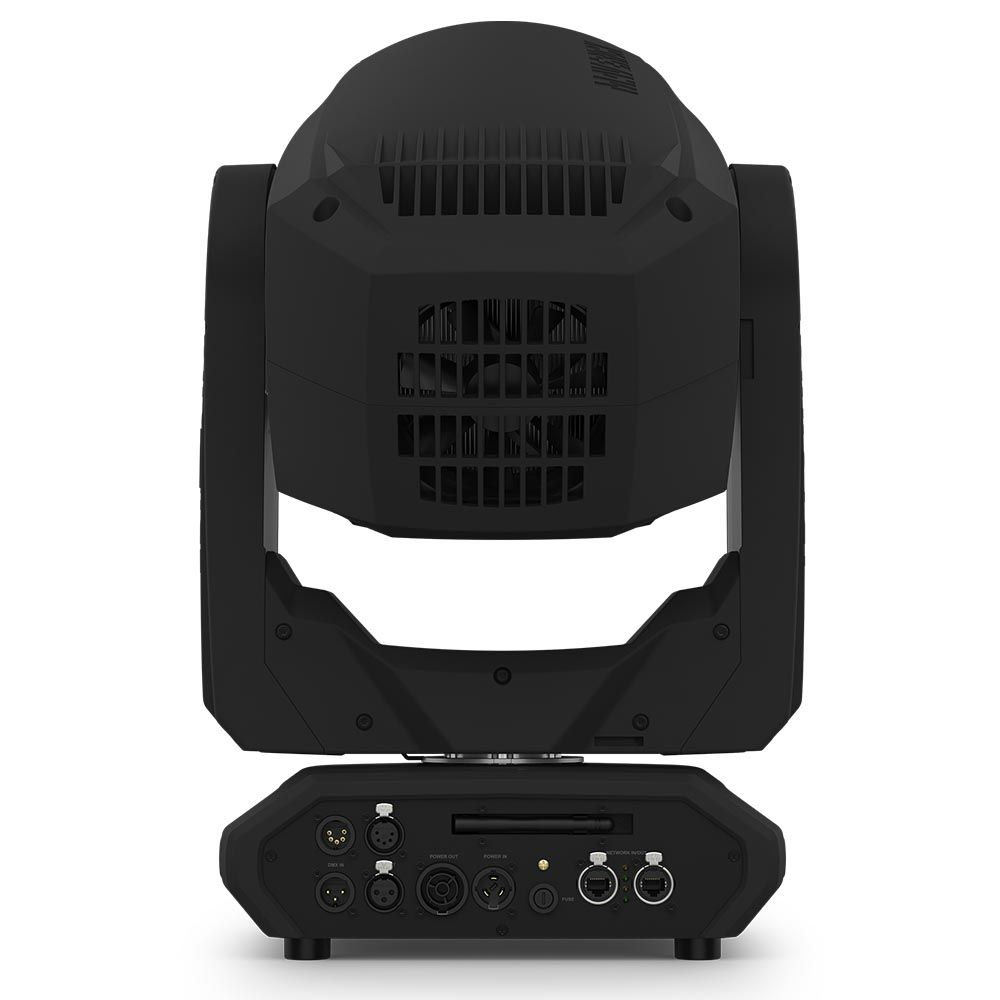

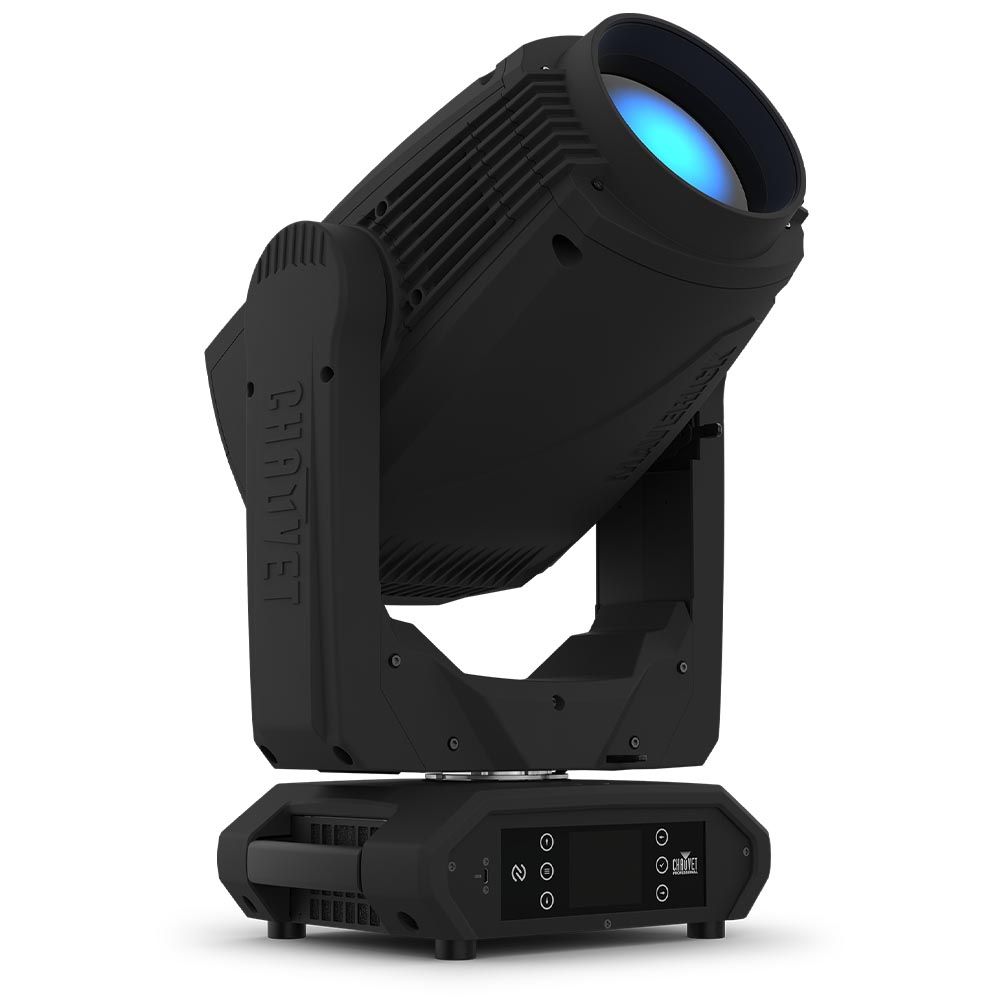

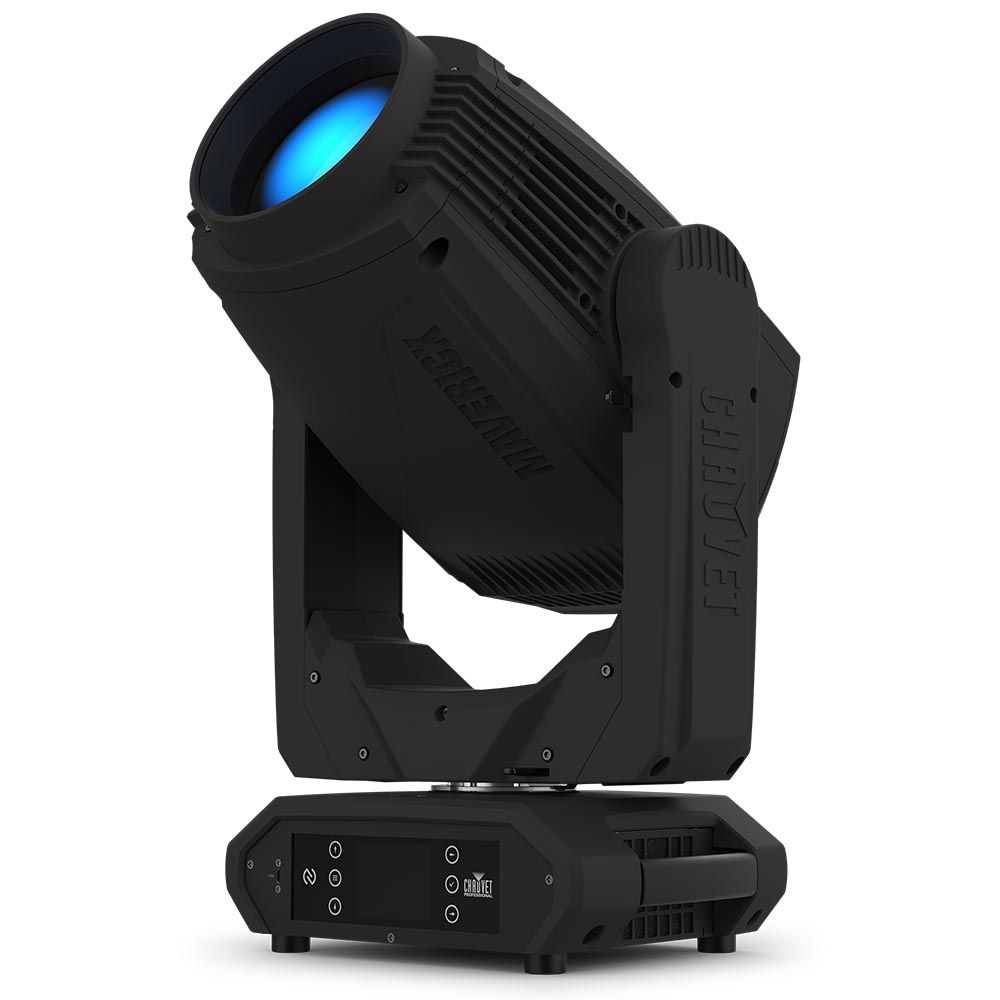

Chauvet Pro Maverick Force X Spot Compact LED Moving Head Spot Fixture
RRP: $7,952.00 ex. GST
Key Features:
- Compact LED Spot Fixture
- 17,325 lumens output
- Variable CMY Color Mixing
- Dual Gobo Wheels
- Wide Zoom Range: 3.5° to 57.7°
- 16-Bit Dimming
- Flexible Control Options
- RDM Enabled
- 5-facet, motorized, rotating prism
- Motorized focus, frost, iris, and zoom
Technical Data
| Light Source | 1 LED (CW) 520 W, (4.2 A), 6462 K, 50,000 |
| Color Temperature (at full) | 6462 K |
| CRI | 72.2 |
| CRI with CRI filter | 90 |
| Beam Angle | 3.5° to 51.3° |
| Field Angle | 3.7° to 56.3° |
| Cutoff Angle | 3.9° to 57.7° |
| Zoom Range | 3.5° to 57.7° |
| Lumens – Output | 17,325 |
| Pan and Tilt | 540°/270° |
| Colors | 7 (Red, Orange, Magenta, CTO 4300K, CTO 3200K, CRI and CTB filters) + white, split colors, continuous scroll at variable speeds |
| Gobos (1) | 7 + open (1 metal + 6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds |
| Gobos (2) | 9+ open (9 metal) continuous scroll at variable speeds |
| Dimmer | Electronic |
| Shutter/Strobo | Electronic |
| Prism | 5-facet, motorized, rotating |
| Strobe Rate | 0 to 25 Hz |
| Dimensions | 14.21 x 9.40 x 25.43 in (361 x 239 x 646 mm) |
| Weight | 44.2 lbs (20 kg) |
| Exterior Color | Black |
| DMX Channels | 22 or 29 |
| Art-Net Channels | 22 or 29 |
| Input Voltage | 100 a 240 VAC, 50/60 Hz |
| Power and Current | 554 W, 4.64 A @ 120 V, 60 Hz |
| IP Rating | IP20, dry location |
