The Chauvet Pro Maverick Silens 1X Profile is a compact, fanless LED framing fixture for theatre, concert halls, broadcast studios, and other applications requiring silent operation. It uses a 420W CW LED source plus 13W RGB LED source and has a CRI of 97.1. The fixture includes 16-bit dimming, CMY and CTO color control, rotatable framing shutters, a rotating gobo system with seven interchangeable glass gobos, an animation wheel, motorized iris, frost, focus, and zoom. Control is available through Art-Net, DMX, CRMX, and RDM.

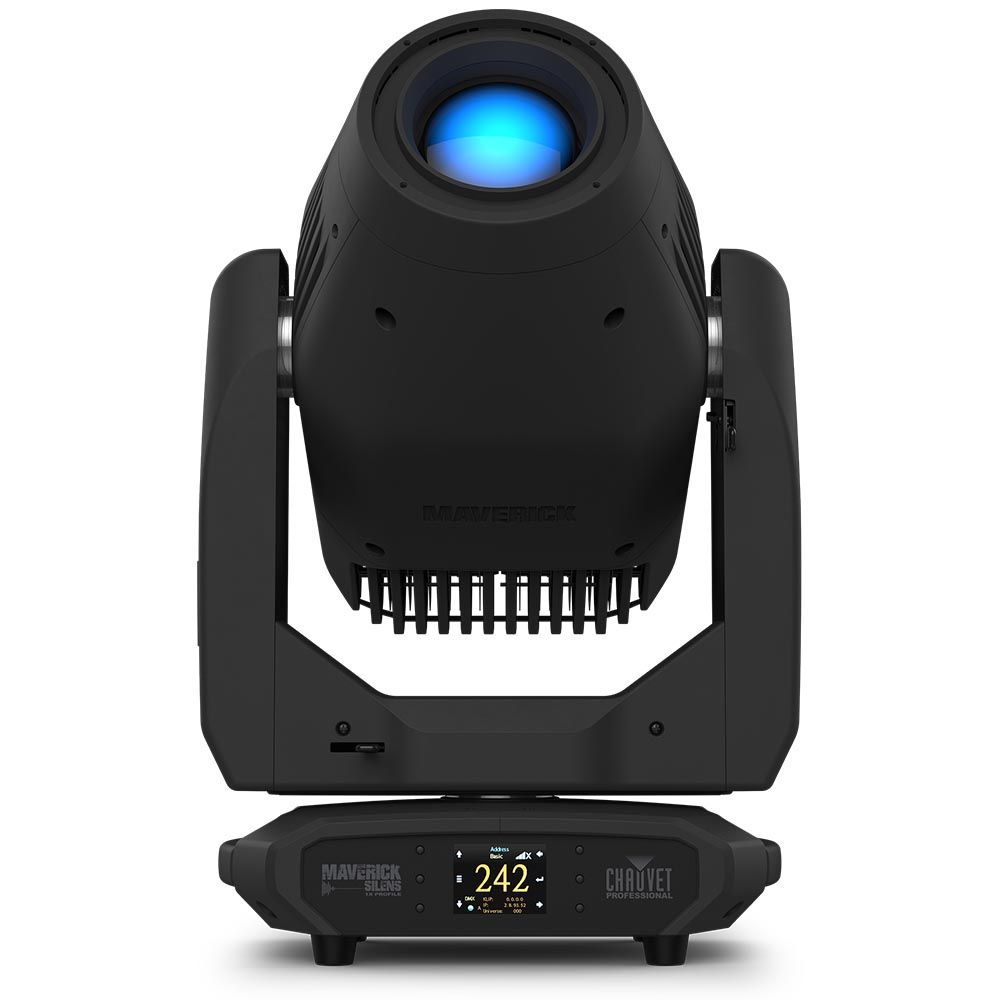

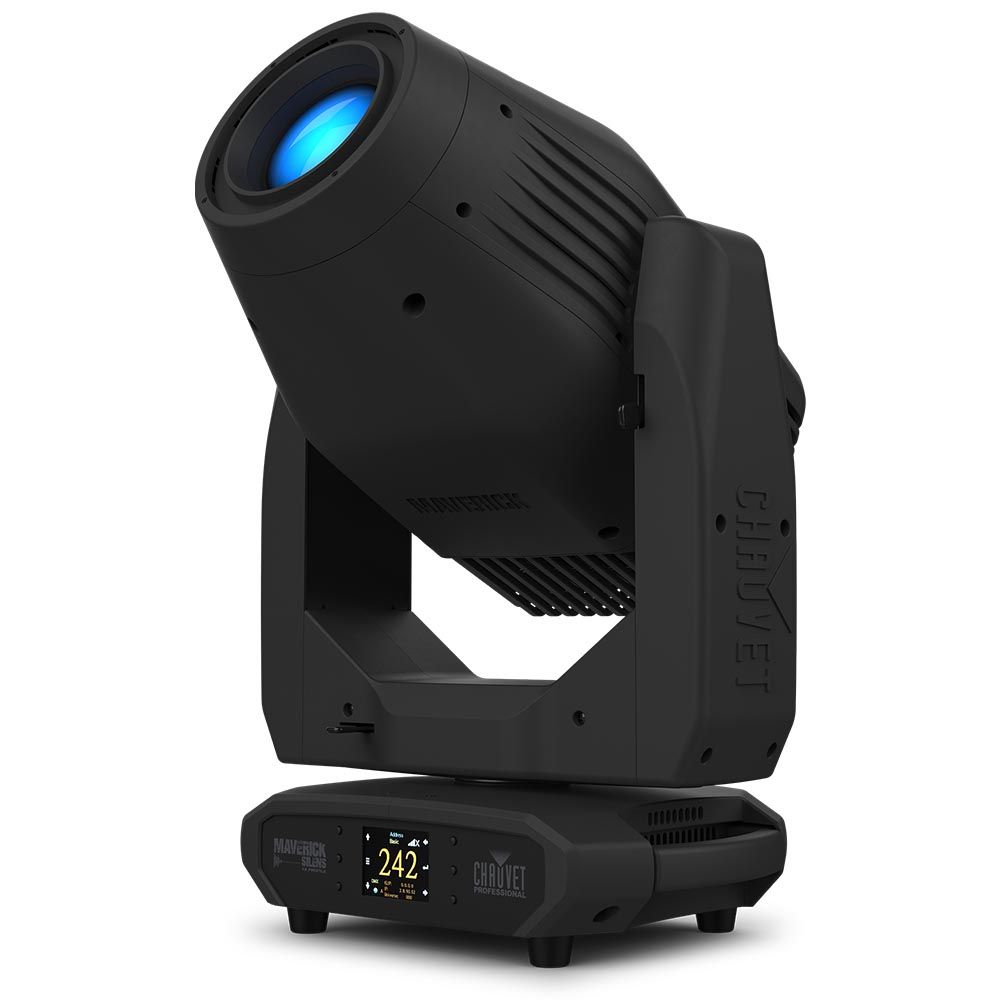

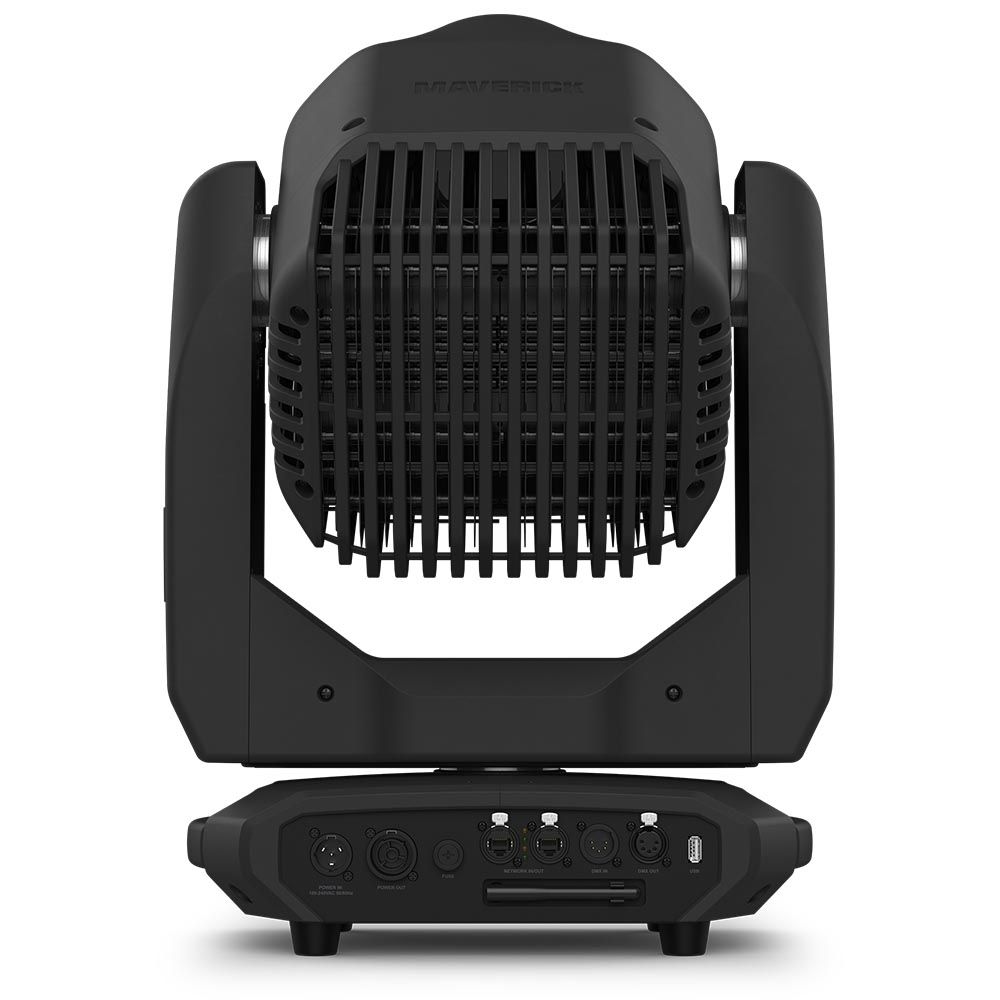

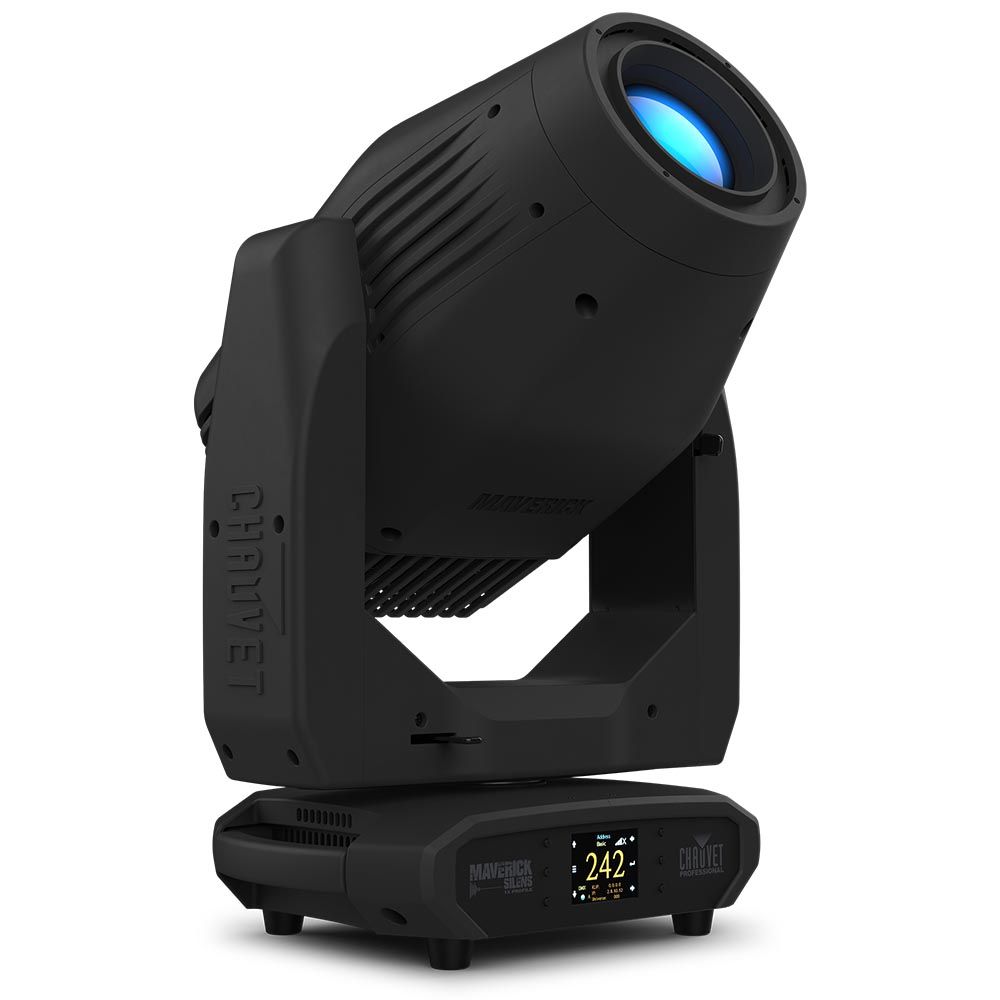

Chauvet Pro Maverick Silens 1X Profile LED Framing Fixture
RRP: $14,370.00 ex. GST
Key Features:
- Completely fanless convection-cooled operation
- 420W CW LED source plus 13W RGB LED source
- CRI 97.1
- 16-bit dimming with selectable red shift emulation
- CMY flags, CTO flag, and color correction
- 7 + open rotating interchangeable glass gobos
- Rotatable framing shutters and animation wheel
- Motorized iris, frost, focus, and zoom
- 6° to 56.2° motorized zoom range
- Art-Net, DMX, CRMX, and RDM control
Technical Data
| Light Source | 1 LEDs (CW) 420 W, (12A), 50,000 hours life expectancy |
| Light Source | 1 LEDs (RGB) 13 W, (2.091A), 50,000 hours life expectancy |
| CRI | 97.1 |
| Color Temperature (range) | 2569 to 6126 K |
| Beam Angle | 6° to 48.4° |
| Field Angle | 7° to 53.4° |
| Cutoff Angle | 7.5° to 56.2° |
| Zoom Range | 6° to 56.2° |
| Lumens – Output | 6081 |
| Pan and Tilt | 540°/270° |
| Colors | 6 + white, split colors, continuous scroll at variable speeds |
| Colors | CMY flags, CTO flag, color correction |
| Gobos (1) | 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds |
| Framing Shutters | Yes |
| Iris | 15 leaf, Motorized |
| Prism | 5 Facets, round, motorized, rotating |
| Strobe Rate | 0 to 28.8 Hz |
| Move-in-Black | Yes |
| Dimensions | 15.75 x 9.68 x 24.25 in (400 x 246 x 616 mm) |
| Weight | 56.2 lb (25.5 kg) |
| Exterior Color | Black |
| Control Protocol | Art-Net, DMX, CRMX, RDM |
| DMX Channels | 31 or 39 |
| Art-Net Channels | 31 or 39 |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V |
| Power and Current | 441 W, 3.31 A @ 120 V, 60 Hz |
| Power and Current | 425 W, 1.91 A @ 208 V, 60 Hz |
| Power and Current | 422 W, 1.70 A @ 230 V, 50 Hz |
| Certifications | CE, MET, FCC |
| IP Rating | IP20, dry location |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
| What’s Included | Maverick Silens 1X Profile; Seetronic Powerkon IP65 power cord; 2 Omega brackets with mounting hardware; Gel Frame Holder and Gel Frame |
