Chauvet Pro Maverick Storm 1 Hybrid is a Beam/Spot/Wash fixture for concert, festival, arena, and outdoor production use. Its Osram Sirius HRI 420 W lamp is rated at 7700 K with up to 4,500 hours life expectancy, and the fixture has a Lumens rating of 30,978. Beam mode provides a 0.9° to 23.7° zoom range, while Spot mode provides 1.1° to 36°. The fixture includes CMY flags, rotating interchangeable gobos, static gobos, an animation wheel, two rotating prisms, motorized focus, frost, dimmer, and shutter/strobe. IP65-rated construction supports outdoor/wet use, with control via Art-Net, sACN, RDM, DMX, and WDMX.

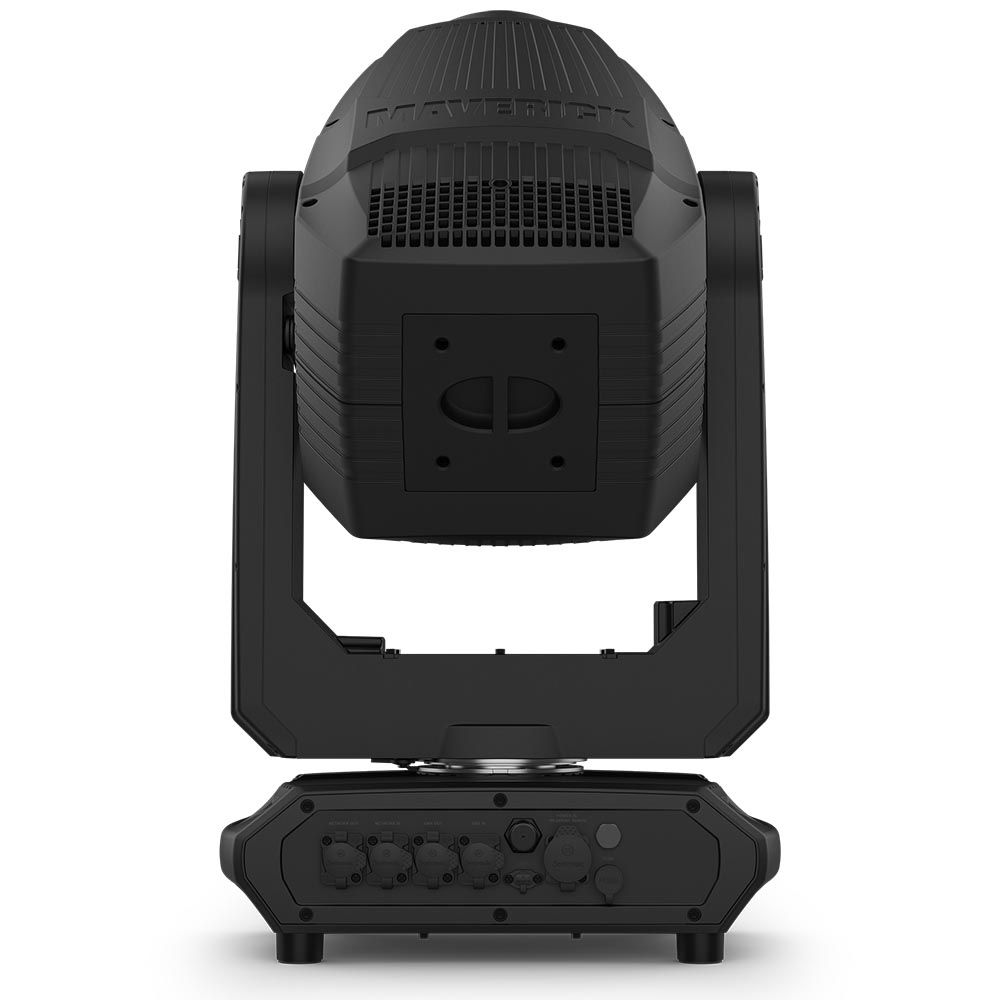

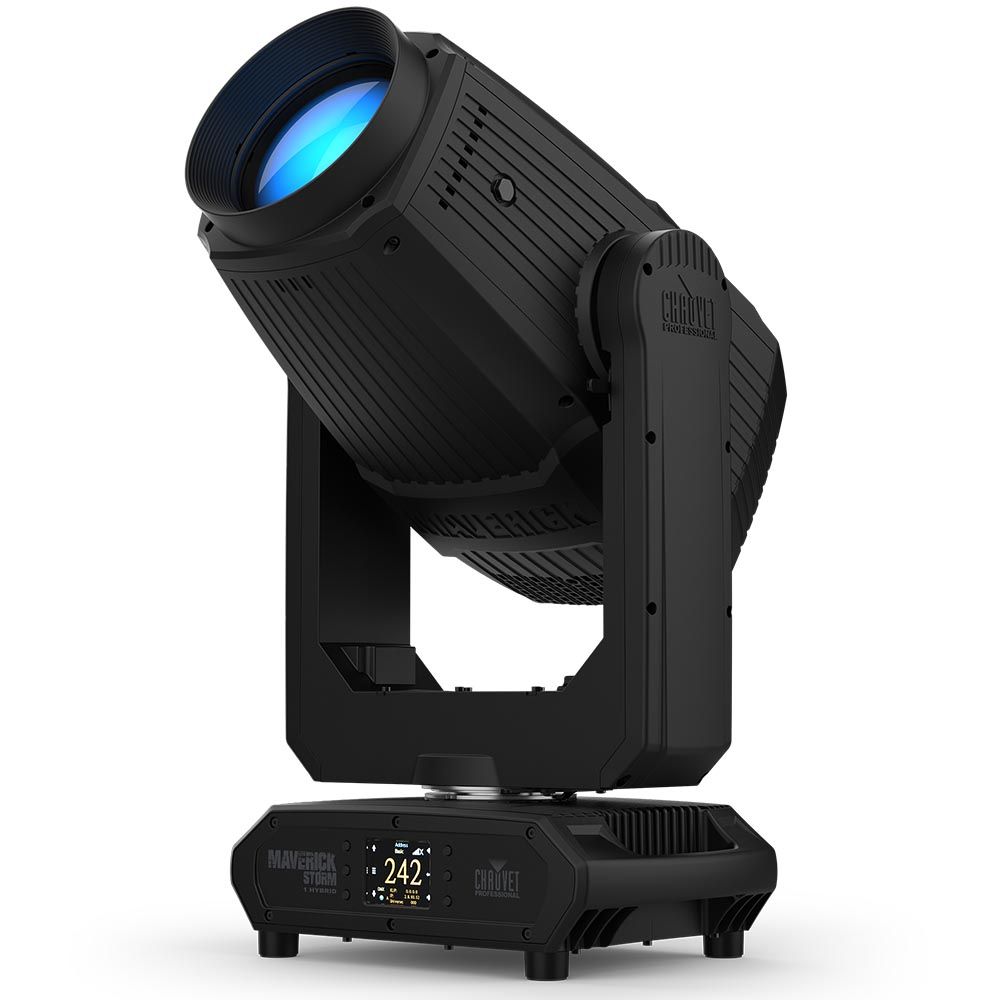

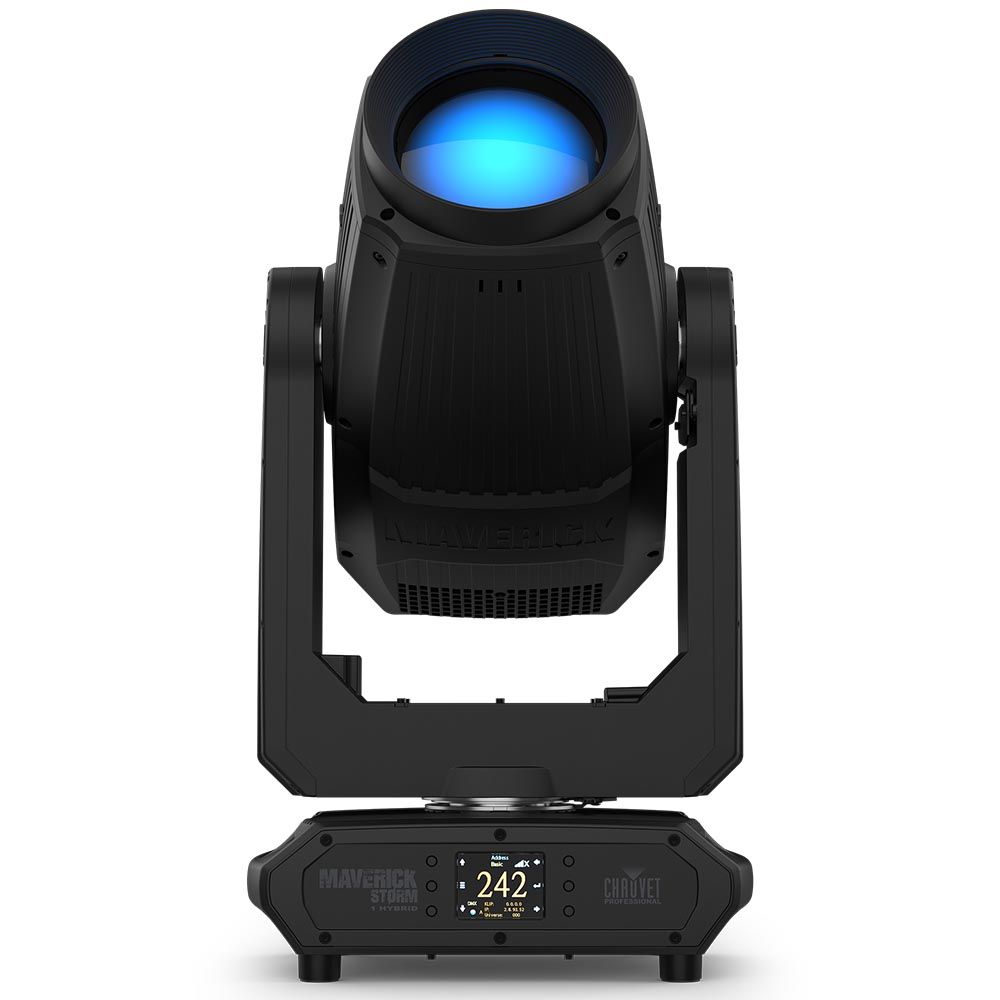

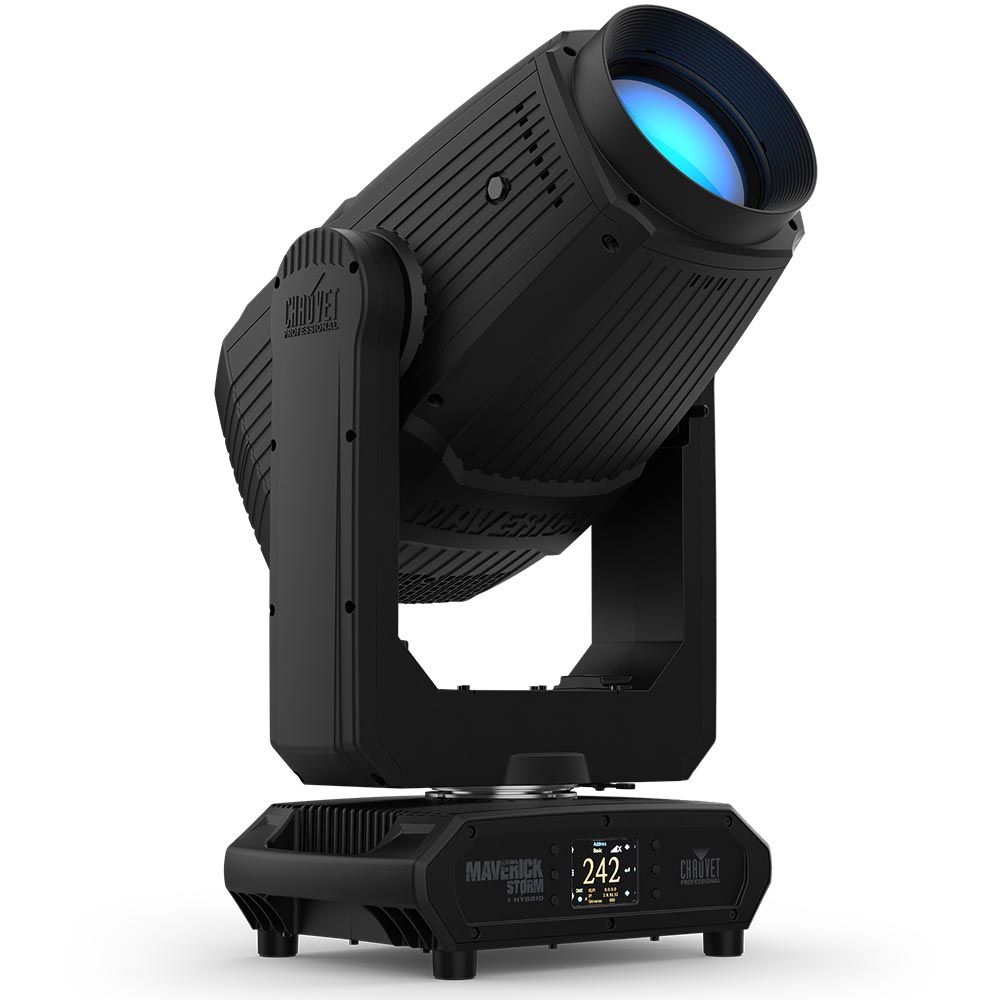

Chauvet Pro Maverick Storm 1 Hybrid 3-in-1 Fixture
RRP: $14,878.00 ex. GST
Key Features:
- Versatile 3-in-1 Beam/Spot/Wash fixture
- IP65, outdoor/wet construction
- Osram Sirius HRI 420 W lamp, 7700 K
- Full CMY color mixing
- Beam mode zoom range: 0.9° to 23.7°
- Spot mode zoom range: 1.1° to 36°
- Rotating interchangeable gobos and static gobos
- Dynamic animation wheel
- 6-facet and 8-facet motorized rotating prisms
- Motorized focus, frost, dimmer, and shutter/strobe
- DMX, Art-Net, sACN, RDM, and WDMX control
- Built-in Sky Tracker Mode
Technical Data
| Light Source | Osram Sirius HRI 420 W lamp, 7700 K (Color Temp), up to 4,500 hours life expectancy |
| Color Temperature (at full) | 6,995 K |
| CRI | 80.6 |
| CQS | 76.8 |
| TLCI | 59 |
| Front lens diameters | 174mm |
| Lumens | 30,978 |
| Pan and Tilt | 540°/270° |
| Pan and Tilt Ranges | 540°, 360°, 180° pan/270°, 180°, 90° tilt |
| Colors | 14 + white, split colors, continuous scroll at variable speeds |
| Colors | CMY flags |
| Gobos (1) | 9 + open (1 empty slot + 8 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds |
| Gobos Static | 17 + open (17 metal), rotating, continuous scroll at variable speeds |
| Gobo Size (1) | Gobo Wheel 1 (rotating): 16 mm (outside), 10 mm (image), 1.1 mm (max. thickness) |
| Animation Wheel | 1 |
| Dimmer | Motorized |
| Shutter/Strobe | Motorized |
| Zoom | Motorized |
| Focus | Motorized |
| Frost | Motorized |
| Prism (1) | 6 Facets, motorized, rotating |
| Prism (2) | 8 Facets, motorized, rotating |
| Move-in-Black | Yes |
| Built in Sky Tracker Mode | Yes |
| Dimensions | 15.27 x 10.78 x 29.72 in (388 x 274 x 755 mm) |
| Weight | 64.4 lb (29.2 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum die-cast, High-impact flame-retardant polymer, Steel |
| Power Connection | Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out |
| Cable Length (power) | 5 ft (1.5 m) |
| Software Connection | Type-C USB |
| Control Protocol | Art-Net, sACN, RDM, DMX, WDMX |
| DMX Channels | 24 or 29 |
| Art-Net/sACN Channels | 24 or 29 |
| Modes/Personalities | 2 personalities (24, 29) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | 660 W, 5.540 A @ 120 V, 60 Hz |
| Power and Current | 648 W, 3.124 A @ 208 V, 60 Hz |
| Power and Current | 647 W, 2.800 A @ 230 V, 50 Hz |
| Certifications | CE, MET, FCC, CB, UKCA |
| IP Rating | IP65, outdoor/wet, with pressure equalizing M12 GORE valve |
| Temperature (Ambient) | 14 °F to 113 °F (-10 °C to 45 °C) |
| What’s Included | Maverick Storm 1 Hybrid; Seetronic Powerkon IP65 power cord to Edison Plug; (2) 140 Omega brackets with mounting hardware |
