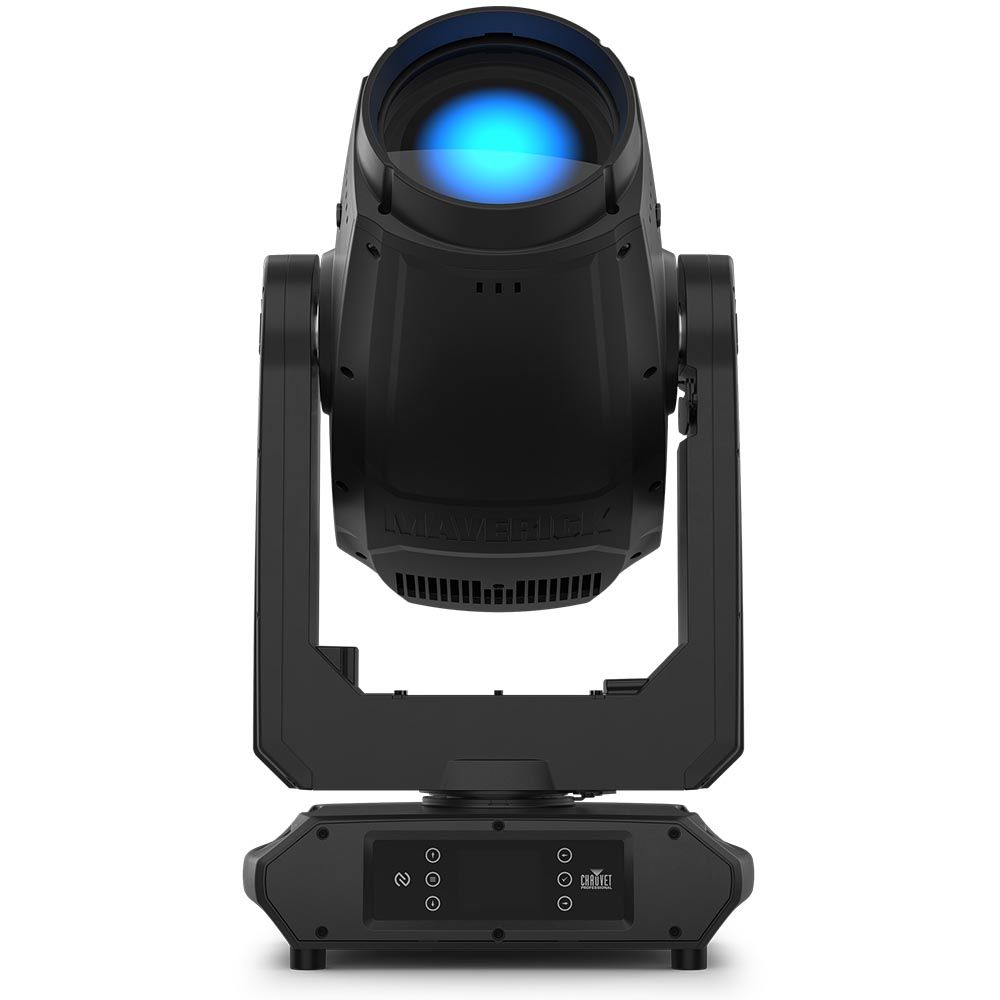

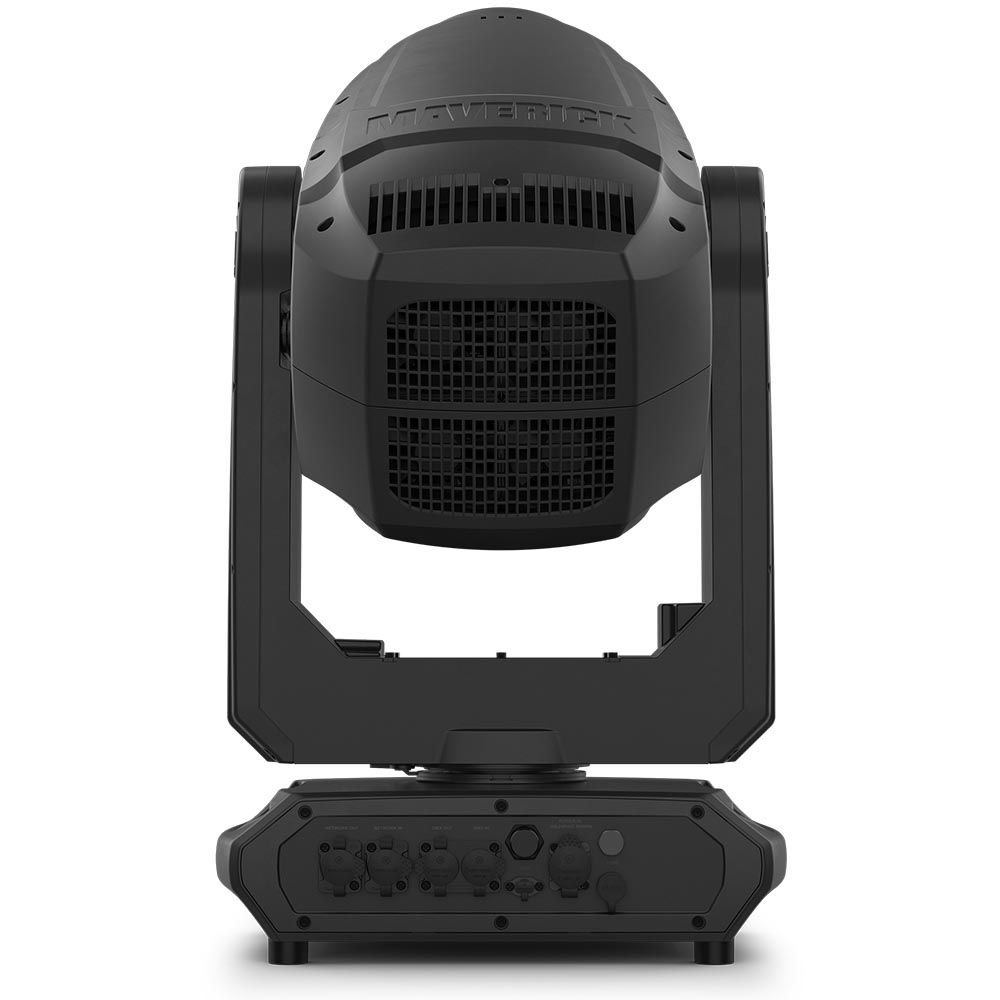

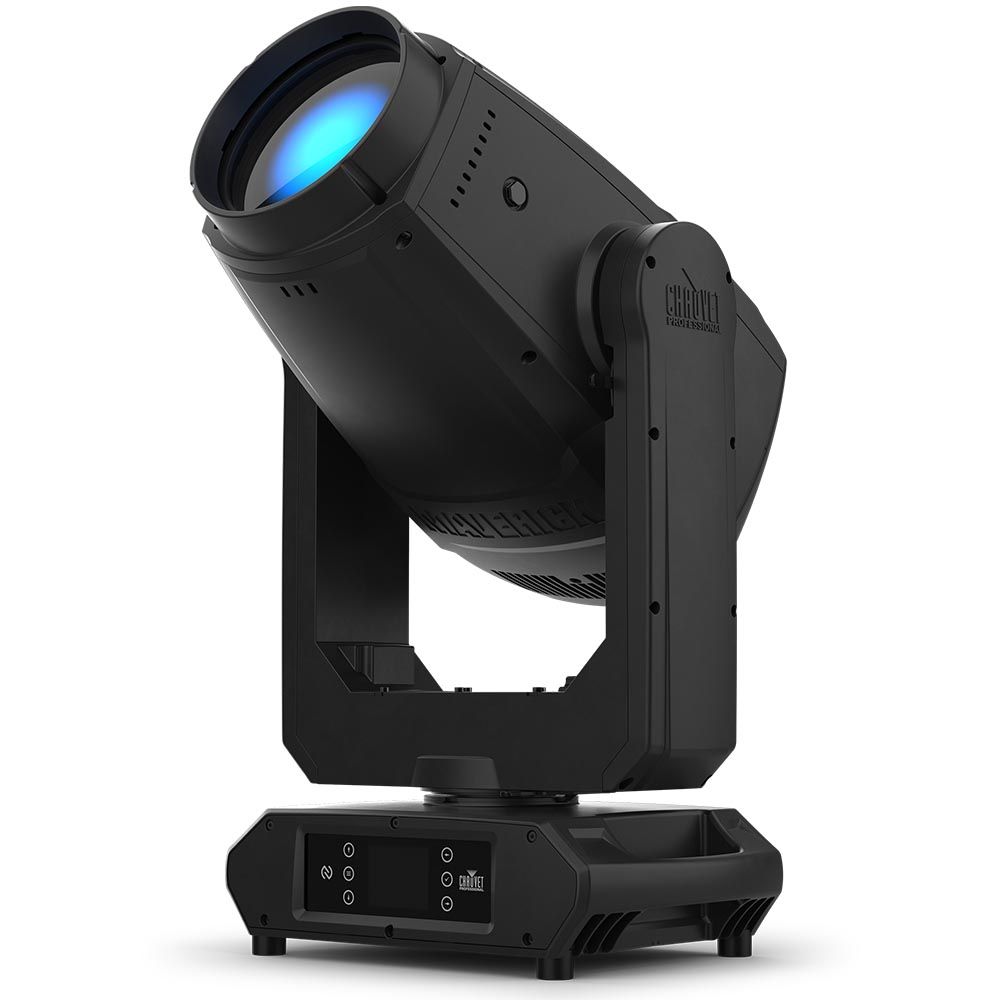

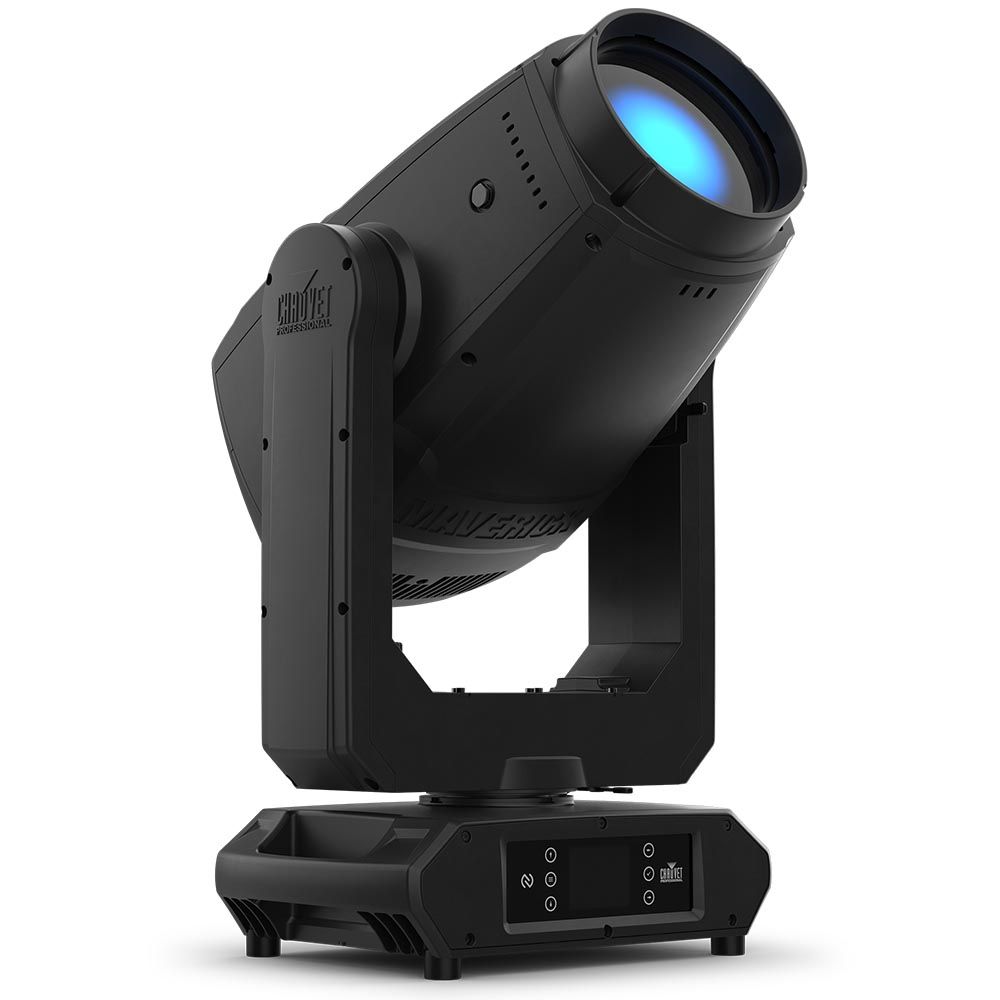

Chauvet Pro Maverick Storm 3 Profile Moving Profile is a compact IP65-rated moving profile for touring, outdoor festivals, and theatrical applications. It delivers 34,500 lm from 1 LEDs (CW) 620 W, (4.6 A), 7500 K LED engine and provides an 18:1 motorized zoom range of 3.5° to 57.7°. The fixture includes four-blade framing with full rotational capability, CMY and CTO color wheels, dual gobo wheels, a 5-facet prism, iris, frost, focus, and motorized animation. Control protocols include Art-Net, DMX, RDM, W-DMX, and sACN.
Chauvet Pro Maverick Storm 3 Moving Profile
RRP: $18,700.00 ex. GST
Key Features:
- IP65-rated moving profile fixture
- 34,500 lm output from a 620 W, 7500 K LED engine
- 18:1 motorized zoom range of 3.5° to 57.7°
- Four-blade framing system with dual-axis movement and +/- 60° rotation
- CMY wheel and CTO wheel
- Dual gobo wheels, 5-facet motorized rotating prism, iris, frost, focus, and motorized animation
- DMX, W-DMX, RDM, sACN, and Art-Net control
- Smooth 16-Bit Dimming
- Flicker-Free Operation
Technical Data
| Light Source | 1 LEDs (CW) 620 W, (4.6 A), 7500 K, L70 rating: 33,000 Hours under LED manufactures test conditions (LM-80: 6,000 hrs). |
| Color Temperature (at full) | 7062 K |
| CRI | 72.3 |
| CRI with CRI Filter | 90.2 |
| CQS | 73 |
| TLCI | 49 |
| CTO Color Temperature at Full | 3122K |
| CTB Color Temperature | 8307K |
| Front Lens Diameter | 165 mm |
| Beam Angle | 3.5° to 51.5° |
| Zoom Range | 3.5° to 57.7° |
| Lumens – Output | 34,500 lm |
| PWM Frequency | 600Hz, 1500Hz, 2000Hz, 65,000Hz |
| Pan and Tilt | 540°/270° |
| Colors | 7 (Red, Orange, Green, Magenta, UV, CRI ) + white, split colors, continuous scroll at variable speeds |
| Colors | CMY wheel, CTO wheel |
| Gobos (1) | 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds |
| Gobos (2) | 9 + open (glass), continuous scroll at variable speeds |
| Framing Shutters | 4 Blades, each with dual axis movement, Full blackout. |
| Framing Shutter rotation | +/- 60° rotation. |
| Prism | 5 Facets, motorized, rotating |
| Strobe Rate | 0 to 25 Hz |
| Move-in-Black | Yes |
| Dimensions | 15.27 x 10.55 x 29.21 in (388 x 268 x 742 mm) |
| Weight | 69 lb (31.3kg) |
| Exterior Color | Black |
| Housing Material | Aluminum diecast, High-impact flame-retardant polymer, Steel |
| Data Connectors | 5-pin IP rated XLR, Seetronic IP rated RJ45 Connectors in/out |
| Cable Length (power) | 5 ft (1.5 m) |
| Control Protocol | Art-Net, DMX, RDM, W-DMX, sACN |
| DMX Channels | 34 or 50 |
| Art-Net Channels | 34 or 50 |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current at 120 V | 1020 W, 8.5 A @ 120 V, 60 Hz |
| Power and Current at 208 V | 1020 W, 4.82 A @ 208 V, 60 Hz |
| Power and Current at 230 V | 1010 W, 4.39 A @ 230 V, 50 Hz |
| Fuse | F15 AL, 250 V |
| Certifications | CE, MET, FCC, CB, UKCA |
| IP Rating | IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve |
