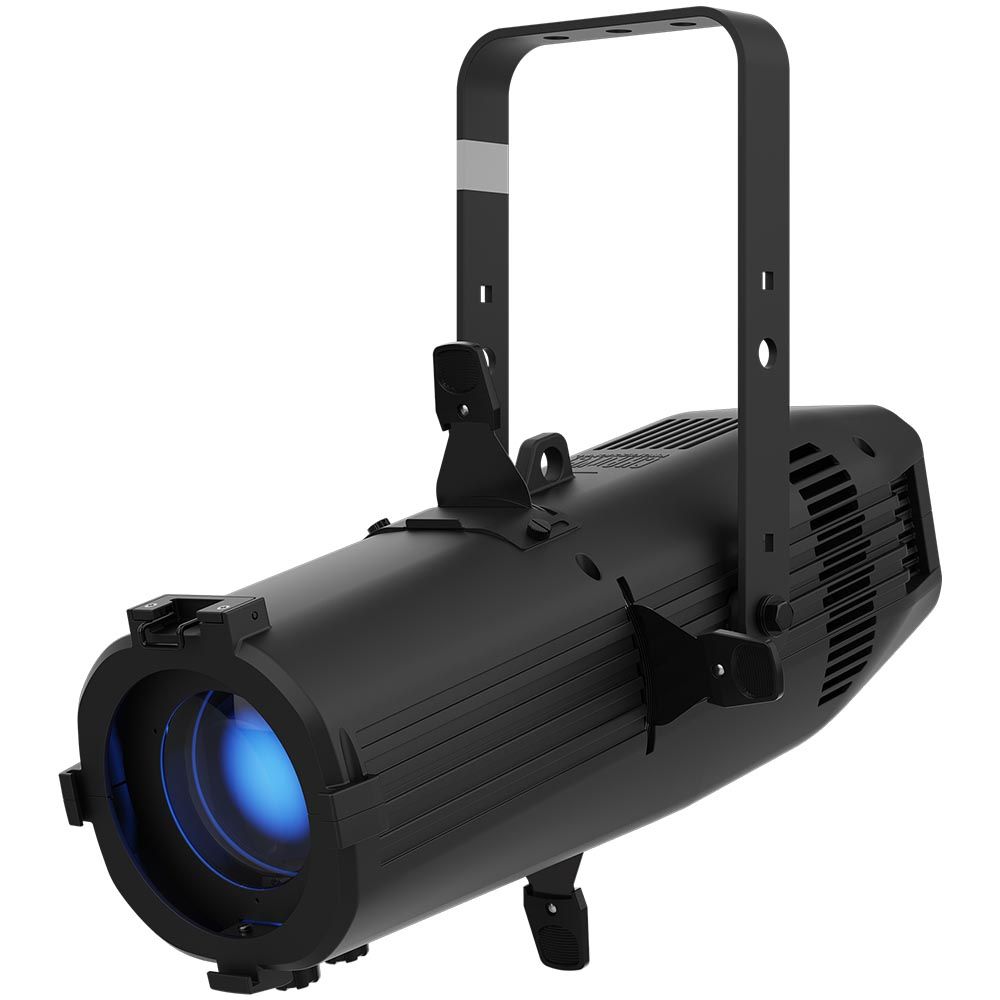

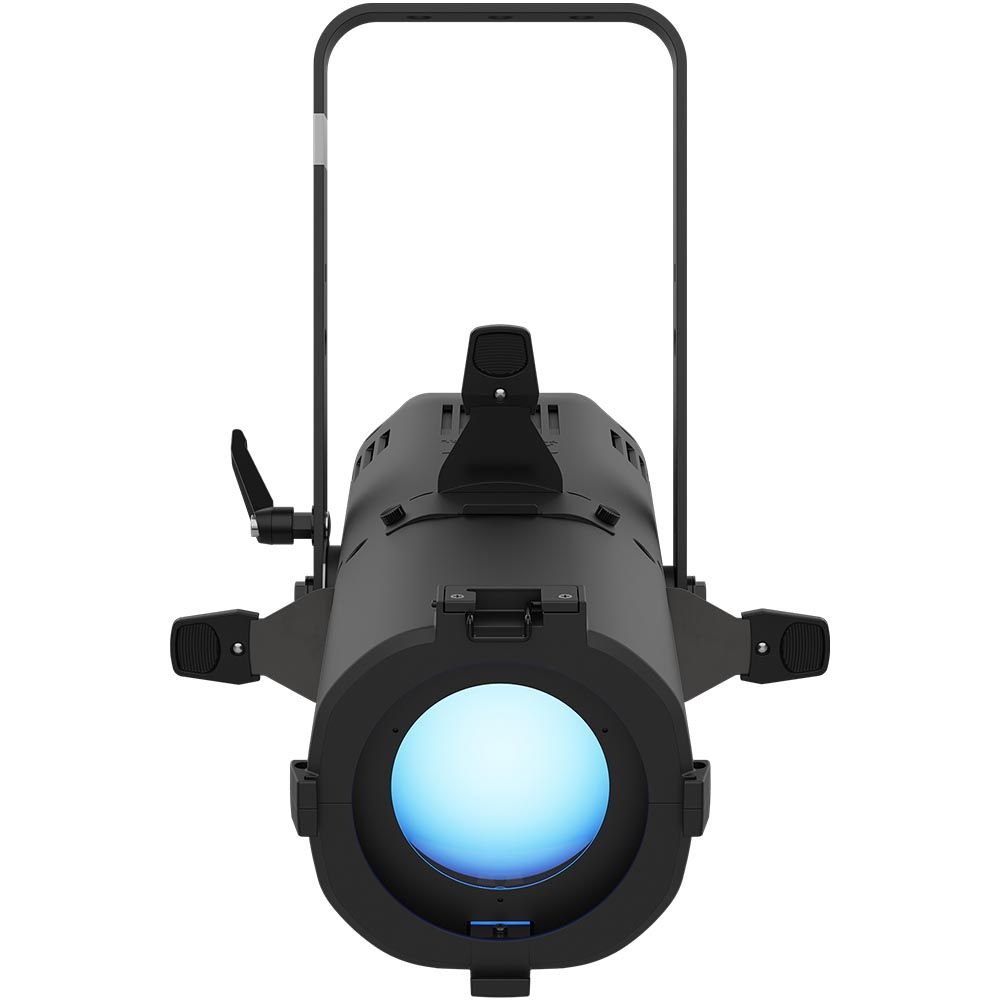

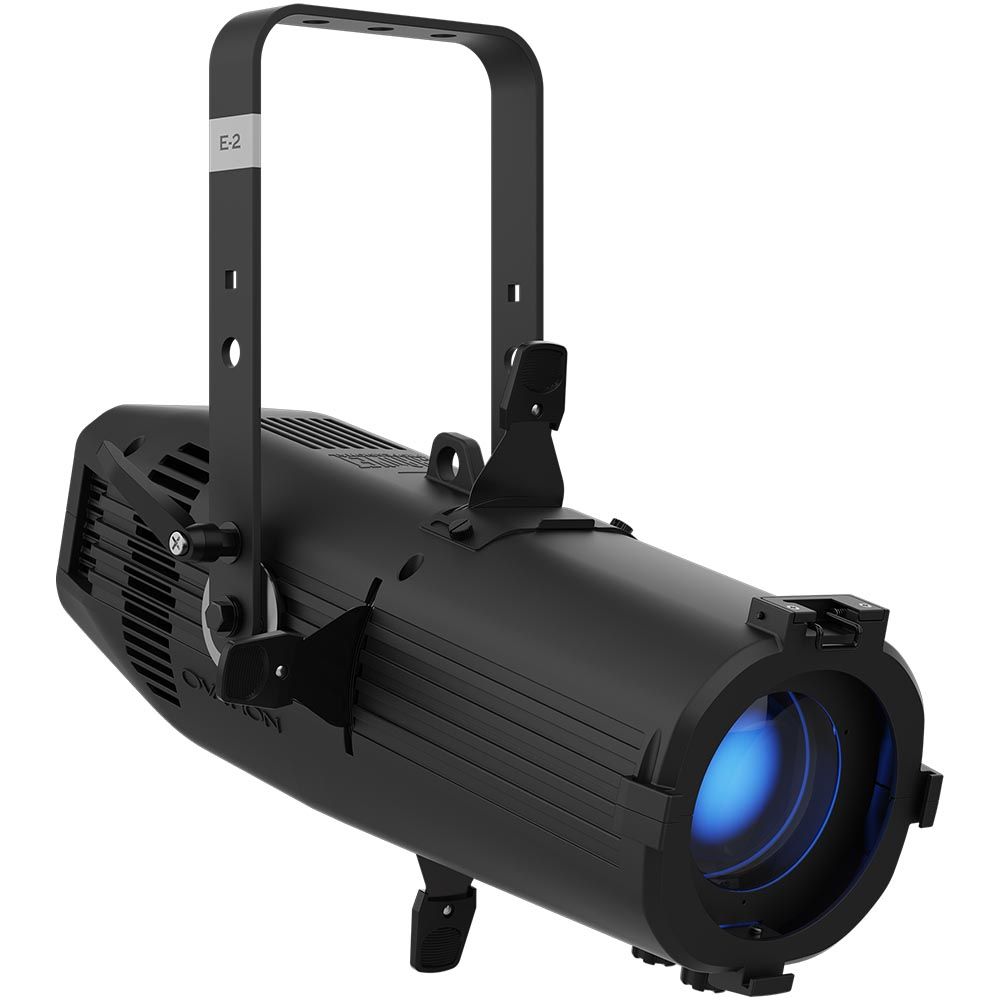

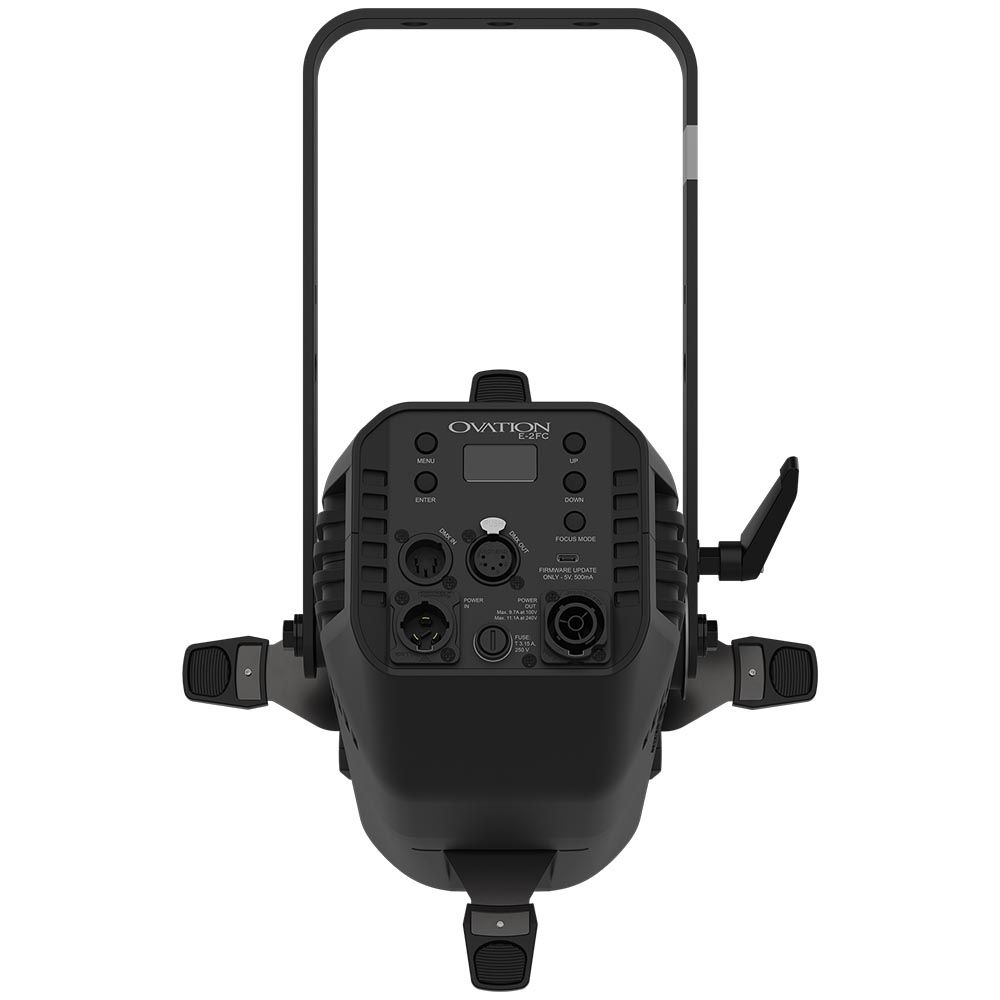

Chauvet Pro Ovation E-2 FC LED Ellipsoidal Spotlight OVATIONE2FC is a compact LED ellipsoidal spotlight for smaller venues, theater, studio, and broadcast applications. It uses full-spectrum RGBA-Lime color mixing and provides adjustable color temperature from 2800 to 8000 K, with CRI 93 at 3200 K. The fixture includes an integrated zoom lens, manual focus, One-Touch Focus Mode, and smooth 18-Bit Dimming. DMX and RDM control, USB software updates, and selectable PWM rates support professional lighting setups.
Chauvet Pro Ovation E-2 FC LED Ellipsoidal Spotlight
RRP: $3,237.00 ex. GST
Key Features:
- Full Spectrum LED Fixture
- Full-spectrum RGBA-Lime color mixing
- Integrated Zoom Lens
- Adjustable Color Temperature
- Advanced Color Control
- One-Touch Focus Mode
- Smooth 18-Bit Dimming
- USB Software Updates
- DMX and RDM control
Technical Data
| Light Source | 72 LEDs (15 reds 11 green, 6 blue, 4 cyan, 14 amber, 22 lime) 6 to 9.75 W, (1.5 A) 50,000 hours life expectancy |
| Color Temperature (range) | 2800 to 8000 K |
| Color Temperature (at full) | 4525 K |
| CRI (3200 K) | 93 |
| Zoom Range | 23.8° to 51.8° |
| Lumens (Spot) | 3708 lm |
| Lumens (Flood) | 5608 lm |
| Lumens (50% Zoom) | 5147 lm |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz |
| Framing Shutters | Yes |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Zoom | Manual |
| Focus | Manual |
| Strobe Rate | 0 to 25 Hz |
| Dimensions | 18.1 x 12.2 x 17.5 in (461 x 310 x 445 mm) |
| Weight | 14.8 lb (6.7 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum die-cast |
| Accessory Holder/Gel Frame Size | 6.25 in (159 mm) |
| Power Connection | Edison (Local) plug to Seetronic Powercon IP65 |
| Power Input | Seetronic Powercon IP65 |
| Power Output | Seetronic Powercon IP65 |
| Data Connectors | 5-pin XLR |
| Software Connection | USB |
| Control Protocol | DMX, RDM |
| DMX Channels | 1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV |
| Modes/Personalities | 9 personalities (1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 7 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V |
| IP Rating | IP20, dry location |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
| Certifications | CE, MET, FCC, UKCA |
| What’s Included | Ovation E-2FC; Seetronic Powerkon power cord; Ovation Metal Gobo Holder (“M” Size); Soft Focus Filter; Quick Reference Guide or User Manual |
