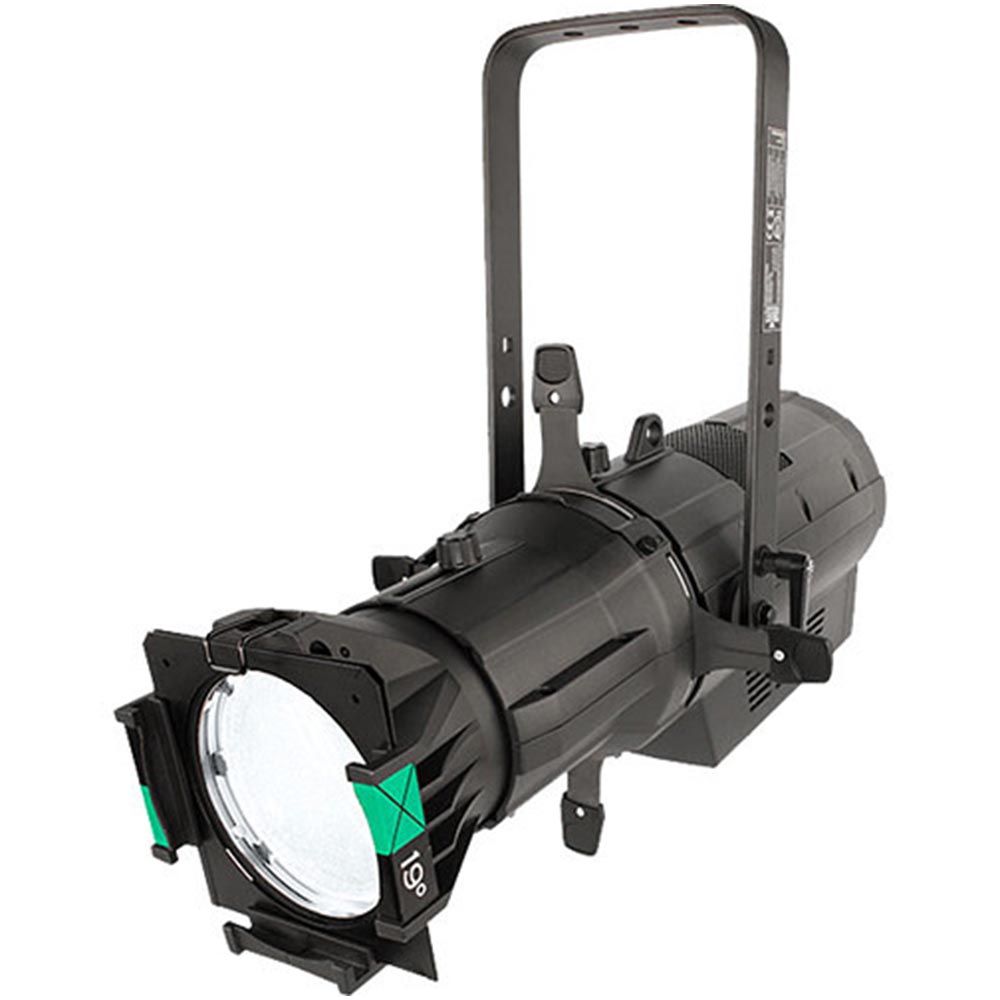

The Chauvet Pro Ovation E-260CW-2 is a black ellipsoidal LED fixture with a 5452K cool white output, built-in dimmer, and DMX512/RDM control. It is designed for theatrical lighting grids and can also be used in film and video productions. Manual zoom and focus, integrated framing shutters, and compatibility with industry standard lens tubes support beam and image adjustment. The engine-only fixture uses PWM dimming, supports 1, 2, 3, or 6-channel DMX control, and includes 3-pin and 5-pin DMX in/out.
Chauvet Pro Ovation E-260CW-2 Ellipsoidal LED Fixture (Engine Only, 5452K, Black)
RRP: $2,910.00 ex. GST
Key Features:
- Ellipsoidal LED with 5452K cool white output
- Local and DMX dimming from 0 to 100%
- Manual focus and zoom adjustment
- Integrated internal framing shutters
- Works with industry standard lens tubes
- DMX512 and RDM control protocols
- 1 / 2 / 3 / 6-channel DMX modes
- Pulse Width Modulation dimming
- 8- and 16-bit dimming
- 3-pin and 5-pin DMX in/out
Technical Data
| Light Source | White LED – 230 W / 3.5 A |
| Color Temperature | 5452K |
| Control Protocols | DMX512, RDM |
| DMX Channel Modes | 4 Mode(s): 1 / 2 / 3 / 6-Channel |
| Dimming | 0 to 100% with 4 Dimmer Modes |
| Focus | Manual |
| Zoom Adjustment | Manual |
| Strobe Rate | 0 to 30 Hz |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Linking | 6 Units at 120 VAC 10 Units at 208 VAC 12 Units at 230 VAC |
| Mounting | Single Yoke Only |
| Exterior Color | Black |
| Cooling | Fan |
| Dimensions | 19.49 x 19.17 x 11.22″ / 49.5 x 48.69 x 28.5 cm |
| Weight | 15.4 lb / 7 kg |
