The Chauvet Pro Ovation E-260WW ERS-Style Fixture (White) is a warm white ellipsoidal fixture powered by one 230 W WW LED source with a 3149 K colour temperature and a stated life expectancy of 50,000 hours. It produces output exceeding a tungsten 750 W source, with ultra smooth 16-bit dimming, selectable dimming curves, and a flat, even field for gobo projection. The fixture supports DMX control, adjustable PWM, RDM for added flexibility, and virtually silent operation. It works with industry standard lens tubes and accessories and uses a white housing for architectural applications.

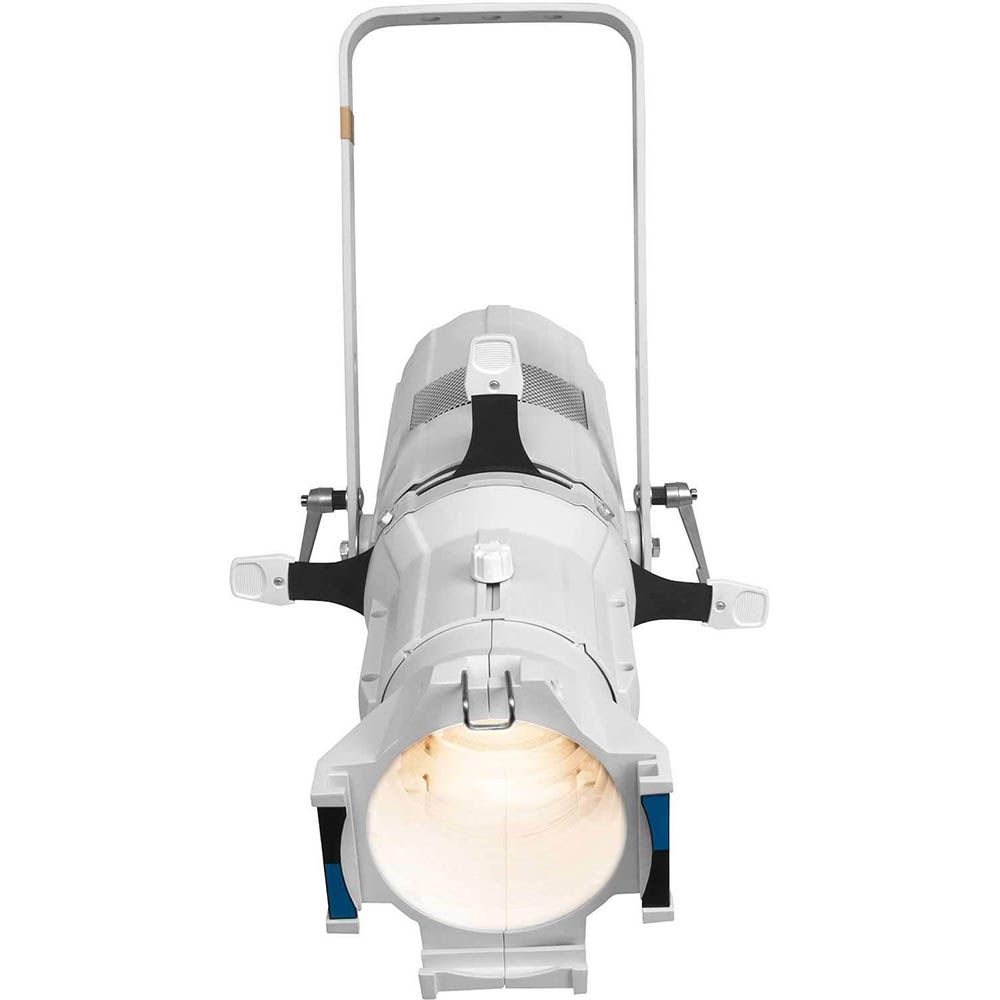

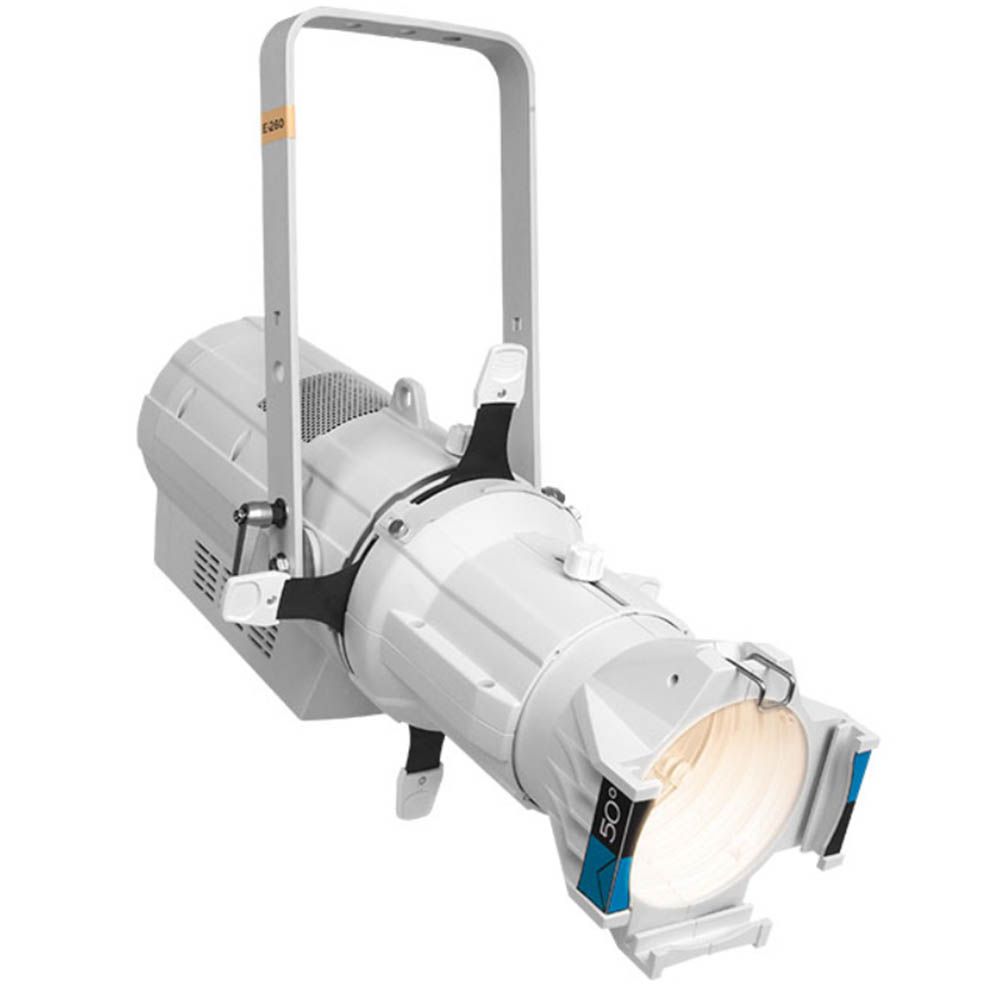

Chauvet Pro Ovation E-260WW ERS-Style Fixture (White)
RRP: $3,454.00 ex. GST
Key Features:
- Warm white ERS style fixture with output exceeding a tungsten 750 W source
- Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
- Flat, even field of light for superior gobo projection
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- Virtually silent operation for use in studio and theatre applications
- Works perfectly with industry standard lens tubes and accessories
Technical Data
| Light Source | 1 LED (WW) 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy |
| Color Temperature (at full) | (WW) 3149 K |
| CRI | (WW) 96 |
| Control Protocol | (WW) DMX |
| DMX Channels | 1, 2, 3 or 6 |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz |
| Dimming Modes | 4 |
| Beam Angle (w/26° lens) | 16° |
| Field Angle (w/26° lens) | 25° |
| Illuminance (w/26° lens) | (WW) 6,910 lux @ 5 m; (CW) 8652 lux @ 5 m |
| Dimensions (fixture only) | 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm) |
| Weight (fixture only) | 15.4 lb (7 kg) |
| Exterior Color | Black |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | (WW) 204 W, 1.0 A @ 230 V, 50 Hz |
| Power Input | Neutrik powerCON |
| Power output | Neutrik powerCON |
| Data Connectors | 3- and 5-pin XLR |
| Zoom | Manual |
| Shutter/Strobe | Electronic |
| Strobe Rate | (WW) 0 to 27 Hz |
| Gobo Size (Optional) | “B” 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness) |
