The Chauvet Pro Ovation E-260WW IP is an IP65-rated warm-white ERS-style fixture with a 230 W LED engine, 3149 K color temperature and 96 CRI. It provides a flat, even field for gobo projection and works with standard Ovation shutter assemblies and lenses. The fixture offers ultra-smooth 16-bit dimming, four selectable dimming curves, DMX and RDM control, and adjustable PWM for flicker-free operation. Its outdoor/wet IP65 rating supports use in outdoor theatre, architectural applications and events.

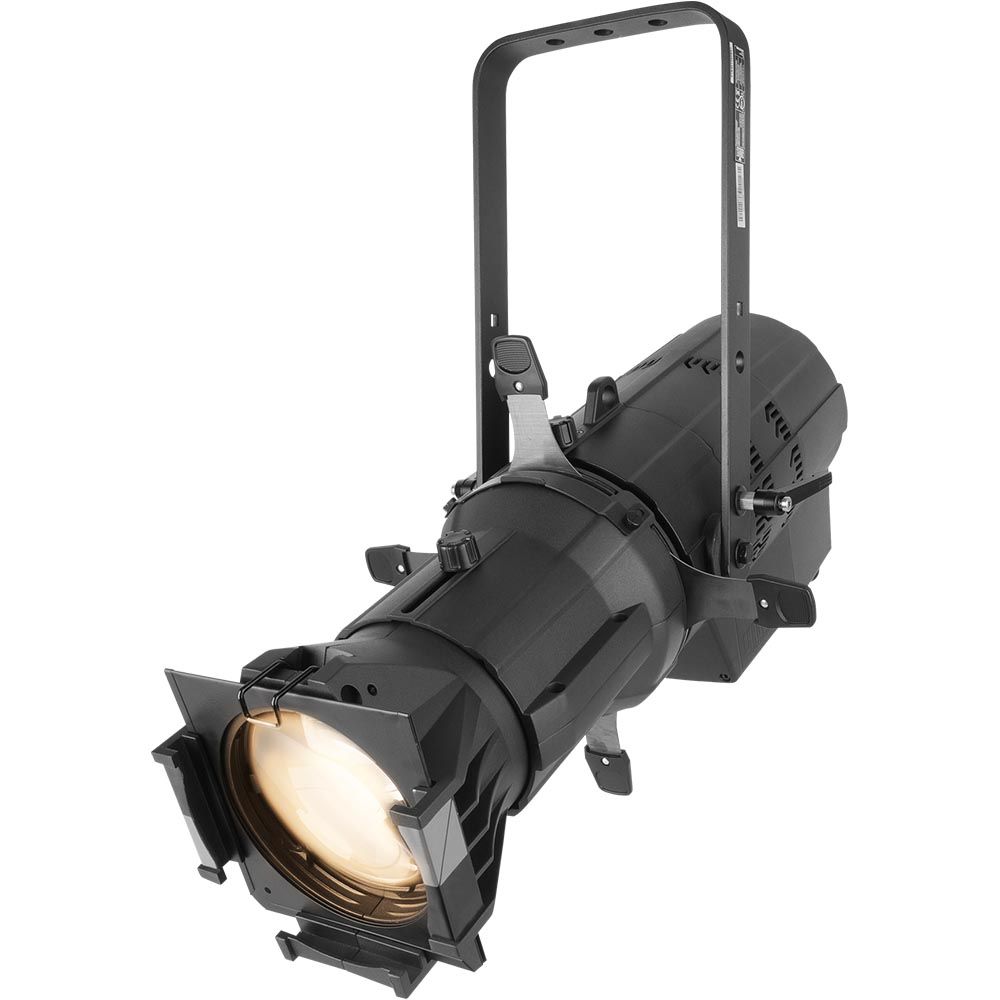

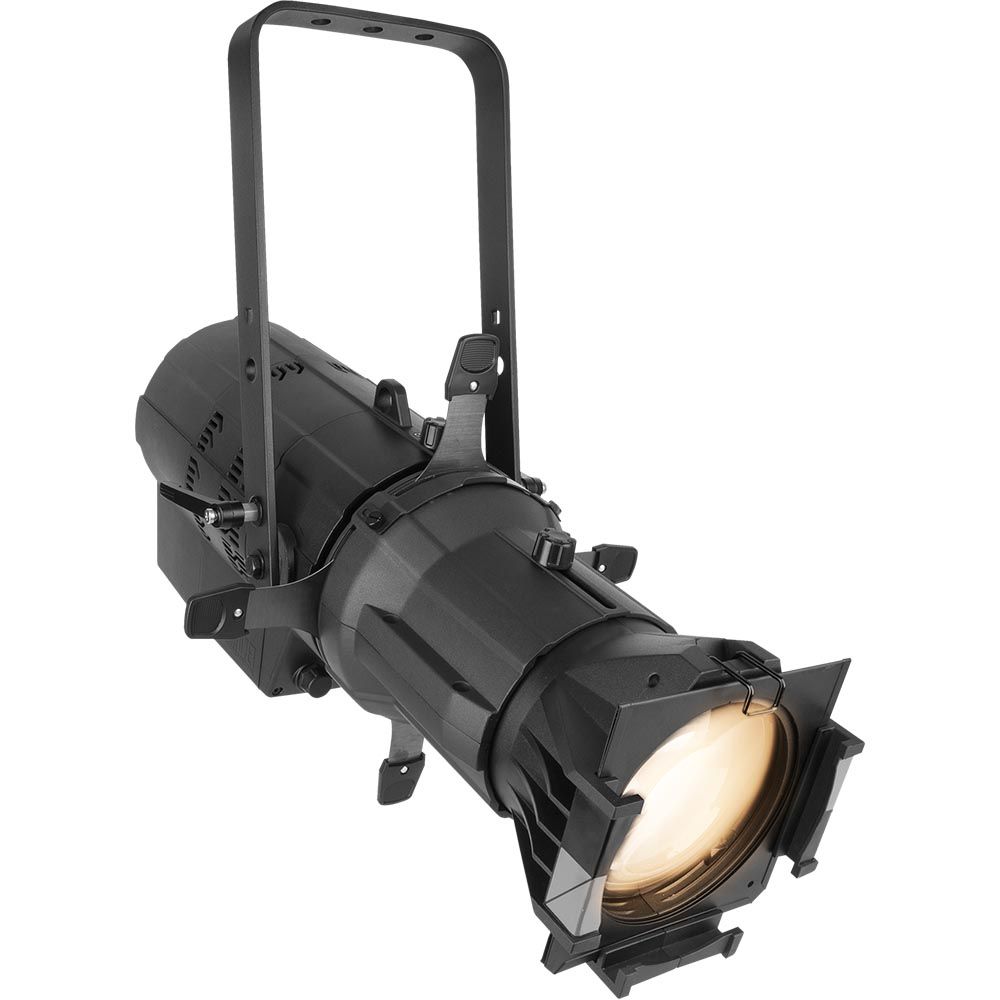

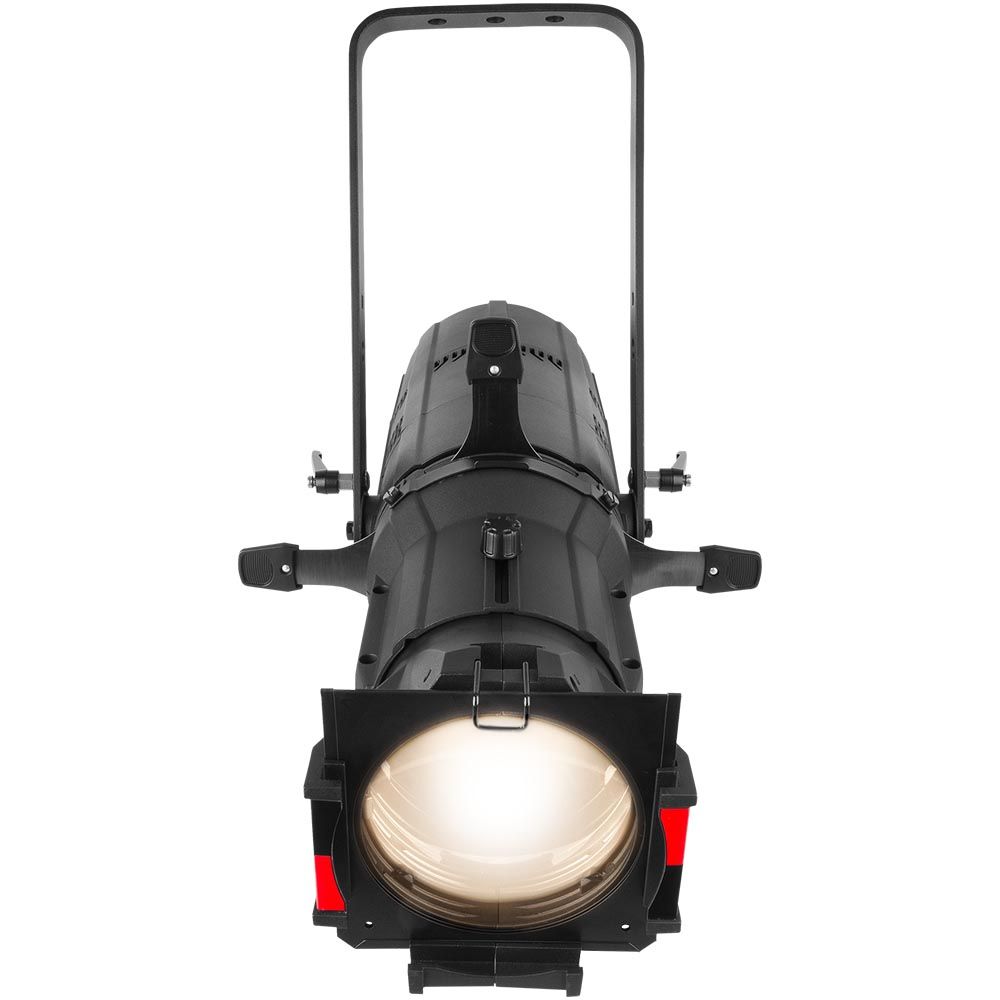

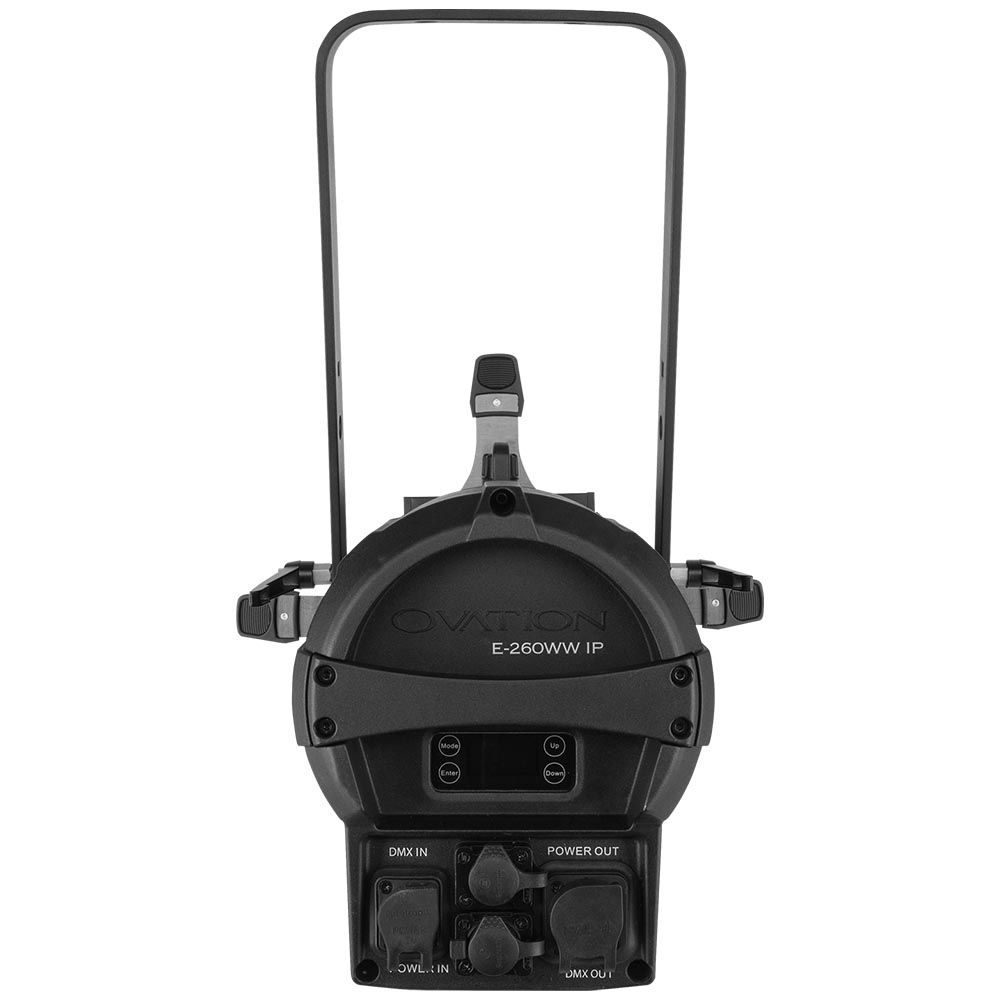

Chauvet Pro Ovation E-260WW IP Profile Fixture
RRP: $3,881.00 ex. GST
Key Features:
- 230W warm white LED engine with a high 96 CRI
- Rugged IP65-rated housing for reliable performance in any weather
- Works with standard Ovation shutter assemblies and lenses
- Ultra-smooth 16-bit dimming and four selectable curves
- Supports DMX and RDM protocols
- Adjustable PWM for flicker-free operation
Technical Data
| Light Source | 1 LED (WW) 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy |
| Color Temperature (at full) | 3149 K |
| CRI | 96 |
| Dimming Modes | 4 |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Strobe Rate | 0 to 30 Hz |
| Exterior Color | Black |
| Power Connection | Edison (local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin IP65 XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Control Protocol | DMX, RDM |
| DMX Channels | 2, 3, 4 or 7 |
| Modes/Personalities | 4 personalities (2, 3, 4, 7) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 6 units @ 100 V; 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V; 13 units @ 240 V |
| Power and Current | 230 W, 2.30A @ 100 V |
| Power and Current | 221 W, 1.95 A @ 120 V, 60 Hz |
| Power and Current | 215 W, 1.05 A @ 208 V, 60 Hz |
| Power and Current | 213 W, 1.03 A @ 230 V, 50 Hz |
| Power and Current | 228 W, 1.03 A @ 240 V |
| Certifications | CE, MET, FCC |
| IP Rating | IP65, outdoor/wet, with pressure equalizing M12 GORE® valve |
| Required Accessories | Lens Tube: 19°, 26°, 36°, 50° |
