The Chauvet Pro Ovation F-55WW Warm White LED Fresnel is a compact fixture for short-throw lighting in television, studios and theatres. Its 36W warm white LED source has a CRI of 92.5 and a 3120 K color temperature. The fixture provides 16-bit dimming resolution, electronic dimming and a manual 20° to 75° zoom range. It operates with virtual silence and supports DMX and RDM protocols, with 1, 2 or 5 DMX channels.

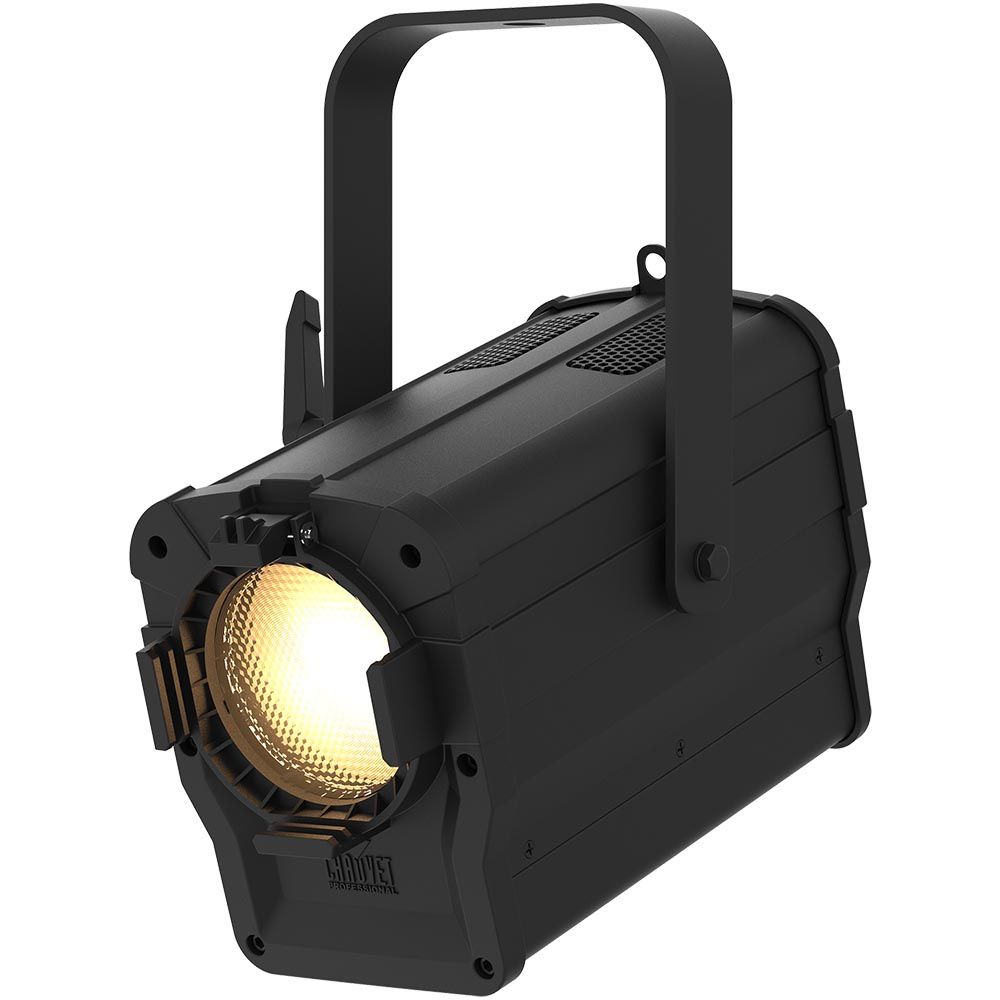

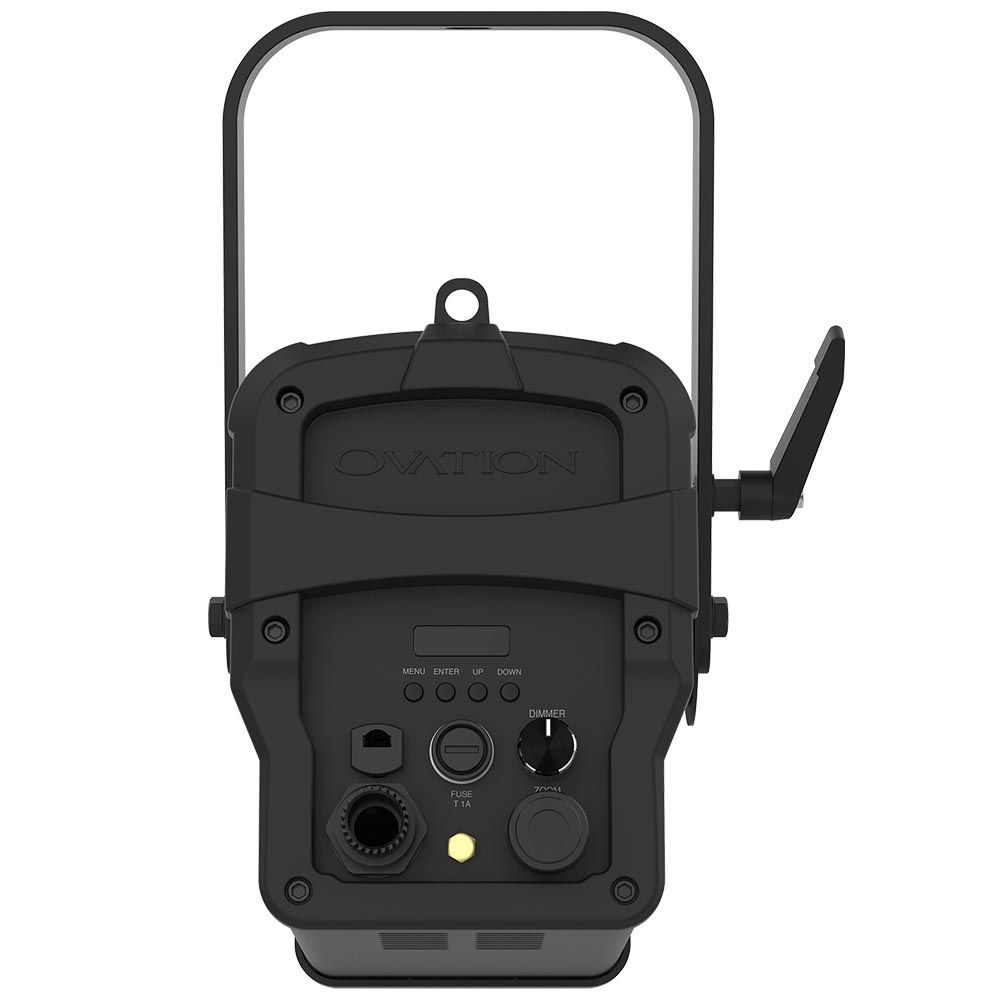

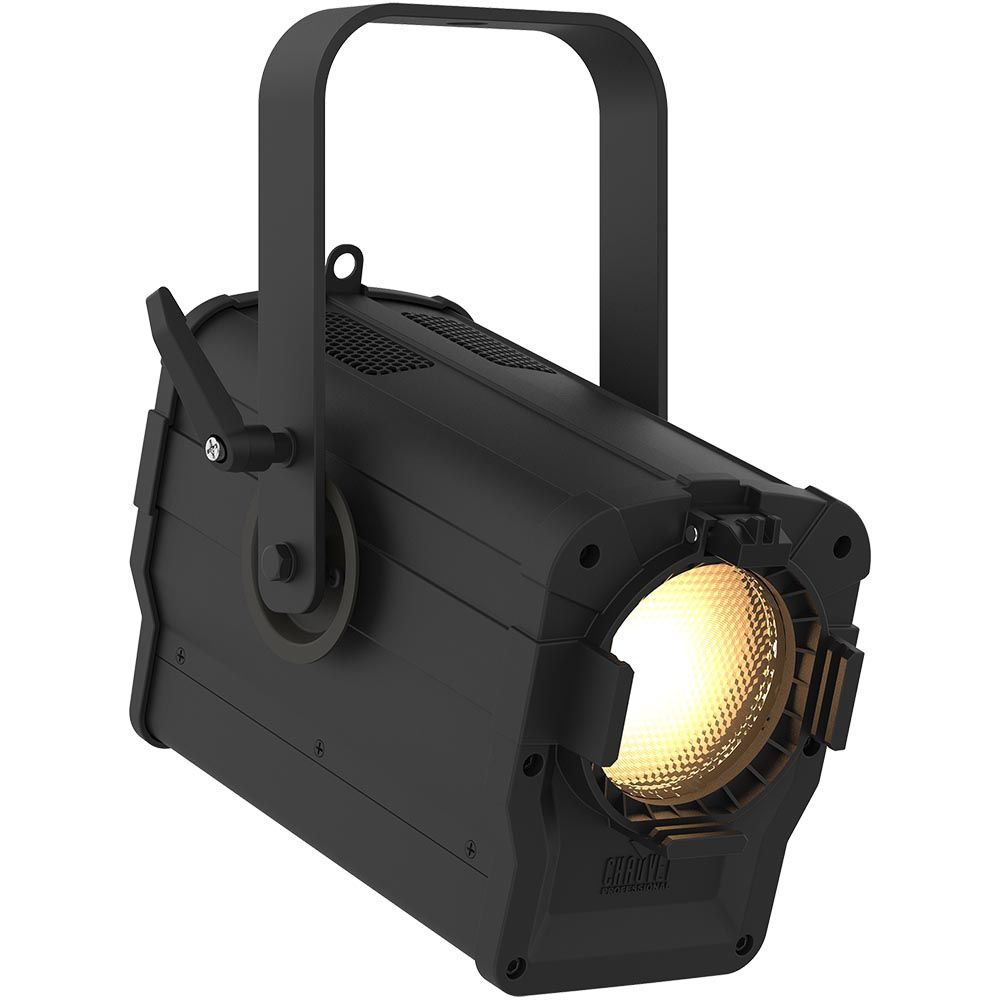

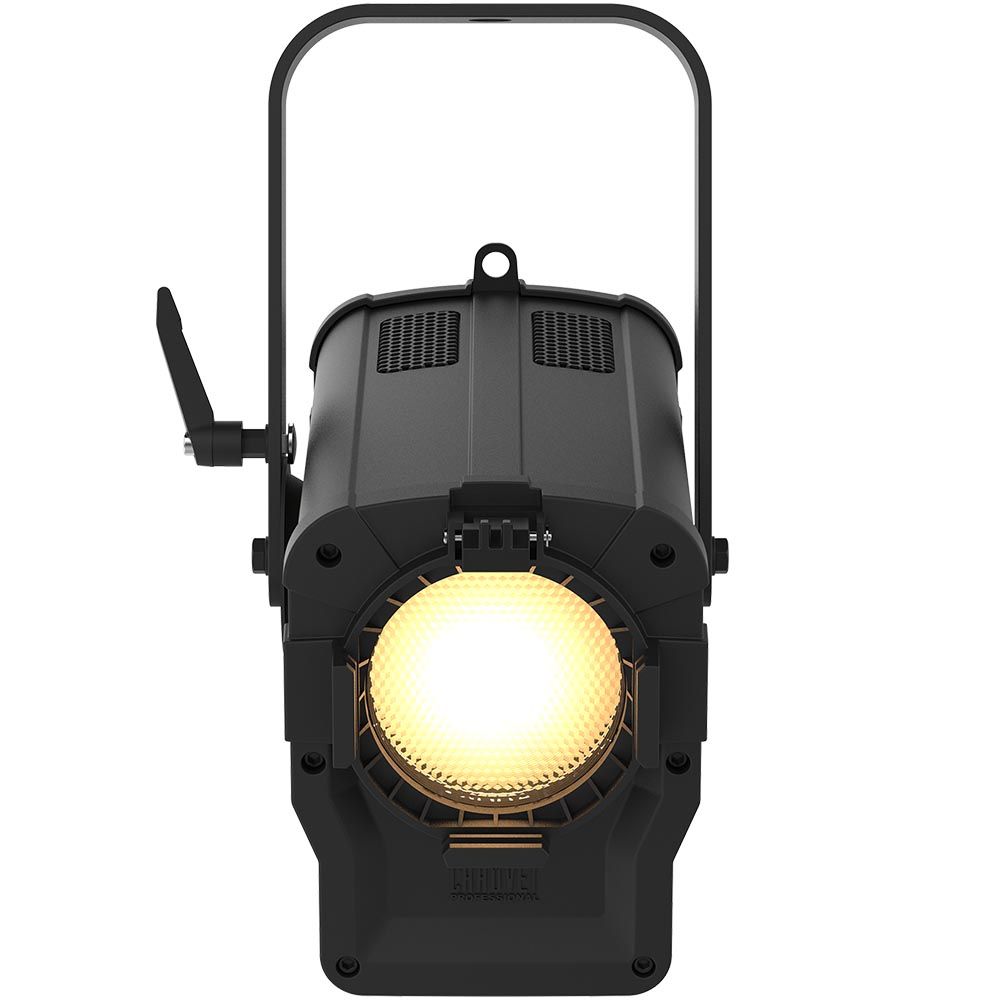

Chauvet Pro Ovation F-55WW Warm White LED Fresnel
RRP: $785.00 ex. GST
Key Features:
- 36W warm white LED source with 92.5 CRI
- Manual zoom range from 20° to 75°
- 16-bit dimming resolution for smooth fades and transitions
- Virtual-silence operation for noise-sensitive broadcast and theatre use
- DMX and RDM control with 1, 2 or 5 DMX channels
- Auto-ranging 100 to 240 VAC input
Technical Data
| Light Source | 1 LED (WW) 36 W, (740 mA), 3120 K, 50,000 hours life expectancy |
| Color Temperature (at full) | 3120 K |
| CRI | 92.5 |
| Beam Angle | 20.1° to 61.4° |
| Field Angle | 31.5° to 75.1° |
| Zoom Range | 20° to 75° |
| Lumens (31.5°) | 959 |
| Lumens (75.1°) | 2,243 |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Zoom | Manual |
| Strobe Rate | 0 to 30 Hz |
| Dim Modes | 4 |
| Dim Curves | 4 |
| Selectable PWM | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 25,000 Hz |
| Dimensions | 10.87 x 6.81 x 6.53 in (276.3 x 173 x 166 mm) |
| Weight | 4.8 lb (2.2 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum die-cast |
| Accessory Holder/Gel Frame Size | 3.25 in (83 mm) |
| Power Connection | Edison plug to hard-wired |
| Power Input | Hard-wired |
| Data Connectors | 5-pin XLR |
| Control Protocol | DMX, RDM |
| DMX Channels | 1, 2 or 5 |
| Modes/Personalities | 3 personalities (1CH, 2CH, 5CH) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | 33 W, 0.285 A @ 120 V, 60 Hz |
| Power and Current | 33 W, 0.178 A @ 208 V, 60 Hz |
| Power and Current | 34 W, 0.155 A @ 230 V, 50 Hz |
| Certifications | CE, MET |
| IP Rating | IP20, dry location |
