The Chauvet Pro Ovation GR-1 IP Gobo Rotator provides weather-resistant gobo rotation for Ovation E-260WW IP and E-910FC IP fixtures. It accepts standard B-size metal, glass or effect gobos and can rotate one gobo or two gobos in counter-rotating directions. Rotation is available in CW or CCW directions from 0.047 to 21 RPM, with DMX indexing for repeatable positioning. The unit draws power and control signals from the connected host fixture through its proprietary 4-pin IP65 input power/data cord.

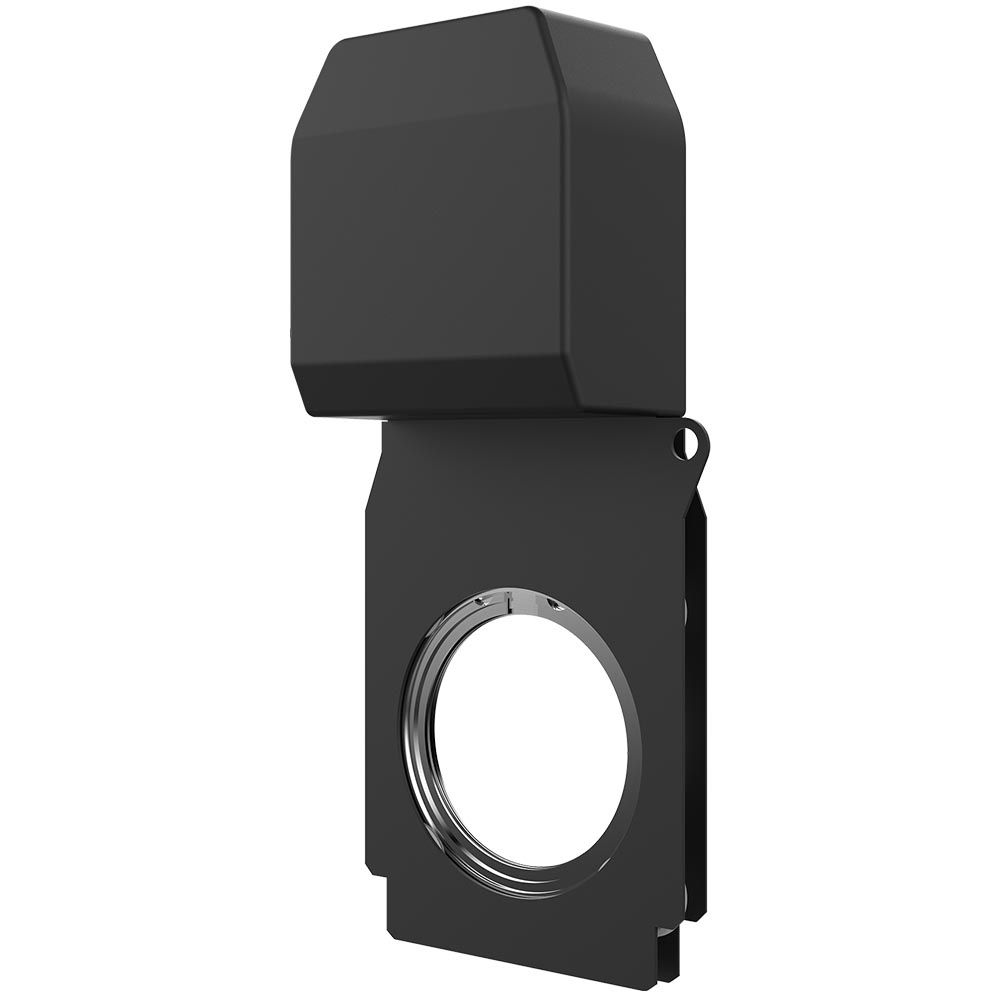

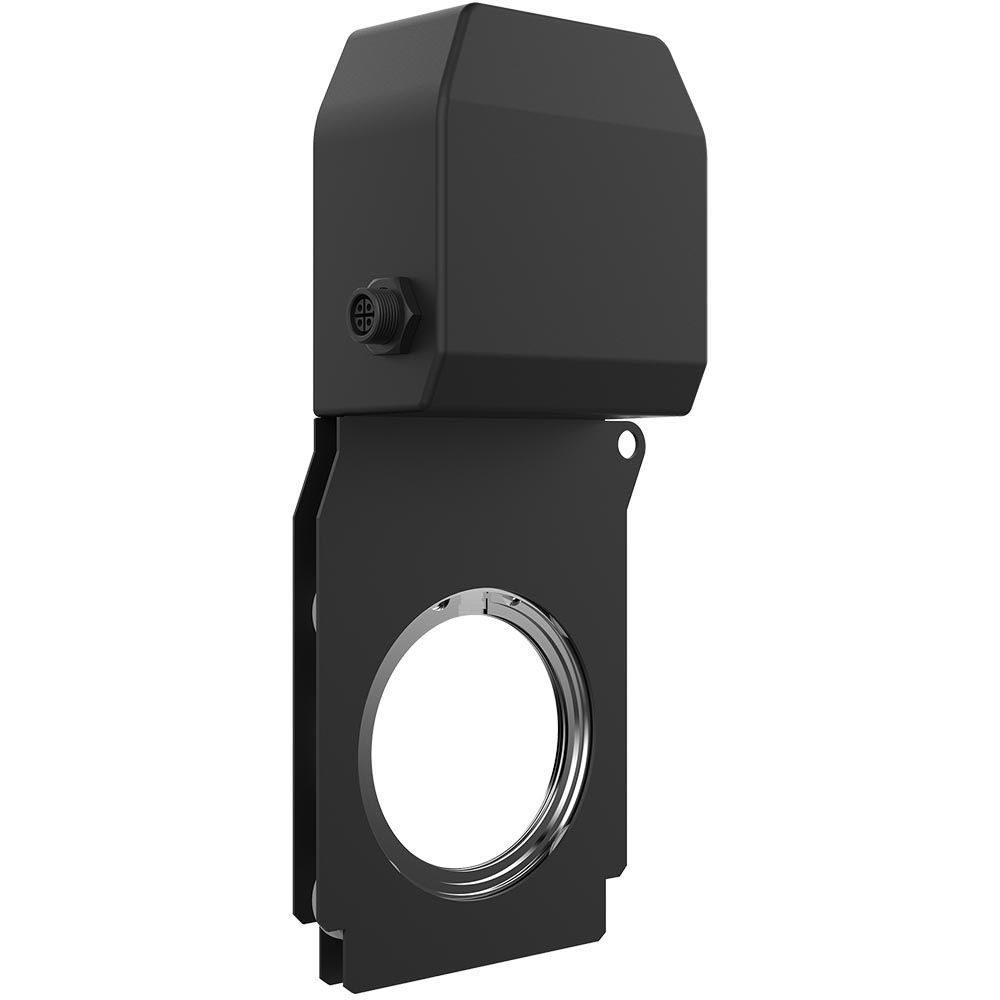

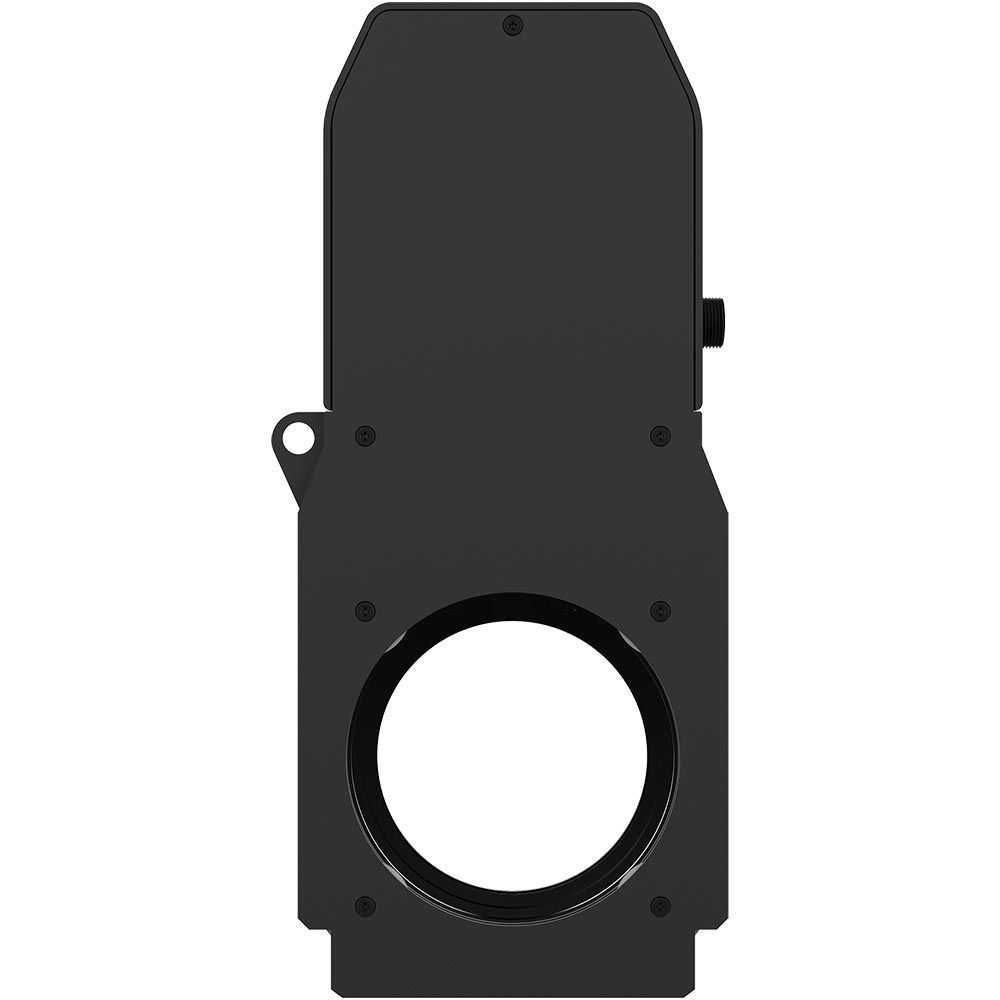

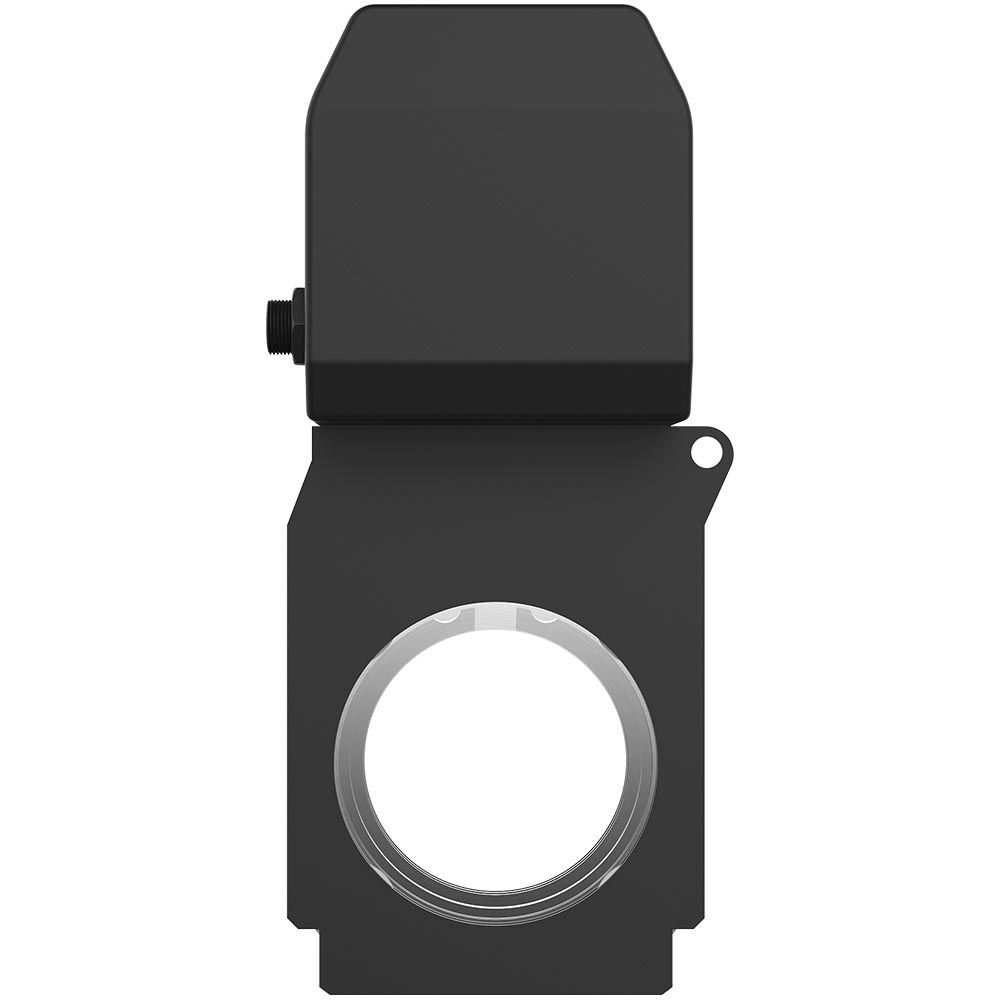

Chauvet Pro Ovation GR-1 IP Gobo Rotator
RRP: $556.00 ex. GST
Key Features:

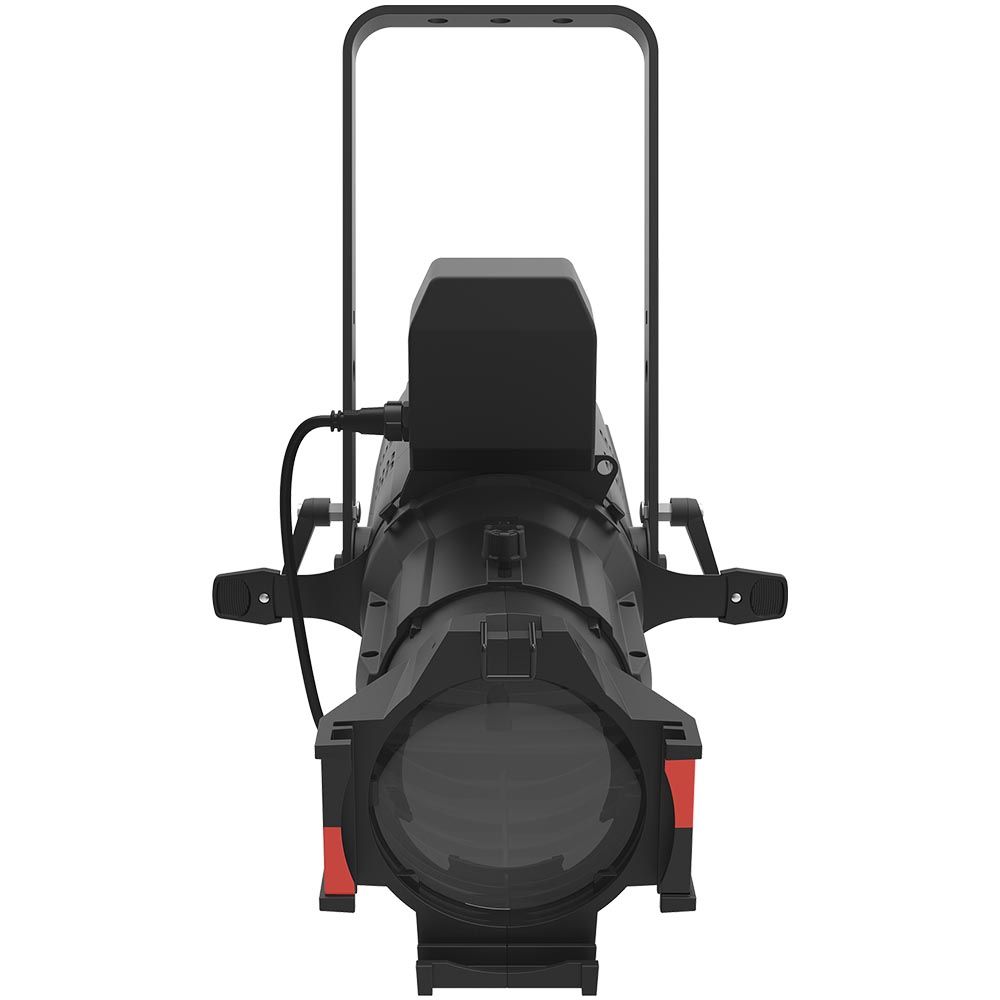

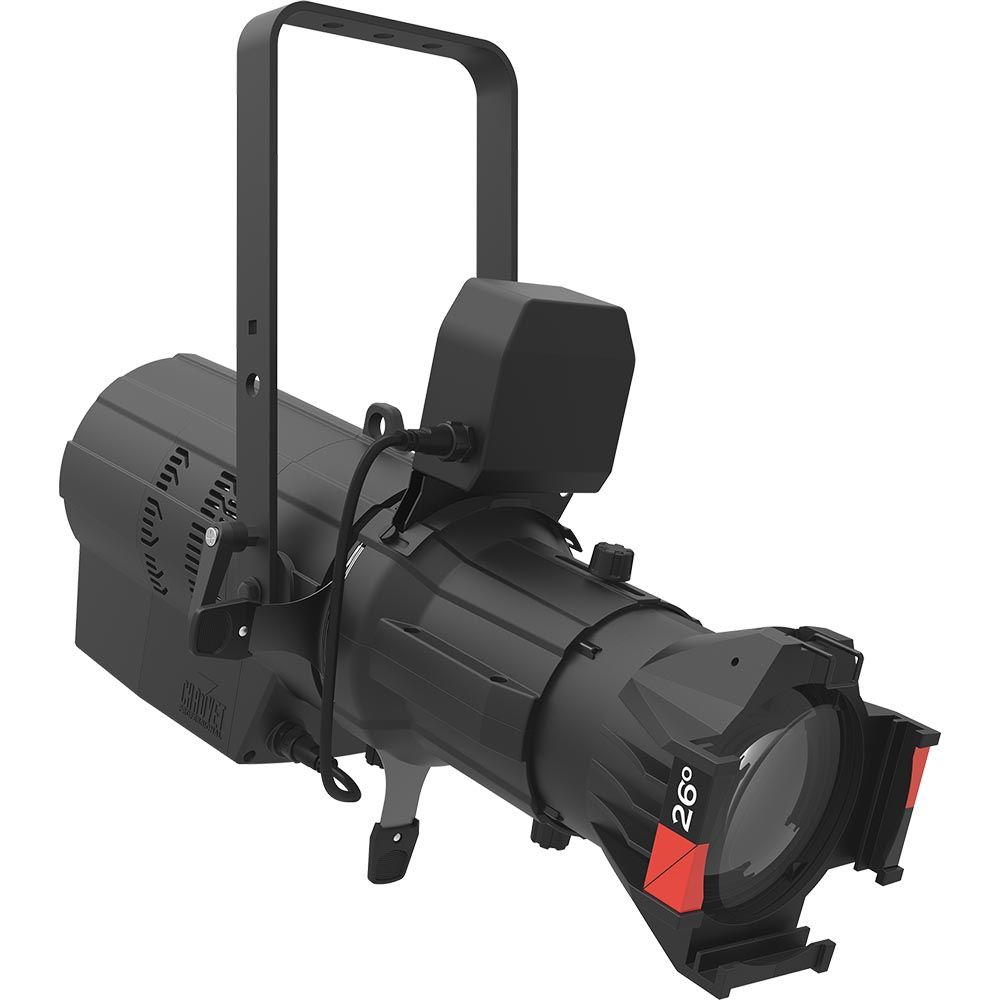

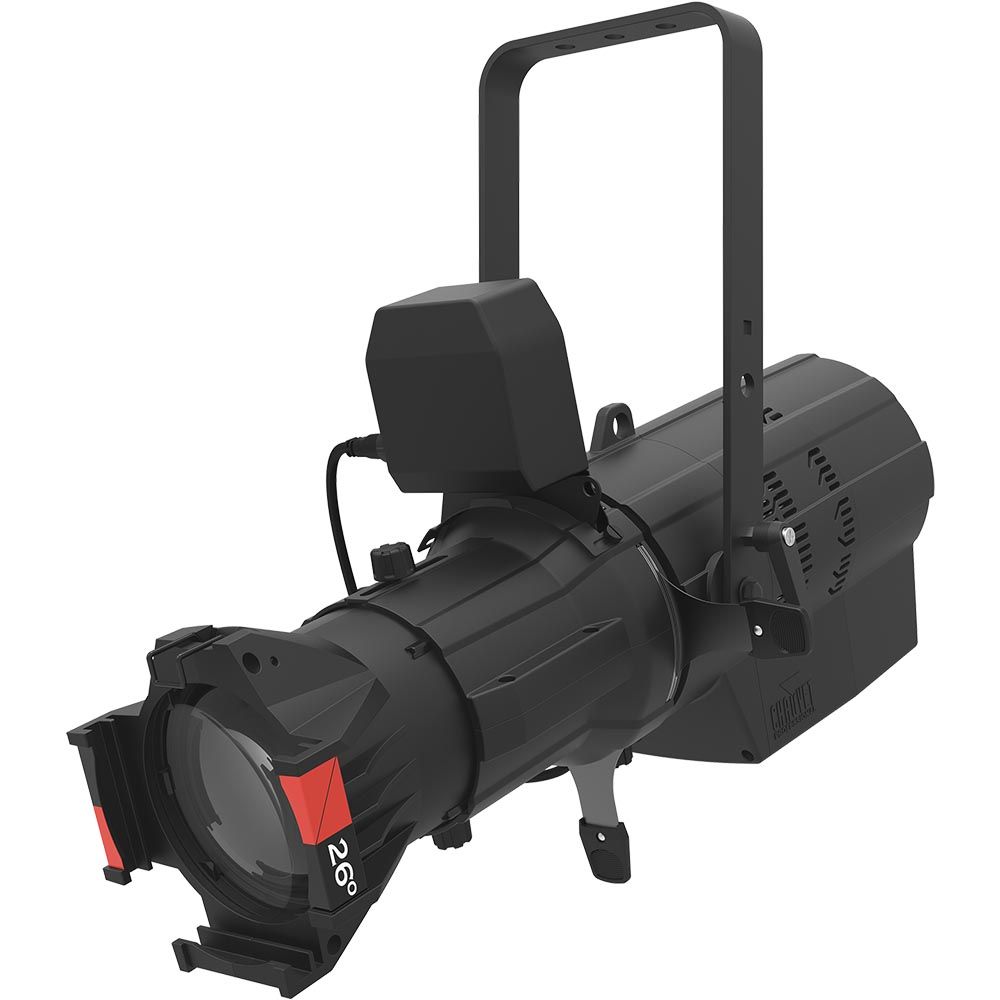

- IP65 gobo rotator for Ovation E-260WW IP and E-910FC IP fixtures
- Spins a single gobo or two gobos in counter-rotating directions
- Accepts standard B-size metal, glass or effect gobos
- Variable speed range from 0.047 to 21 RPM
- Fully indexable gobo positioning via DMX
- Smooth stepper motor drive for quiet, fluid rotation
Technical Data
| Gobos size | B (metal, glass or effect) |
| Effects | CW or CCW Rotation, indexing, infinite rotation at variable speeds |
| Speed Range | 0.047 – 21 RPM (17° – 7,560° per minute) |
| Dimensions | 10.9 x 4.7 x 2.2 in (277.5 x 120.5x 56.9 mm) |
| Weight | 2.4 lb (1.2 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum die-cast |
| Power Connection | Proprietary 4-pin IP65 input power/data cord (19 in/483 mm) |
| Data Connectors | Proprietary 4-pin IP65 input power/data cord (19 in/483 mm) |
| Cable Length (power/data) | 19 in/483 mm |
| Control Protocol | DMX |
| DMX Channels | 1 |
| Input Voltage | 24 VDC, 372 mA (via Ovation E-260WW IP) |
| Certifications | CE |
| IP Rating | IP65, temporary outdoor/wet use |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
