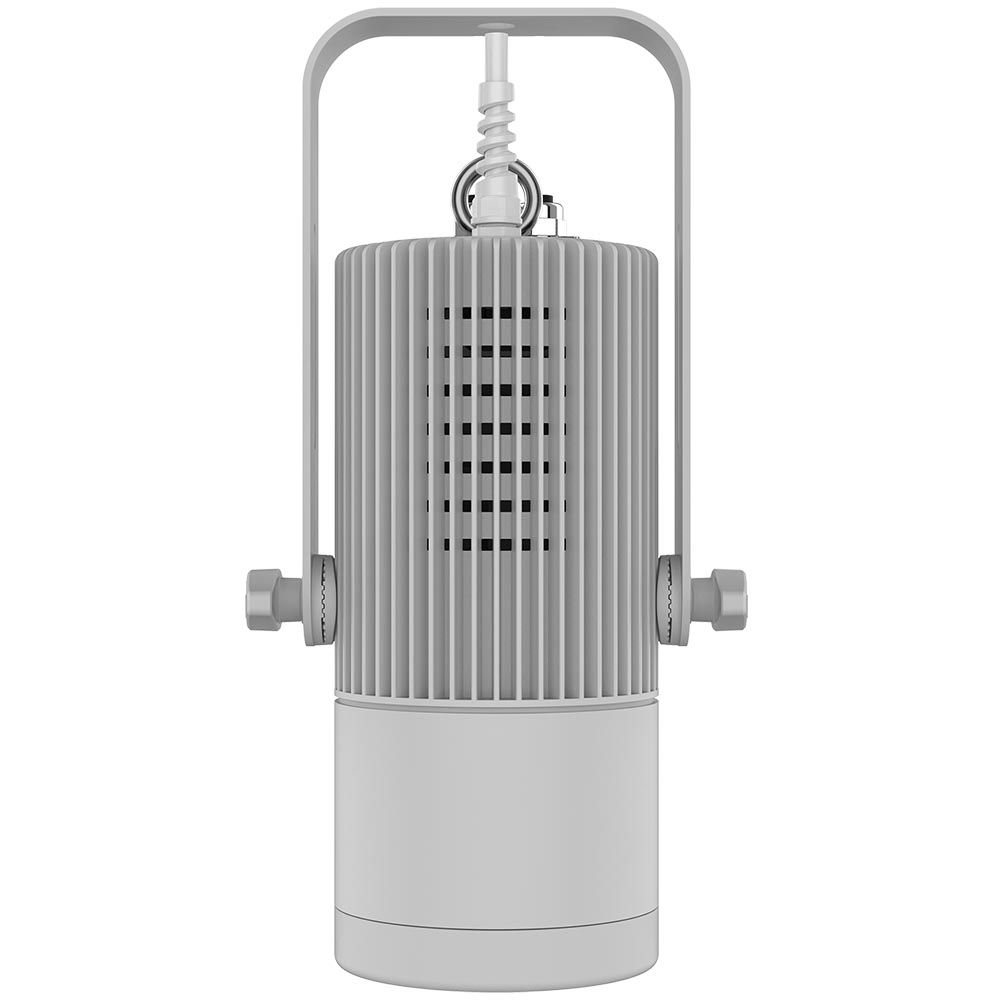

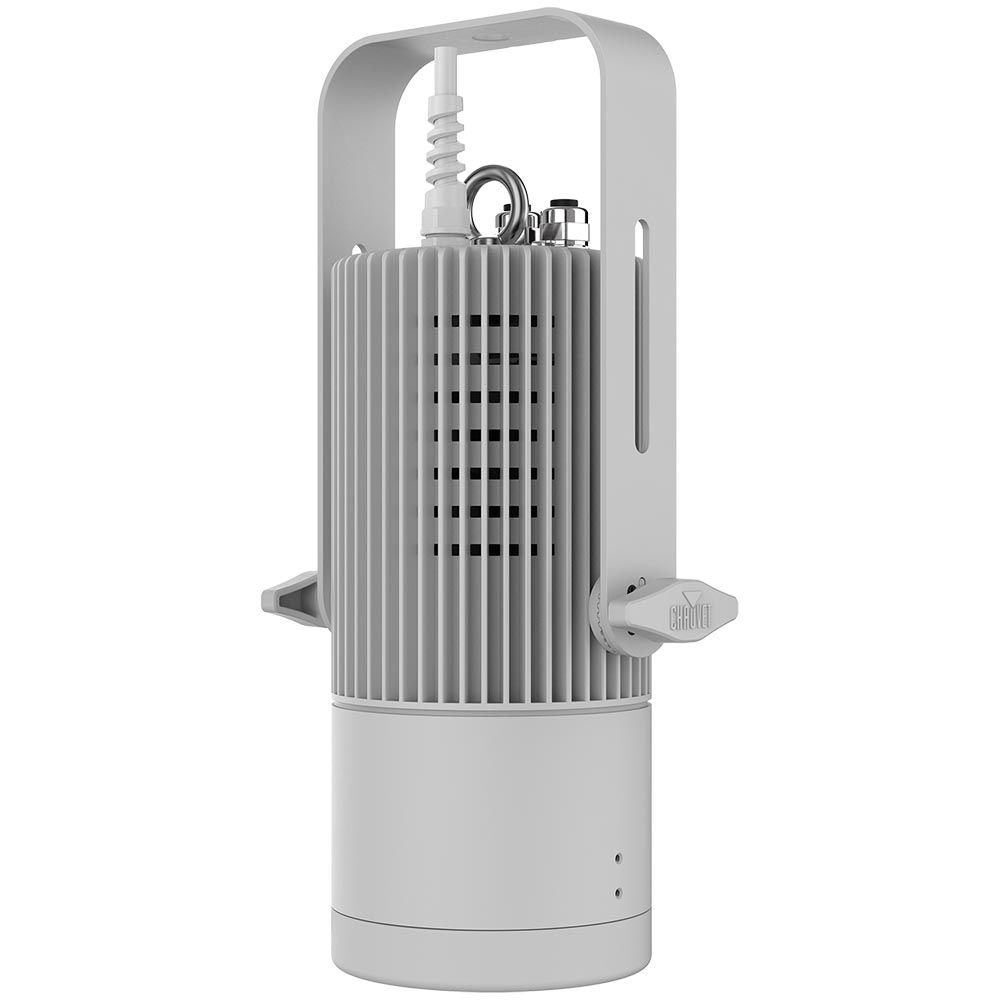

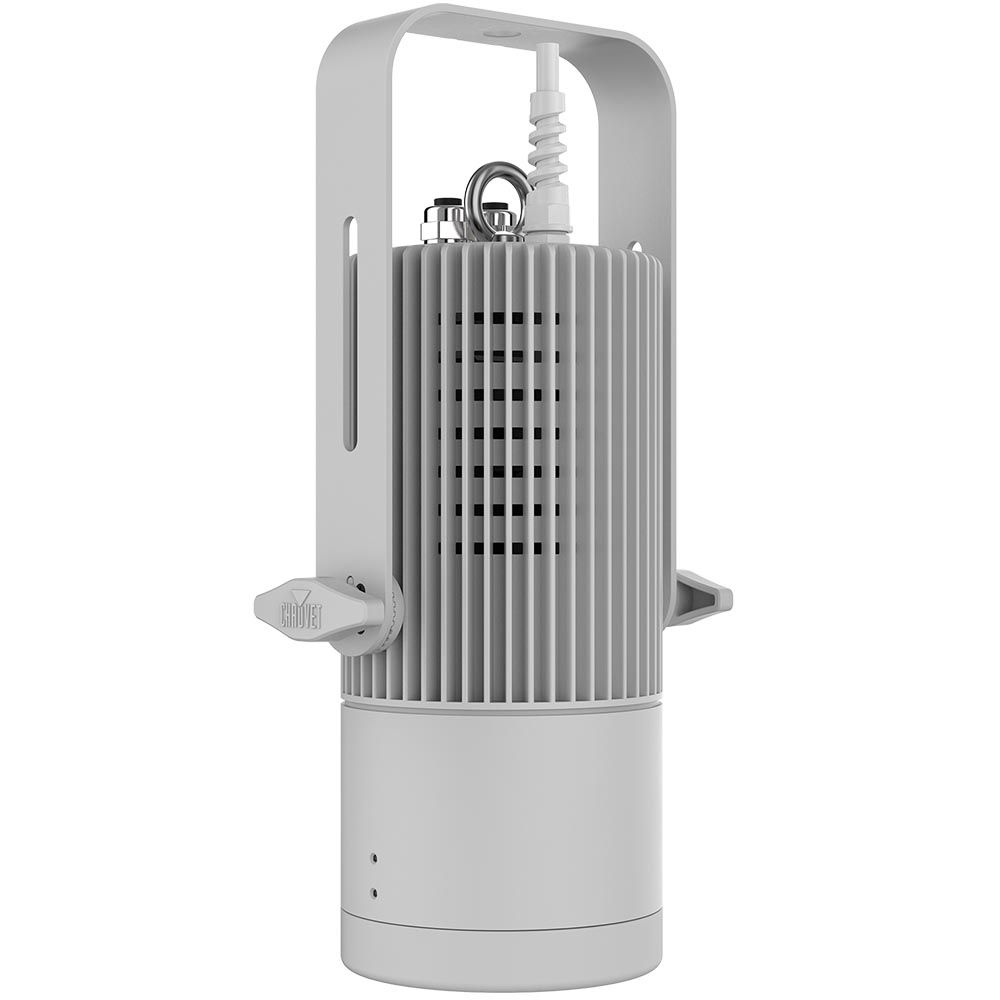

Chauvet Pro Ovation H-55FC White Full Color Houselight is a compact LED houselight for theaters, recital halls, worship venues, and applications with limited trim height. Its RGBAL LED engine delivers full-spectrum color and high-quality whites, while convection cooling provides silent operation. The fixture supports DMX, W-DMX, and RDM control, with adjustable PWM and 16-bit dimming for televised performances. Included 65°, 40°, and 25° lenses, an 80° filter, and recess and sconce mounting kits support varied installation requirements.
Chauvet Pro Ovation H-55FC White Full Color Houselight (White)
RRP: $2,175.00 ex. GST
Key Features:
- RGBAL LED engine with 26 LEDs: 6 red, 6 green, 6 blue, 5 amber, and 4 lime
- Fanless convection cooling for silent operation
- DMX, W-DMX, and RDM control protocols
- Adjustable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, and 25,000 Hz
- 16-bit electronic dimming
- Includes 65°, 40°, and 25° lenses, an 80° filter, egg crate, and recess and sconce mounting kits
Technical Data
| Light Source | 26 LEDs (6 red, 6 green, 6 blue, 5 amber, 4 lime) 2.62 to 5.25 W, (840 mA), 4807 K, 50,000 hours life expectancy. |
| Color Temperature (at full) | 4807 K |
| CRI | 82 |
| Lumens (w/80° filter) | 2,698 |
| Lumens (w/65° lens) | 2,928 |
| Lumens (w/45° lens) | 2,691 |
| Lumens (w/25° lens) | 2,849 |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz |
| Strobe Rate | 0 to 30 Hz |
| Dimensions | 13.14 x 6.92 x 4.52 in (334 x 176 x 115 mm) |
| Weight | 7.4 lb (3.4 kg) |
| Exterior Color | White |
| Power Connection | Bare-wired |
| Power Input | Hard-wired |
| Data Connectors | 5-pin XLR, Phoenix connector |
| Cable Length (power) | 15 ft (4.5 m) |
| Control Protocol | DMX, W-DMX, RDM |
| DMX Channels | 4, 5, 8, 11, 13, 14, 16 or HSV |
| Modes/Personalities | 8 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| IP Rating | IP20, dry location |
| Temperature (Ambient) | -4 °F to 113 °F (-10 °C to 45 °C) |
| Certifications | CE, MET |
