The Chauvet Pro Ovation H-55WW Black LED House Light provides warm white illumination for theatres, houses of worship, recital halls, and broadcast applications. Its fanless, convection-cooled design provides silent operation in noise-sensitive environments. The fixture supports interchangeable 40°, 65°, and 25° lens plates, plus an 80° filter, with 16-bit dimming and selectable PWM frequencies. Installation options include a removable yoke, integrated loop-eye, and included recess and sconce mounting kits.

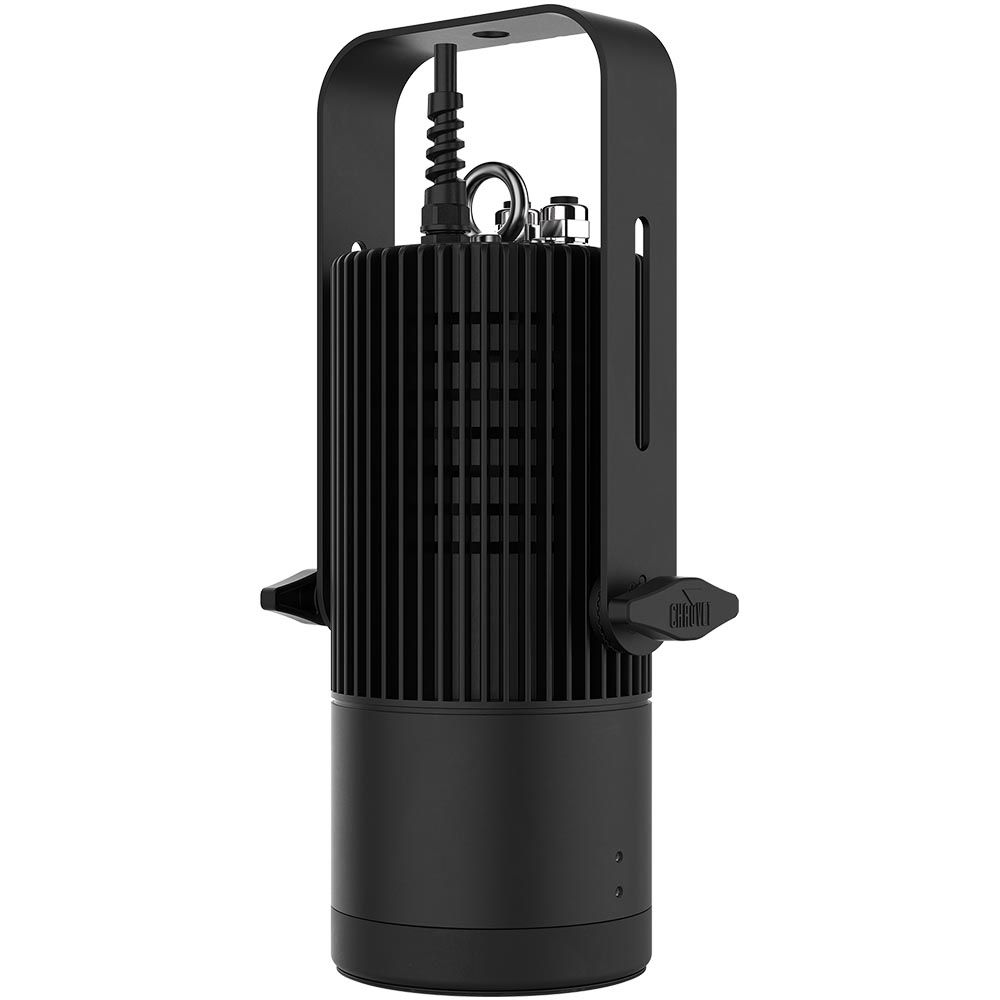

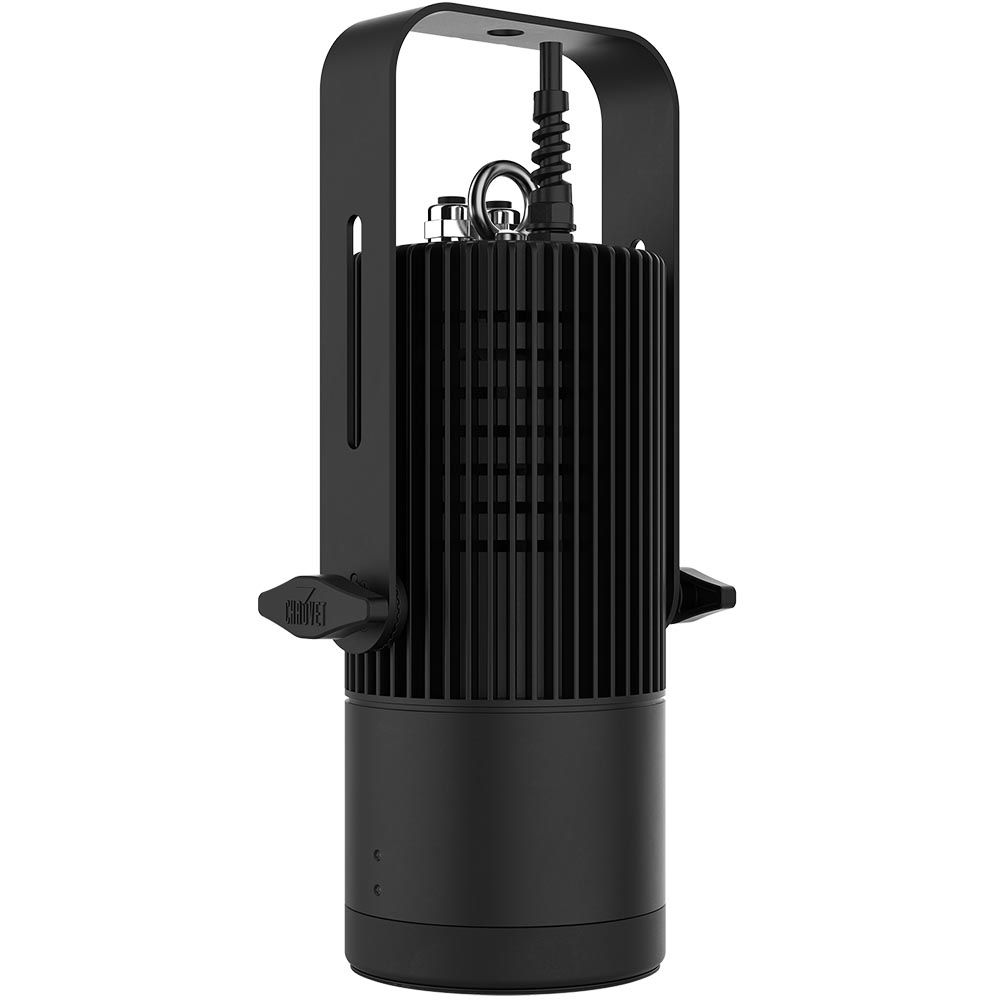

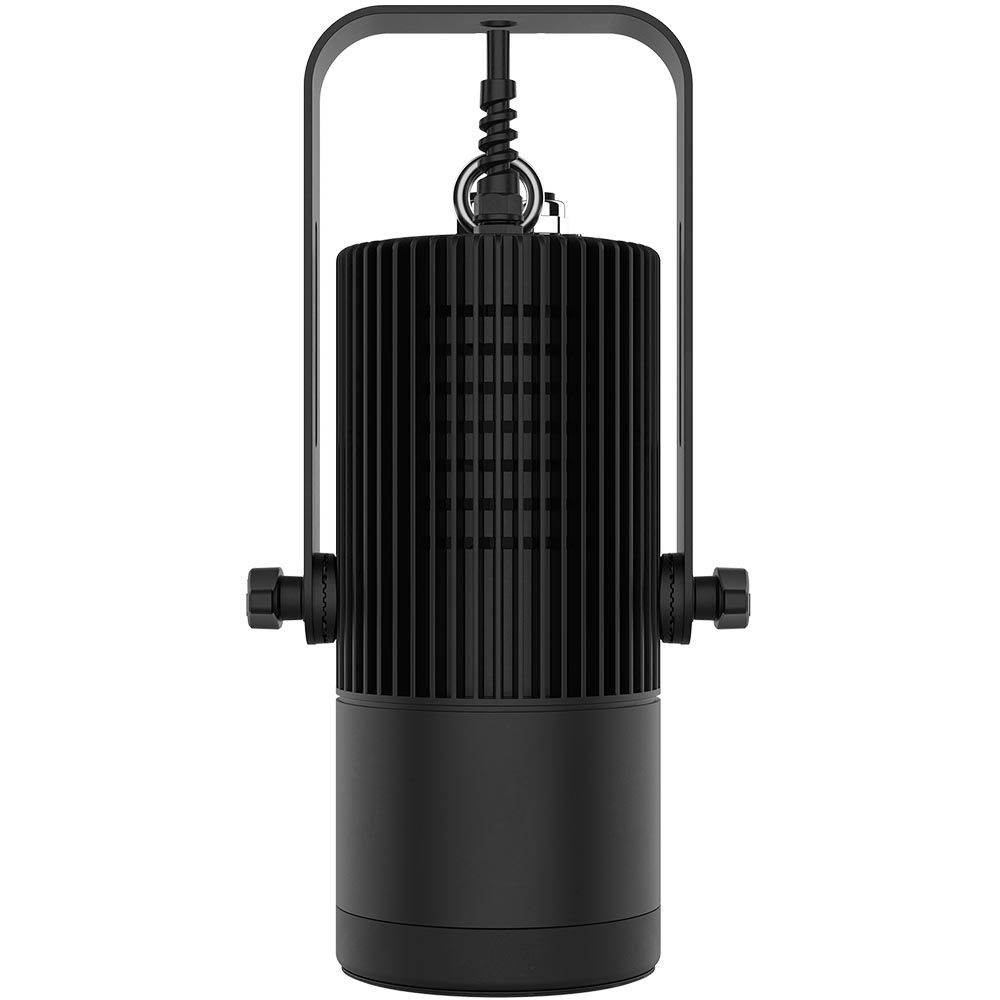

Chauvet Pro Ovation H-55WW Black LED House Light
RRP: $1,820.00 ex. GST
Key Features:
- 129.5 W warm white LED source with 3,157 K colour temperature and 93 CRI
- Fanless, convection-cooled design for completely silent operation
- Includes interchangeable 40°, 65°, and 25° lens plates and an 80° filter
- Supports DMX, W-DMX, and RDM control protocols
- 16-bit electronic dimming with selectable PWM frequencies from 600 Hz to 25,000 Hz
- 5-pin XLR and Phoenix connector data connections
- Removable yoke, integrated loop-eye, and included recess and sconce mounting kits
Technical Data
| Light Source | 1 LEDs (WW) 129.5 W, (1.45 A), 3157 K, 50,000 hours life expectancy |
| Color Temperature (at full) | 3157 K |
| CRI | 93 |
| Lumens (w/80° filter) | 3314 |
| Lumens (w/65° lens) | 3797 |
| Lumens (w/40° lens) | 4007 |
| Lumens (w/25° lens) | 4079 |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Strobe Rate | 0 to 25 Hz |
| Dim Modes | 4 |
| Built-in Automated Programs | Yes |
| Dimensions | 13.14 x 6.92 x 4.52 in (334 x 176 x 115 mm) |
| Weight | 7.4 lb (3.4 kg) |
| Exterior Color | Black |
| Power Connection | Bare-wired |
| Power Input | Hard-wired |
| Data Connectors | 5-pin XLR, Phoenix connector |
| Cable Length (power) | 15 ft (4.5 m) |
| Control Protocol | DMX, W-DMX, RDM |
| DMX Channels | 1, 2 or 5 |
| Modes/Personalities | 3 personalities (1CH, 2CH, 5CH) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (Auto-Ranging) |
| Power and Current | 60 W, 0.497 A @ 120 V, 60 Hz |
| Power and Current | 61 W, 0.297 A @ 208 V, 60 Hz |
| Power and Current | 63 W, 0.269 A @ 230 V, 50 Hz |
| Certifications | CE, MET, FCC |
| IP Rating | IP20, dry location |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
