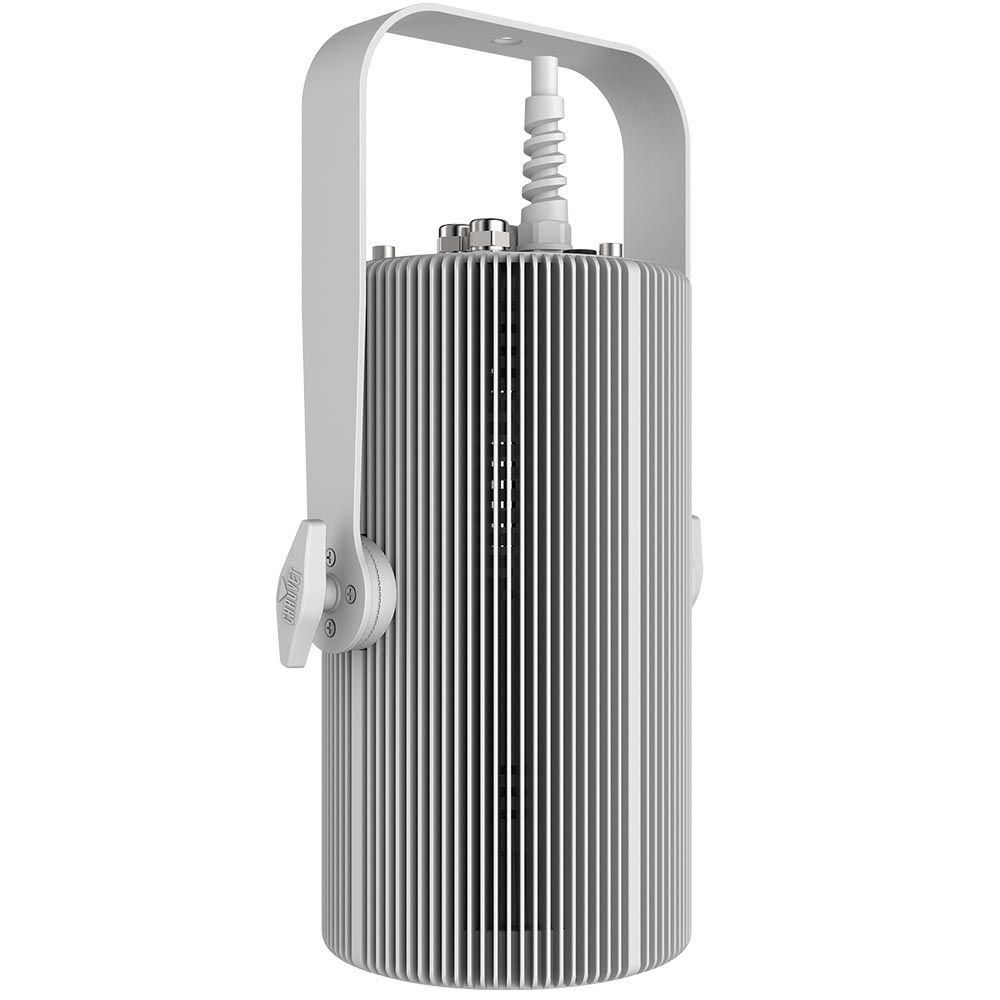

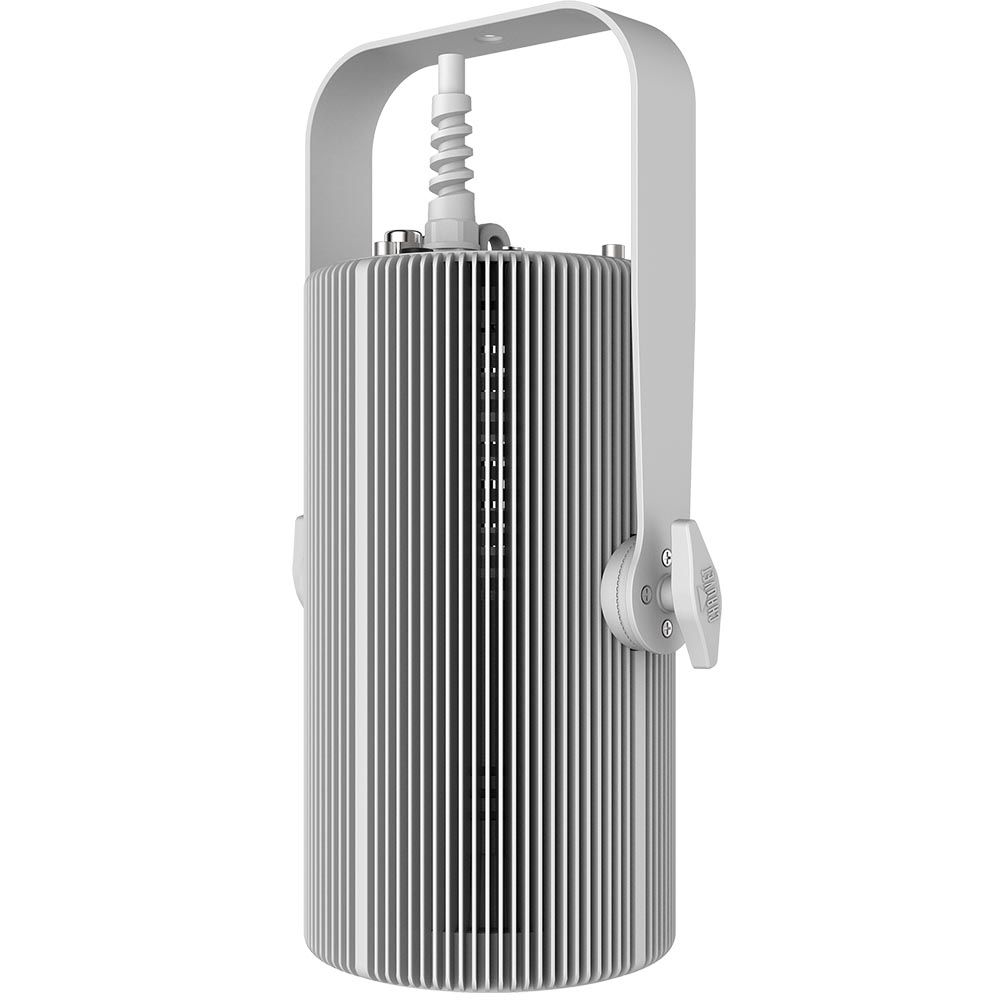

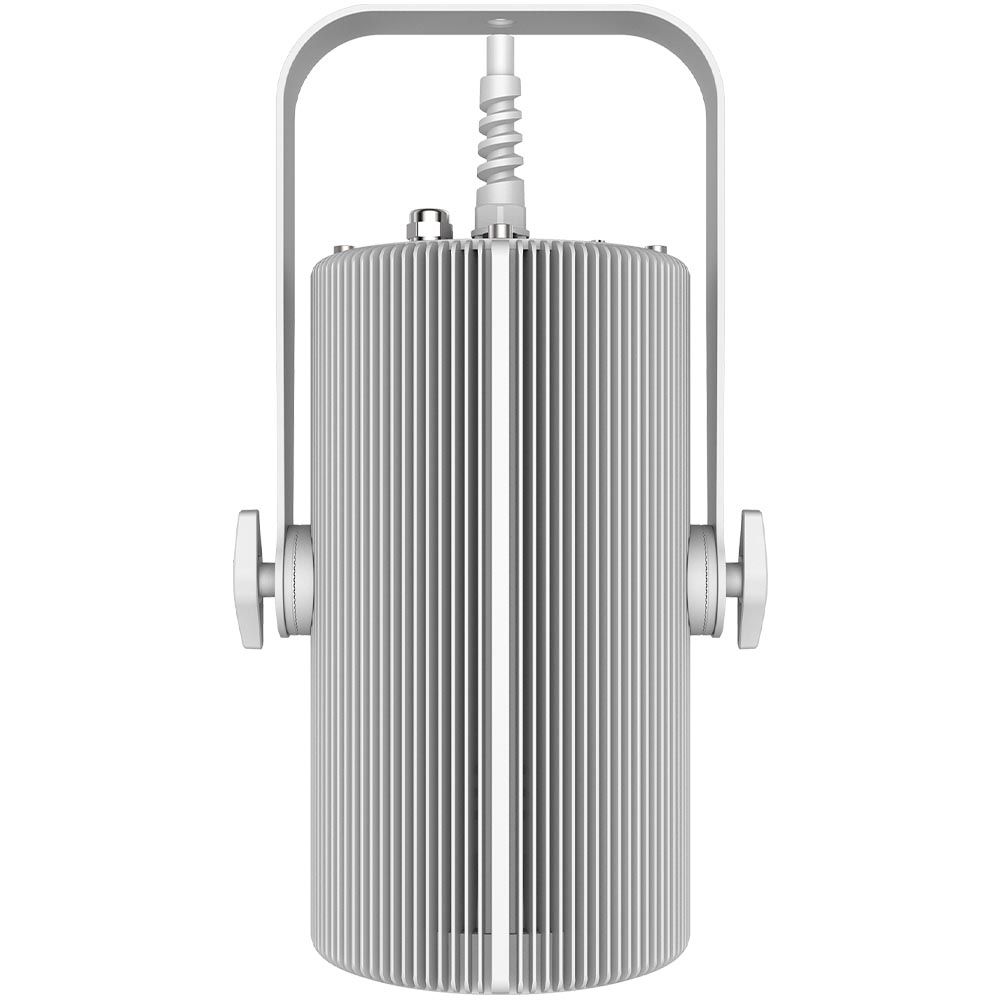

Chauvet Pro Ovation H-605FC (White) is a convection-cooled full-color house light for theatrical and house of worship applications. Its 60-LED system comprises 12 red, 12 green, 12 blue, 12 amber and 12 lime LEDs, providing full-color mixing and adjustable white color temperatures. The white exterior is the selected colourway variant, and the unit includes 65°, 45° and 25° lenses, an 80° filter and an egg crate. It supports 16-bit dimming, flicker-free operation, selectable PWM rates and DMX, RDM and W-DMX™ control.
Chauvet Pro Ovation H-605FC House Light (White)
RRP: $3,671.00 ex. GST
Key Features:
- Full Color RGBAL LED
- Adjustable Color Temperature
- 16-Bit Dimming
- Flicker-Free Operation
- Interchangeable Lens Plates
- Flexible DMX Connections
- Advanced Control Protocols
- Virtual Color Wheel
- Versatile Mounting Options
Technical Data
| Light Source | 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 2 to 3 W, (800 mA), 4766 K, 50,000 hours life expectancy |
| Color Temperature (at full) | 5714 K |
| CRI (5600 K) | 87 |
| Dimming Modes | 4 |
| Lumens (w/80° filter) | 4,409 |
| Lumens (w/65° lens) | 5,288 |
| Lumens (w/45° lens) | 5,446 |
| Lumens (w/25° lens) | 5,121 |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Strobe Rate | 0 to 27 Hz |
| Standalone Color Mixing | Yes |
| Color Temperature Presets | Yes |
| Dim Modes | 4 |
| Built-in Automated Programs | Yes |
| Dimensions | 13.11 x 9.44 x 13.34 in (333 x 240 x 339 mm) |
| Weight | 19.6 lb (8.9 kg) |
| Exterior Color | Black or White |
| Power Connection | Bare-wired |
| Power Input | Hard-wired |

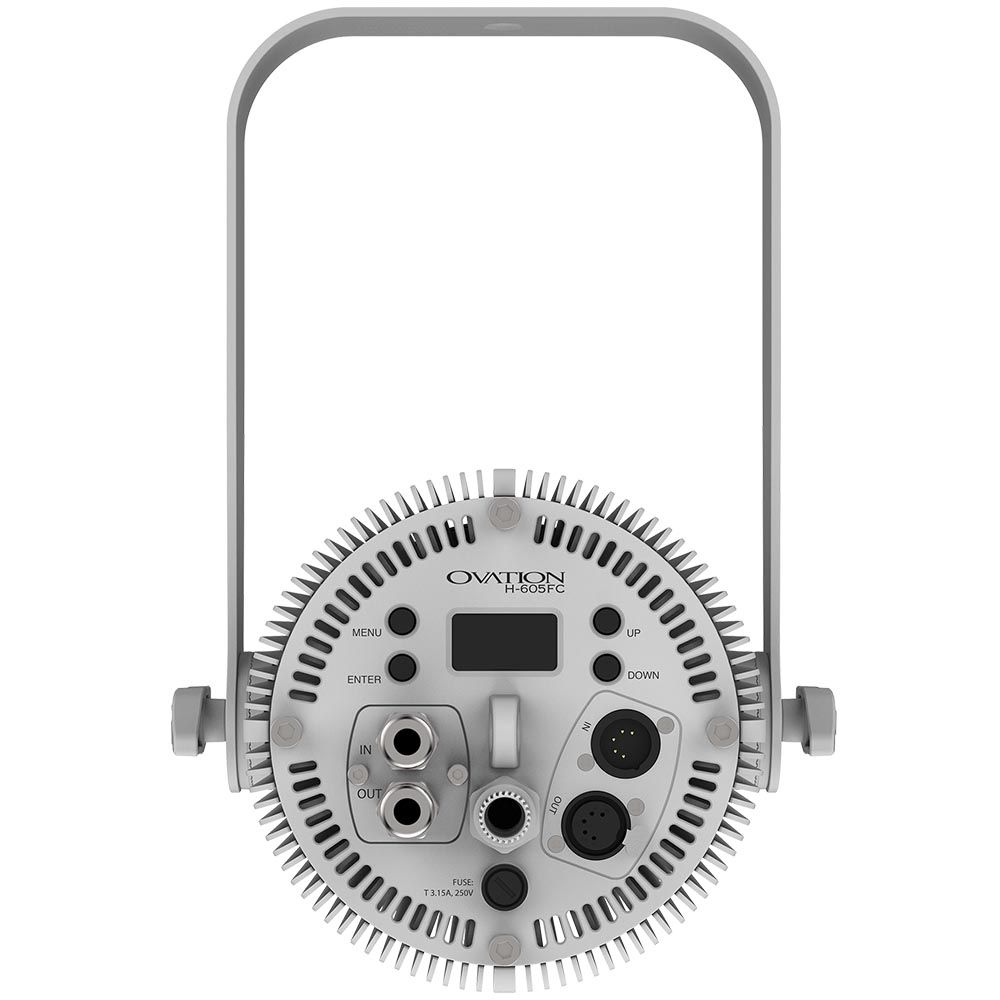

| Data Connectors | 5-pin XLR, Phoenix connector |
| Cable Length (power) | 15 ft (4.5 m) |
| Control Protocol | DMX, RDM, W-DMX™ |
| DMX Channels | 2, 4, 5, 8, 11, 13, 14, 16 or HSV |
| Modes/Personalities | 9 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | 145 W, 1.43 A @ 100 V, 60 Hz |
| Power and Current | 142 W, 1.19 A @ 120 V, 60 Hz |
| Power and Current | 146 W, 0.704 A @ 208 V, 60 Hz |
| Power and Current | 145 W, 0.627 A @ 230 V, 50 Hz |
| Power and Current | 145 W, 0.605 A @ 240 V, 60 Hz |
| Certifications | CE, MET, FCC |
| IP Rating | IP20, dry location |
| Compatible Accessories | W-DMX™ Transmitter; Professional Clamps: CTC-50HC, CTC-50HCN; 5-pin DMX Cables; RDM2go |
| What’s Included | Ovation H-605FC; 65°, 45° and 25° lenses; 80° filter; Egg crate |
