The Chauvet Pro Ovation P-56WW Warm White LED PAR Light is designed for theatrical and studio applications requiring quiet operation and an even, high-CRI light field. Its 230 W warm white LED source operates at 3228 K and delivers output comparable to a conventional 1,000 W PAR 64 lamp. Interchangeable lens plates provide narrow, medium, and wide beam options from 11.8° to 70.9°. The fixture supports DMX and RDM, offers four dimming modes, and accepts standard 7.5-inch beam-shaping accessories.

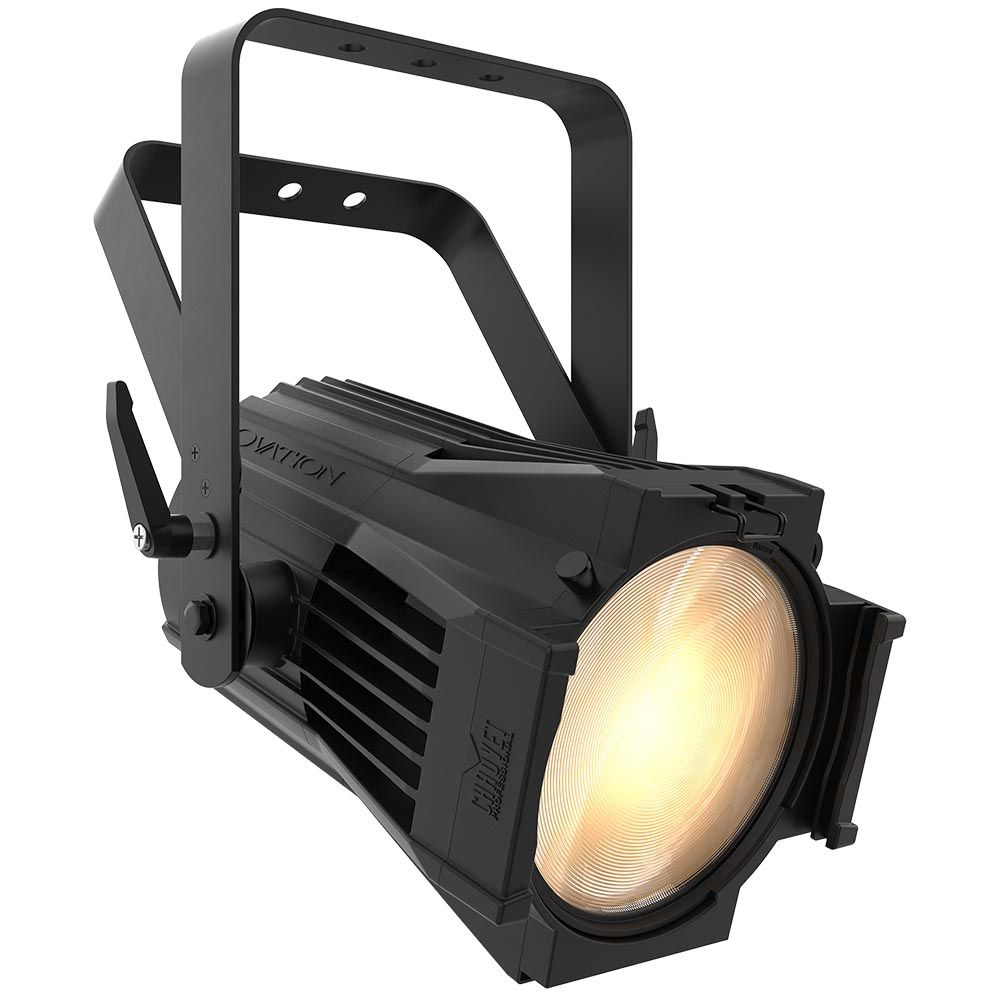

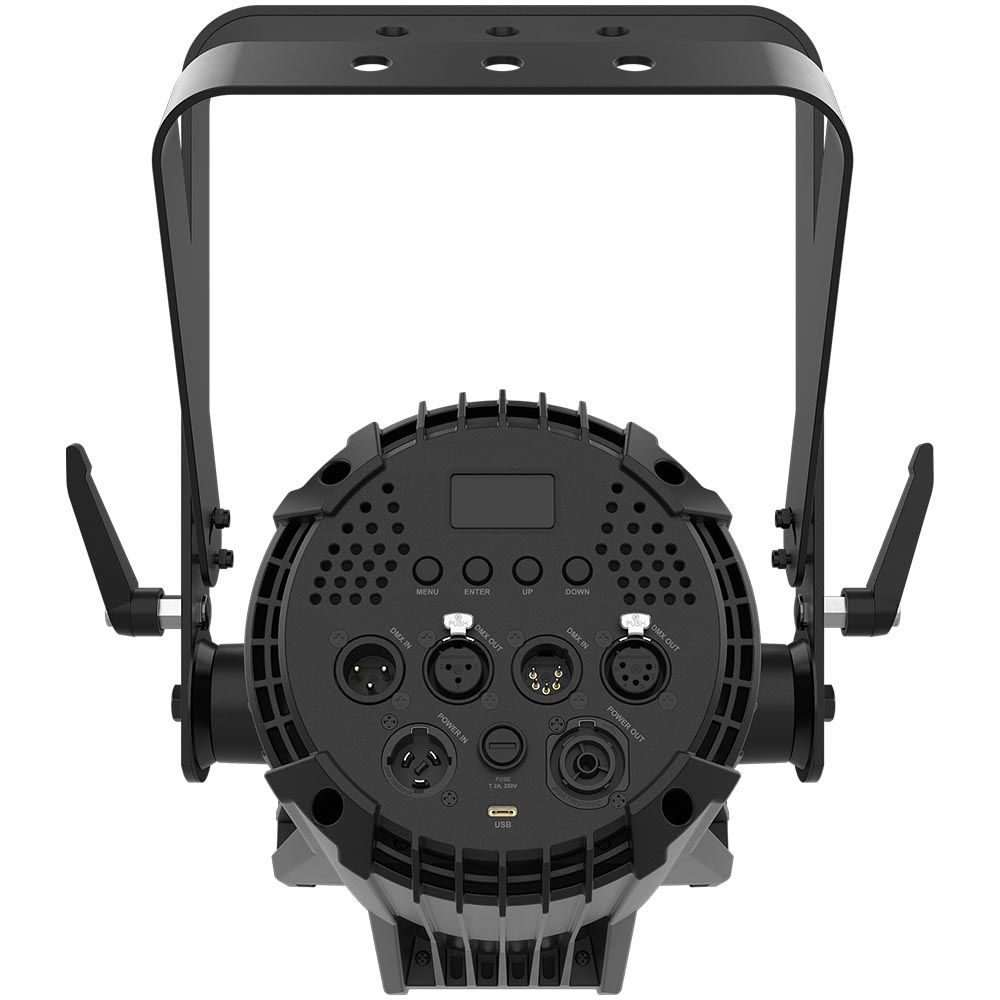

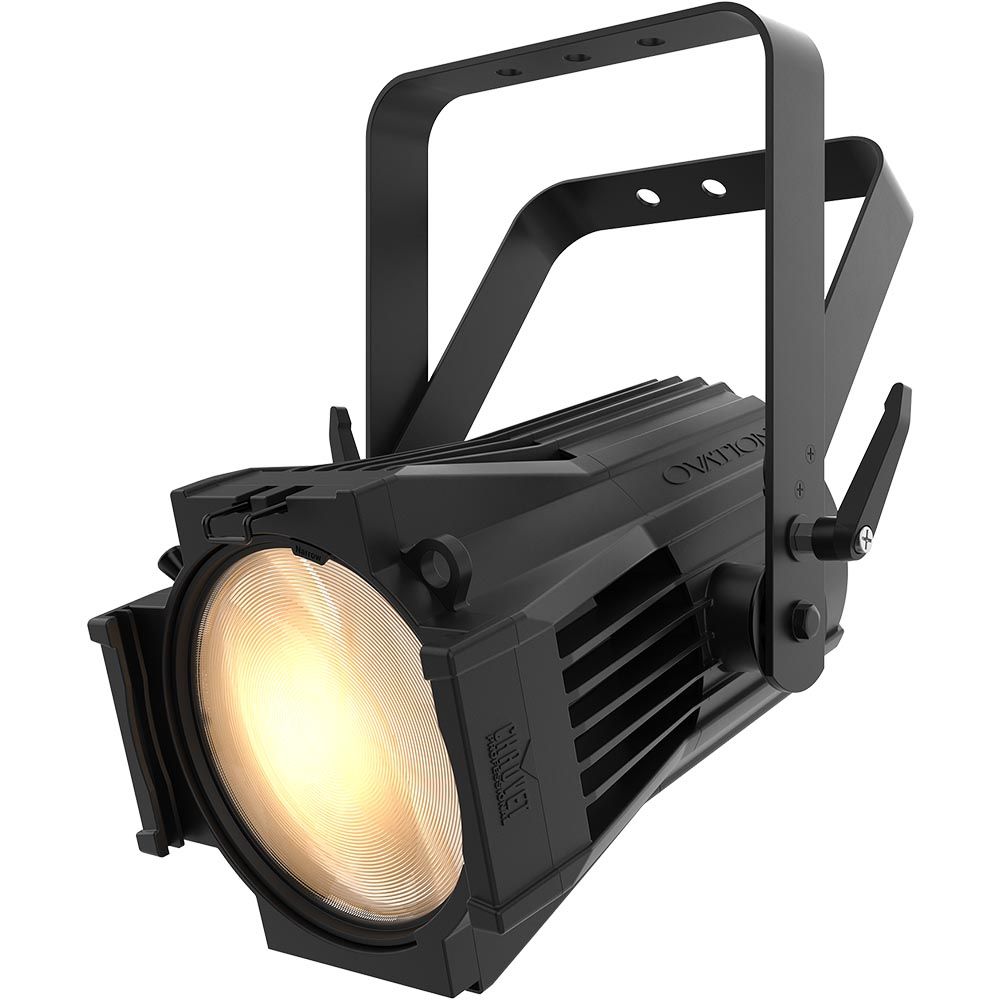

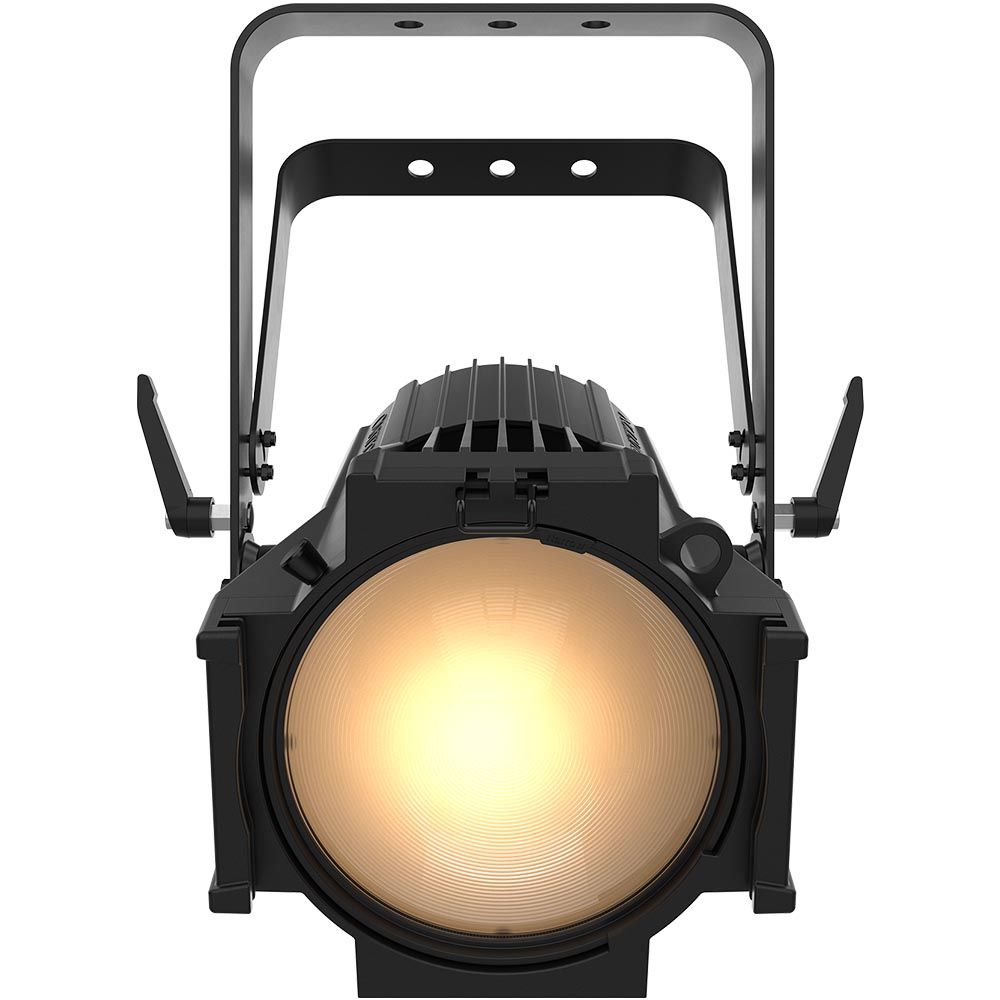

Chauvet Pro Ovation P-56WW Warm White LED PAR Light
RRP: $2,037.00 ex. GST
Key Features:
- 230 W warm white LED source operating at 3228 K
- CRI of 97.9 for color-accurate lighting
- Interchangeable narrow, medium, and wide lens plates
- Beam angle range of 11.8° to 70.9°
- Four selectable dimming modes with electronic dimmer
- DMX and RDM control protocols
- Virtually silent operation
- Accepts standard 7.5-inch beam shaping accessories
Technical Data
| Light Source | 1 LEDs (WW) 230 W, (3.2 A), 3228 K, 50,000 hours life expectancy |
| Color Temperature (at full) | 3228 K |
| CRI | 97.9 |
| Lumens (w/Narrow lens) | 10,326 |
| Lumens (w/Medium lens) | 10,728 |
| Lumens (w/Wide lens) | 10,687 |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Strobe Rate | 0 to 29 Hz |
| Dim Modes | 4 |
| Built-in Automated Programs | Yes |
| Dimensions | 12.48 x 12.83 x 14 in (317 x 326 x 363 mm) |
| Weight | 11.6 lb (5.3 kg) |
| Exterior Color | Black |
| Accessory Holder/Gel Frame Size | 7.5 in (191 mm) |
| Data Connectors | 5-pin XLR |
| Software Connection | USB-C |
| Control Protocol | DMX, RDM |
| DMX Channels | 1, 2, 3 or 6 |
| Modes/Personalities | 4 personalities (1, 2, 3, 6) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 5 units @ 100 V; 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V; 15 units @ 240 V |
| Certifications | CE, MET, FCC |
| IP Rating | IP20, dry location |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
