The Chauvet Pro Ovation RĂªve E-3 IP LED ERS-Style Fixture is a virtually silent, IP65-rated LED fixture for indoor or outdoor studio, theatre, and film applications. Its 6-color LED system delivers 93.5 CRI and supports color temperature presets from 2800 K to 8000 K. The fixture provides 18-bit dimming, adjustable PWM, plus/minus green adjustment, and emulated red-shift. DMX and RDM protocols support control and setup flexibility.

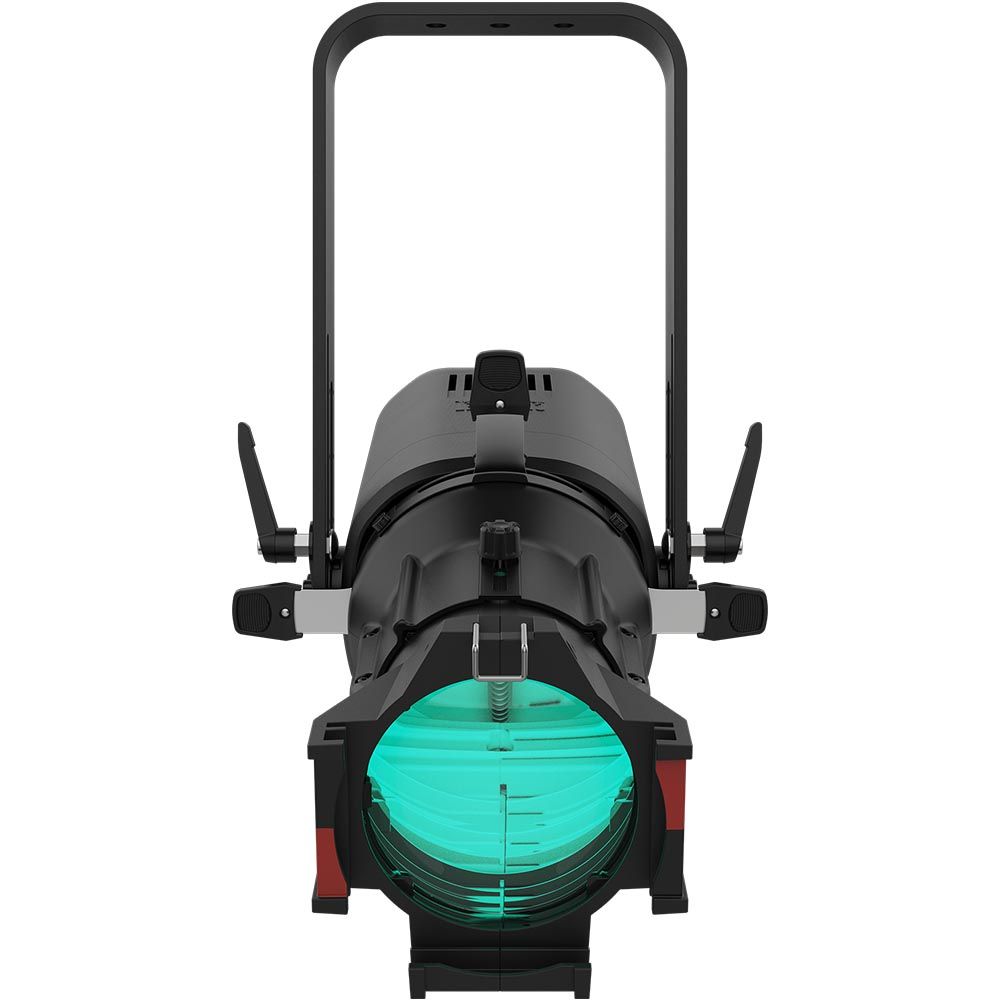

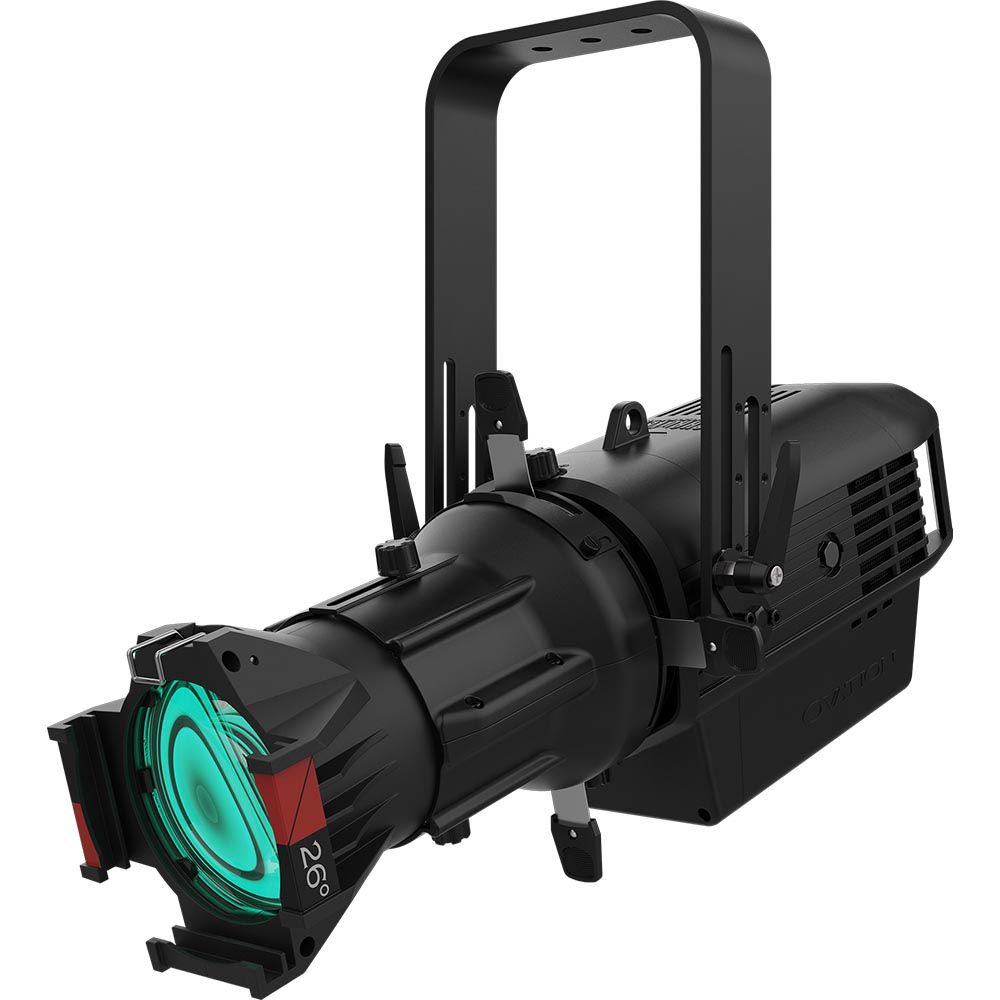

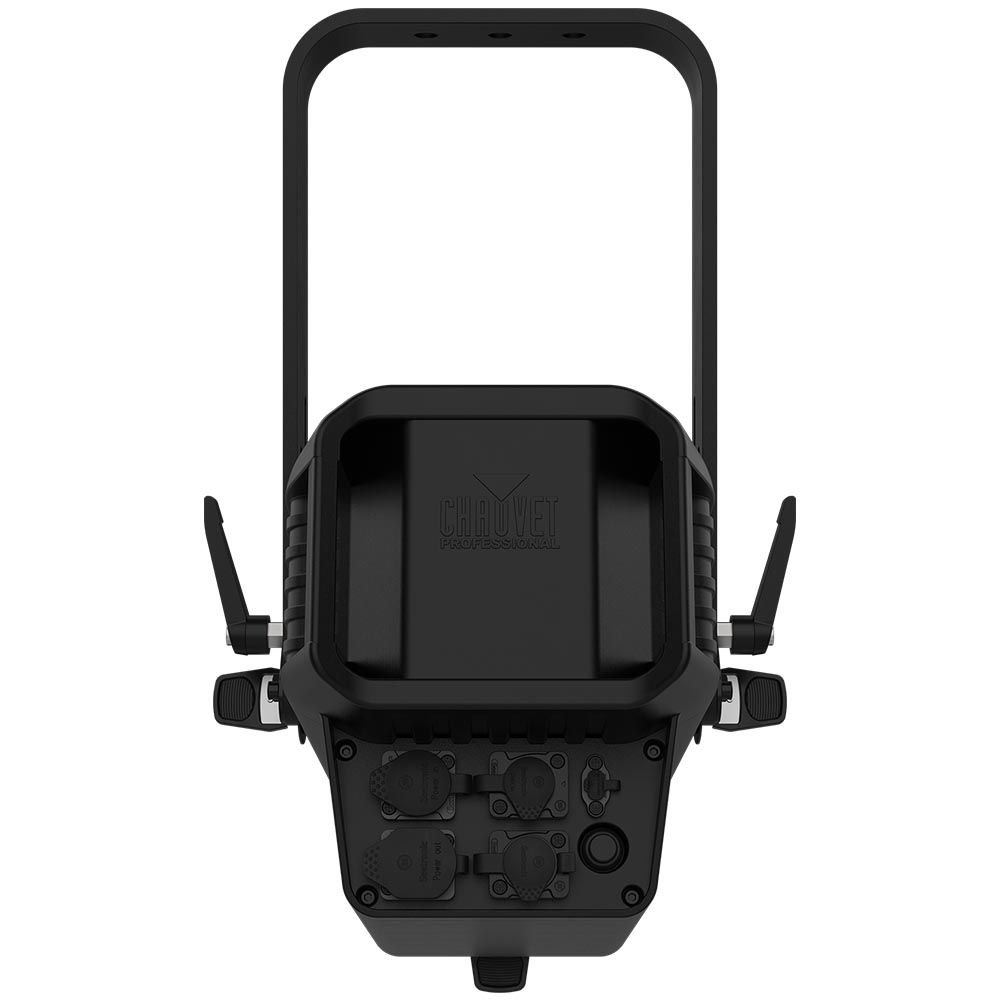

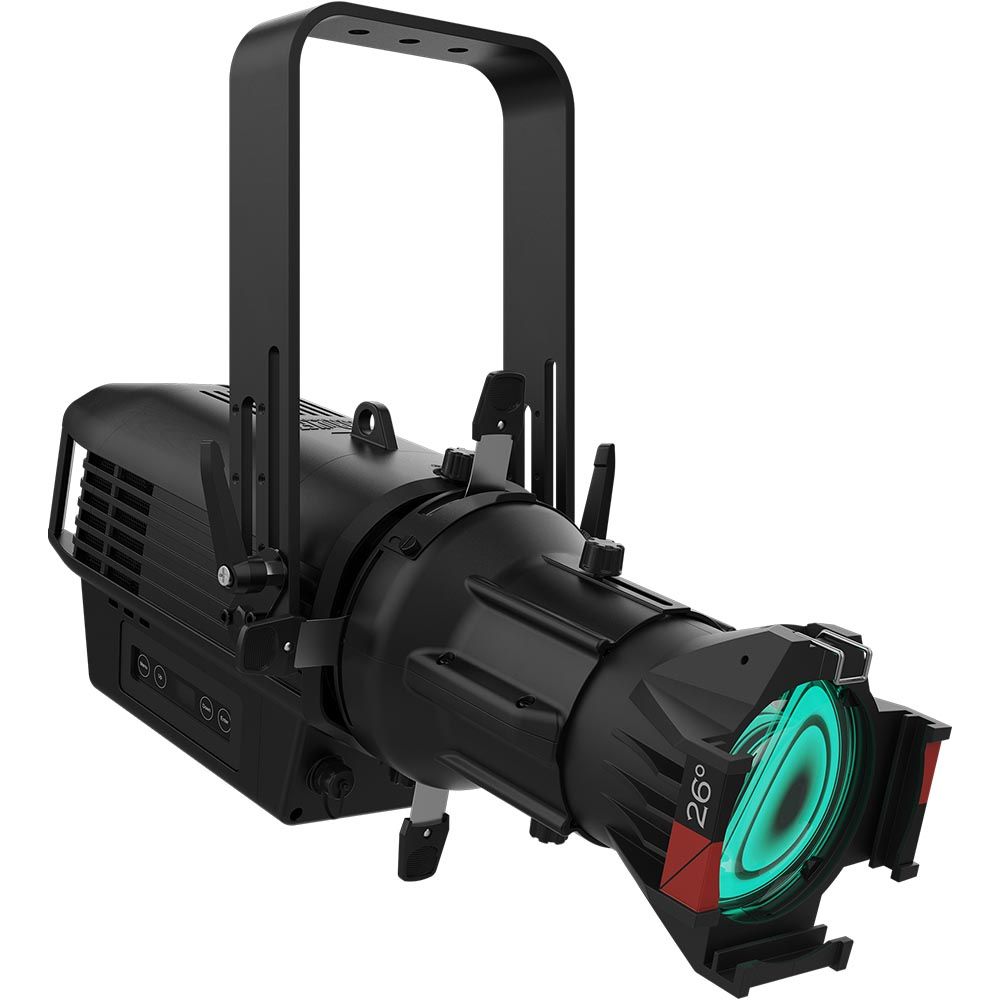

Chauvet Pro Ovation RĂªve E-3 IP LED ERS-Style Fixture
RRP: $5,606.00 ex. GST
Key Features:
- Virtually silent, fanless, IP65-rated housing
- 6-color LED system with 93.5 CRI
- Color temperature presets from 2800 K to 8000 K
- 18-bit dimming and adjustable PWM
- Plus/minus green adjustment and emulated red-shift
- DMX and RDM control protocols
Technical Data
| Light Source | 91 LEDs (12 red, 19 green, 3 blue, 9 royal blue, 24 amber, 24 mint) 3.5 to 10 W, (2.4 A), 50,000 hours life expectancy |
| Color Temperature (range) | 2800 to 8000 K |
| Color Temperature (at full) | 6,428 K |
| CRI | 93.5 |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Focus | Manual |
| Strobe Rate | 0 to 28.6 Hz |
| Standalone Color Mixing | Yes |
| Color Temperature Presets | Yes |
| Dim Modes | 4 |
| Dim Curves | 4 |
| Built-in Automated Programs | Yes |
| Exterior Color | Black |
| Housing Material | Magnesium alloy |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Software Connection | Type-C USB |
| Control Protocol | DMX, RDM |
| DMX Channels | 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV |
| Modes/Personalities | 9 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18, HSV) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 4 units @ 120 V; 7 units @ 208 V; 7 units @ 230 V |
| Power and Current | 354 W, 2.999 A @ 120 V, 60 Hz 345 W, 1.707 A @ 208 V, 60 Hz 342 W, 1.555 A @ 230 V, 50 Hz |
| Certifications | CE, MET, FCC, UKCA |
| IP Rating | IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
