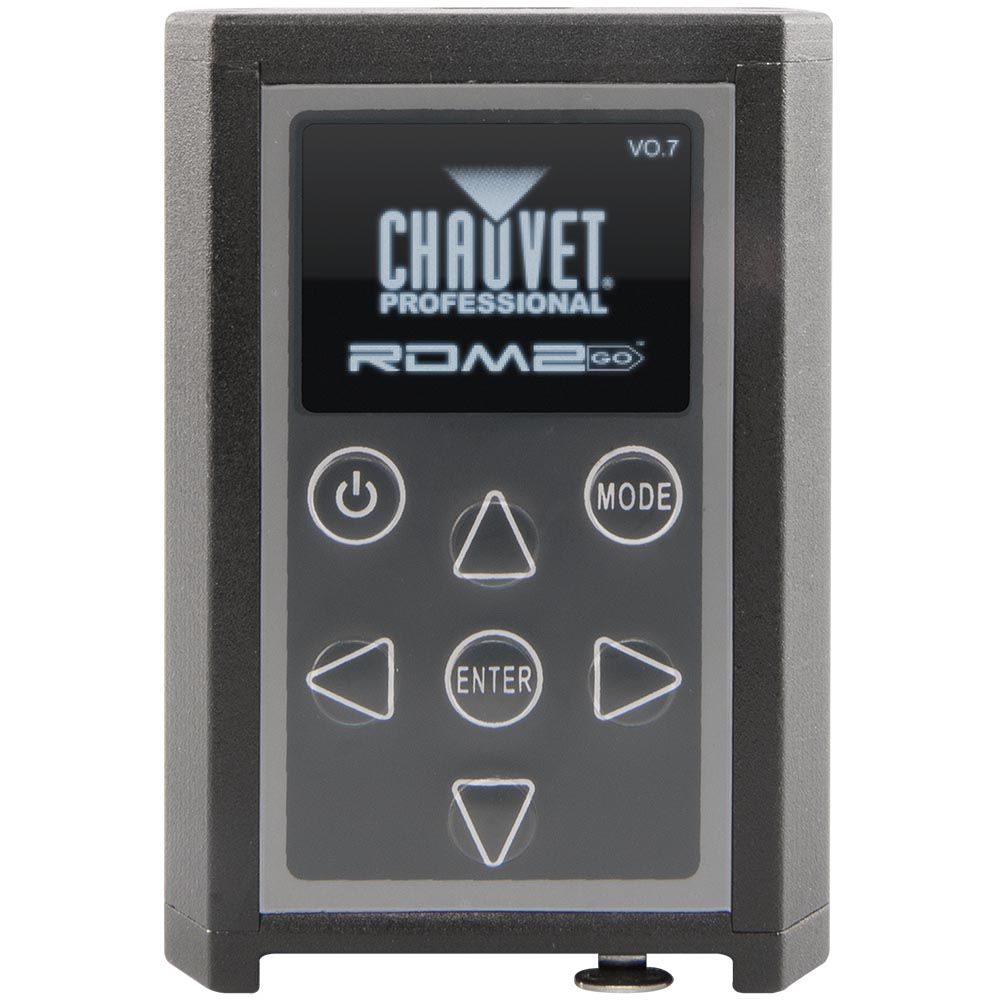

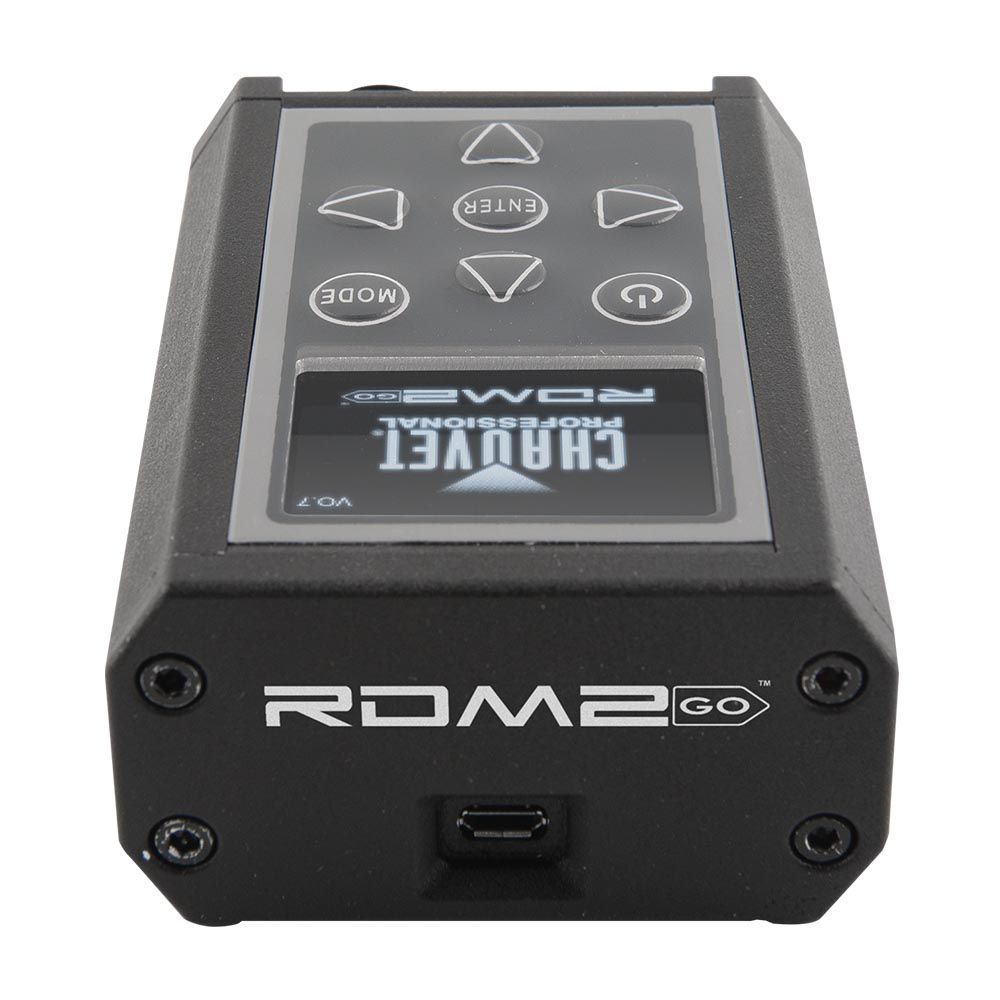

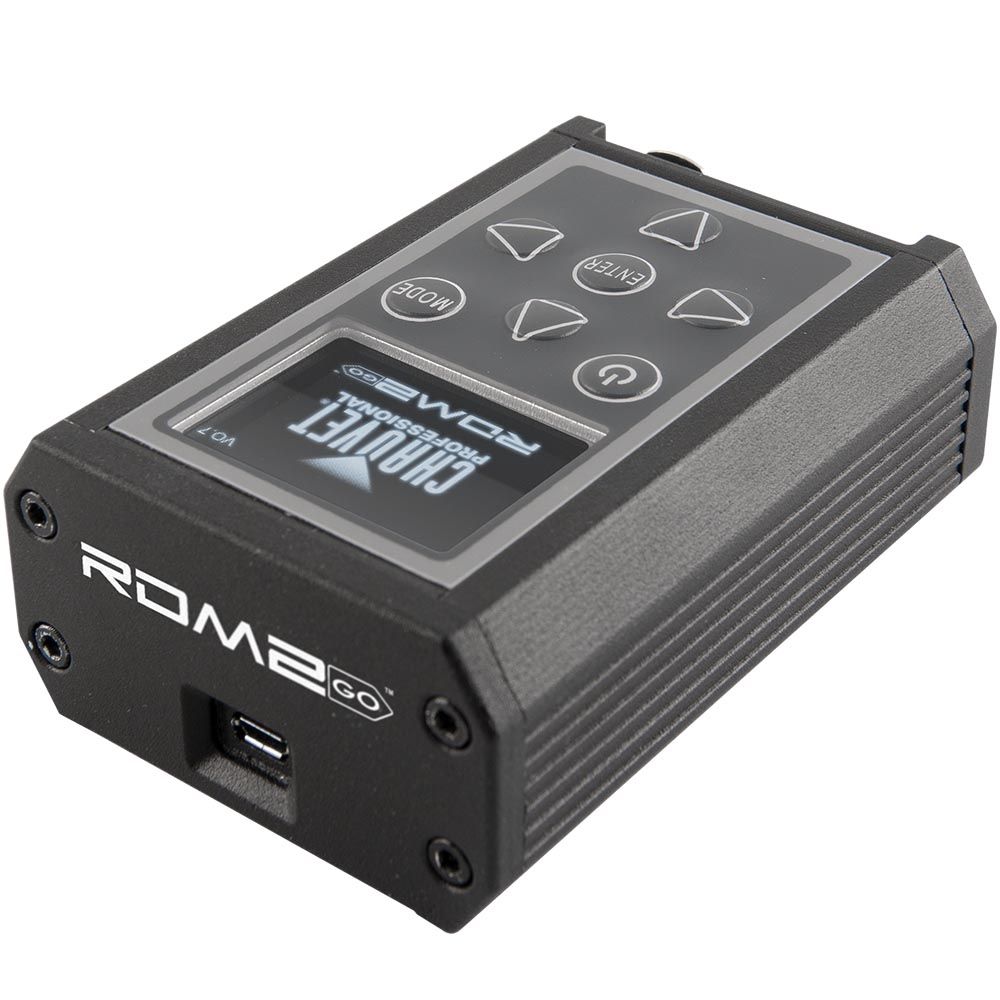

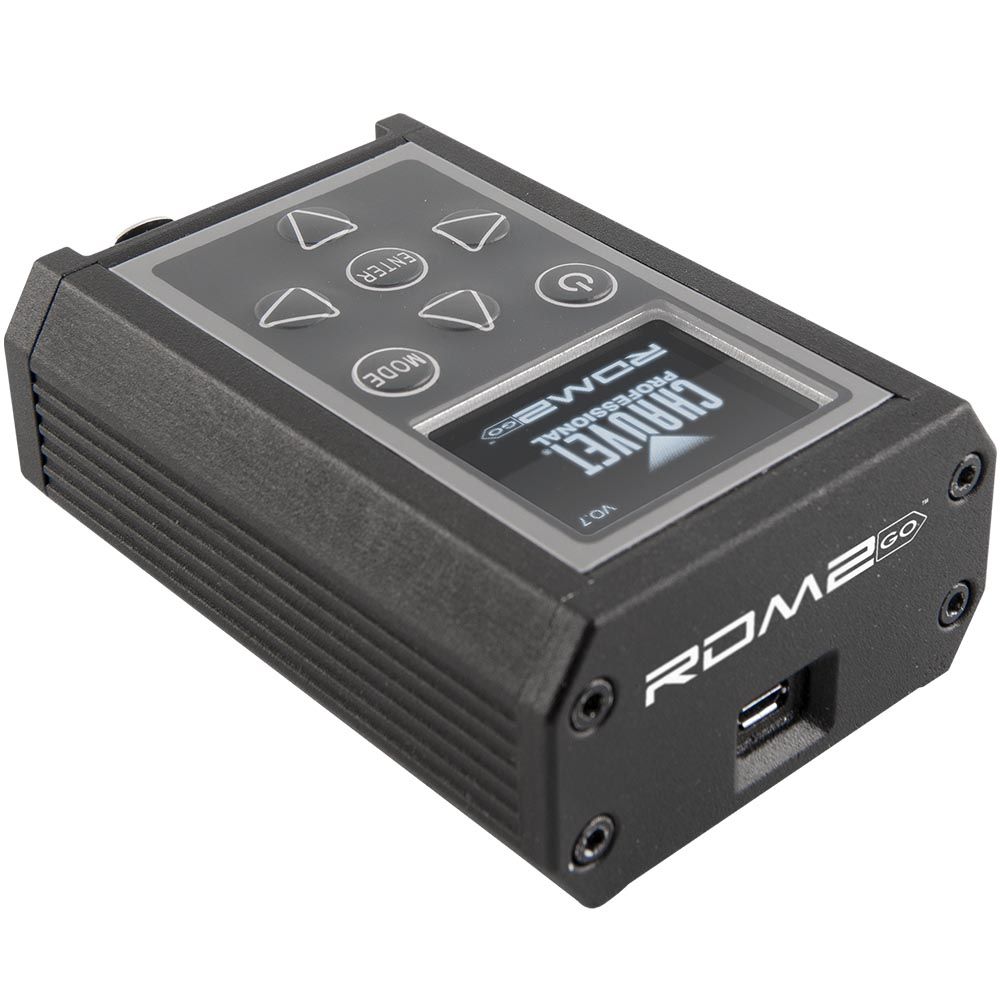

The Chauvet Pro RDM2go DMX/RDM/Ilumicode Controller is a palm-sized handheld tool for working with fixtures over a DMX/RDM data line. It supports DMX, RDM, and Ilumicode protocols for fixture management, system diagnostics, and Ilumicode-based fixture setup. The unit can address, locate, and monitor RDM-capable fixtures, record and play back DMX snapshots, test cable integrity, and address Iluminarc IP fixtures without an onboard display. It has an OLED display, rechargeable lithium-ion battery, and Micro USB-B power input.
Chauvet Pro RDM2go DMX/RDM/Ilumicode Controller
RRP: $910.00 ex. GST
Key Features:
- Supports DMX, RDM, and Ilumicode protocols
- Full RDM functionality for fixture addressing, location, and monitoring
- Records DMX snapshots and tests cable integrity
- Directly addresses Iluminarc IP fixtures without an onboard display
- Bright, easy-to-read OLED display
- Includes carry pouch, USB charging cable, and DMX connector adapters
Technical Data
| Dynamic Effects | Yes |
| Color Temperature Presets (Ilumicode) | Yes |
| Dim Modes (Ilumicode) | 5 |
| Customizable Programs | Yes |
| Recall Custom Programs | Yes |
| Dimensions | 2.76 x 1.52 x 3.92 in (70 x 39 x 100 mm) |
| Weight | 0.77 lb (0.35 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum die-cast |
| Power Input | Micro USB-B Male |

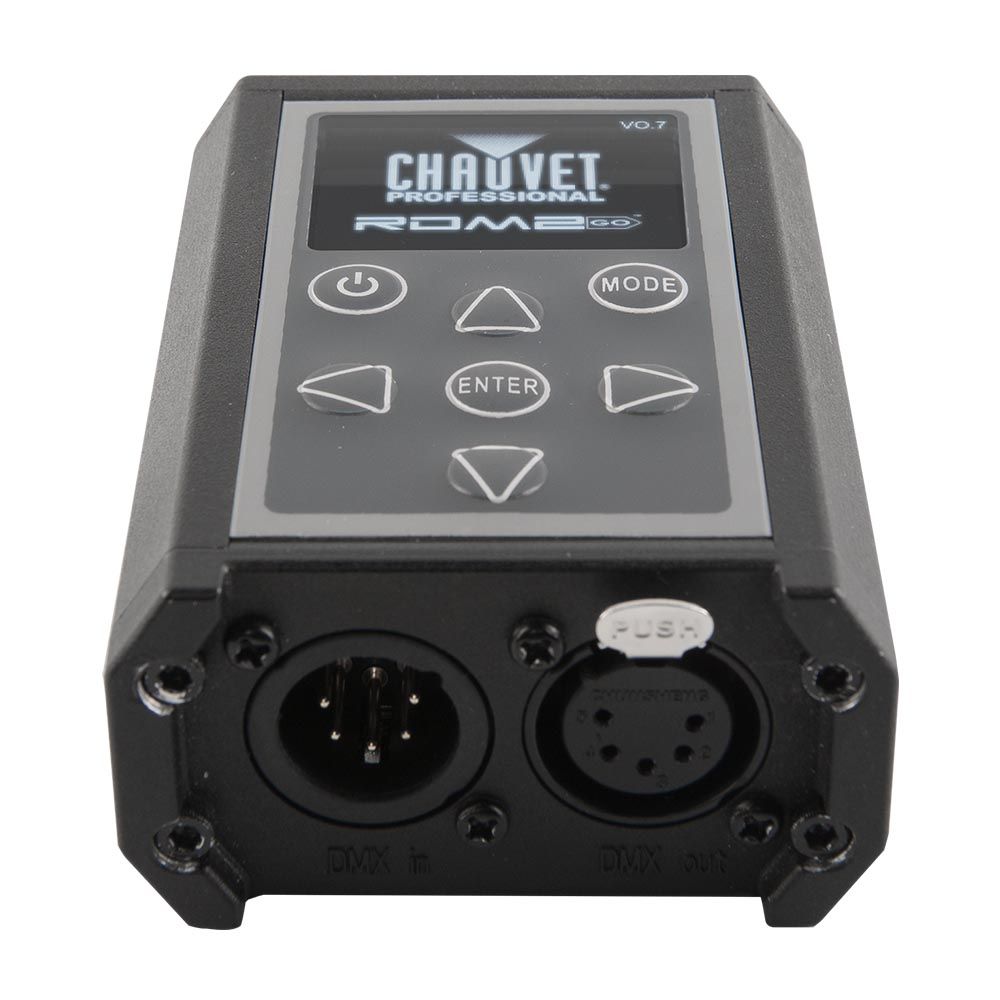

| Data Connectors | 5-pin XLR |
| Cable Length (power) | 3 ft (0.91 m) |
| Protocol(s) | DMX, RDM, Ilumicode |
| DMX Channels | 1, 2, 3, 4, 5, 6 or 7 |
| Modes/Personalities (Ilumicode) | 13 personalities (ARC 1, ARC 1+D, ARC2, ARC2+D, ARC3, ARC3+D, ARC FULL, REMOTE, SOLID, SPECIAL1, SPECIAL2, VW, VW+D) |
| Power and Current @ 120 V, 60 Hz | 18 W, 0.15 A |
| Power and Current @ 208 V, 60 Hz | 18 W, 0.09 A |
| Power and Current @ 230 V, 50 Hz | 18 W, 0.08 A |
| Battery type | Lithium Ion |
| Rechargeable | Yes |
| Battery Life | 8 hours |
| Battery Power | 3.7 V, 1,200 mAh |
| Certifications | CE |
| IP Rating | IP20, dry location |
| What’s Included | RDM2go, Carry Pouch, 2 pc, 3- to 5-pin converters, 5-pin male to bare wire adaptor, USB-A Male to Micro USB-B Male (3 ft) |
