The Chauvet Pro Rogue R1E Spot is a compact and lightweight moving yoke spot powered by a 200W cool white LED engine. It provides a 15.3° beam angle and includes dual gobo wheels, seamless gobo morphing, an 8-color wheel with split colors and continuous scroll, a motorized iris, a 3-facet rotating prism, and frost. DMX and RDM control are supported through 3-pin and 5-pin XLR connections, with 16- or 19-channel operation. Selectable PWM settings support flicker-free performance for broadcast and video applications, while selectable LED output allows matching with legacy Rogue R1X Spot fixtures.

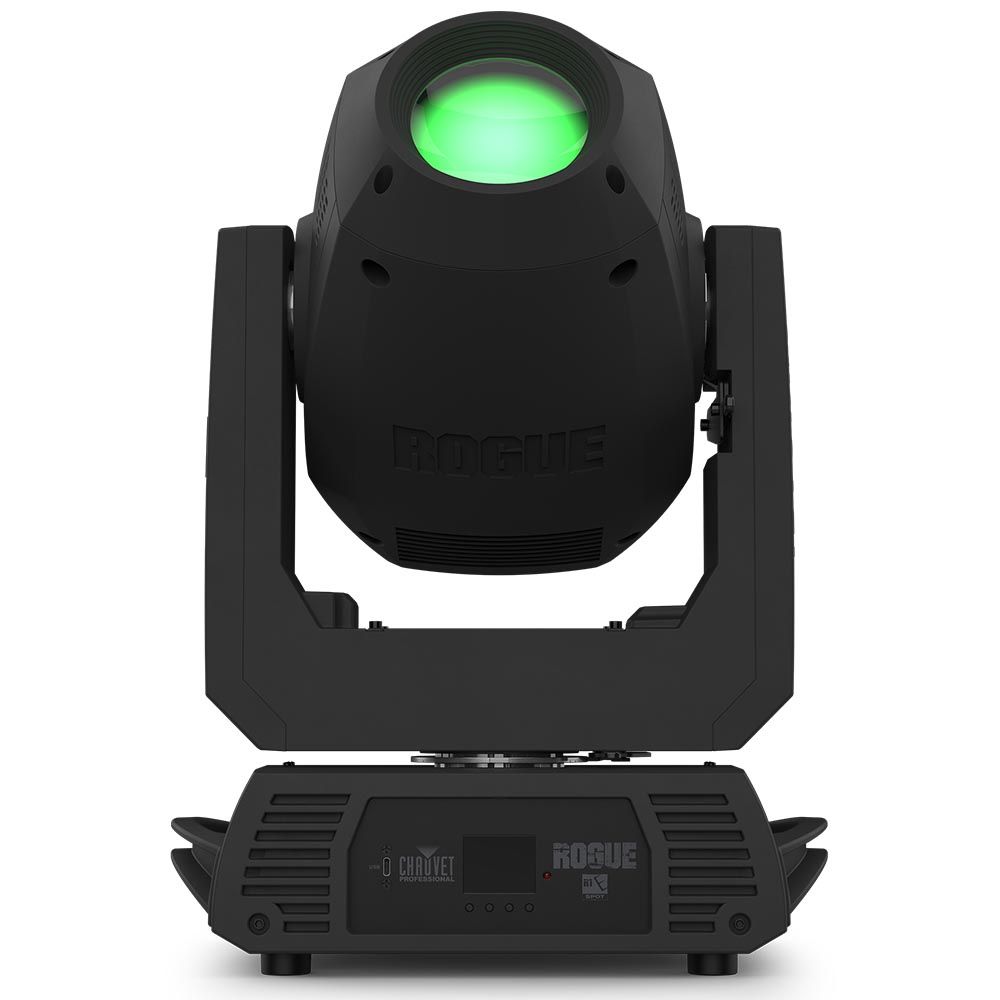

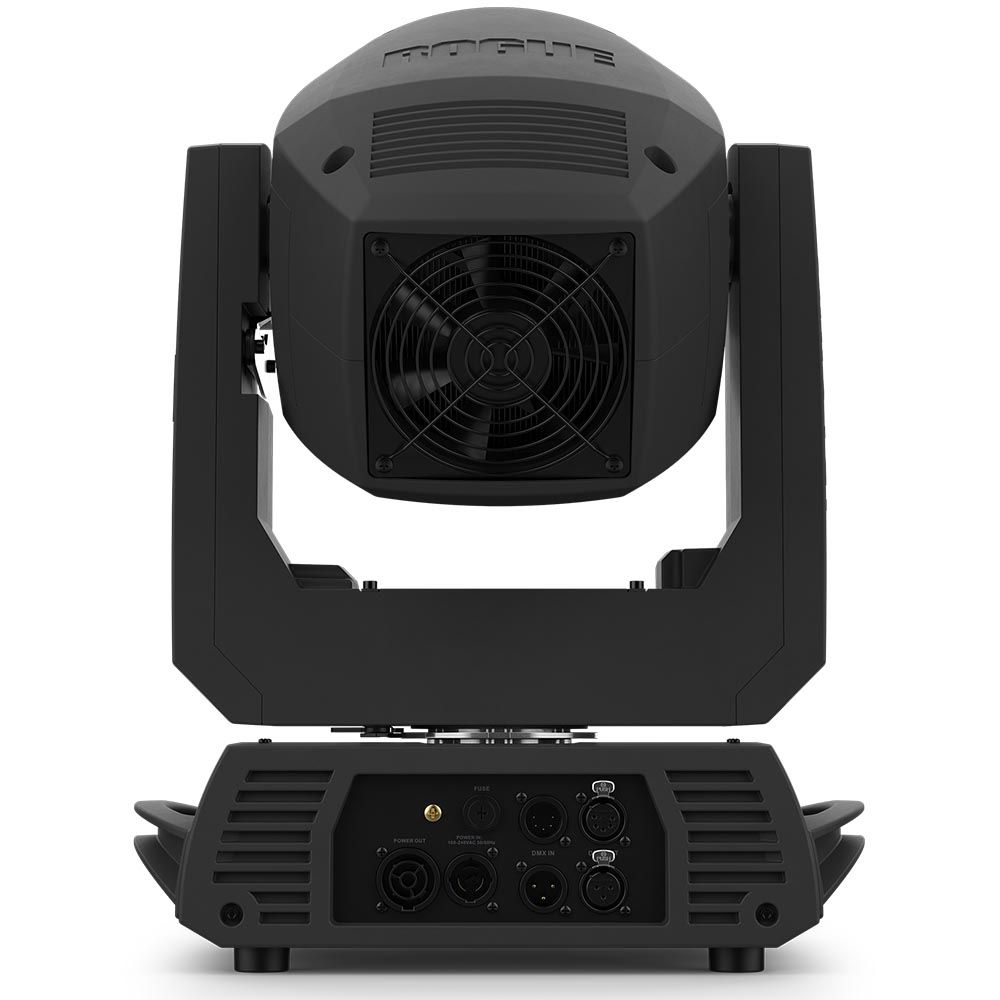

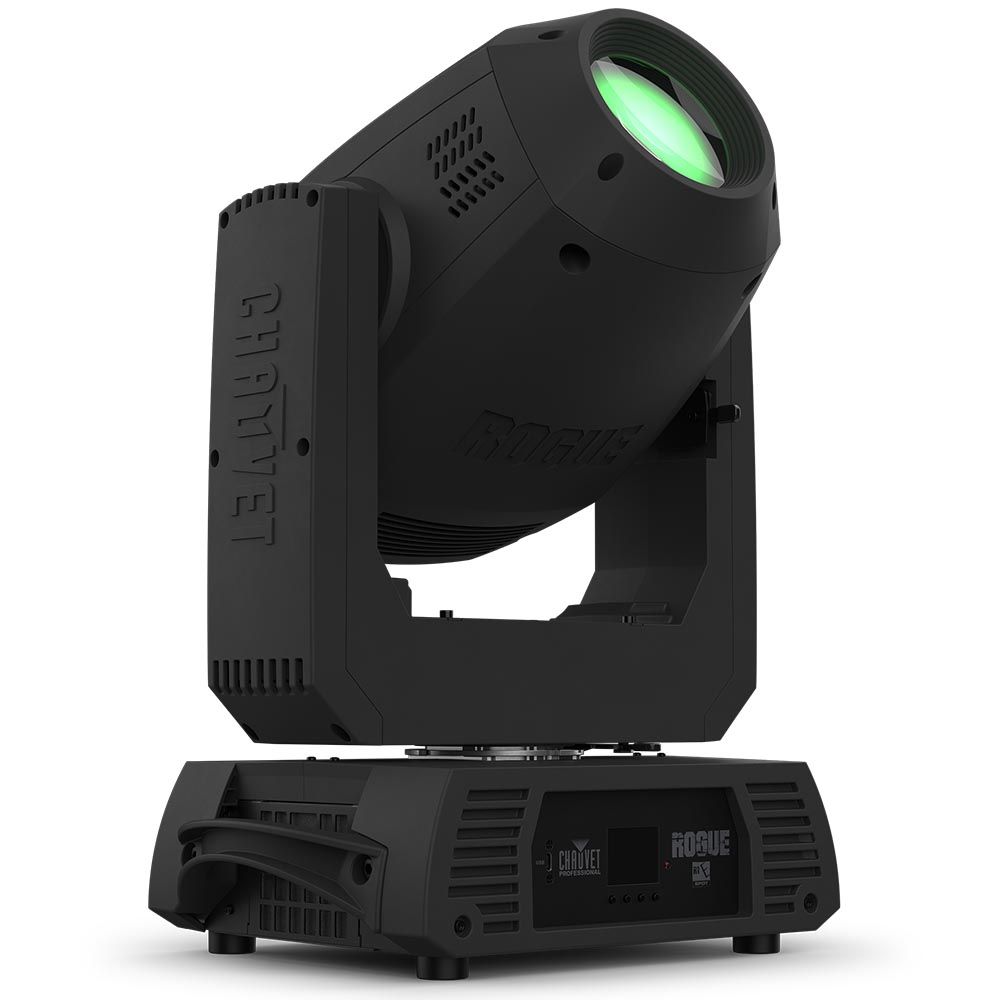

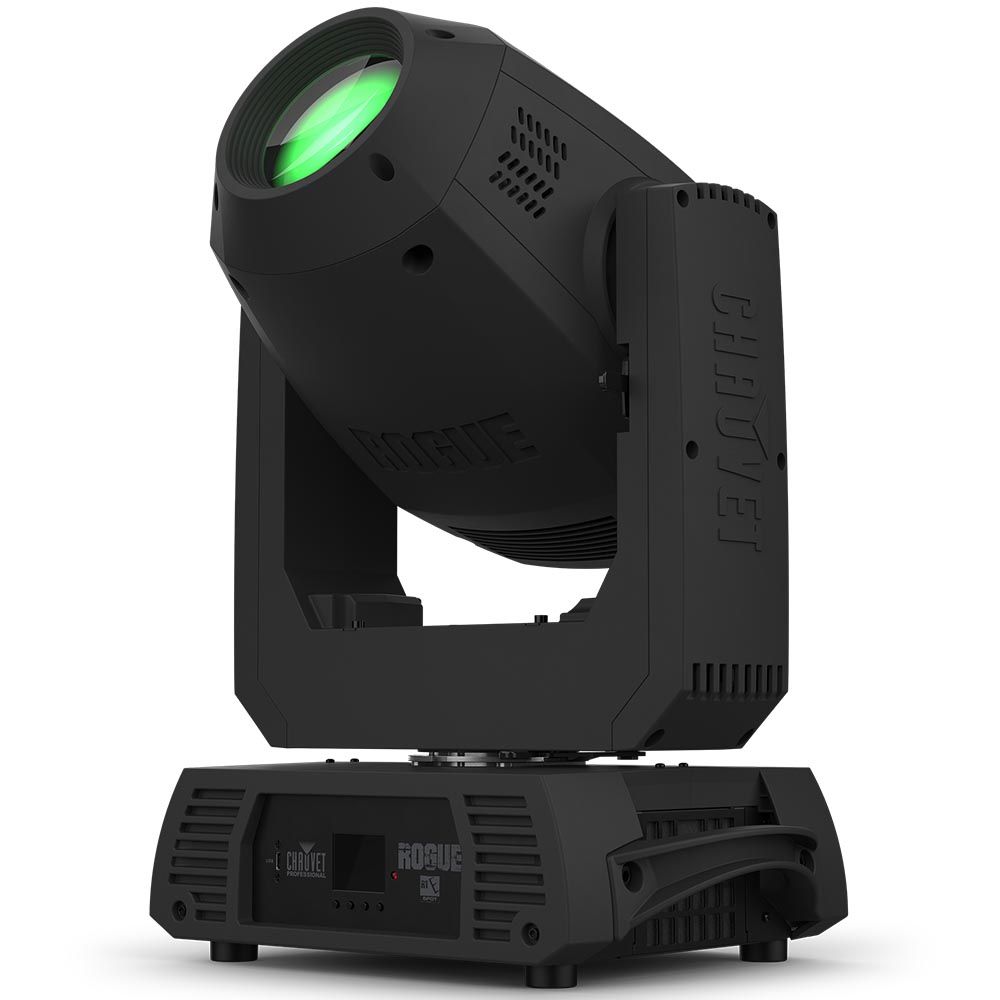

Chauvet Pro Rogue R1E Spot Moving Yoke Spot
RRP: $4,185.00 ex. GST
Key Features:
- 200W cool white LED engine delivering 12,210 lumens output
- Dual gobo wheels with rotating, interchangeable, indexing, slot-n-lock, and continuous-scroll functions
- Seamless gobo morphing
- 8-color wheel plus white, split colors, and continuous scroll
- Motorized iris, 3-facet rotating prism, motorized focus, and frost
- DMX and RDM control with 3-pin and 5-pin XLR connections
- Selectable PWM settings from 600 Hz to 15,000 Hz
- Selectable LED output for matching with legacy Rogue R1X Spot fixtures
Technical Data
| Light Source | 1 LEDs (CW) 200 W, (3.2 A), 7423 K, 50,000 hours life expectancy |
| Color Temperature (at full) | 7423 K |
| Front lens diameter | 90mm |
| CRI | 68 |
| Beam Angle | 15.3° |
| Field Angle | 18.7° |
| Cutoff Angle | 20.3° |
| Lumens – Source | 17,900 |
| Lumens – Output | 12,210 |
| Illuminance (total) | 9,021 lux @ 5 m |
| Selectable PWM | 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz |
| Pan and Tilt | 540°/270° |
| Pan and Tilt Ranges | 540°, 360°, 270° pan/270°, 180°, 90° tilt |
| Colors | 8 + white, split colors, continuous scroll at variable speeds |
| Gobos (1) | 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds |
| Gobos (2) | 8 + open (8 metal), continuous scroll at variable speeds |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Focus | Motorized |
| Iris | Motorized |
| Prism | 3 Facets, motorized, rotating |
| Strobe Rate | 0 to 22 Hz |
| Move in Black | Yes |
| Dimensions (single unit) | 14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm) |
| Weight (single unit) | 31.2 lb (14.2 kg) |
| Exterior Color | Black |
| Software update | USB-C |
| Data Connectors | 3- and 5-pin XLR |
| Control Protocol | DMX, RDM |
| DMX Channels | 16 or 19 |
| Modes/Personalities | 2 personalities (16, 19) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 4 units @ 120 V; 8 units @ 208 V; 8units @ 230 V |
| Power and Current | 315 W, 2.63 A @ 120 V, 60 Hz; 306 W, 1.50 A @ 208 V, 60; 303 W, 1.36 A @ 230 V, 50 Hz |
| IP Rating | IP20, dry location |
| What’s Included | Rogue R1E Spot; Seetronic PowerKon power cord; 2 140D Omega brackets with mounting hardware |
