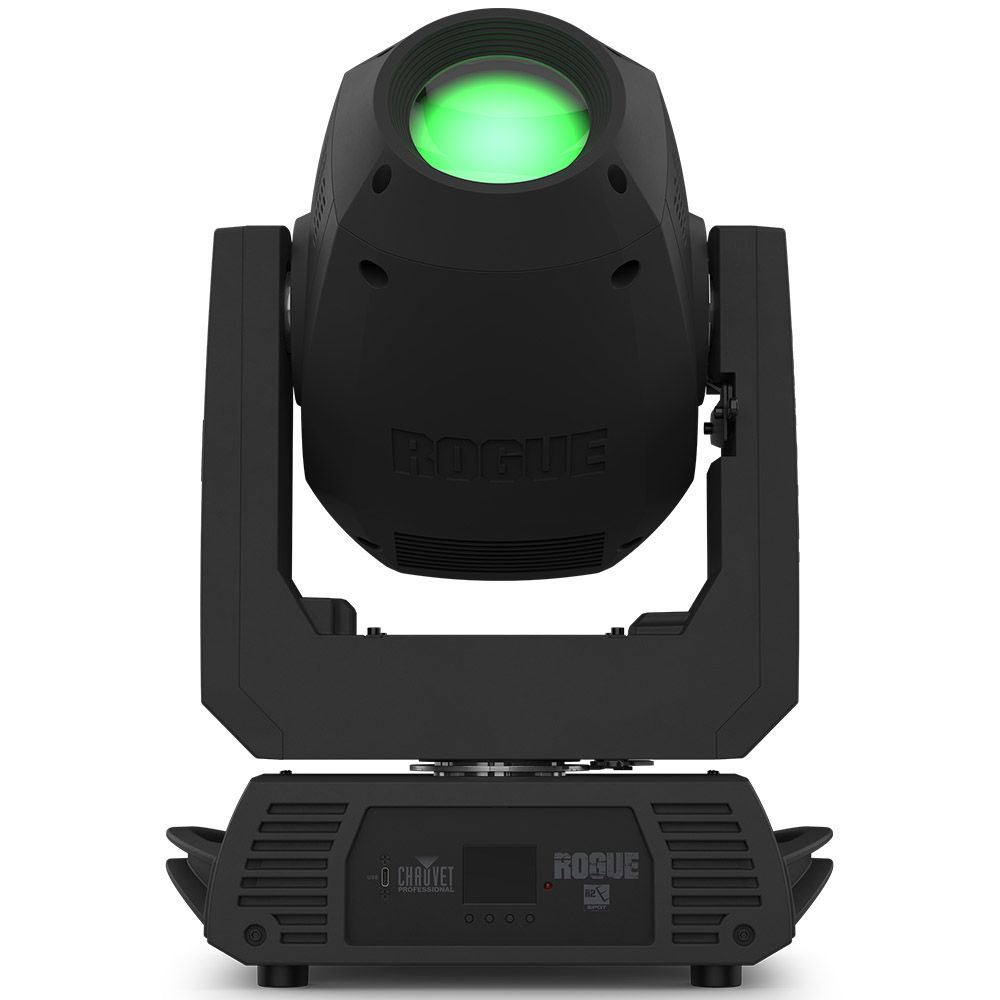

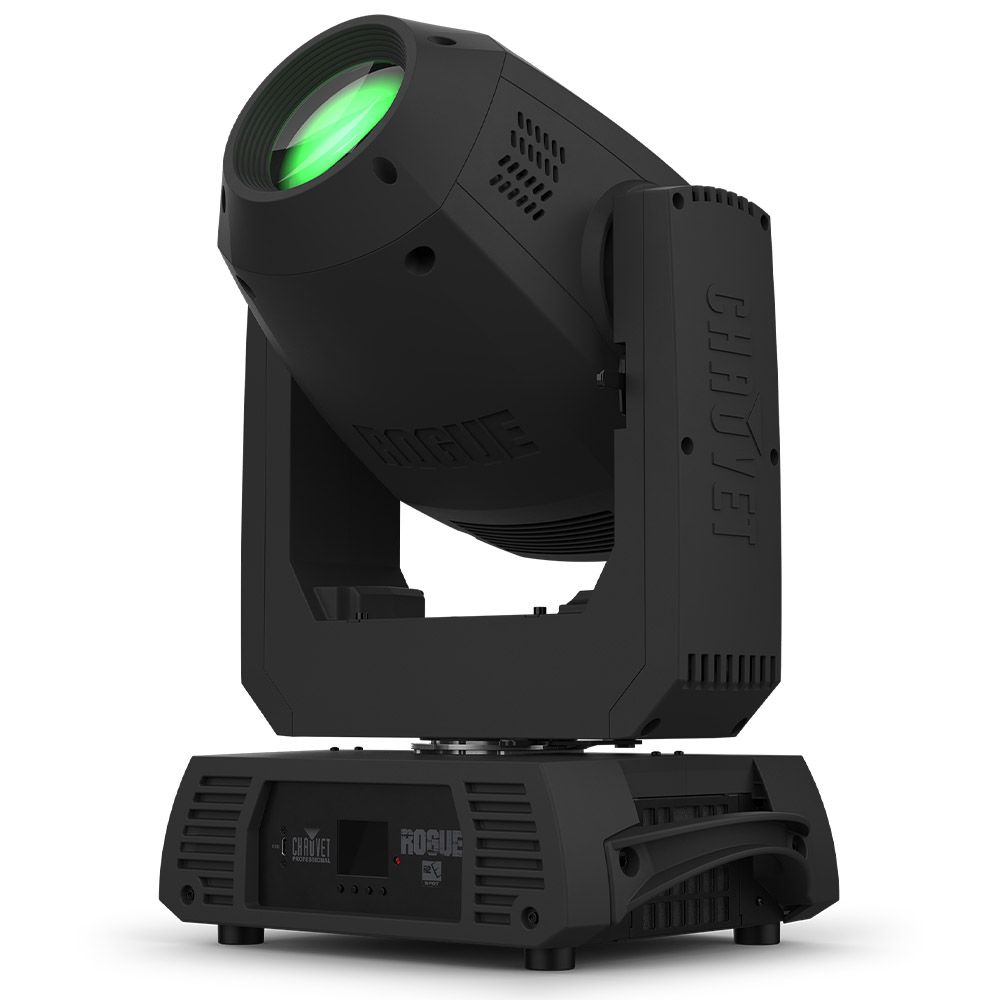

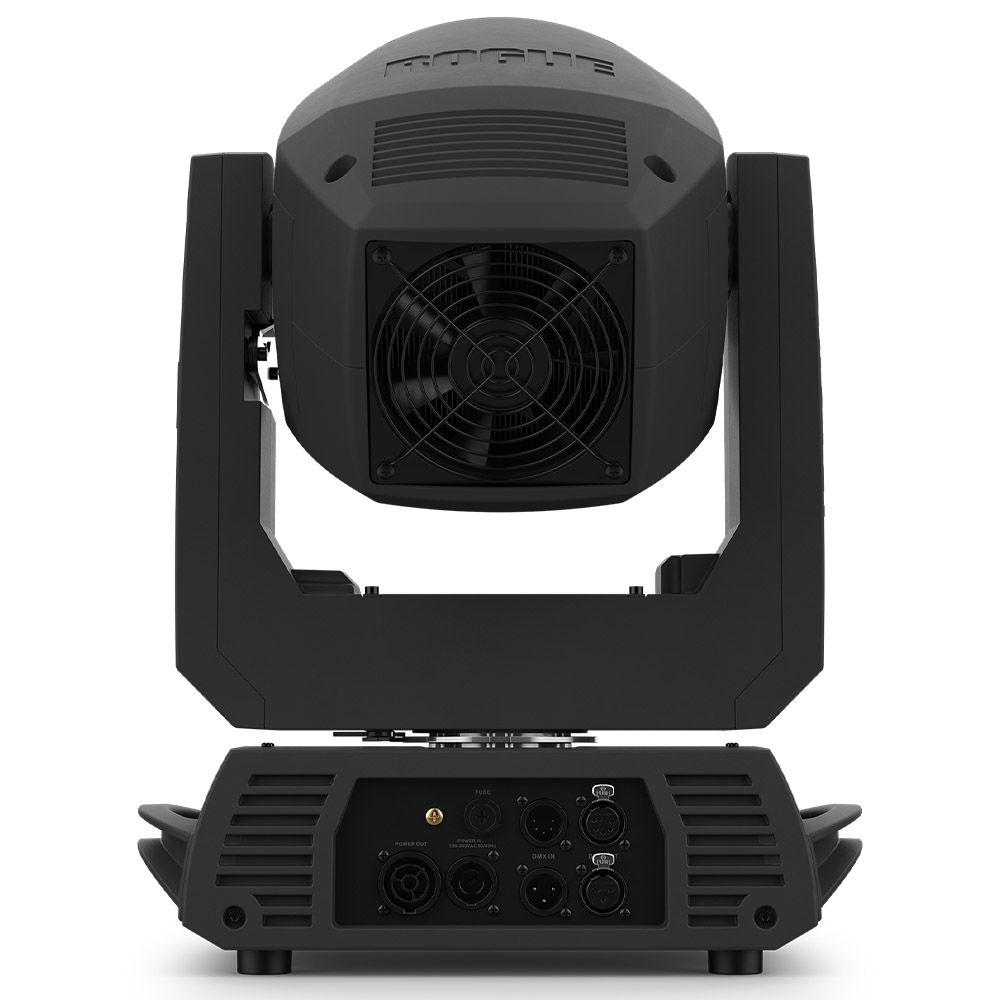

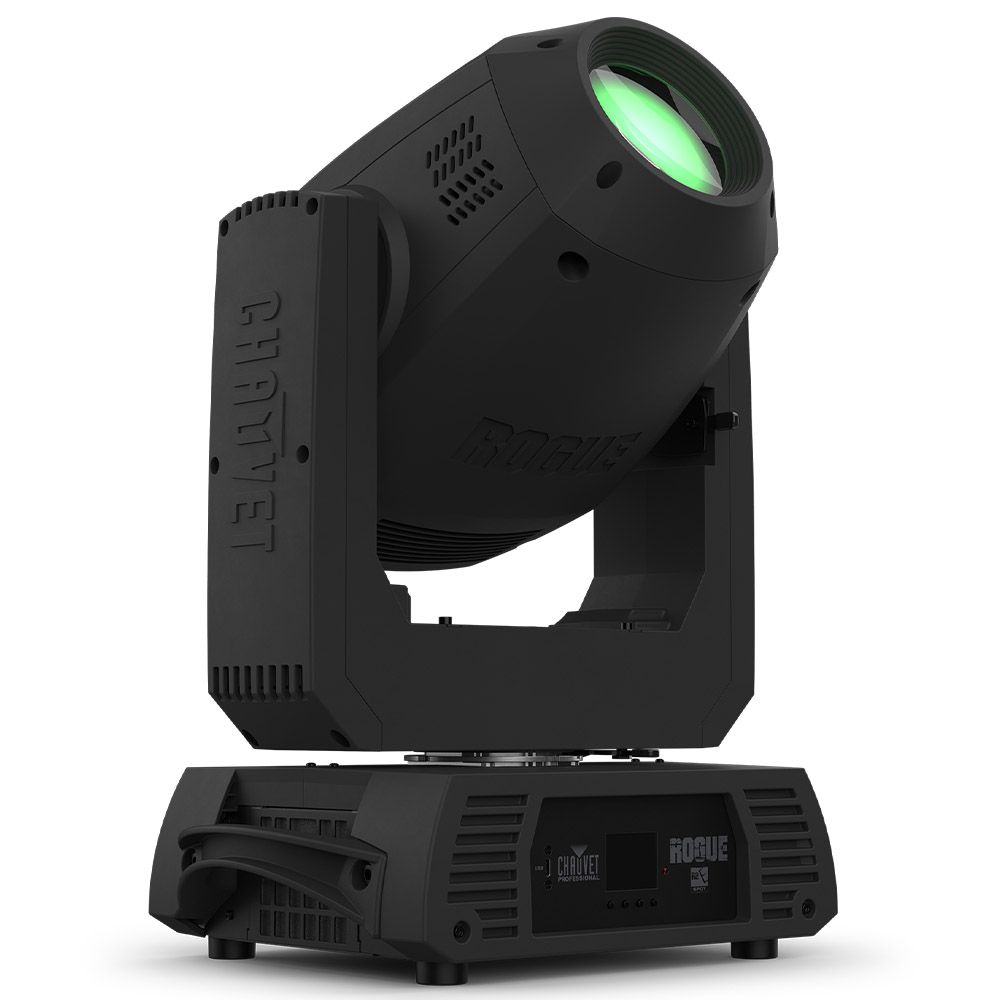

The Chauvet Pro Rogue R2E Spot is a compact and lightweight moving yoke spot powered by a 350W LED engine. It combines fixed and rotating gobo wheels, dual color wheels, a 3-Facet Prism, motorised iris, and Frost Filter for projection and aerial effects. The fixture supports DMX and RDM control, selectable LED output, selectable PWM settings, and 19 or 22 DMX channels. It is suited to mobile productions, concert stages, and permanent installations.
Chauvet Pro Rogue R2E Spot Moving Head Light
RRP: $5,842.00 ex. GST
Key Features:
- Intense 350W LED Engine
- Dual Gobo Wheels
- Dual Color Wheels
- 16-Bit Dimming
- Gobo Morphing
- Motorized Iris
- 3-Facet Prism
- Frost Filter
- Power Linking Capability
- Flexible DMX Connections
- RDM Enabled
- Selectable LED Output
- Selectable PWM Settings
- Versatile DMX Profiles
Technical Data
| Beam Angle | 15° |
| Gobo Size | Gobo Wheel 1 (rotating) size: 20 mm (outside), 16 mm (image), 1.5 mm (max. thickness) |
| Move-in-Black | Yes |
| Dimensions (single unit) | 14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm) |
| Weight (single unit) | 31.2 lb (14.2 kg) |
| Exterior Color | Black |
| Housing Material | High-impact flame-retardant polymer |
| Power Connection | Edison (local) plug to Seetronic PowerKon |
| Power Input | Seetronic PowerKon |
| Power Output | Seetronic PowerKon |
| Data Connectors | 3- and 5-pin XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Control Protocol | DMX, RDM |
| DMX Channels | 19 or 22 |
| Modes/Personalities | 2 personalities (19, 22) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 2; 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V |
| Power and Current | 469 W, 2.13 A @ 230 V, 50 Hz |
| Certifications | CE, MET, FCC, UKCA |
| IP Rating | IP20, dry location |
