The Chauvet Pro Rogue R3 Beam is a 300W moving head fixture designed for large-scale concerts, festivals, and productions requiring long-throw aerial beam effects. It produces 208,000 lux at 15 meters and a narrow 0.8° beam angle. Motorized frost and focus support beam shaping, while individually controllable and stackable 8-facet and 24-facet prisms create aerial effects. The fixture includes variable-speed continuous scrolling on its 14-color wheel and 17-gobo wheel, with 540° pan, 270° tilt, DMX, and RDM control.

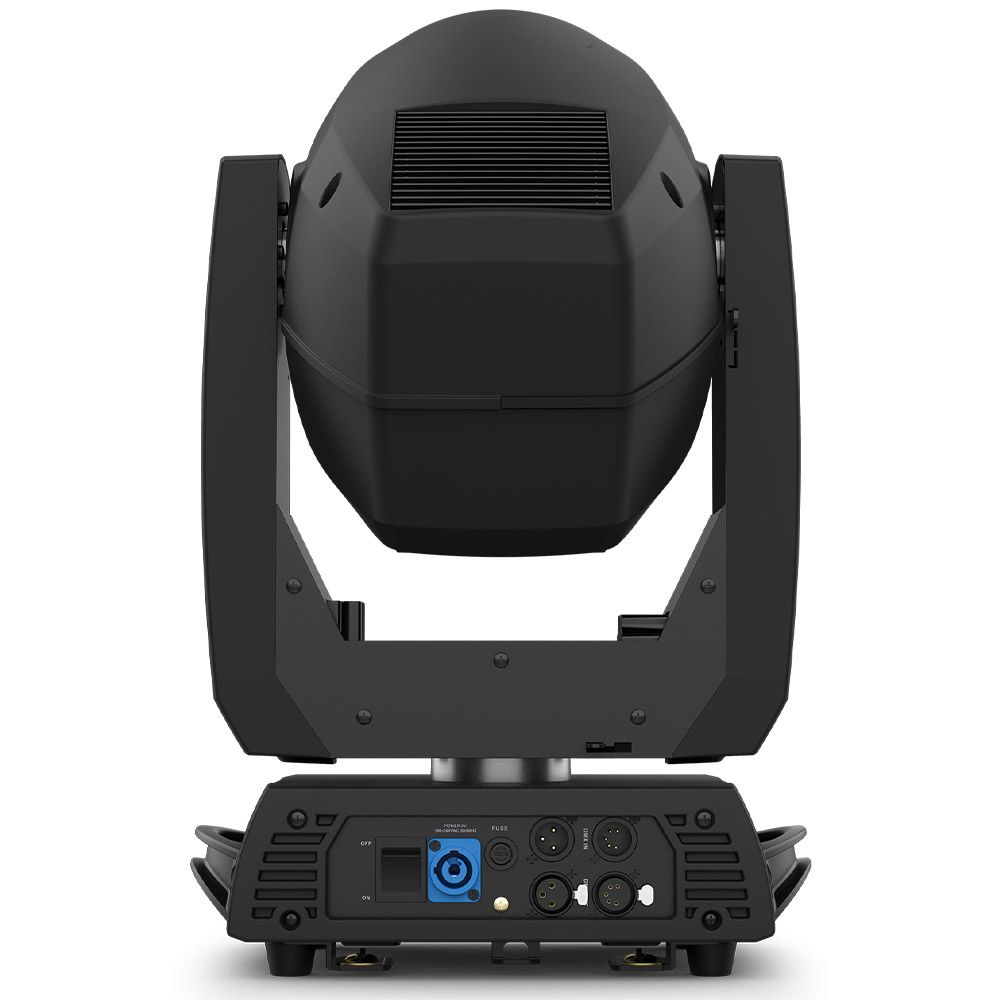

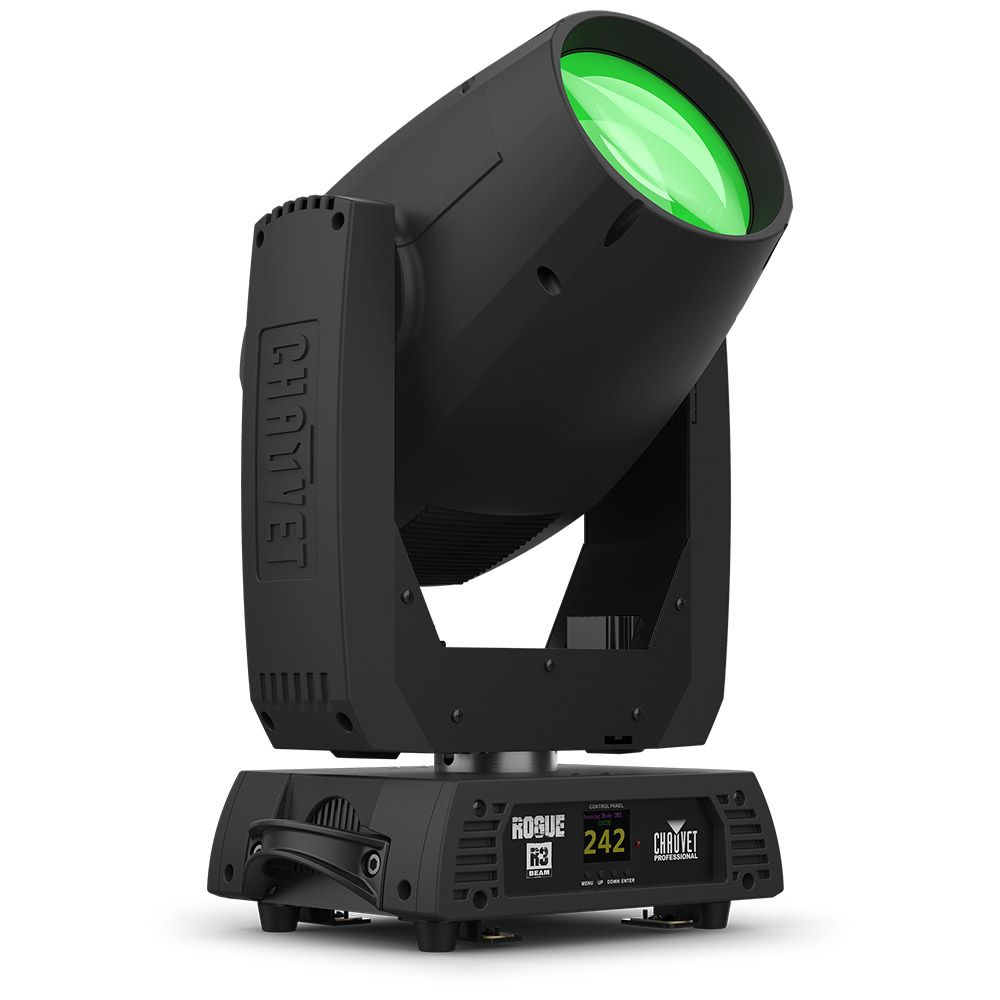

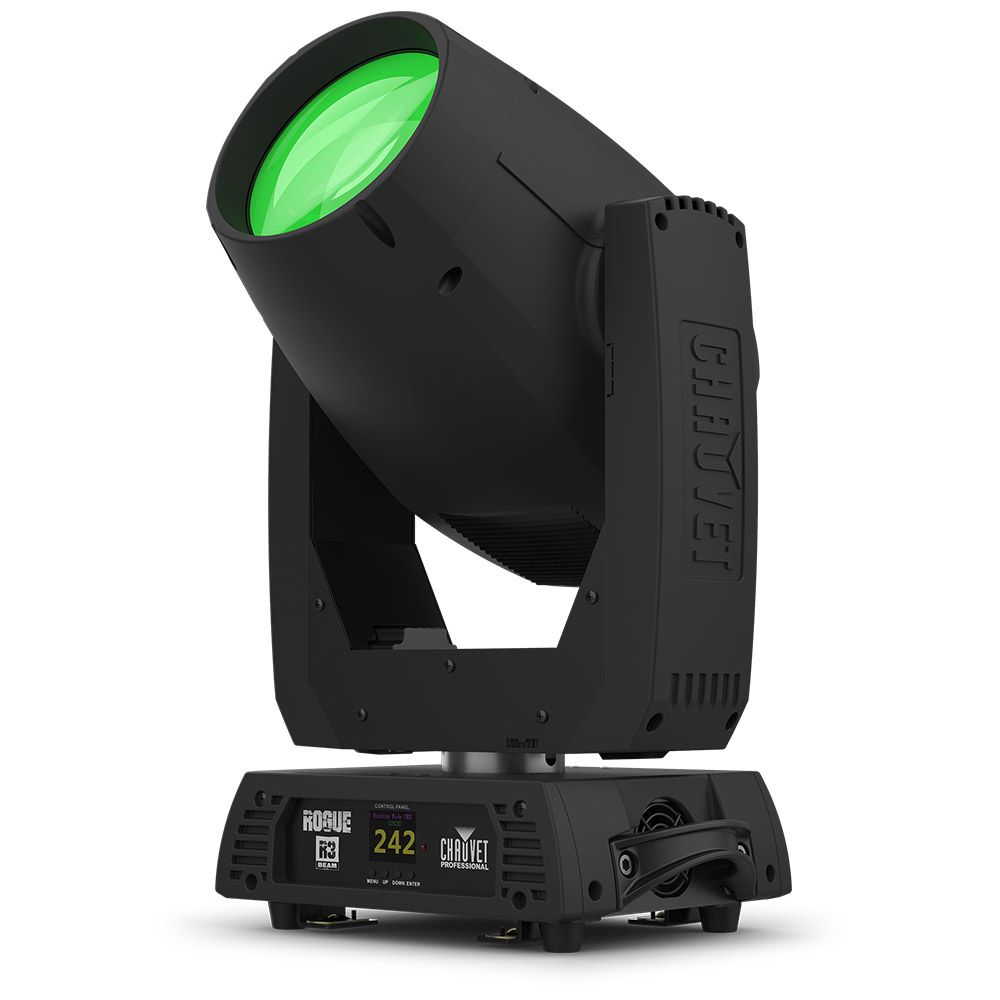

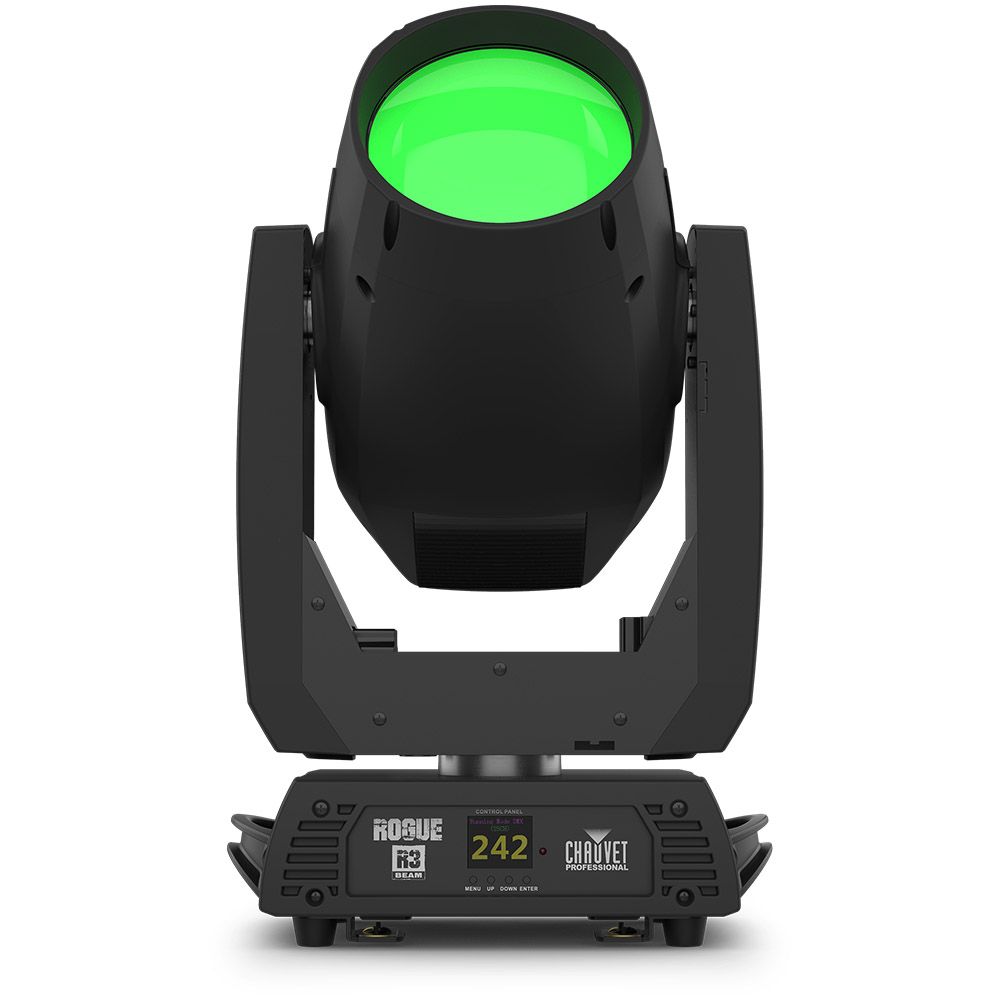

Chauvet Pro Rogue R3 Beam Moving Head Beam Fixture
RRP: $4,235.00 ex. GST
Key Features:
- 300W Ushio NSL lamp delivering 208,000 lux at 15 meters
- 0.8° beam angle with motorized frost and focus
- Individually controllable and stackable 8-facet and 24-facet prisms
- 14-color wheel and 17-gobo wheel with variable-speed continuous scroll
- 540° pan and 270° tilt movement
- DMX and RDM control
Technical Data
| Light Source | 300W Ushio NSL lamp |
| Beam Angle | 0.8° |
| Illuminance (total) | 208,000 lux at 15 meters |
| Pan and Tilt | 540° pan, 270° tilt |
| Colors | 14-color wheel |
| Gobos | 17-gobo wheel |
| Frost | Motorized frost |
| Prism | 8-facet and 24-facet prisms |
| Control Protocol | DMX and RDM |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
| What’s Included | Rogue R3 Beam, Neutrik powerCON power cord, 2 Omega brackets with mounting hardware |
