The Chauvet Pro Rogue R3E Spot is a compact, lightweight 350 W LED moving yoke spot for rental houses, touring productions, and club or theater installations. Its 8.4° to 42.8° zoom range supports flexible beam and wash applications. The fixture includes dual color wheels, dual gobo wheels for seamless gobo morphing, a rotating prism, motorized iris, frost, focus, and zoom. DMX and RDM control, 3-pin and 5-pin XLR data connections, selectable PWM settings, and selectable LED output support system integration and legacy Rogue R1X Spot brightness matching.

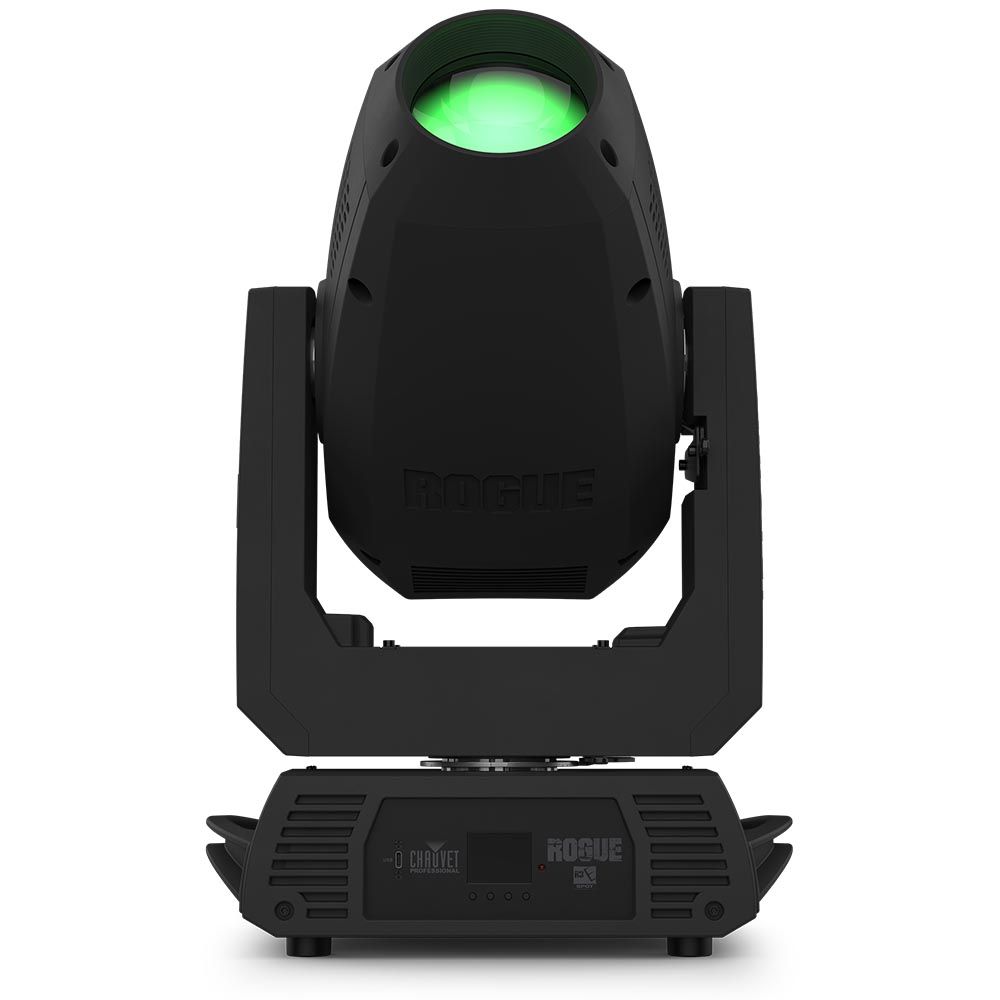

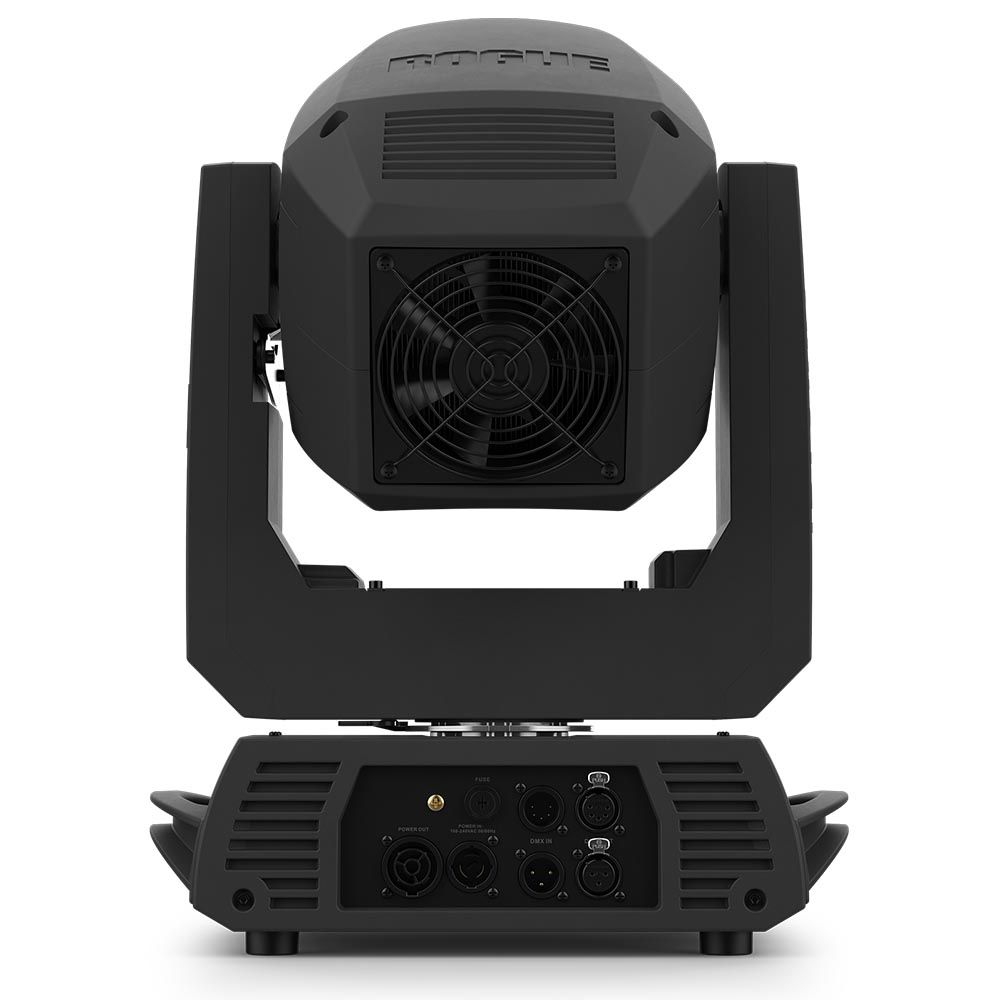

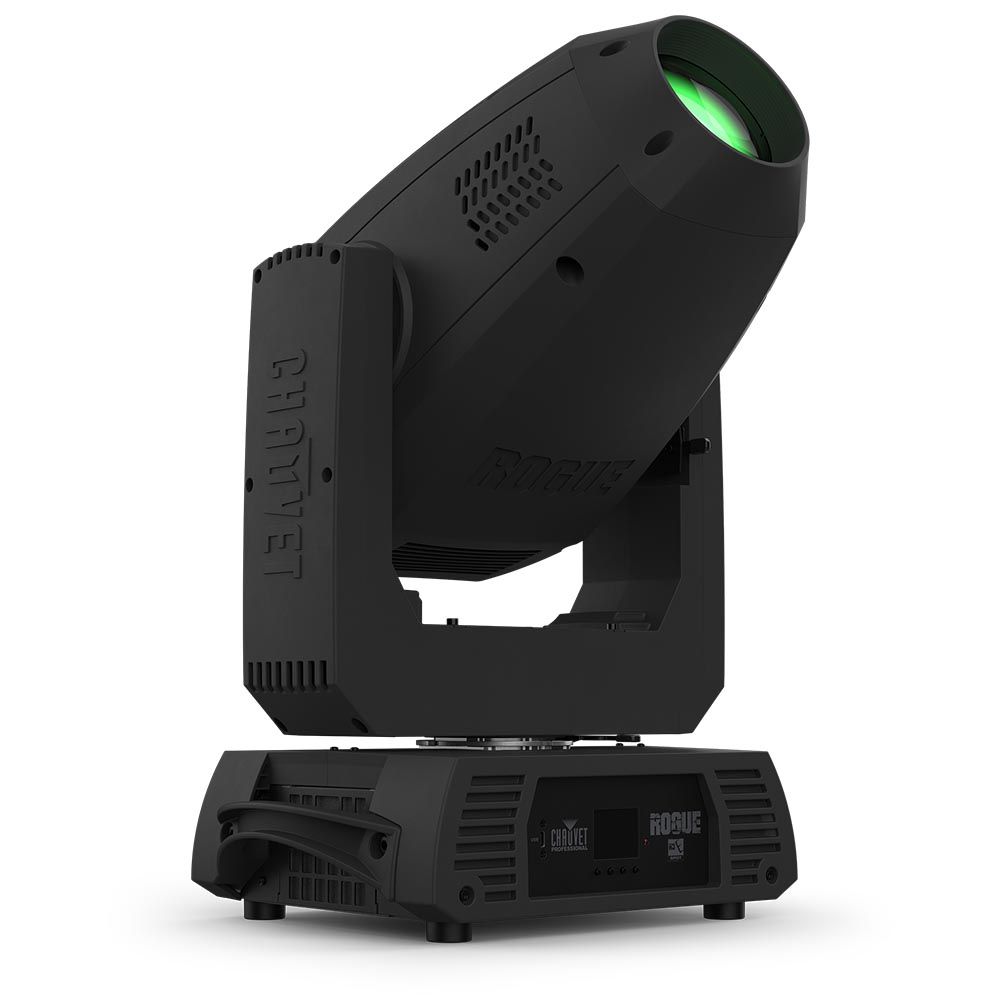

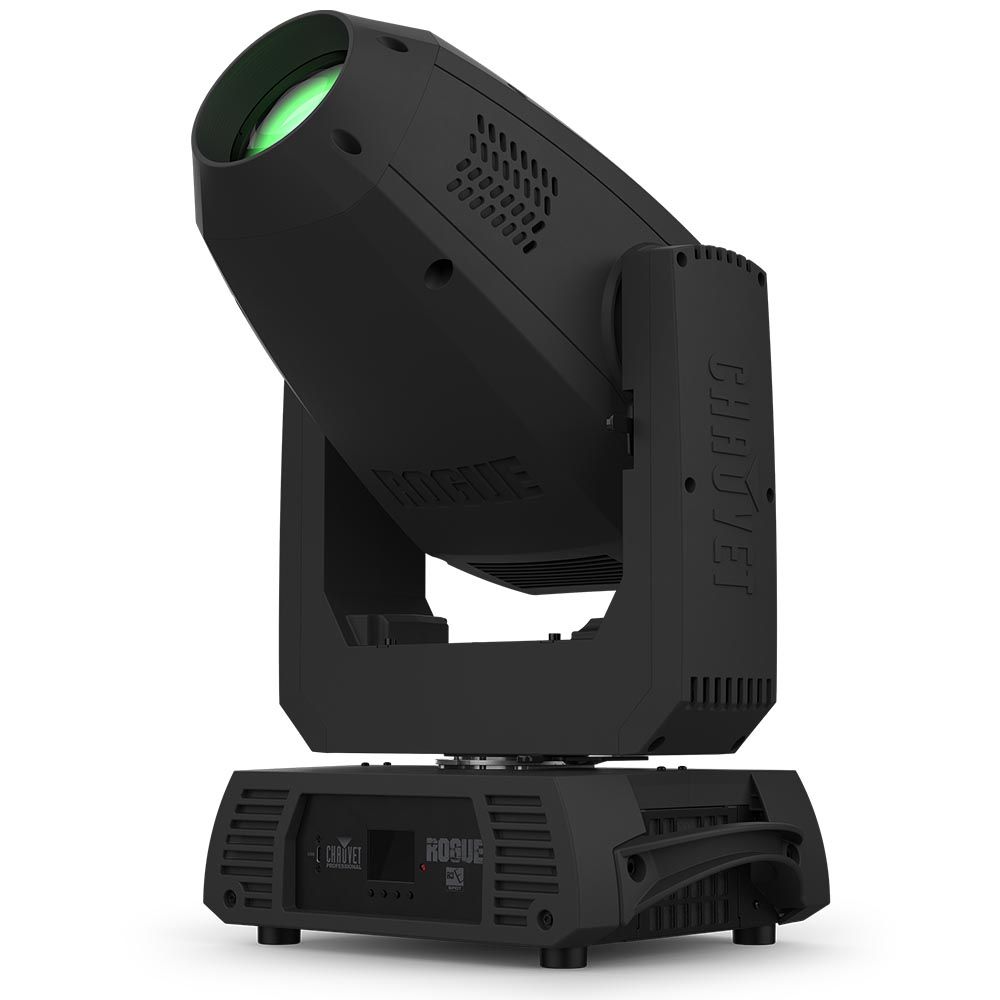

Chauvet Pro Rogue R3E Spot LED Moving Yoke Spot
RRP: $5,799.00 ex. GST
Key Features:
- 350 W LED moving yoke spot fixture
- 8.4° to 42.8° motorized zoom range
- Two color wheels with 8 + white, split colors, and continuous scroll at variable speeds
- Rotating and static gobo wheels for seamless gobo morphing
- 3-facet motorized rotating prism
- Motorized iris, frost, focus, and zoom
- DMX and RDM control with 19 or 25 channels
- Selectable PWM: 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz
- Selectable LED output for matching the brightness of legacy Rogue R1X Spot fixtures
- Power linking: 4 units @ 120 V; 8 units @ 208 V; 8units @ 230 V; 9 units @ 240 V
Technical Data
| Light Source | 1LEDs (CW) 350 W, (5 A), 8527 K, 50,000 hours life expectancy. |
| Color Temperature (at full) | 8527 K |
| Front lens diameter | 90mm |
| CRI | 68.2 |
| Beam Angle | 8.4° to 33° |
| Field Angle | 10.1° to 39.3° |
| Cutoff Angle | 11.5° to 42.8° |
| Zoom Range | 8.4° to 42.8° |
| Lumens – Source | 24,500 |
| Lumens – Output | 15,705 |
| Selectable PWM | 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz |
| Pan and Tilt | 540°/270° |
| Pan and Tilt Ranges | 180°, 360°, 540° pan/90°, 180°, 270° tilt |
| Colors (1) | 8 + white, split colors, continuous scroll at variable speeds |
| Colors (2) | 8 + white, split colors, continuous scroll at variable speeds |
| Gobos (1) | 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds |
| Gobos (2) | 8 + open (8 metal), continuous scroll at variable speeds |
| Zoom | Motorized |
| Focus | Motorized |
| Frost | Motorized |
| Iris | Motorized |
| Prism | 3 Facets, motorized, rotating |
| Strobe Rate | 0 to 25 Hz |
| Move in Black | Yes |
| Dimensions | 13.77 x 9.44 x 23.03 in (350 x 240 x 585 mm) |
| Weight | 34 lb (15.4 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum die-cast, High-impact flame-retardant polymer, Steel |
| Software update | USB-C |
| Power Connection | Edison (local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 3- and 5-pin XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Software Connection | USB-C |
| Control Protocol | DMX, RDM |
| DMX Channels | 19 or 25 |
| Modes/Personalities | 2 personalities (19, 25) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 4 units @ 120 V; 8 units @ 208 V; 8units @ 230 V; 9 units @ 240 V |
| Power and Current | 535 W, 4.541 A @ 120 V, 60 |
| Power and Current | 522 W, 2.576 A @ 208 V, 60 Hz |
| Power and Current | 523 W, 2.345 A @ 230 V, 50 Hz |
| Certifications | CE, MET, FCC, UKCA |
| IP Rating | IP20, dry location |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
