The Chauvet Pro STRIKE Array 4 is an IP65-rated audience blinder with four independently focusable warm white LED pods. Its 192 warm white LEDs and 20 amber LEDs provide a 2770 K full-output colour temperature, with red shift emulation and a CRI of 93.2. The tool-free interlocking system supports scalable array builds, while versatile rigging and IP65 construction suit broadcast, concert, festival, and touring applications. Control is available through DMX and RDM, with selectable PWM frequencies, 16-bit dimming control, strobe effects, and built-in automated programs.

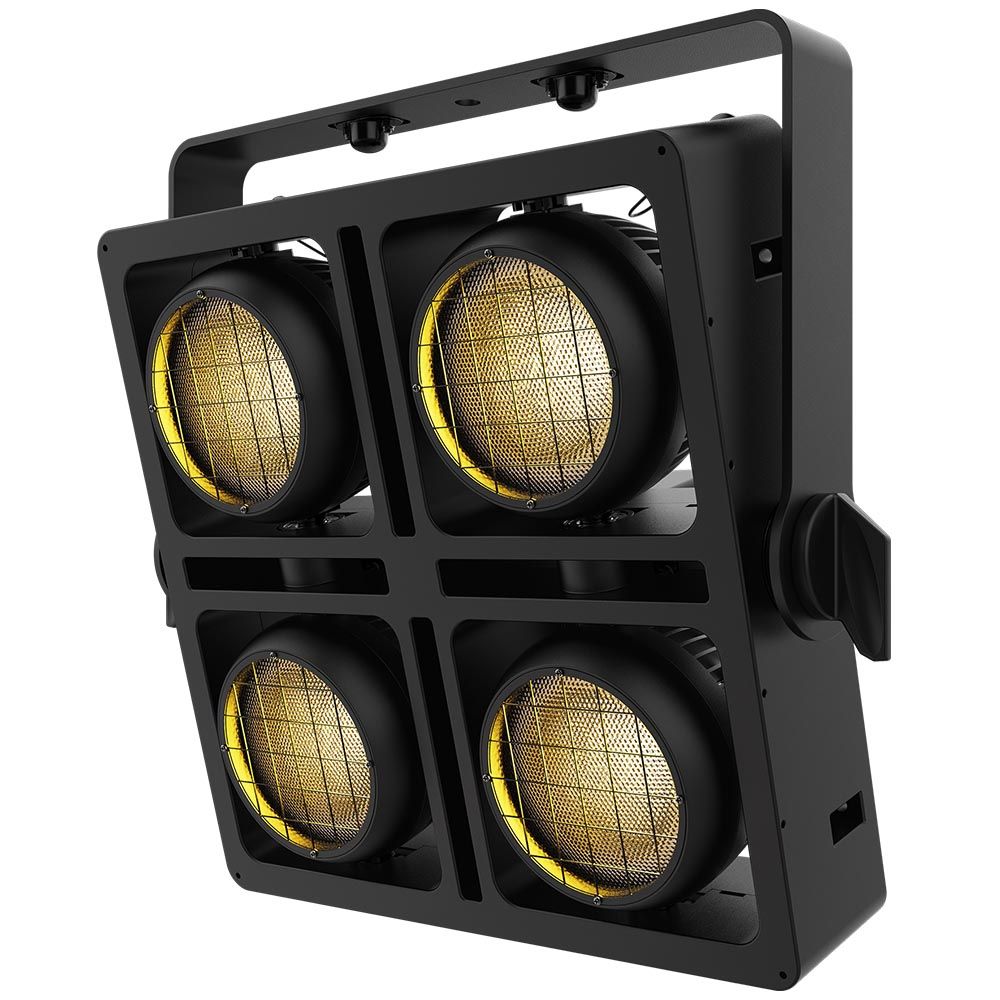

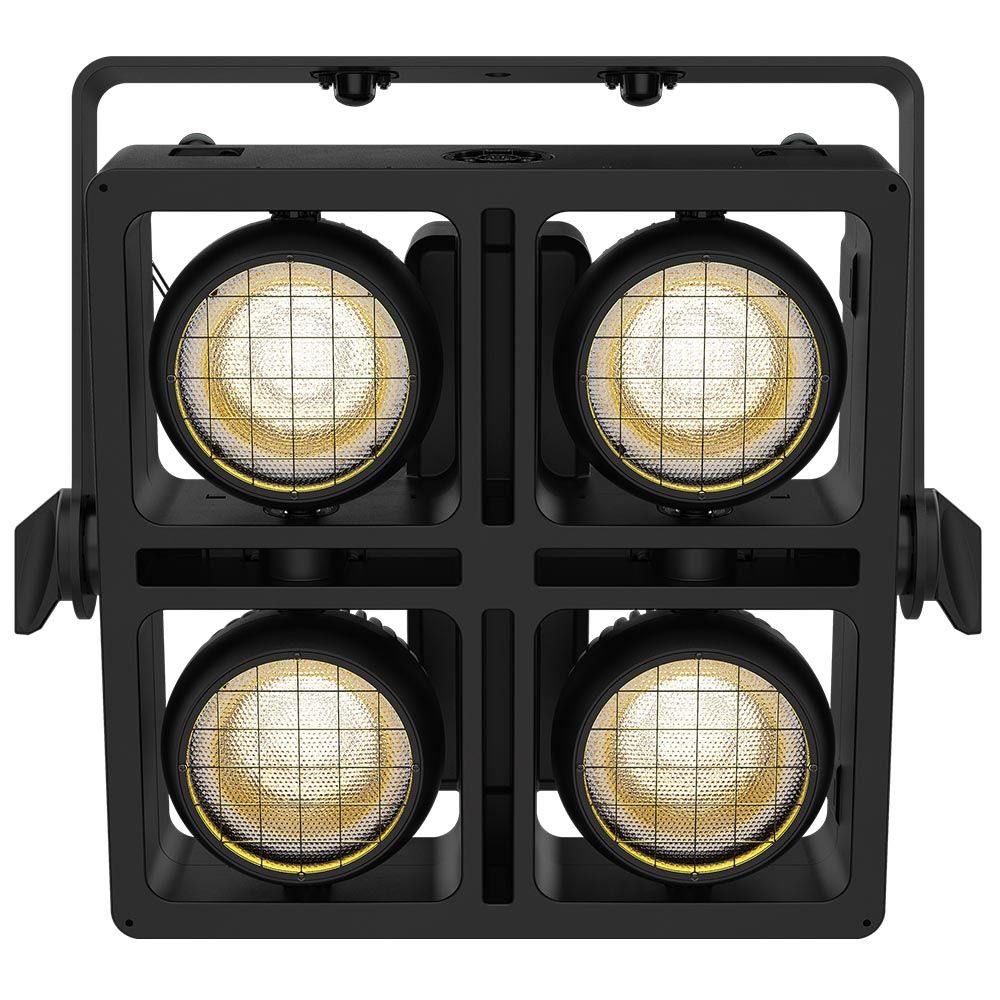

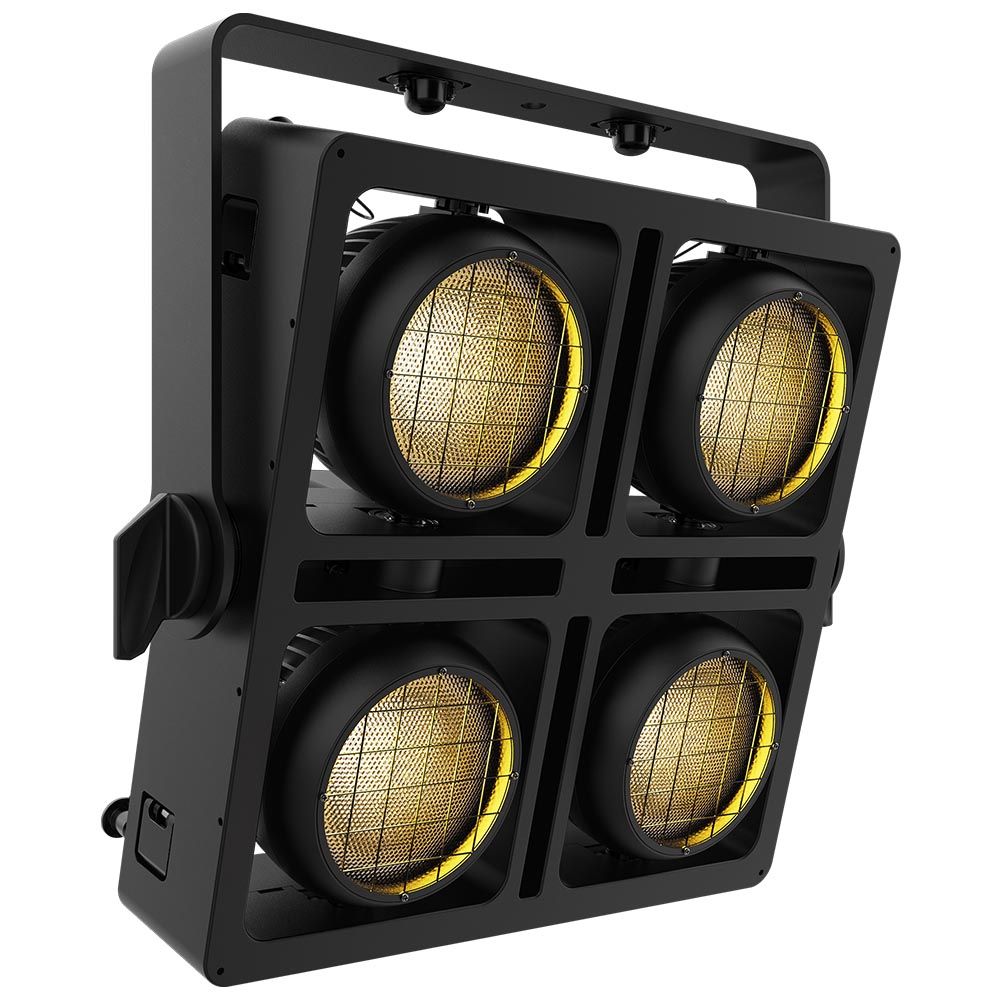

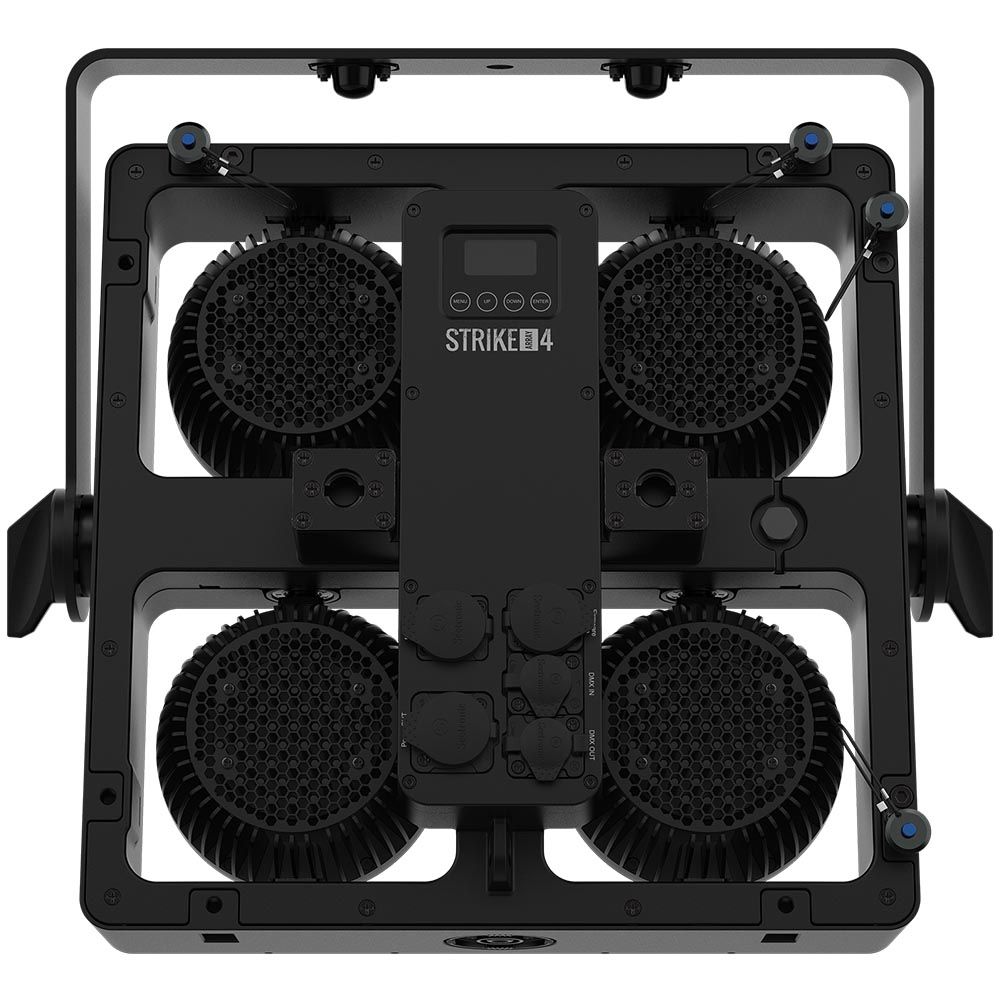

Chauvet Pro STRIKE Array 4 LED Audience Blinder
RRP: $3,473.00 ex. GST
Key Features:
- IP65 All Weather Blinder
- Four independently focusable warm white LED pods
- Red Shift Emulation
- Tool-free Interlocking System for scalable arrays
- Versatile Rigging
- 16-Bit Dimming Control
- High Impact Strobe
- DMX and RDM control
- High CRI output: 93.2
Technical Data
| Light Source | 192 LED (WW) 1.33 W, (2.2 A), 2700 K, 50,000 hours life expectancy |
| Light Source | 20 LED (Amber) 2.63 W, (.758 A), 50,000 hours life expectancy |
| Color Temperature (at full) | 2770 K |
| CRI | 93.2 |
| TLCI | 91 |
| Beam Angle | 61.5° |
| Field Angle | 100.5° |
| Illuminance (total) | 684 lux @ 5 m |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz |
| Dimmer | Electronic |
| Strobe Rate | 0 to 25 Hz |
| Dim Modes | 4 |
| Built-in Automated Programs | Yes |
| Dimensions | 18.5 x 16.7 x 6.3 in (470 x 424.5 x 161 mm) |
| Weight | 28.7 lb (13 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum die-cast |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin IP65 XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Control Protocol | DMX, RDM |
| DMX Channels | 1, 3, 4, 5, 6, or 10 |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| IP Rating | IP65, temporary outdoor/wet use |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
