The Chauvet Pro W-DMX Micro T-1 TRX G6 is a compact wireless transceiver for converting fixtures or rigs to wireless operation. It transmits and receives one universe of W-DMX, CRMX, and RDM protocols, with configuration available through Bluetooth using the dedicated W-DMX Configurator app. The unit supports previous W-DMX G3, G4, G4S, and G5 series products and can operate W-DMX and CRMX enabled products simultaneously in G4S Mode. Power is available through a 5V USB input or four AAA batteries, with battery operation lasting up to 8 hours in receiver mode.

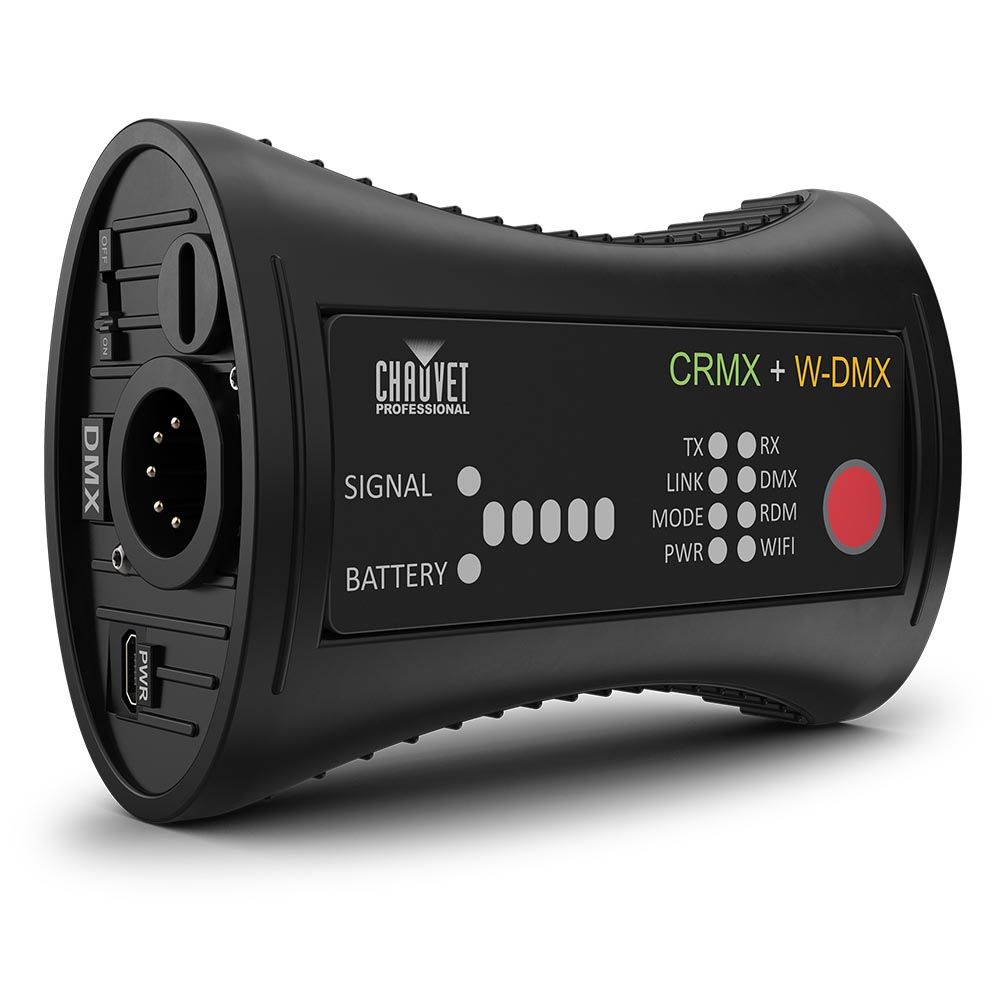

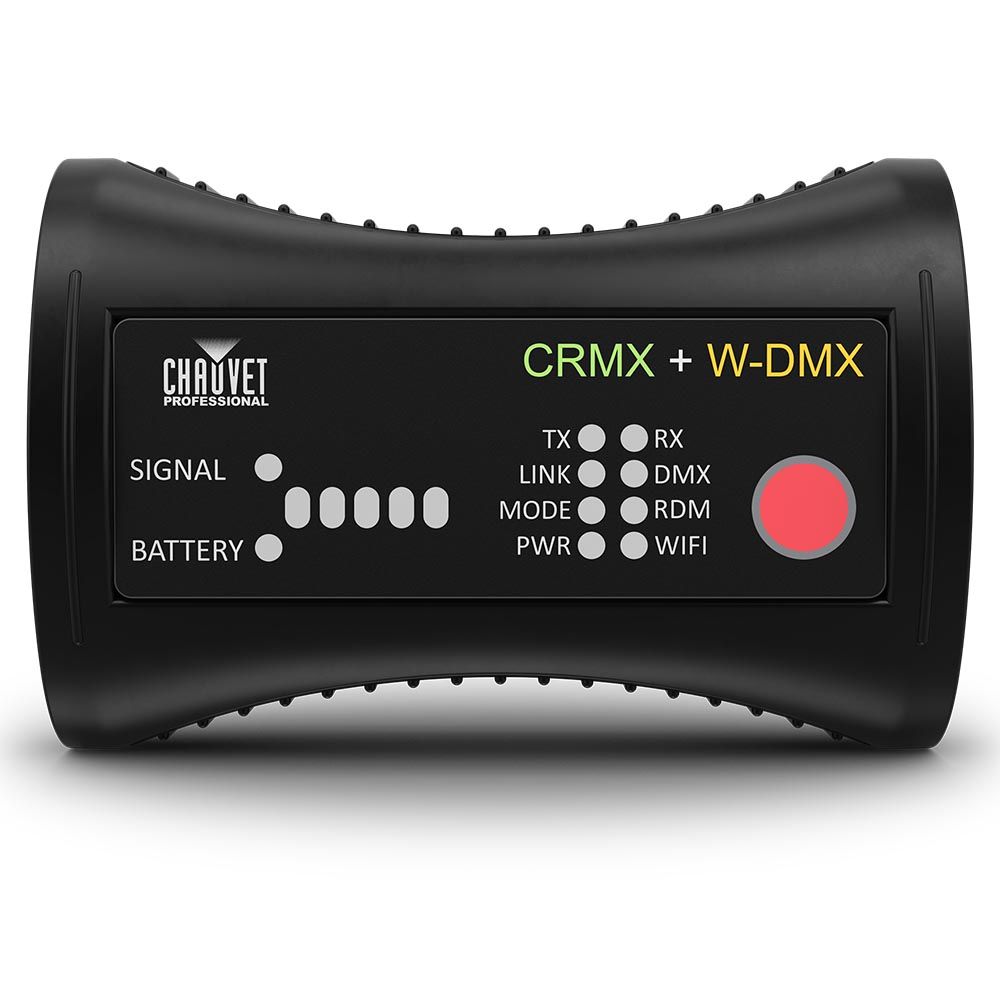

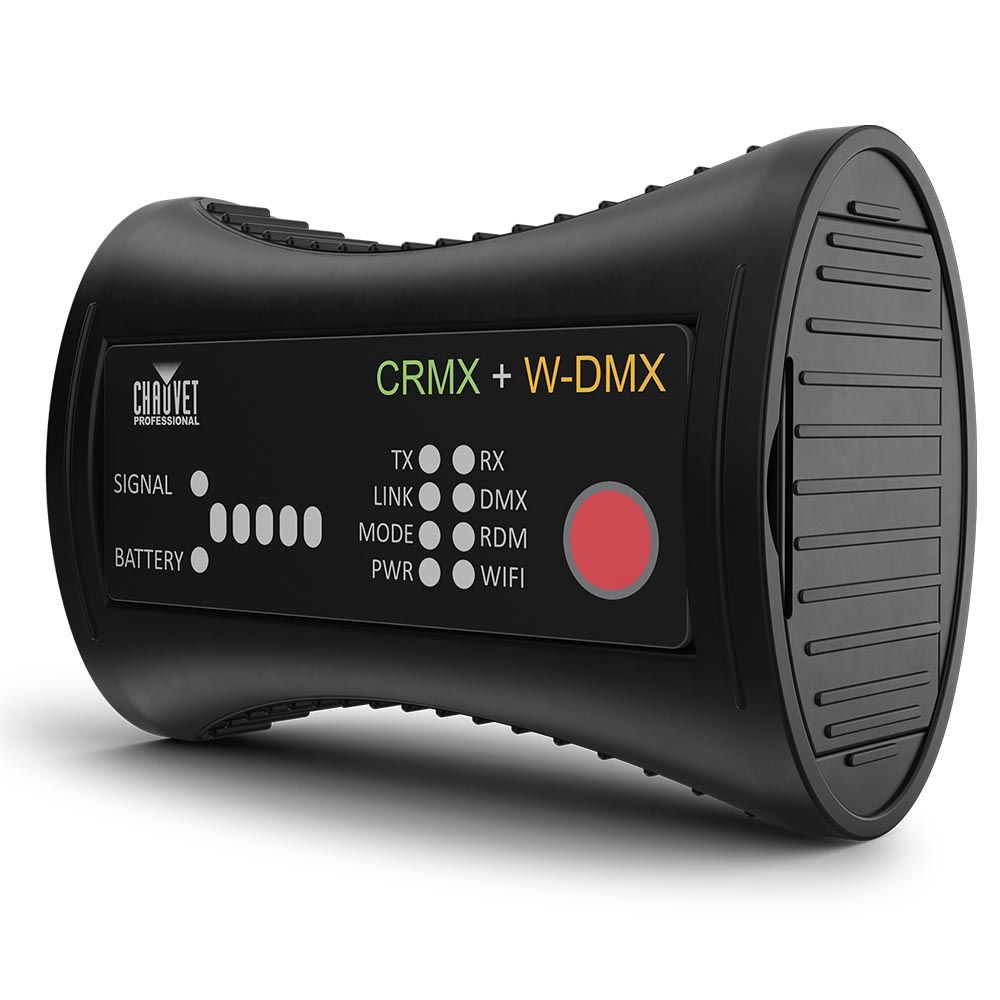

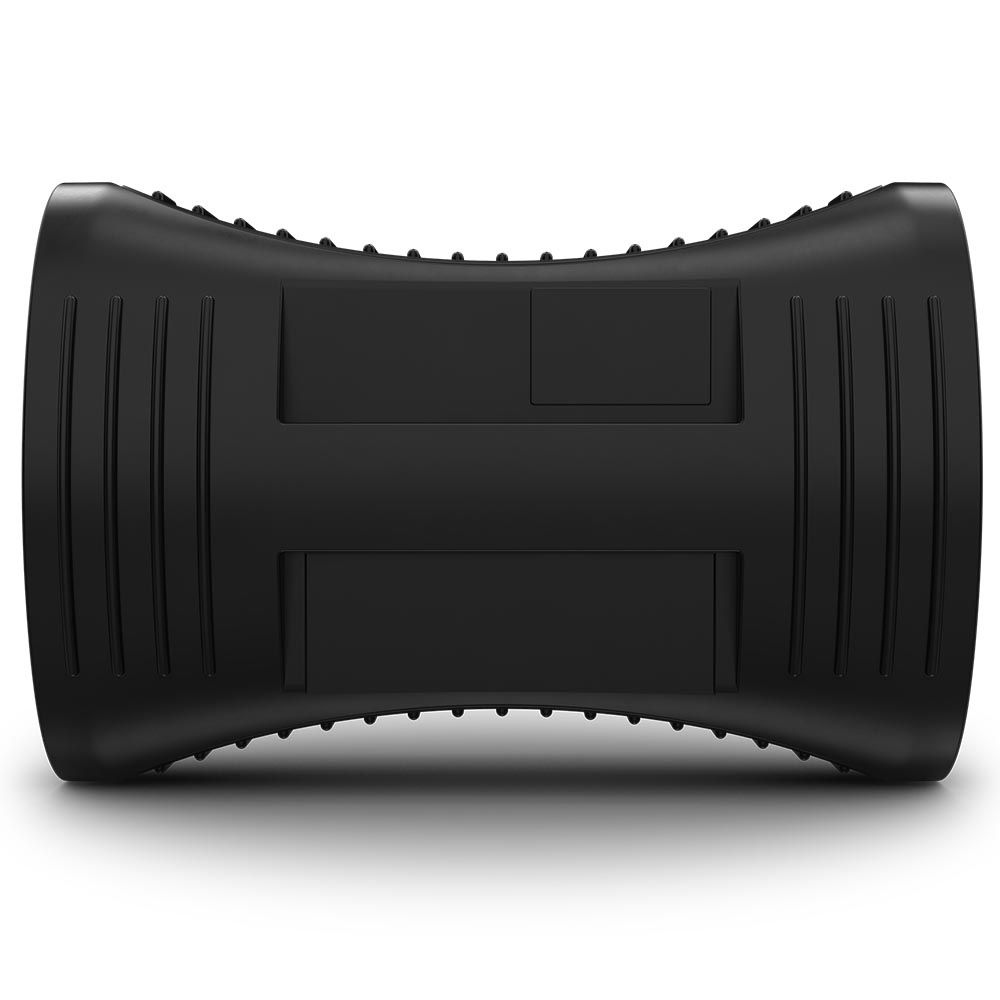

Chauvet Pro W-DMX Micro T-1 TRX G6 Wireless DMX/RDM Transceiver
RRP: $1,352.00 ex. GST
Key Features:
- Transmits and receives one universe of W-DMX, CRMX, and RDM protocols
- Configures settings via Bluetooth using the dedicated W-DMX Configurator app
- Operates W-DMX and CRMX enabled products simultaneously in G4S Mode
- Maintains backward compatibility with W-DMX G3, G4, G4S, and G5 series products
- Uses active frequency hopping to avoid interference
- Supports 5V USB input or four AAA batteries
- Provides up to 8 hours of operation in receiver mode on battery power
Technical Data
| Frequency (operating) | 2.4 GHz |
| Standard range | up to 650 ft (200 m) |
| Internal antenna | Yes |
| Sensitivity (0.1% PER) | -97 dBm |
| Modulation method | GFSK |
| Input Voltage | 9 VDC 1000 mA, (external power supply: 100-230 V 50/60 Hz) |
| Battery type | AAA |
| Rechargeable | No |
| Battery Life | 8 hours in receiver mode, 4 hours in transceiver mode |
| Certifications | CE, FCC |
| IP Rating | IP20, dry location |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
