The Chauvet Pro WELL BATTEN 14 is a battery-powered lighting batten kit containing four battery-operated, IP65-rated batten-style fixtures. Each fixture houses 28 RGBW LEDs, delivers 3,854 lumens, and provides a focused 16° beam angle with a 2600K to 10,000K color temperature range. Selectable battery runtimes extend up to 18 hours, while DMX, RDM, CRMX, NFC, and RF control options support flexible deployment. The fixtures also provide flicker-free operation with adjustable Pulse Width Modulation and can charge and operate simultaneously.

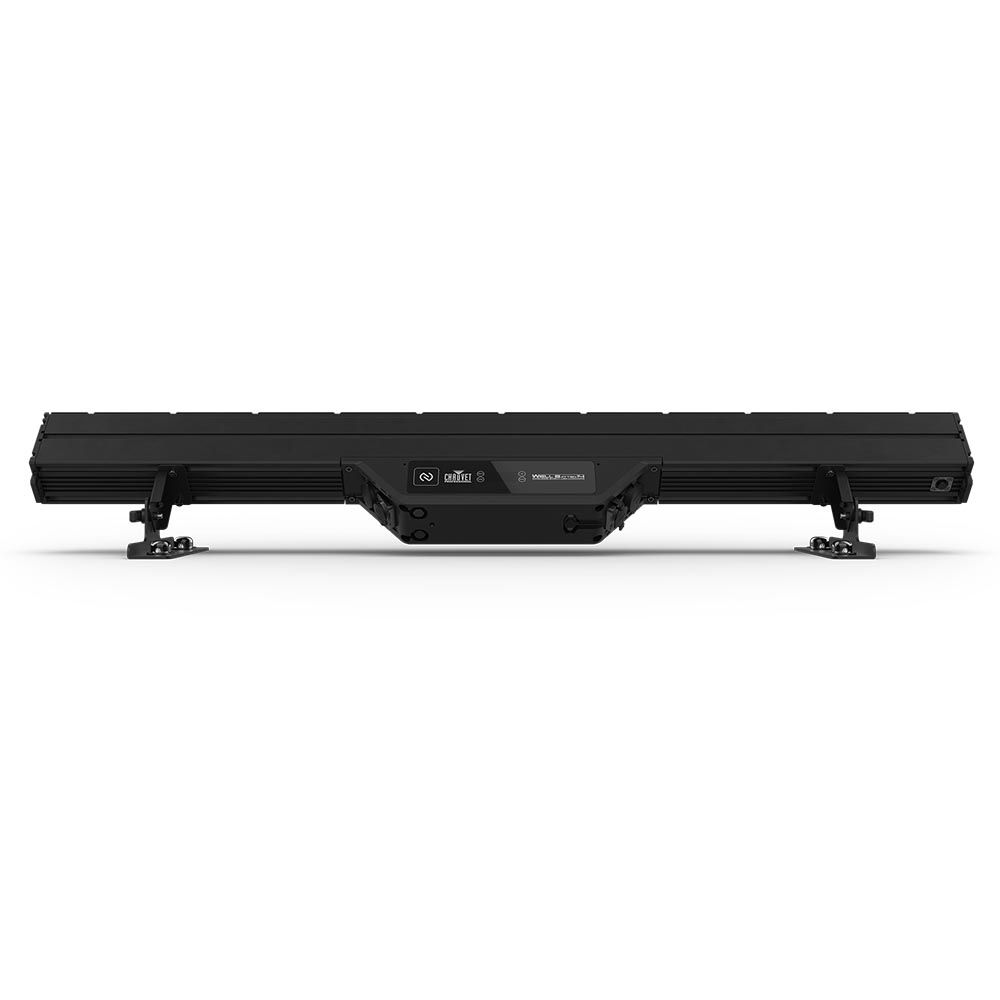

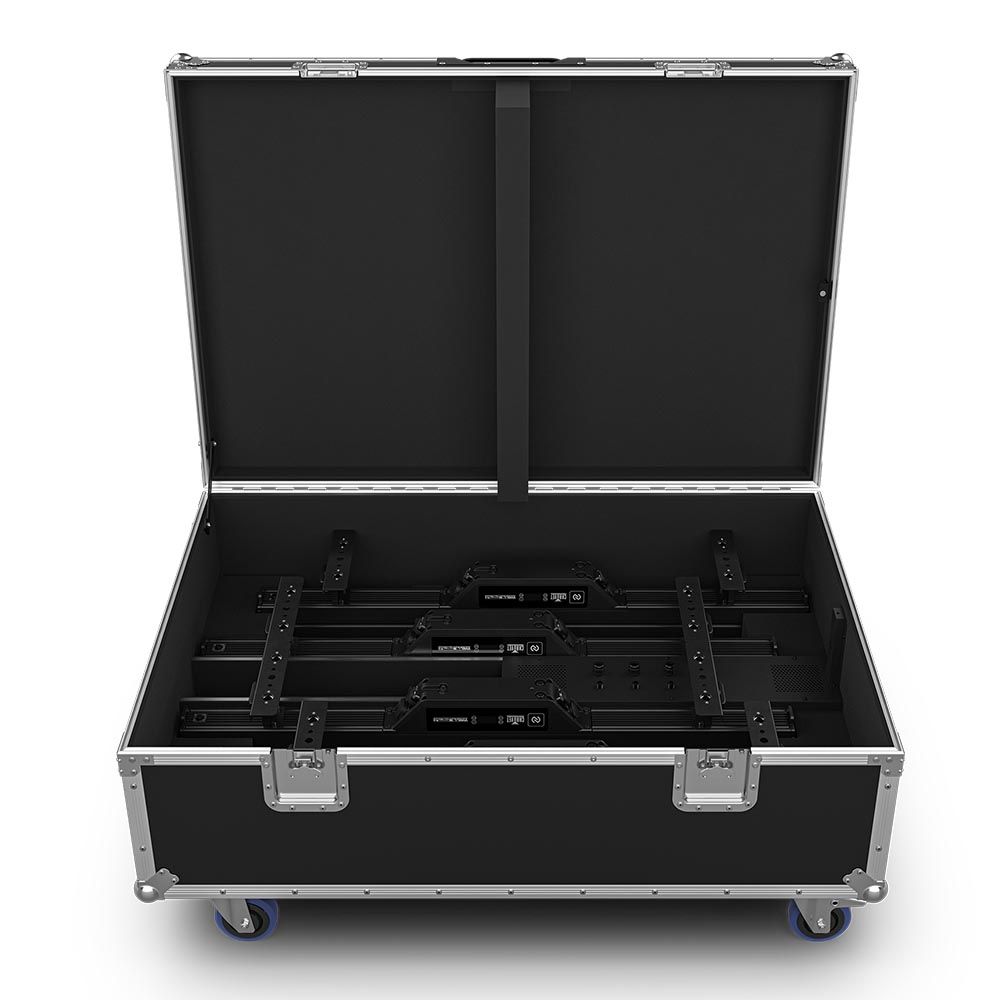

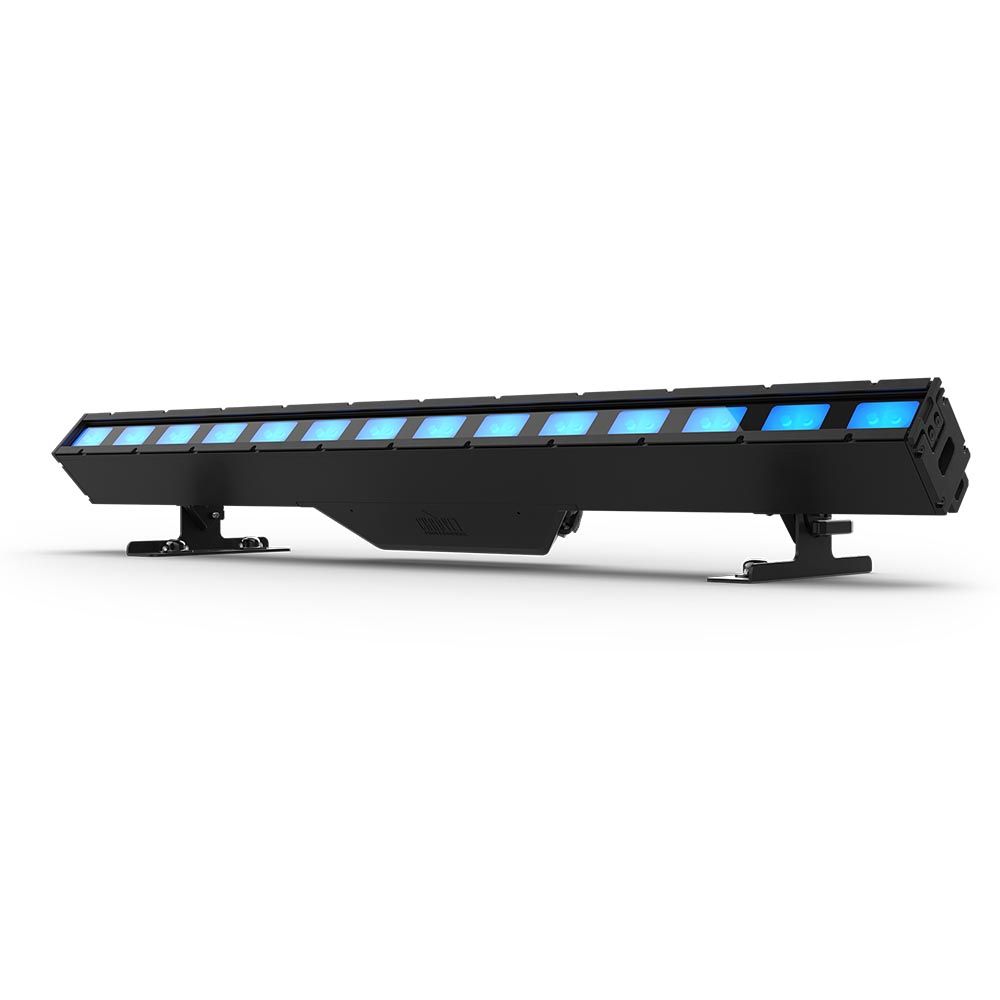

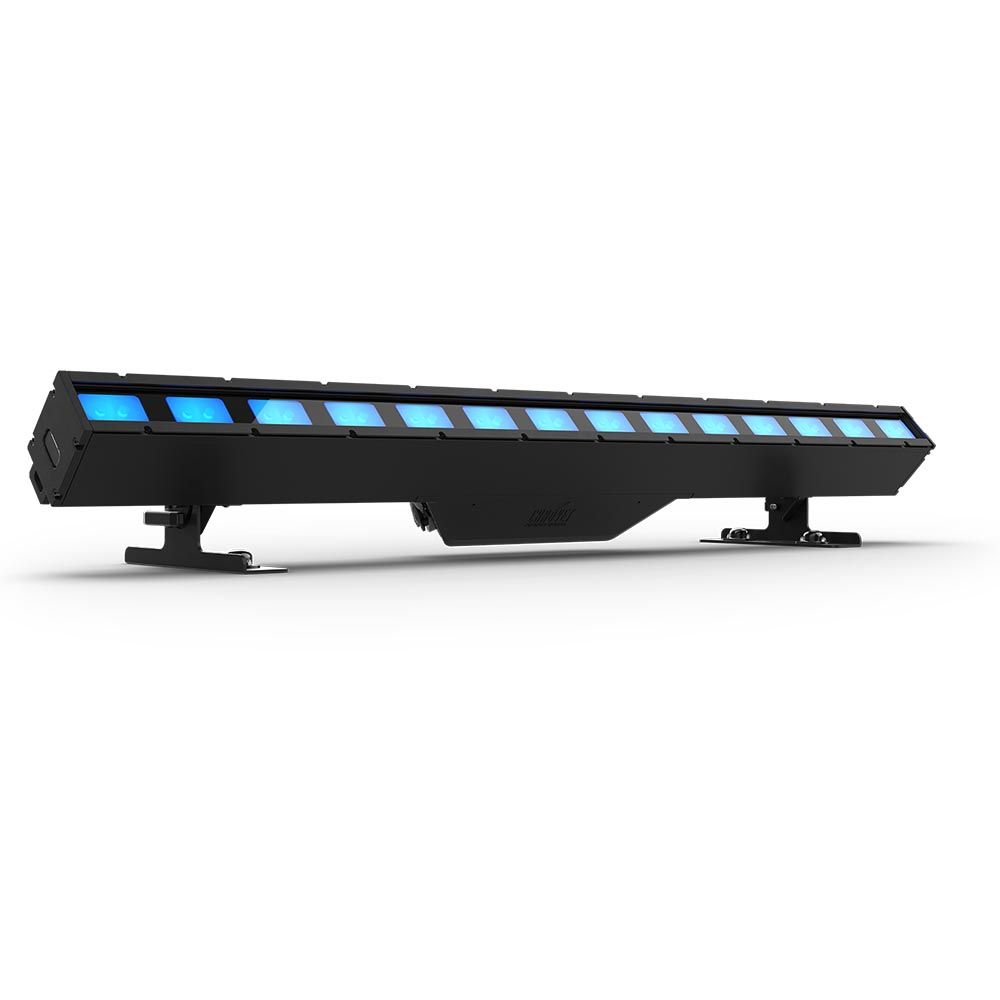

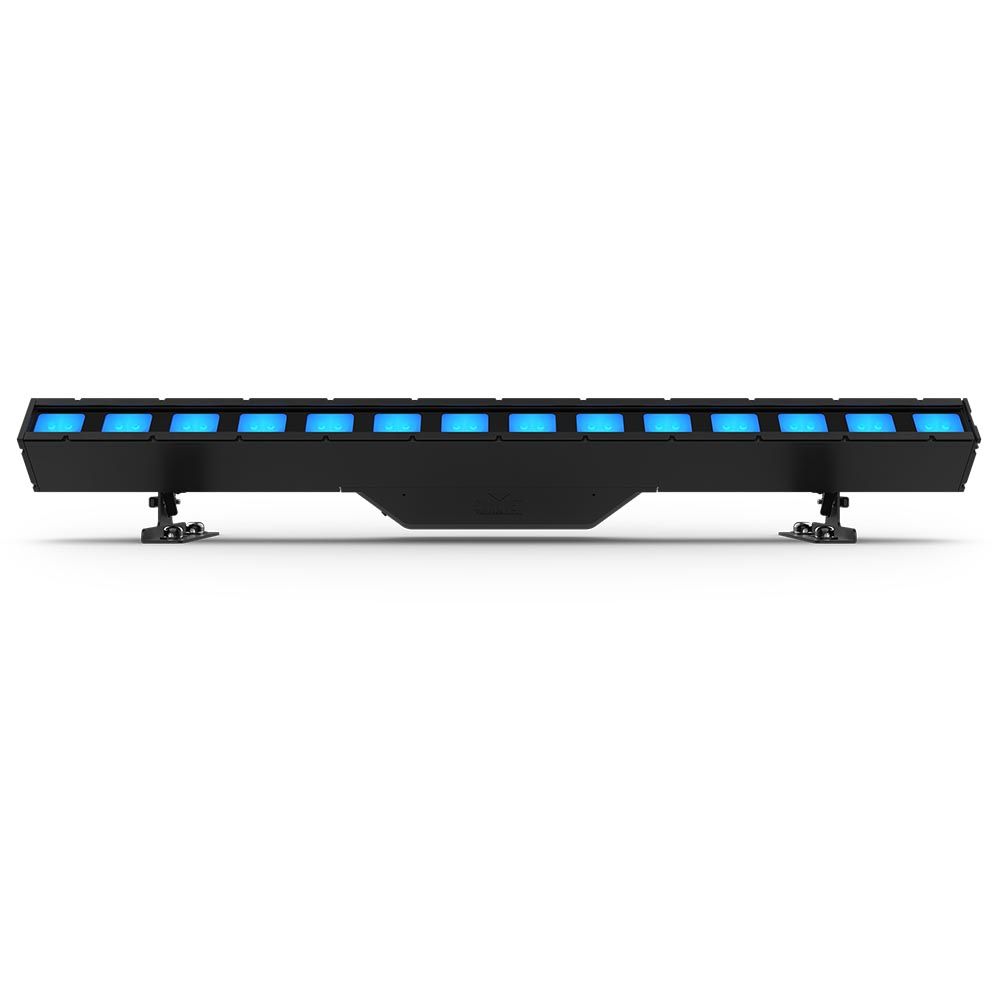

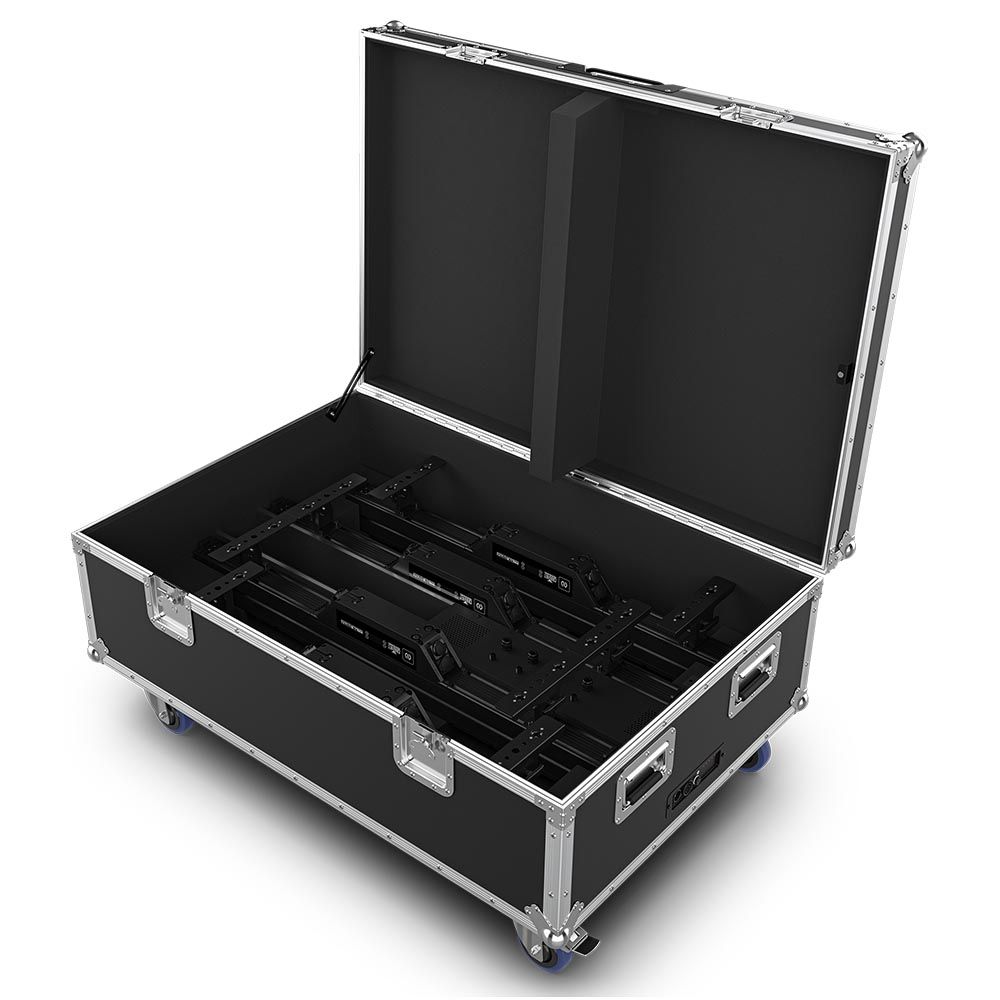

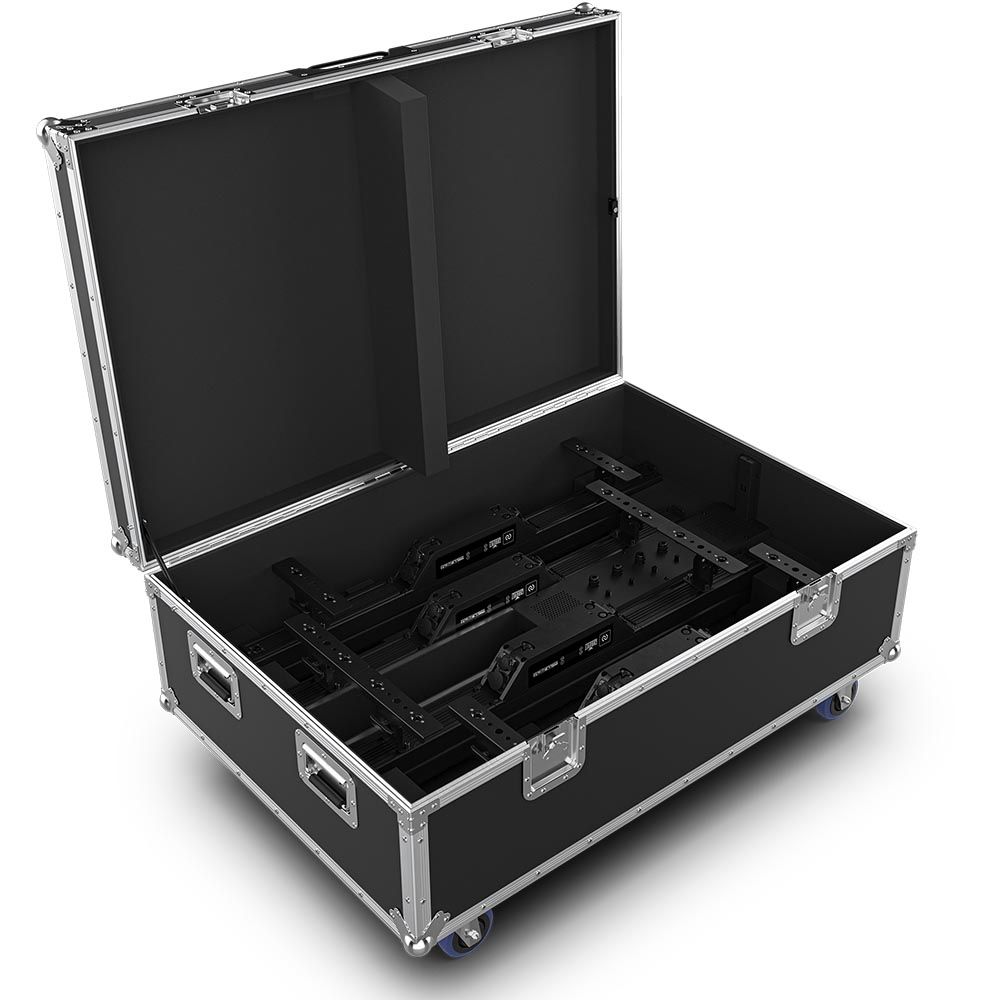

Chauvet Pro WELL BATTEN 14 Battery-Powered Lighting Batten Kit (4 pc)
RRP: $16,666.00 ex. GST
Key Features:
- Four battery-operated, IP65-rated batten-style fixtures
- 28 RGBW LEDs per fixture with 3,854 lumens
- 16° beam angle and 2600K to 10,000K color temperature range
- Selectable battery life: off, 5, 8, 12, or 18 hours
- DMX, RDM, CRMX, NFC, and RF control protocols
- Flicker-free operation with adjustable Pulse Width Modulation
Technical Data
| Color Temperature (range) | 2600K to 10,000K |
| Beam Angle | 16° |
| Lumens | 3854 |
| Illuminance | 1050 lux @ 5 m (AC power) |
| Data Connectors | 5-pin XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Software Connection | USB-C |
| Control Protocol | DMX, RDM, CRMX, NFC, RF |
| DMX Channels | 5, 8, 15, 66, 85 |
| Modes/Personalities | 6 personalities (5 ch, 8 ch, 15 ch, 66 ch, 85 ch) |
| Wireless WDMX “G” Compatibility | G4S |
| Wireless Lumen Radio Compatibility | CRMX |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Battery type | Lithium Nickel Cobalt AL (Li) (NiCoAL) |
| Rechargeable | Yes |
| Battery Charge Time | 7 hours |
| Battery Life | selectable: off, 5, 8, 12, 18 hrs |
| Certifications | CE, UKCA, FCC, ROHS |
| IP Rating | IP65, temporary outdoor/wet use |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
