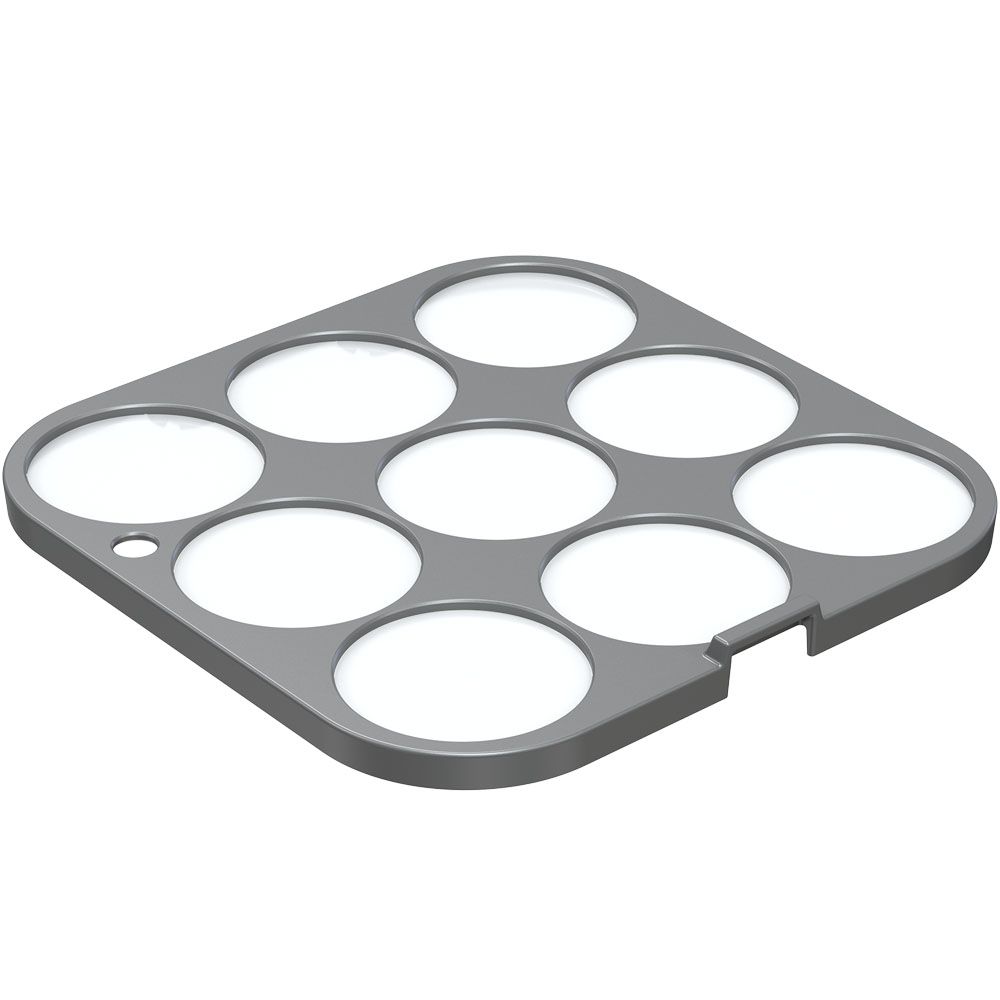

The Chauvet Pro WELL FIT X – 15° Filter Pack is a six-pack of filters in magnetic frames for WELL FIT X fixtures. Each filter widens the native 11.5° beam angle to 17.3°, supporting accent lighting, pinpointing decor, and uplighting applications. Magnetic frames allow tool-free installation and removal on site, while the compact design stores directly in the fixture’s charging case. A single notch identifies the filter, which produces a 17.3° beam and 32.8° field angle.
Chauvet Pro WELL FIT X 15° Filter Pack
RRP: $259.00 ex. GST
Key Features:
- Widens the native 11.5° beam angle of WELL FIT X fixtures to 17.3°
- Magnetic frames enable instant, tool-free installation and removal on site
- Six-filter pack for outfitting a full charging case
- Compact design allows storage directly within the fixture’s charging case
- Single notch provides quick and clear filter identification
- Delivers a 17.3° beam and 32.8° field angle
Technical Data
| Beam Angle | 17.3° |
| Field Angle | 32.8° |
| Illuminance (AC) | 507 lux @ 5 m |
| Lumens (AC) | 171 |
| Illuminance (Battery curve off) | 504 lux @ 5 m |
| Lumens (Battery curve off) | 1698 |
| Illuminance (5 hr) | 491 lux @ 5 m |
| Lumens (5 hr) | 1655 |
| Illuminance (8 hr) | 321 lux @ 5 m |
| Lumens (8 hr) | 1081 |
| Illuminance (12 hr) | 213 lux @ 5 m |
| Lumens (12 hr) | 717 |
| Illuminance (18 hr) | 142 lux @ 5 m |
| Lumens (18 hr) | 476 |
| Dimensions | 4.09 x 4.09 in (104 x 104mm) |
| Weight | 0.03 lb (0.015kg) |
| Certifications | CE |
| IP Rating | IP65, temporary outdoor/wet use |
