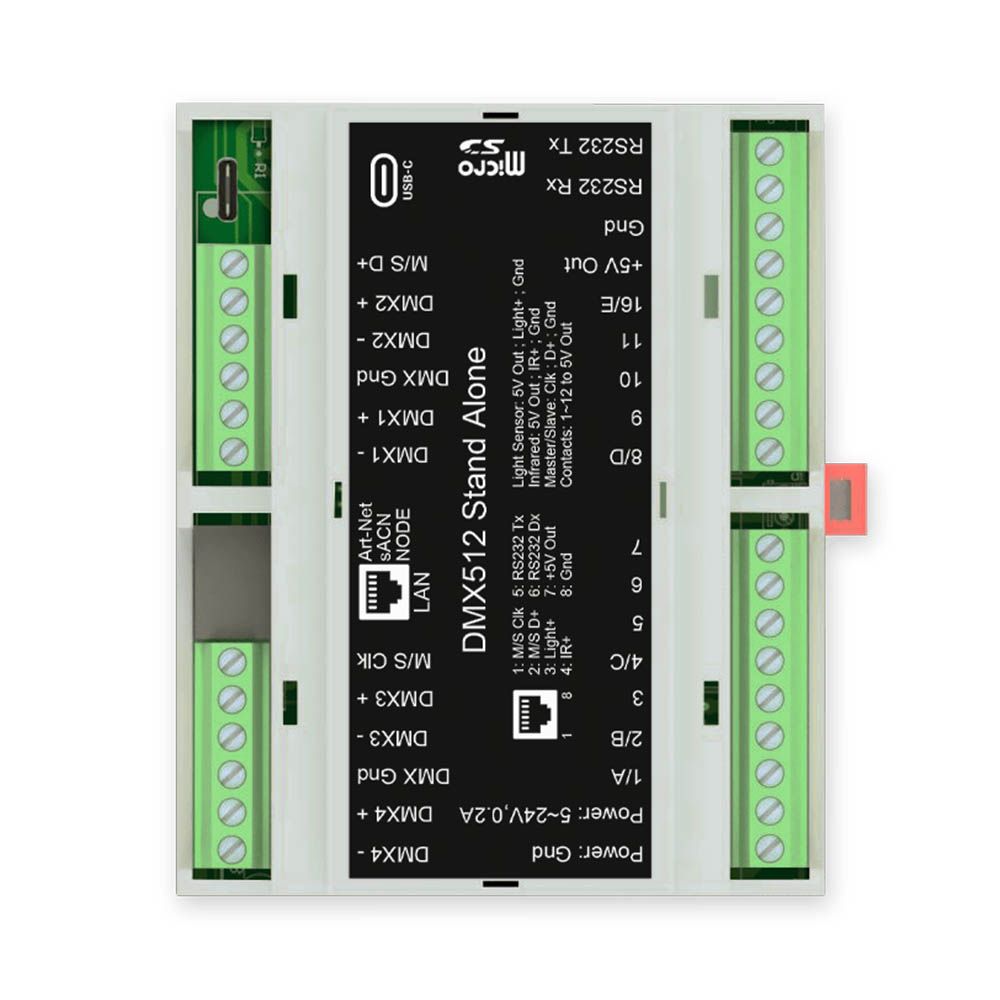

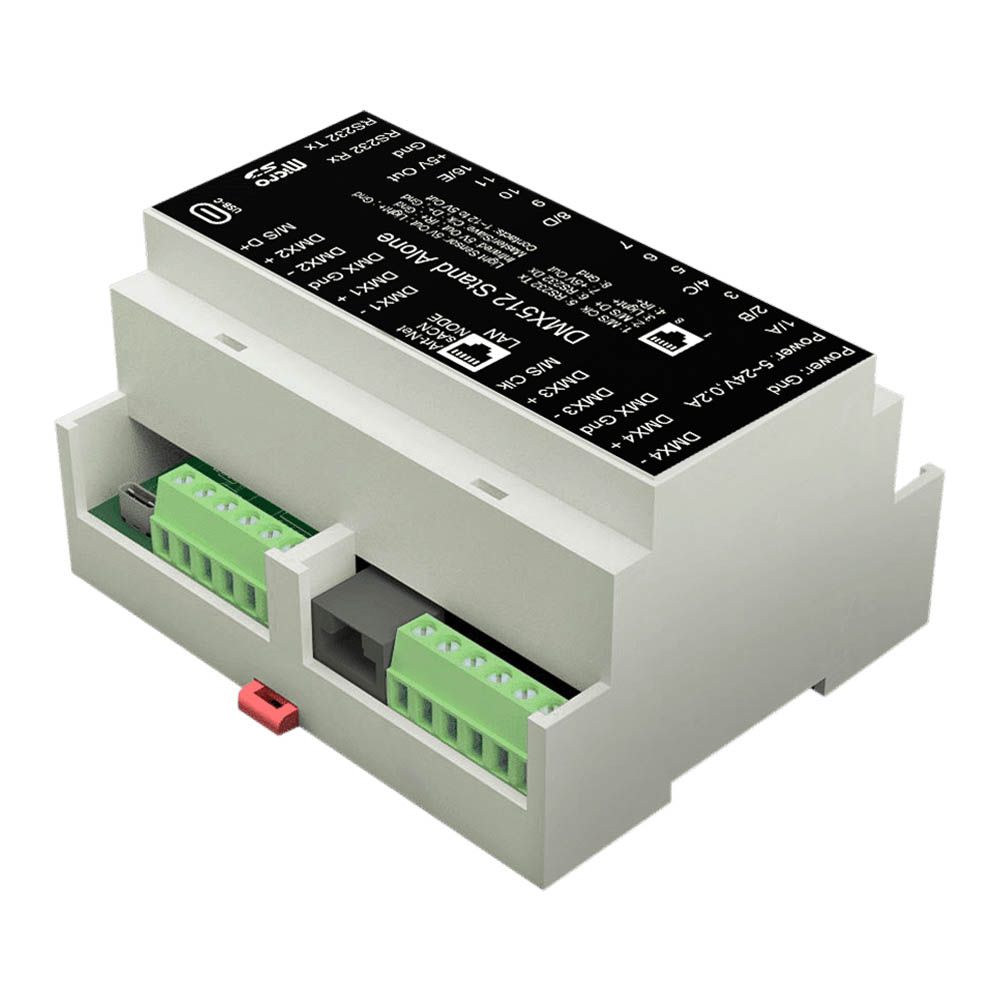

The Chromateq DIN-E 2048 is a powerful Ethernet-to-DMX standalone interface designed for professional architectural lighting and large-scale integration projects. Built for DIN rail installation, it delivers control of up to 2048 DMX channels across four universes with reliable live and standalone operation. The interface supports Art-Net, sACN, and RDM protocols, while advanced trigger options including RS232, smart contacts, DMX IN, and internal clock scheduling provide exceptional flexibility for automated lighting environments. With support for up to five simultaneous zones, onboard memory, and Micro SD expansion up to 256 GB, the DIN-E 2048 is ideal for permanent installations requiring stable, scalable, and intelligent DMX control. Ethernet LAN/WLAN connectivity also enables seamless network integration and wireless control through compatible routers.
Chromateq DIN-E2048
RRP: $999.00 ex. GST
Key Features:
- Controls up to 2048 DMX channels across 4 universes
- Designed for DIN rail installation in professional environments
- Supports Art-Net, sACN, and RDM protocols
- Standalone playback with up to 5 simultaneous zones
- Ethernet LAN/WLAN support with DHCP or static IP addressing
- Built-in internal clock for scheduled scene automation
- 12 smart contact trigger inputs for external control integration
- RS232 input/output support for advanced triggering functions
- Micro SD card support up to 256 GB for expanded memory
- Compatible with PRO DMX 2, PIXXEM, STUDIO DMX, and LED Player software
- Master/slave synchronisation with up to 128 Ethernet devices
- Compact industrial design for permanent installations
Technical Data
| DMX Channels | 2048 (4 x 512 DMX universes) |
|---|---|
| Ethernet | 10 Mb/s LAN compatible |
| Protocols Supported | Art-Net, sACN, RDM |
| DMX Outputs | 4 universes |
| Trigger Options | RS232, UDP, Smart Contacts, DMX IN, RTC Clock |
| Smart Contacts | 12 dry contact triggers (3~5V) |
| Standalone Zones | Up to 5 simultaneous scenes/zones |
| Memory Capacity | 3K ~ 15K steps |
| Maximum Scene Capacity | 5 x 512 scenes |
| Internal Memory | 8 MB |
| Micro SD Support | Class 10, FAT format, up to 256 GB |
| Connectivity | USB-C, Ethernet LAN/WLAN |
| Power Input | 5~24V DC, 0.3A |
| Power Output | 5V DC |
| Dimensions | 106 x 90 x 59 mm |
| Weight | 170 g |
| Operating Temperature | -40°C to +85°C |
| Certifications | CE, RoHS |
| Master/Slave Sync | Up to 32 wired / 128 Ethernet devices |
| Software Compatibility | PRO DMX 2, PIXXEM, STUDIO DMX, LED Player |
