Chamsys MagicQ MQ50 Compact Console is designed for lighting control in small to medium sized venues, installations, clubs and schools. It provides 8 universes direct from the console via ArtNet, sACN and Pathport, with 4 direct DMX outputs supporting RDM and one network port. The console includes ten playbacks, an in-built 10.1″ HD multi-touch display, in-built WiFi and silent operation. It supports MagicVis and MagicHD connectivity and uses the same software and show formats as other products in the MagicQ range.

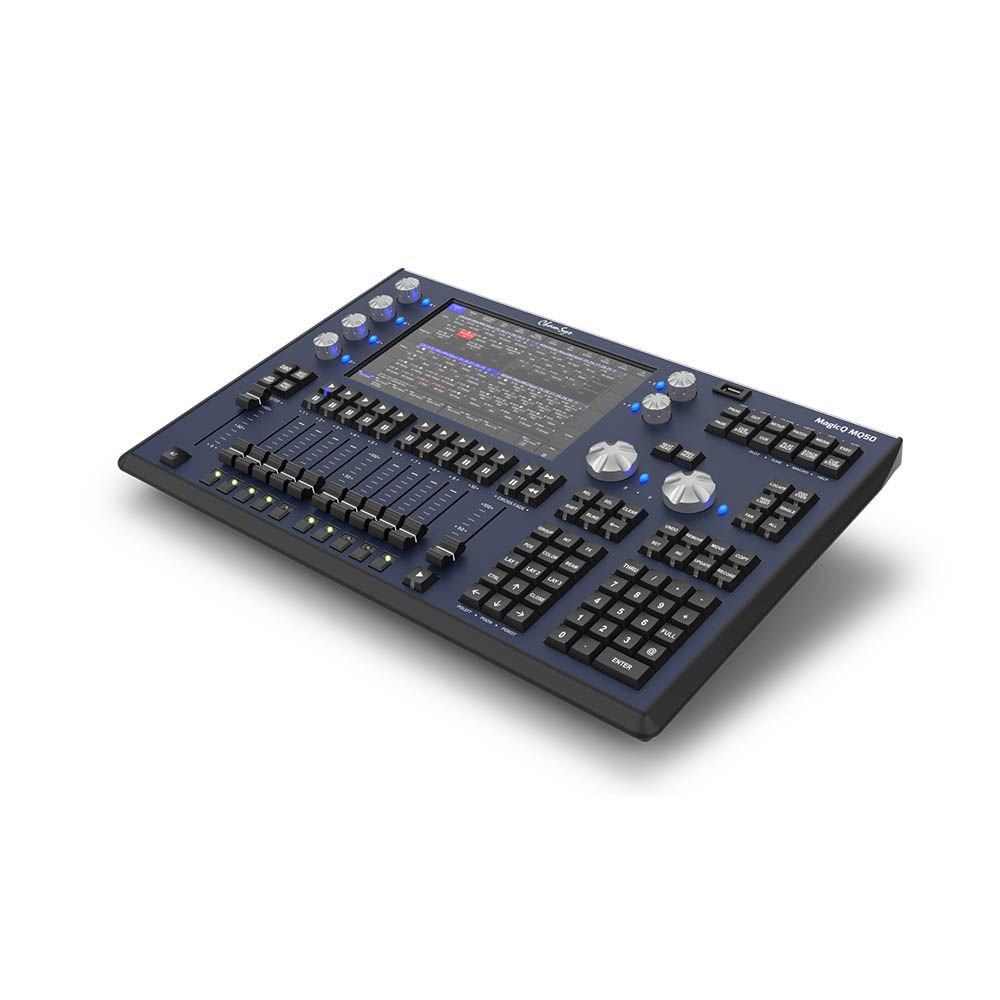

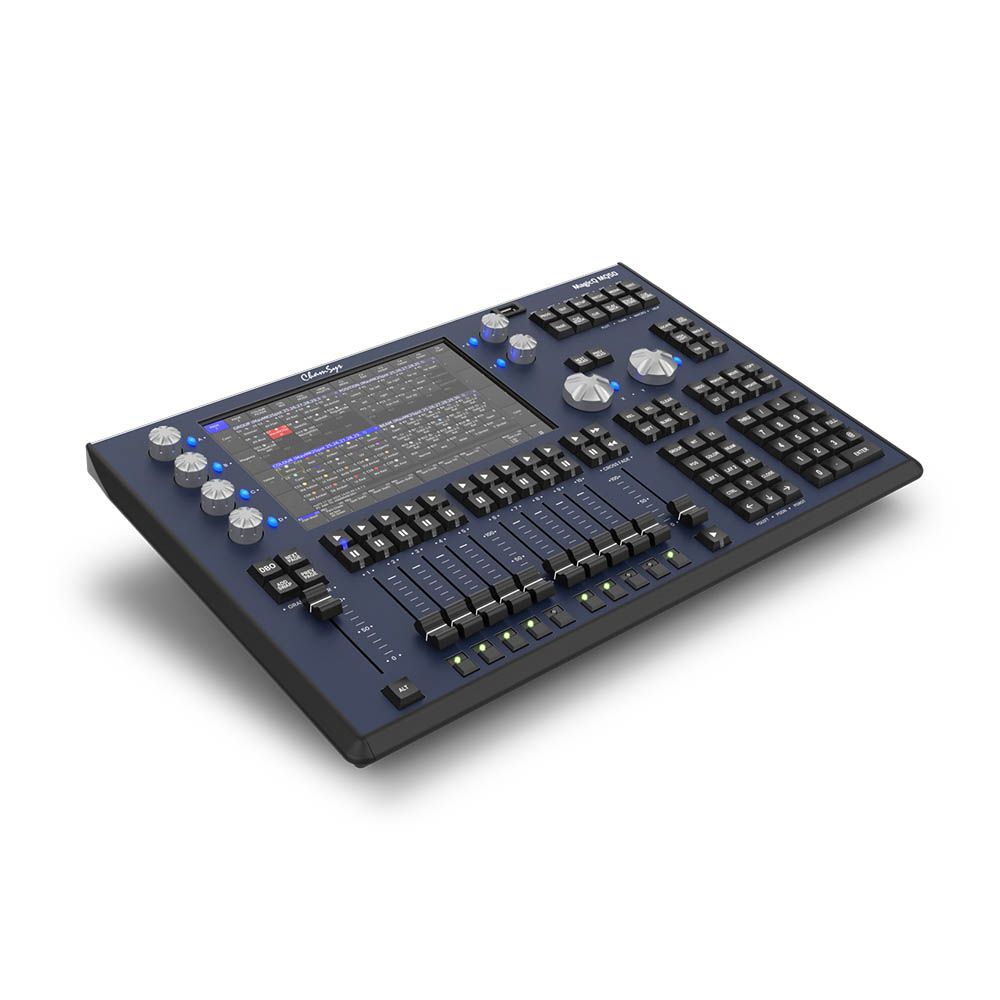

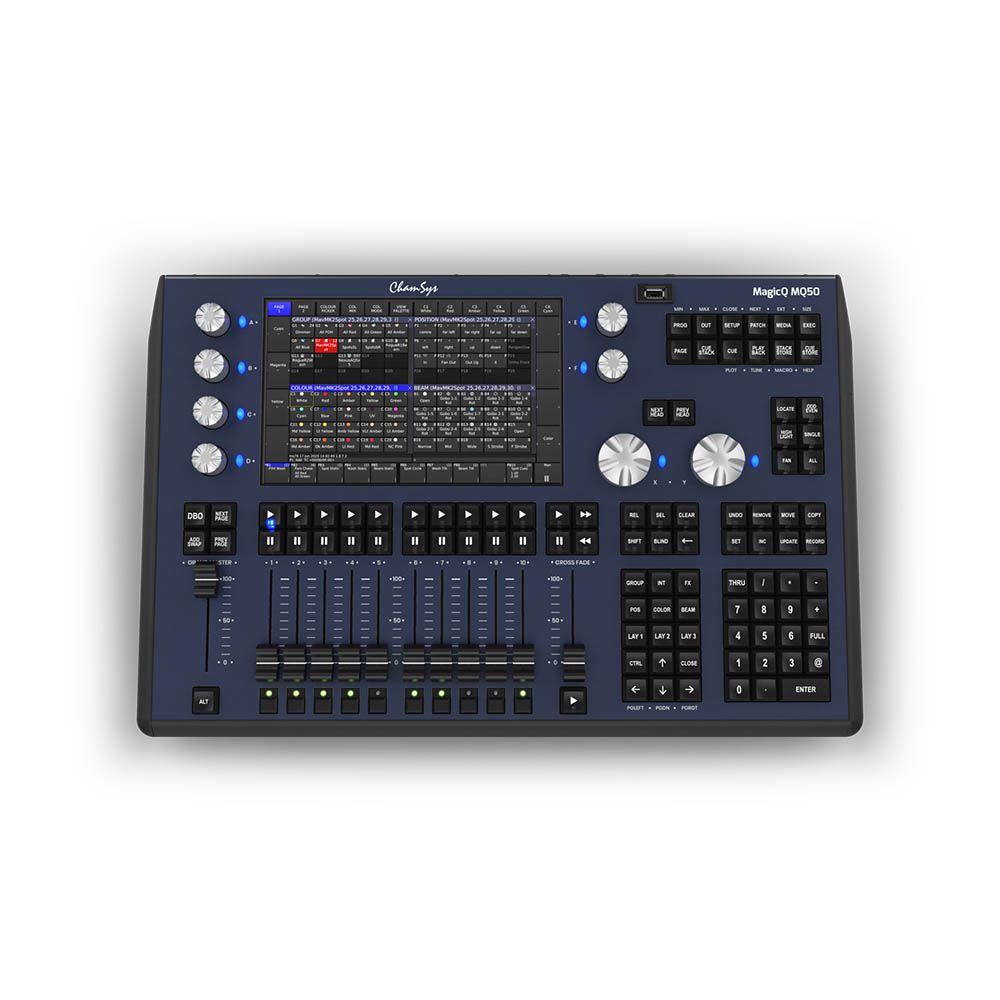

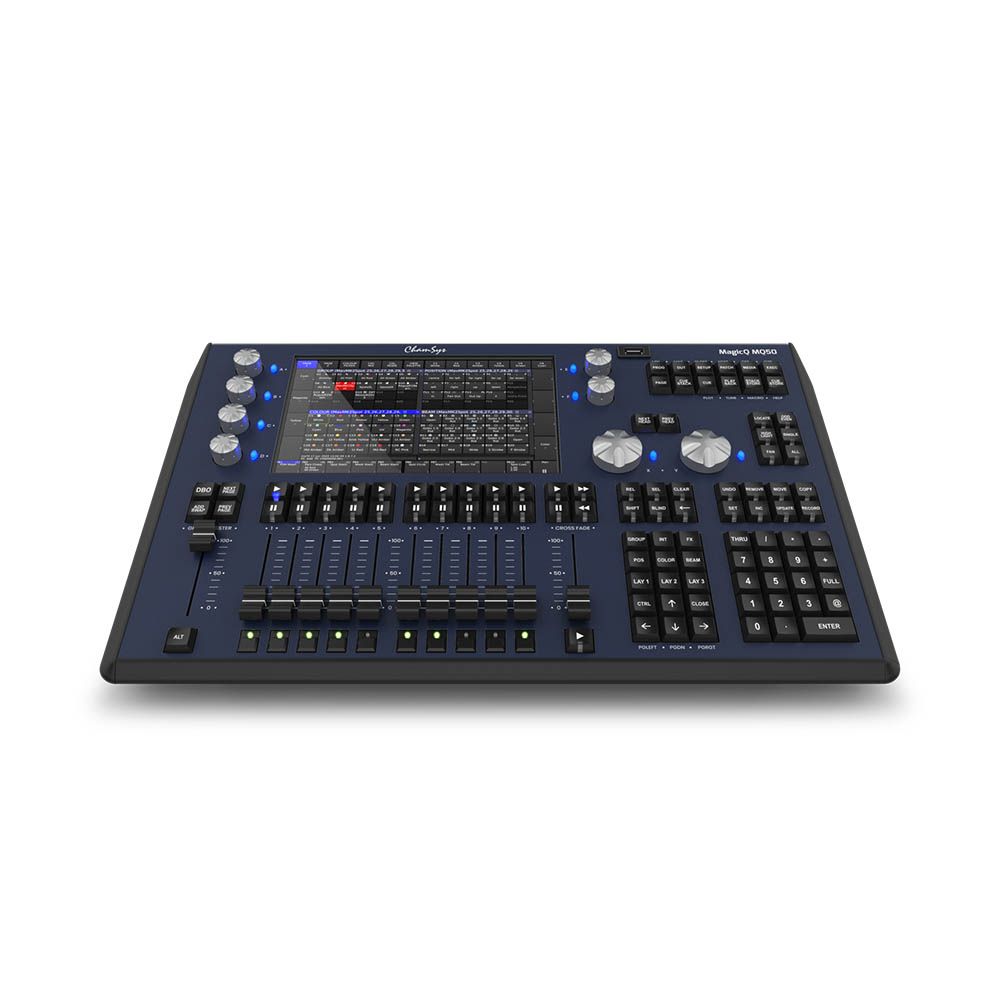

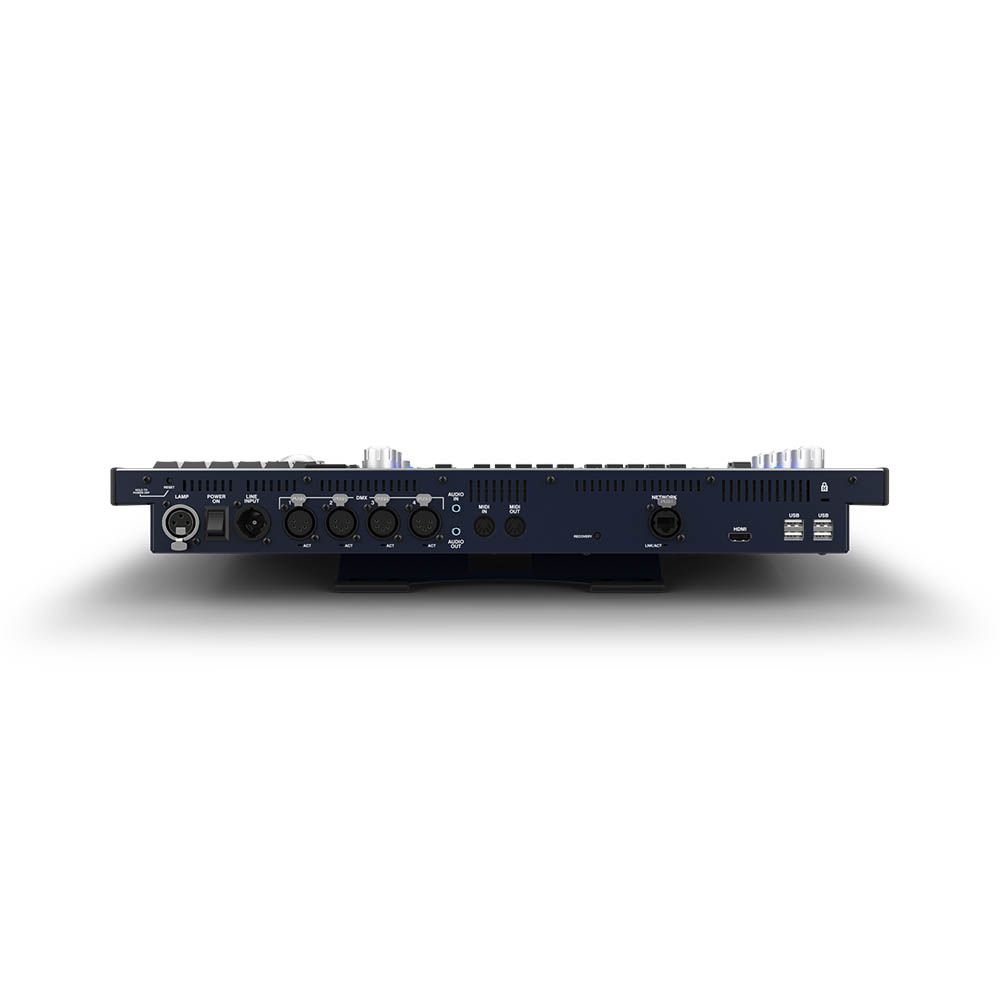

Chamsys MagicQ MQ50 Compact Console (MAGICQ-MQ50)
RRP: $14,699.00 ex. GST
Key Features:
- 8 universes direct from the console
- 4 direct DMX outputs with RDM support
- In-built 10.1″ HD multi-touch display
- In-built WiFi for quick connection to MagicQ Remote App
- 10 playbacks
- Silent operation
Technical Data
| Universes direct from the console (via Artnet/sACN/Pathport) | 8 |
| Direct DMX Outputs | 4 |
| RDM Support | Yes |
| In-built WiFi | Yes |
| Playbacks | 10 |
| Grand Master Fader | 1 |
| Crossfade Master Fader | 1 |
| Attribute Encoders | 8 |
| Network Ports | 1 |
| Inbuilt 10.1″ HD Multi-Touch Display | 1 |
| External Monitor up to 1920×1200 Resolution – HDMI | 1 |
| USB Ports | 5 |
| Audio Input (1 channel, 7 band) | Yes |
| Audio Output | Yes |
| MIDI Ports | 1 in, 1 out (Notes Only) |
| Power Input | Neutrik powerCON TRUE1 110 to 240 VAC |
| Max Power Consumption (mains) | 35 W |
| Max Number of DMX Channels | 4096 |
| Max Number of Fixtures Supported | 4096 |
| Max Number of Cues | 5000 |
| Max Number of Cue Stacks | 2000 |
| Max Number of Groups | 5000 |
| Max Number of Palettes | 4096 |
| Number of Media Server Layers Supported | 50 (each different content) |
| Numbers of Shows | Virtually unlimited |
| Timecode Support (Midi, LTC, Virtual, USB) | No |
| Included Accessories | Dual Colour Desk light: 1, Dust cover: 1, Neutrik powerCON TRUE1 Power Cable: 1 |
| Boxed Width | 680mm (26.7 inches) |
| Boxed Depth | 290mm (11.4 inches) |
| Boxed Height | 500mm (19.6 inches) |
| Boxed Weight | 10kg (22 lb) |
| Console Width | 525mm (20.6 inches) |
| Console Depth | 350mm (13.7 inches) |
| Console Height | 60mm (2.3 inches) |
| Console Weight | 7kg (15.4lb) |
| Flight Cased Width | 600mm (23.6 inches) |
| Flight Cased Depth | 202mm (7.95 inches) |
| Flight Cased Height | 421mm (16.5 inches) |
| Flight Cased Weight | 17kg (37.4 lb) |
