The Faital Pro FA-12RS430 is a 12 inch, 8 Ohm ferrite speaker driver for woofer and mid-bass applications. It provides 400 W AES continuous power handling, 800 W maximum power handling and 93 dB sensitivity. The driver uses a treated, glass fiber reinforced paper cone, half-roll EPDM rubber surround, 65 mm aluminum voice coil on a glass fiber former and cast aluminum basket. Its 30 Hz resonant frequency, 13.57 mm linear one-way excursion and aluminum demodulation ring support low-frequency output and reduced distortion.

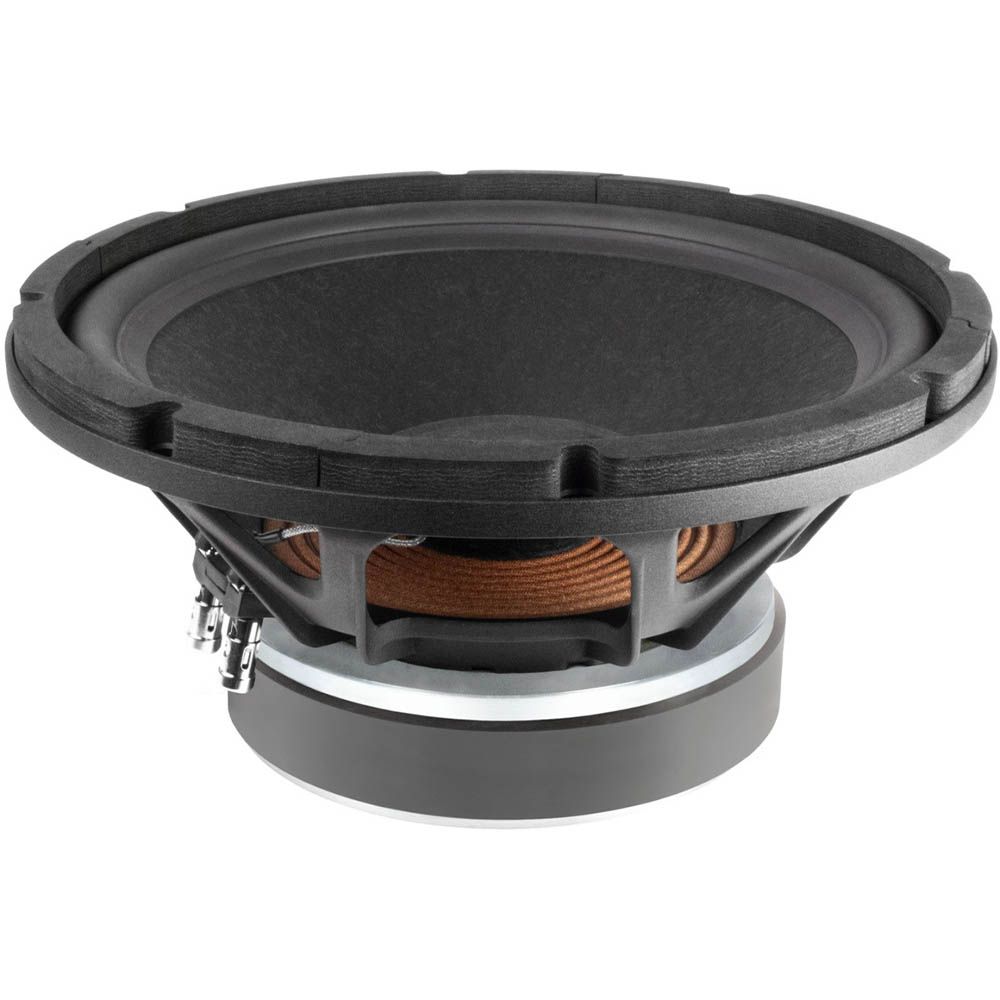

Faital Pro FA-12RS430 12 Inch 8 Ohm Speaker Driver
RRP: $329.00 ex. GST
Key Features:
- 12″ (300 mm) nominal diameter
- 400 W AES power handling; 800 W maximum power handling
- 93 dB (1W/1m) sensitivity
- 30 Hz – 2500 Hz frequency range
- 65 mm (2.56 in) aluminum voice coil on glass fiber former
- High-flux ferrite ring magnet with aluminum demodulation ring
- Glass fiber reinforced treated paper cone with half-roll EPDM rubber surround
- Cast aluminum basket
- 13.57 mm linear one-way excursion
Technical Data
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 8 Ohm |
| AES Power Handling (1) | 400 W |
| Maximum Power Handling (2) | 800 W |
| Sensitivity (1W/1m) | 93 dB |
| Frequency Range | 30÷2500 Hz |
| Voice Coil Diameter | 65 mm (2.56 in) |
| Winding Material | Al |
| Former Material | Glass Fiber |
| Winding Depth | 29.8 mm (1.17 in) |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Flux Density | 1.50 T |
| Magnet | Ferrite Ring |
| Basket Material | Aluminum |
| Demodulation | Aluminum ring |
| Cone Surround (3) | Half Roll |
| NET Air Volume filled by Loudspeaker | 2.85 dm^3 (0.101 ft^3) |
| Spider Profile | 1x constant height waves |
