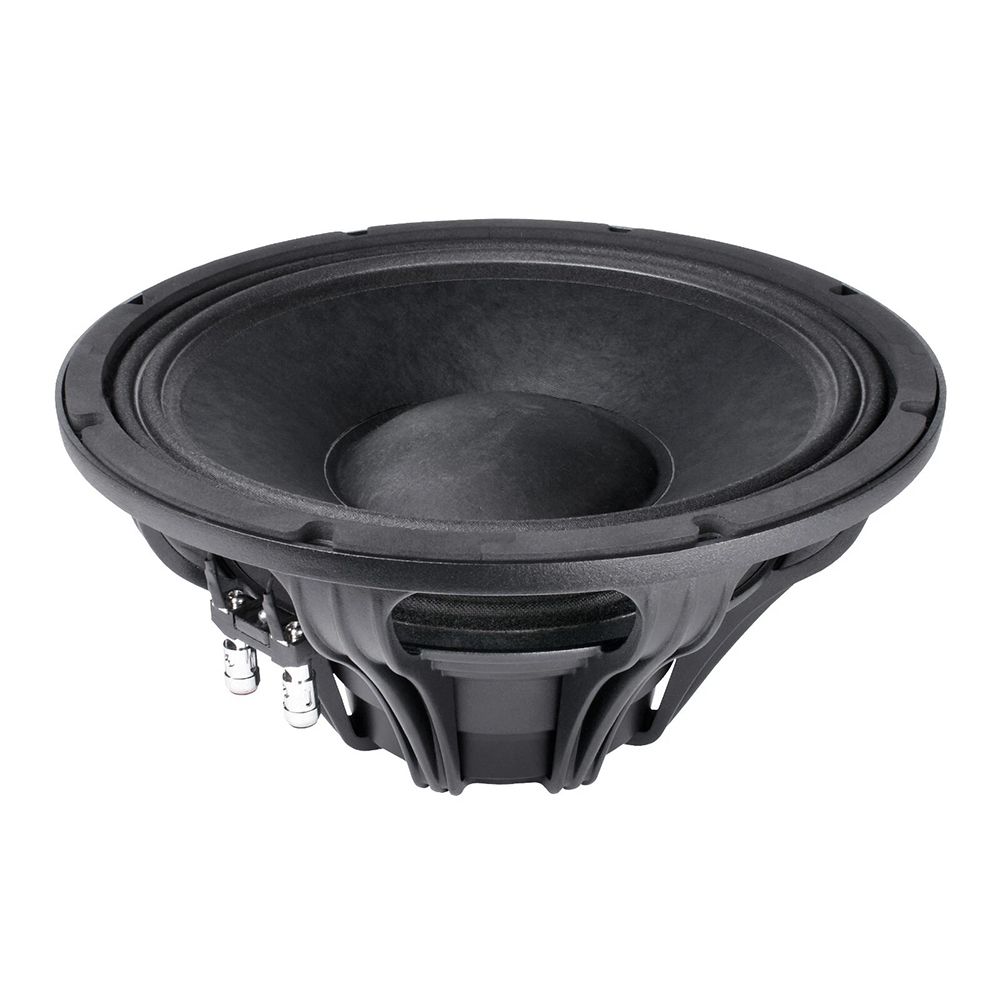

The Faital Pro 15HP1020 15-Inch Neodymium Speaker, 8 Ohm is a 380 mm loudspeaker designed for speaker system applications. It has a nominal impedance of 8 Ohm, 700 W AES power handling and 98 dB sensitivity. The speaker covers a 40÷4000 Hz frequency range and uses a 100 mm voice coil, Neodymium Slug magnet and Aluminium basket. Installation dimensions include a 356 mm baffle cutout diameter and 181.3 mm depth.
Faital Pro 15HP1020 (8 Ohm, 15-Inch) Neodymium Speaker
RRP: $719.00 ex. GST
Key Features:
- 700 W AES Power Handling
- 98 dB Sensitivity (1W/1m)
- 40÷4000 Hz Frequency Range
- 100 mm (4 in) Voice Coil Diameter
- Neodymium Slug Magnet
- Aluminum Basket Material
- Triple Roll Cone Surround
Technical Data
| Fs | 40 Hz |
| Re | 5.5 Ohm |
| Qes | 0.28 |
| Qms | 10.2 |
| Qts | 0.27 |
| Vas | 126.6 dm^3 (4.47 ft^3) |
| Sd | 822 cm^2 (127.41 in^2) |
| Xmax | 9.00 mm |
| Xdamage | 16 mm |
| Mms | 118.0 g |
| Bl | 24.2 N/A |
| Le | 1.2 mH |
| Mmd | 91.4 g |
| Cms | 0.13 mm/N |
| Rms | 2.9 kg/s |
| Eta Zero | 2.82 % |
| EBP | 143 Hz |
