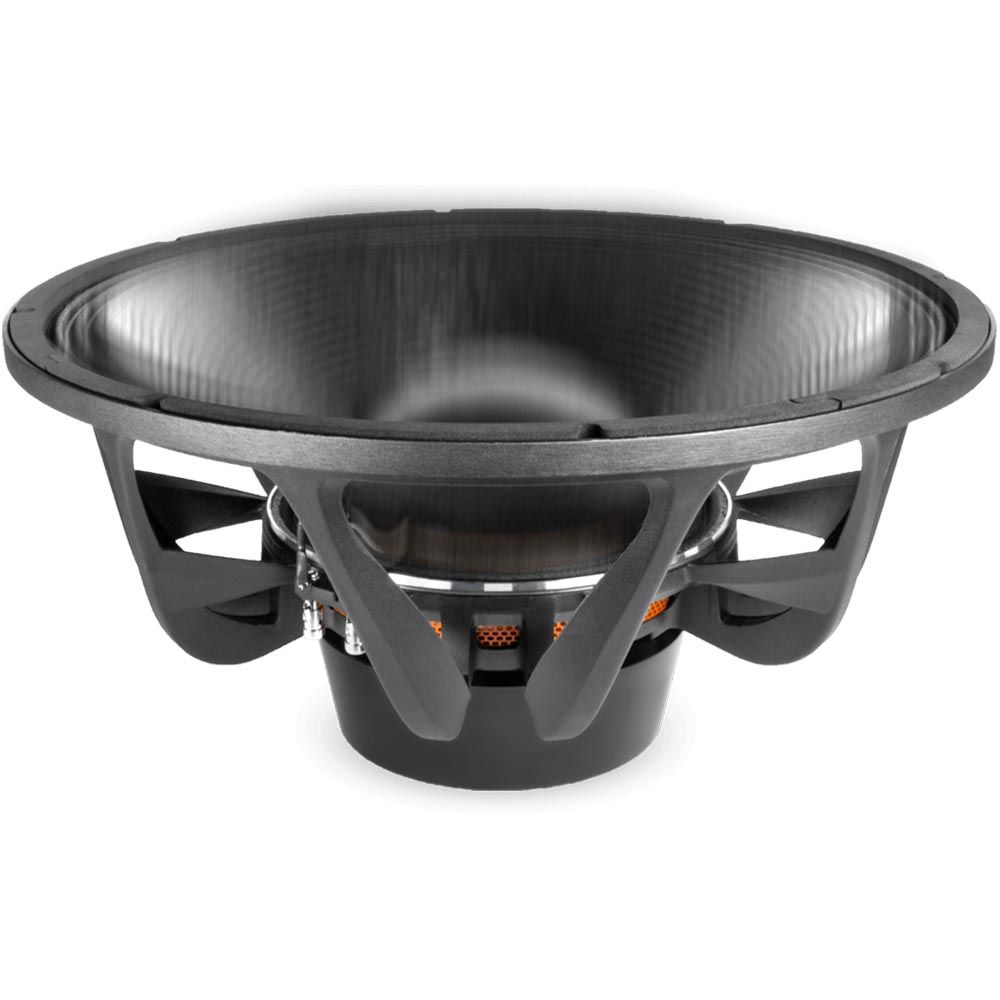

The Faital Pro 18FH500 (8Ω) Low-Frequency Neodymium Loudspeaker is a 460 mm (18 in) low-frequency loudspeaker with an 8 Ohm nominal impedance. It provides 600 W AES power handling, 99 dB sensitivity, and a 30÷3150 Hz frequency range. The driver uses a Neodymium Slug magnet, an Aluminum basket, and a Triple Roll cone surround. Its 424 mm (16.7 in) baffle cutout diameter and 202 mm (7.95 in) depth support enclosure integration.
Faital Pro 18FH500 (8Ω, 18-Inch) Low-Frequency Neodymium Loudspeaker
RRP: $699.00 ex. GST
Key Features:
- Nominal Impedance: 8 Ohm
- AES Power Handling: 600 W
- Sensitivity (1W/1m): 99 dB
- Frequency Range: 30÷3150 Hz
- Magnet: Neodymium Slug
- Cone Surround: Triple Roll
- Voice Coil Diameter: 77 mm (3 in)
- Basket Material: Aluminum
Technical Data
| Nominal Diameter | 460 mm (18 in) |
| Overall Diameter | 460 mm (18.11 in) |
| Bolt Circle Diameter | 440 mm (17.32 in) |
| Baffle Cutout Diameter | 424 mm (16.7 in) |
| Depth | 202 mm (7.95 in) |
| Flange and Gasket Thickness | 13.9 mm (0.55 in) |
| Net Weight | 4.6 kg (10.1 lb) |
| Shipping Box (Single Carton Box) | 503 x 500 x 258 mm (19.8 x 19.7 x 10.2 in) |
| Shipping Weight | 6 kg (13.2 lb) |
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6 Ohm |
| AES Power Handling (1) | 600 W |
| Maximum Power Handling (2) | 1200 W |
| Sensitivity (1W/1m) | 99 dB |
| Frequency Range | 30÷3150 Hz |
| Voice Coil Diameter | 77 mm (3 in) |
| Winding Material | Cu |
| Former Material | Glass Fiber |
| Winding Depth | 22 mm (0.87 in) |
| Magnetic Gap Depth | 10.5 mm (0.41 in) |
| Flux Density | 1.2 T |
| Magnet | Neodymium Slug |
| Basket Material | Aluminum |
| Demodulation | No |
| Cone Surround (3) | Triple Roll |
| NET Air Volume filled by Loudspeaker | 5.7 dm^3 (0.201 ft^3) |
| Spider Profile | 1x variable height waves |
| Fs | 30 Hz |
| Re | 5.1 Ohm |
| Qes | 0.36 |
| Qms | 12.5 |
| Qts | 0.35 |
| Vas | 417.9 dm^3 (14.76 ft^3) |
| Sd | 1207 cm^2 (187.09 in^2) |
| Xmax (4) | 9.25 mm |
| Xdamage (5) | 18 mm |
| Mms | 137.0 g |
| Bl | 19 N/A |
| Le | 1.35 mH |
| Mmd | 89.6 g |
| Cms | 0.21 mm/N |
| Rms | 2.1 kg/s |
| Eta Zero | 3.00 % |
| EBP | 83 Hz |
