The Faital Pro 3FE26 (8Ω, 3-Inch) Professional Woofer is an 80 mm loudspeaker driver with a nominal impedance of 8 Ohm, 20 W AES power handling and 90 dB sensitivity. It has a frequency range of 100÷20000 Hz, a Neodymium Ring magnet and a Steel basket. The driver uses a 19 mm voice coil with Al winding material and a Kapton former.

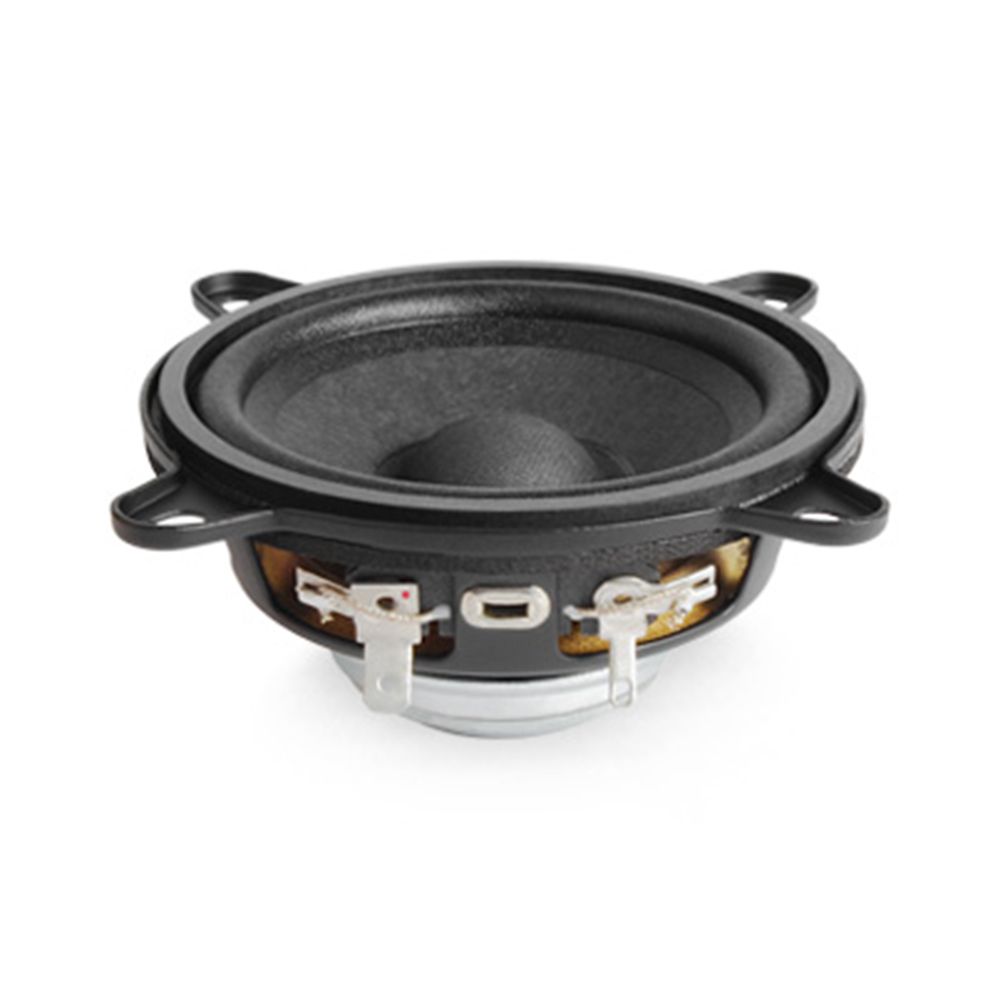

Faital Pro 3FE26 (8Ω, 3-Inch) Professional Woofer
RRP: $49.00 ex. GST
Key Features:
- Nominal Diameter: 80 mm (3 in)
- Nominal Impedance: 8 Ohm
- AES Power Handling: 20 W
- Maximum Power Handling: 40 W
- Sensitivity (1W/1m): 90 dB
- Frequency Range: 100÷20000 Hz
- Magnet: Neodymium Ring
- Basket Material: Steel
Technical Data
| Fs | 150 Hz |
| Re | 6.2 Ohm |
| Qes | 1.10 |
| Qms | 2.8 |
| Qts | 0.79 |
| Vas | 0.9 dm^3 (0.03 ft^3) |
| Sd | 33 cm^2 (5.12 in^2) |
| Xmax | 2.00 mm |
| Xdamage | 7.9 mm |
| Mms | 1.9 g |
| Bl | 3.3 N/A |
| Le | 0.12 mH |
| Mmd | 1.7 g |
| Cms | 0.59 mm/N |
| Rms | 0.6 kg/s |
| Eta Zero | 0.29 % |
| EBP | 136 Hz |
