The Faital Pro 5FE100 4Ω 5-Inch Professional Woofer is a 130 mm loudspeaker driver with a nominal impedance of 4 Ohm. It provides 80 W AES power handling, 160 W maximum power handling, 87 dB sensitivity and a 63÷6300 Hz frequency range. The driver uses a 32 mm voice coil with Cu winding, a Kapton former, a ferrite ring magnet and a steel basket. Its 114 mm baffle cutout diameter and 71.5 mm depth support enclosure design and replacement planning.

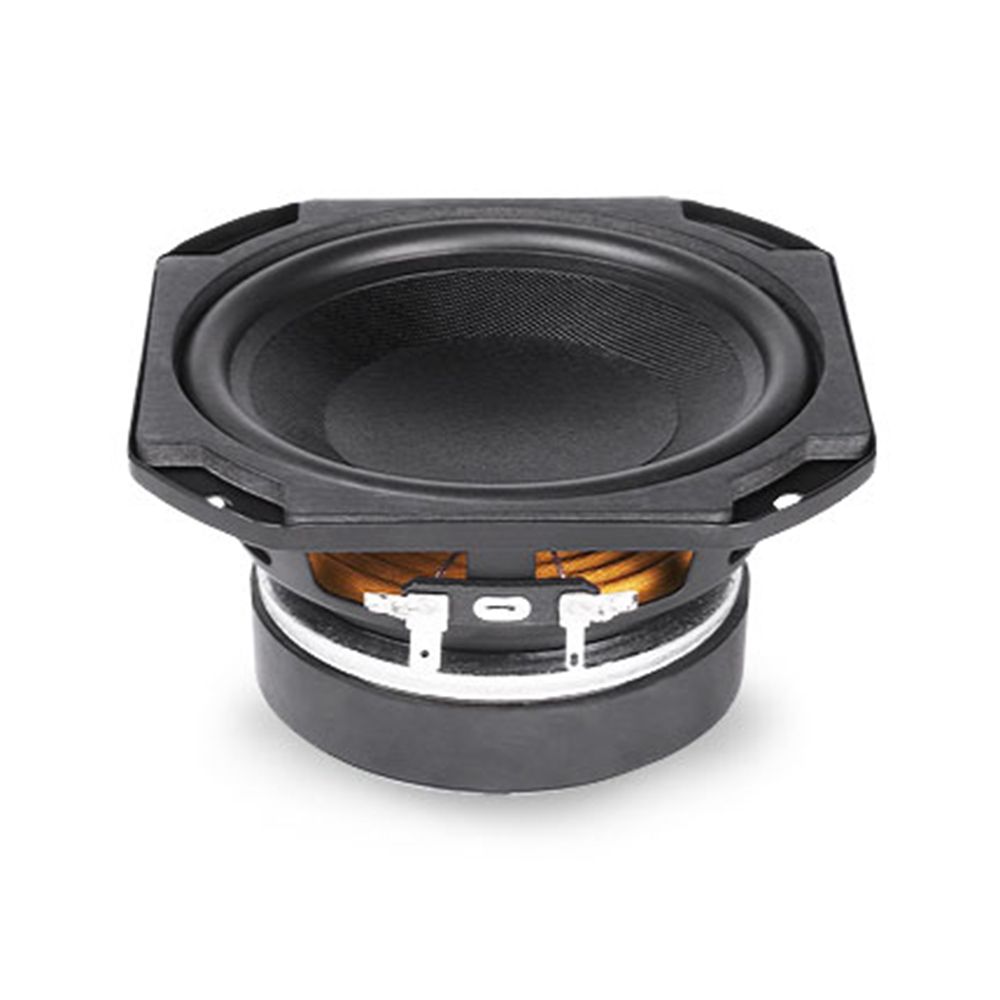

Faital Pro 5FE100 (4Ω, 5-Inch) Professional Woofer
RRP: $69.00 ex. GST
Key Features:
- 130 mm (5 in) nominal diameter
- 4 Ohm nominal impedance
- 80 W AES power handling
- 160 W maximum power handling
- 87 dB sensitivity (1W/1m)
- 63÷6300 Hz frequency range
- 32 mm (1.26 in) voice coil with Cu winding
- Ferrite Ring magnet and Steel basket
Technical Data
| Nominal Diameter | 130 mm (5 in) |
| Overall Diameter | 144.8/124.5 mm (5.7/4.9 in) |
| Bolt Circle Diameter | 133 mm (5.24 in) |
| Baffle Cutout Diameter | 114 mm (4.49 in) |
| Depth | 71.5 mm (2.81 in) |
| Flange and Gasket Thickness | 6.5 mm (0.25 in) |
| Net Weight | 1.1 kg (2.5 lb) |
| Nominal Impedance | 4 Ohm |
| Minimum Impedance | 3.8 Ohm |
| AES Power Handling | 80 W |
| Maximum Power Handling | 160 W |
| Sensitivity (1W/1m) | 87 dB |
| Frequency Range | 63÷6300 Hz |
| Voice Coil Diameter | 32 mm (1.26 in) |
| Winding Material | Cu |
| Former Material | Kapton |
| Winding Depth | 12.4 mm (0.49 in) |
| Magnetic Gap Depth | 6 mm (0.24 in) |
| Flux Density | 1 T |
| Magnet | Ferrite Ring |
| Basket Material | Steel |
| Demodulation | No |
| Cone Surround | Half Roll |
| NET Air Volume filled by Loudspeaker | 0.3 dm^3 (0.011 ft^3) |
| Spider Profile | 1x constant height waves |
| Fs | 65 Hz |
| Re | 3.1 Ohm |
| Qes | 0.35 |
| Qms | 8.6 |
| Qts | 0.33 |
| Vas | 6.1 dm^3 (0.21 ft^3) |
| Sd | 84 cm^2 (13.07 in^2) |
| Xmax | 5.20 mm |
| Xdamage | 9.5 mm |
| Mms | 9.8 g |
| Bl | 6 N/A |
| Le | 0.45 mH |
| Mmd | 8.9 g |
| Cms | 0.61 mm/N |
| Rms | 0.5 kg/s |
| Eta Zero | 0.47 % |
| EBP | 188 Hz |
