The Faital Pro 5FE100 (8Ω, 5-Inch) Professional Woofer FA-5FE100-8 has a nominal diameter of 130 mm (5 in) and a frequency range of 63÷6300 Hz. It provides 8 Ohm nominal impedance, 80 W AES power handling and 160 W maximum power handling. The woofer has 88 dB sensitivity (1W/1m), a 32 mm voice coil with Cu winding and Kapton former, and a Ferrite Ring magnet. Its Steel basket, Half Roll cone surround and 71.5 mm depth support defined installation planning.

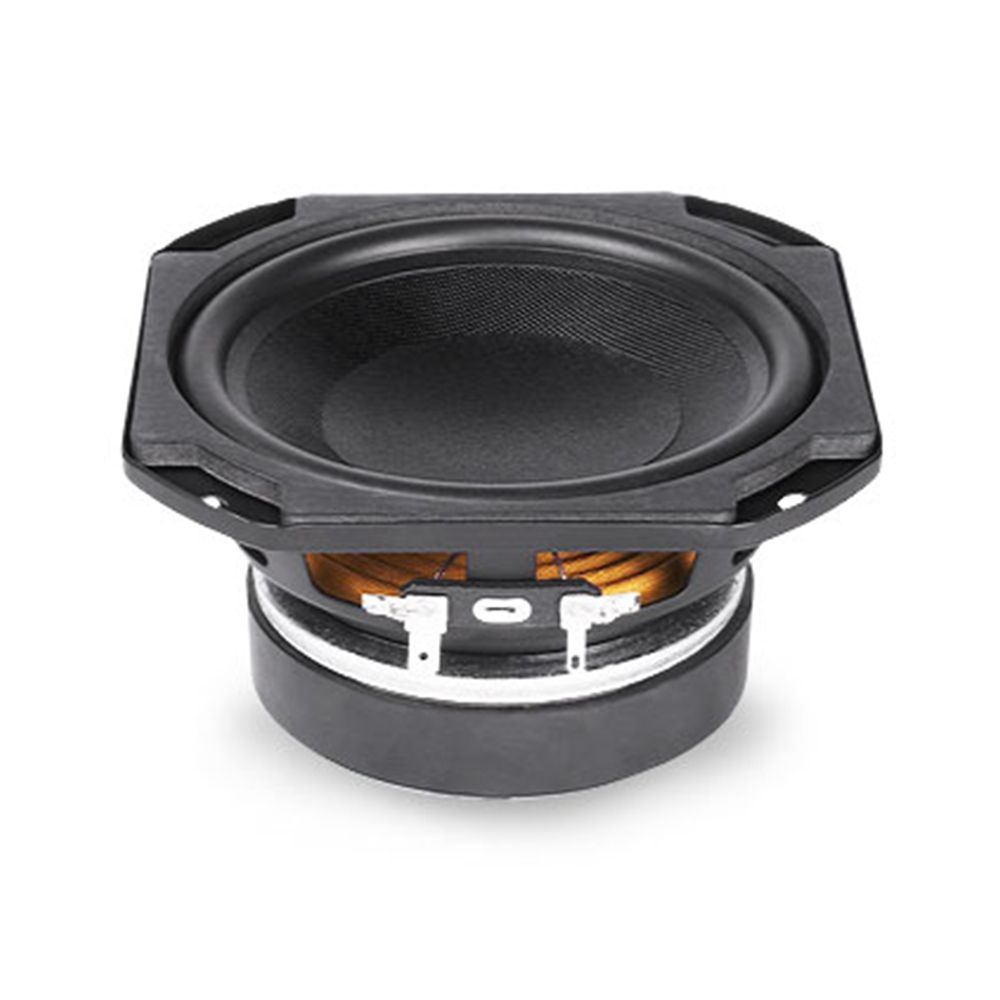

Faital Pro 5FE100 (8Ω, 5-Inch) Professional Woofer
RRP: $69.00 ex. GST
Key Features:
- Nominal Diameter: 130 mm (5 in)
- Nominal Impedance: 8 Ohm
- AES Power Handling: 80 W
- Maximum Power Handling: 160 W
- Sensitivity (1W/1m): 88 dB
- Frequency Range: 63÷6300 Hz
- Voice Coil Diameter: 32 mm (1.26 in)
- Magnet: Ferrite Ring
- Basket Material: Steel
- Cone Surround: Half Roll
Technical Data
| SKU | FA-5FE100-8 |
| Overall Diameter | 144.8/124.5 mm (5.7/4.9 in) |
| Bolt Circle Diameter | 133 mm (5.24 in) |
| Baffle Cutout Diameter | 114 mm (4.49 in) |
| Depth | 71.5 mm (2.81 in) |
| Flange and Gasket Thickness | 6.5 mm (0.25 in) |
| Net Weight | 1.12 kg (2.5 lb) |
| Shipping Box (Single Carton Box – 8 units) | 302 x 275 x 186 mm (11.9 x 10.8 x 7.3 in) |
| Shipping Weight (8 units) | 10.1 kg (22.3 lb) |
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.3 Ohm |
| AES Power Handling | 80 W |
| Maximum Power Handling | 160 W |
| Sensitivity (1W/1m) | 88 dB |
| Frequency Range | 63÷6300 Hz |
| Voice Coil Diameter | 32 mm (1.26 in) |
| Winding Material | Cu |
| Former Material | Kapton |
| Winding Depth | 12.5 mm (0.49 in) |
| Magnetic Gap Depth | 6 mm (0.24 in) |
| Flux Density | 1 T |
| Magnet | Ferrite Ring |
| Basket Material | Steel |
| Demodulation | No |
| Cone Surround | Half Roll |
| NET Air Volume filled by Loudspeaker | 0.3 dm^3 (0.011 ft^3) |
| Spider Profile | 1x constant height waves |
| Fs | 65 Hz |
| Re | 5.4 Ohm |
| Qes | 0.48 |
| Qms | 8.2 |
| Qts | 0.45 |
| Vas | 5.7 dm^3 (0.20 ft^3) |
| Sd | 84 cm^2 (13.07 in^2) |
| Xmax | 5.25 mm |
| Xdamage | 9.5 mm |
| Mms | 10.5 g |
| Bl | 6.9 N/A |
| Le | 0.53 mH |
| Mmd | 9.6 g |
| Cms | 0.57 mm/N |
| Rms | 0.52 kg/s |
| Eta Zero | 0.31 % |
| EBP | 135 Hz |
