The Faital Pro 5FE105 8 Ohm 5-Inch Professional Woofer is a 130 mm speaker driver for applications requiring an 8 Ohm woofer. It provides 80 W AES power handling, 160 W maximum power handling and 88 dB sensitivity. The driver covers a 63÷6300 Hz frequency range and includes a 32 mm voice coil with Cu winding on a Kapton former. Physical installation dimensions include a 114 mm baffle cutout diameter and 72.8 mm depth.

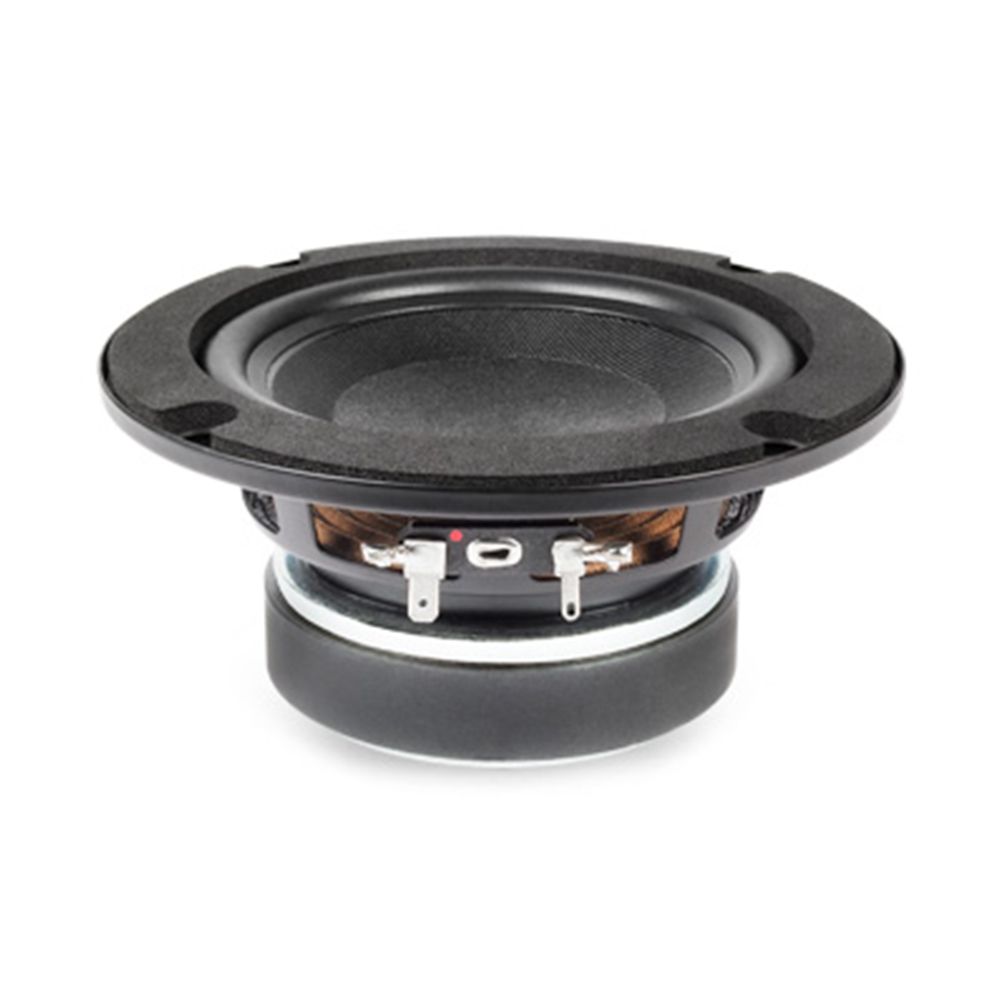

Faital Pro 5FE105 (8 Ohm, 5-Inch) Professional Woofer
RRP: $69.00 ex. GST
Key Features:
- Nominal Diameter: 130 mm (5 in)
- Nominal Impedance: 8 Ohm
- AES Power Handling: 80 W
- Maximum Power Handling: 160 W
- Sensitivity (1W/1m): 88 dB
- Frequency Range: 63÷6300 Hz
- Voice Coil Diameter: 32 mm (1.26 in)
- Magnet: Ferrite Ring
- Basket Material: Steel
- Cone Surround: Half Roll
Technical Data
| Fs | 65 Hz |
| Re | 5.4 Ohm |
| Qes | 0.48 |
| Qms | 8.2 |
| Qts | 0.45 |
| Vas | 5.7 dm^3 (0.20 ft^3) |
| Sd | 84 cm^2 (13.07 in^2) |
| Xmax | 5.25 mm |
| Xdamage | 9.5 mm |
| Mms | 10.5 g |
| Bl | 6.9 N/A |
| Le | 0.53 mH |
| Mmd | 9.6 g |
| Cms | 0.57 mm/N |
| Rms | 0.52 kg/s |
| Eta Zero | 0.31 % |
| EBP | 135 Hz |
