The Faital Pro 5FE120 is a 5-inch professional woofer for compact loudspeaker and audio applications. It has a nominal diameter of 130 mm, 80 W AES power handling and 89 dB sensitivity. The driver covers 63÷6300 Hz and is available in 4 Ohm, 8 Ohm and 16 Ohm versions. This listing is for the 16 Ohm version.

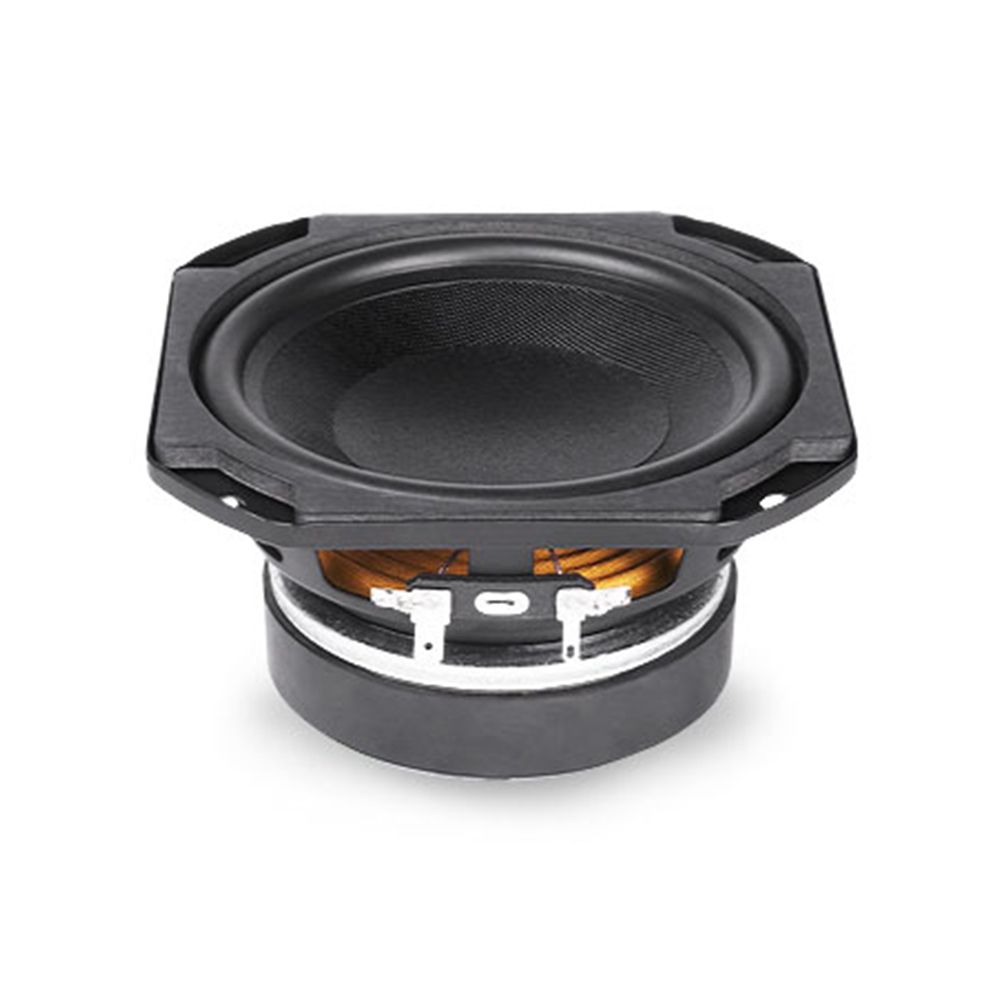

Faital Pro 5FE120 (16 Ohm, 5-Inch) Professional Woofer
RRP: $79.00 ex. GST
Key Features:
- 130 mm (5 in) nominal diameter
- 80 W AES power handling
- 160 W maximum power handling
- 89 dB sensitivity
- 63÷6300 Hz frequency range
- 32 mm (1.26 in) voice coil diameter
- Ferrite Ring magnet
- Aluminum Ring demodulation
Technical Data
| Overall Diameter | 144.8/124.5 mm (5.7/4.9 in) |
| Bolt Circle Diameter | 133 mm (5.24 in) |
| Baffle Cutout Diameter | 114 mm (4.49 in) |
| Depth | 71.5 mm (2.81 in) |
| Flange and Gasket Thickness | 6.5 mm (0.25 in) |
| Minimum Impedance | 13.2 Ohm |
| Flux Density | 1 T |
| Magnet | Ferrite Ring |
| Demodulation | Aluminum Ring |
| Fs | 65 Hz |
| Re | 11.8 Ohm |
| Qes | 0.54 |
| Qms | 8.6 |
| Qts | 0.51 |
| Vas | 6.6 dm^3 (0.23 ft^3) |
| Sd | 84.3 cm^2 (13.07 in^2) |
| Xmax | 5.25 mm |
| Xdamage | 9.5 mm |
| Mms | 9.0 g |
| Bl | 9 N/A |
| Le | 0.76 mH |
| Mmd | 8.1 g |
| Cms | 0.67 mm/N |
| Rms | 0.4 kg/s |
| Eta Zero | 0.33% |
| EBP | 120 Hz |
