The Faital Pro 5HX140 is a 130 mm (5 in) coaxial loudspeaker with 8 Ohm nominal impedance. Its LF section provides 120 W AES power handling, 240 W max power handling, 91 dB sensitivity, and a 100÷8000 Hz frequency range. The driver has a Neodymium Ring magnet, aluminum basket, Aluminum Ring demodulation, M-Roll cone surround, and a 37 mm voice coil. Installation dimensions include a 118 mm baffle cutout diameter and 97 mm depth.

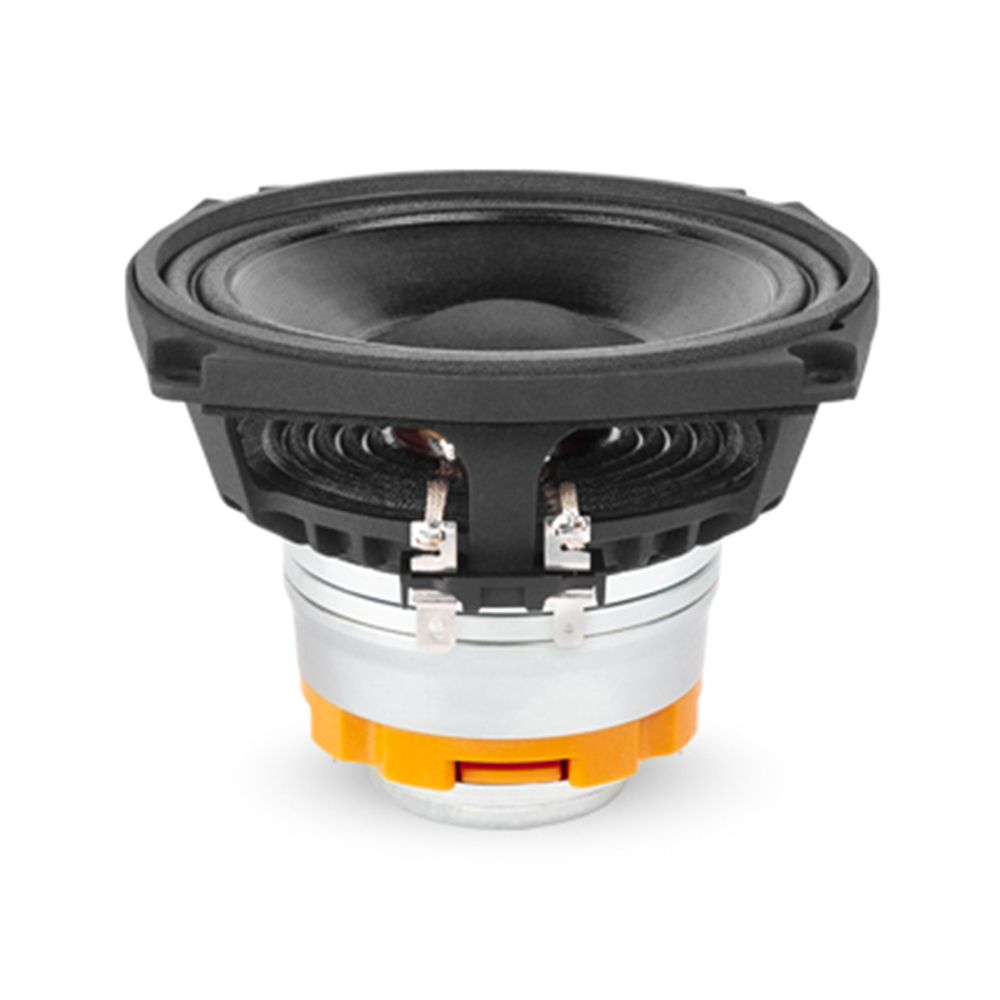

Faital Pro 5HX140 (8Ω, 5-Inch) Coaxial Loudspeaker
RRP: $349.00 ex. GST
Key Features:
- 130 mm (5 in) nominal diameter coaxial loudspeaker
- 8 Ohm nominal impedance
- 120 W AES Power Handling (1)
- 240 W Max Power Handling (2)
- 91 dB Sensitivity (1W/1m) (3)
- 100÷8000 Hz Frequency Range
- Neodymium Ring magnet
- Aluminum basket and Aluminum Ring demodulation
- M-Roll cone surround
- 118 mm (4.65 in) baffle cutout diameter
Technical Data
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.7 Ohm |
| AES Power Handling (1) | 120 W |
| Max Power Handling (2) | 240 W |
| Sensitivity (1W/1m) (3) | 91 dB |
| Frequency Range | 100÷8000 Hz |
| Voice Coil Diameter | 37 mm (1.46 in) |
| Winding Material | Aluminium |
| Former Material | Kapton |
| Winding Depth | 12.2 mm (0.48 in) |
| Magnetic Gap Depth | 6 mm (0.24 in) |
| Flux Density | 1.3 T |
| Magnet | Neodymium Ring |
| Basket Material | Aluminium |
| Demodulation | Aluminum Ring |
| Cone Surround (5) | M-Roll |
| NET Air Volume filled by Loudspeaker | 0.34 dm^3 (0.012 ft^3) |
| Spider Profile | 1x constant height waves |
| Fs | 100 Hz |
| Re [LF] | 5.9 Ohm |
| Re [HF] | 6 Ohm |
| Qes | 0.45 |
| Qms | 4.8 |
| Qts | 0.41 |
| Vas | 3.4 dm^3 (0.12 ft^3) |
| Sd | 85 cm^2 (13.18 in^2) |
| Xmax (6) | 5.10 mm |
| Xdamage (7) | 16.85 mm |
| Mms | 7.5 g |
| Bl | 8 N/A |
| Le | 0.29 mH |
| Mmd | 6.6 g |
| Cms | 0.34 mm/N |
| Rms | 1.0 kg/s |
| Eta Zero | 0.76 % |
| EBP | 222 Hz |
