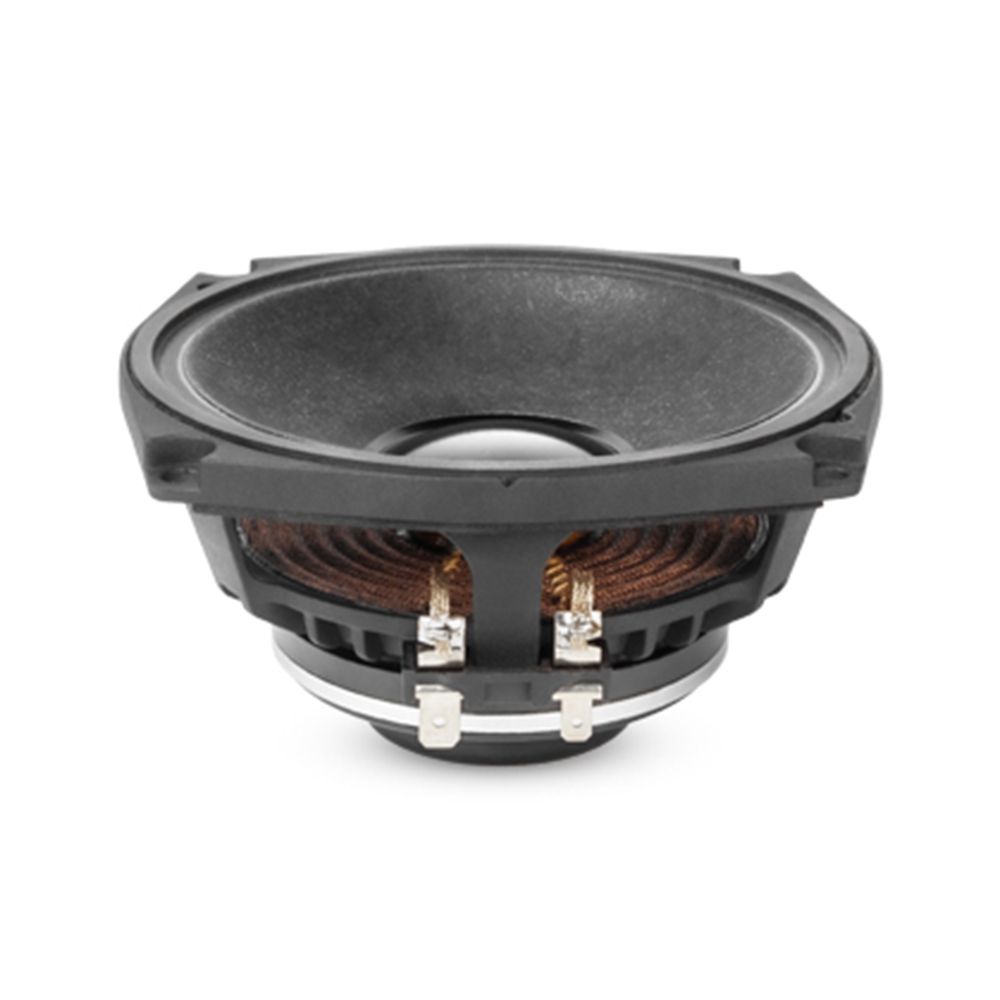

The Faital Pro 5PR120 5-Inch Professional Woofer, 8 Ohm is a 130 mm loudspeaker driver for professional speaker system applications. It has an 8 Ohm nominal impedance, 100 W AES power handling and 200 W maximum power handling. The driver provides 100 dB sensitivity and a 300÷5000 Hz frequency range. Construction includes a neodymium ring magnet, aluminum basket, 32 mm voice coil, Kapton former and raised planar cone surround.
Faital Pro 5PR120 (8 Ohm, 5-Inch) Professional Woofer
RRP: $229.00 ex. GST
Key Features:
- Nominal Diameter: 130 mm (5 in)
- Nominal Impedance: 8 Ohm
- AES Power Handling: 100 W
- Maximum Power Handling: 200 W
- Sensitivity (1W/1m): 100 dB
- Frequency Range: 300÷5000 Hz
- Magnet: Neodymium Ring
- Basket Material: Aluminum
- Voice Coil Diameter: 32 mm (1.26 in)
- Cone Surround: Raised planar
Technical Data
| Fs | 100 Hz |
| Re | 5 Ohm |
| Qes | 0.28 |
| Qms | 8.0 |
| Qts | 0.27 |
| Vas | 4.2 dm^3 (0.15 ft^3) |
| Sd | 102.2 cm^2 (15.84 in^2) |
| Xmax | 3.10 mm |
| Xdamage | 5.25 mm |
| Mms | 8.5 g |
| Bl | 10 N/A |
| Le | 0.17 mH |
| Mmd | 7.3 g |
| Cms | 0.30 mm/N |
| Rms | 0.7 kg/s |
| Eta Zero | 1.58 % |
| EBP | 357 Hz |
