The Faital Pro 6FE125 8Ω 6-Inch Professional Woofer is a 160 mm speaker driver for loudspeaker applications. It has a nominal impedance of 8 Ohm, 100 W AES power handling and 200 W maximum power handling. Sensitivity is 91 dB (1W/1m), with a stated frequency range of 63÷5000 Hz. The driver uses a Ferrite Ring magnet, Steel basket, Kapton former and Aluminum Ring demodulation.

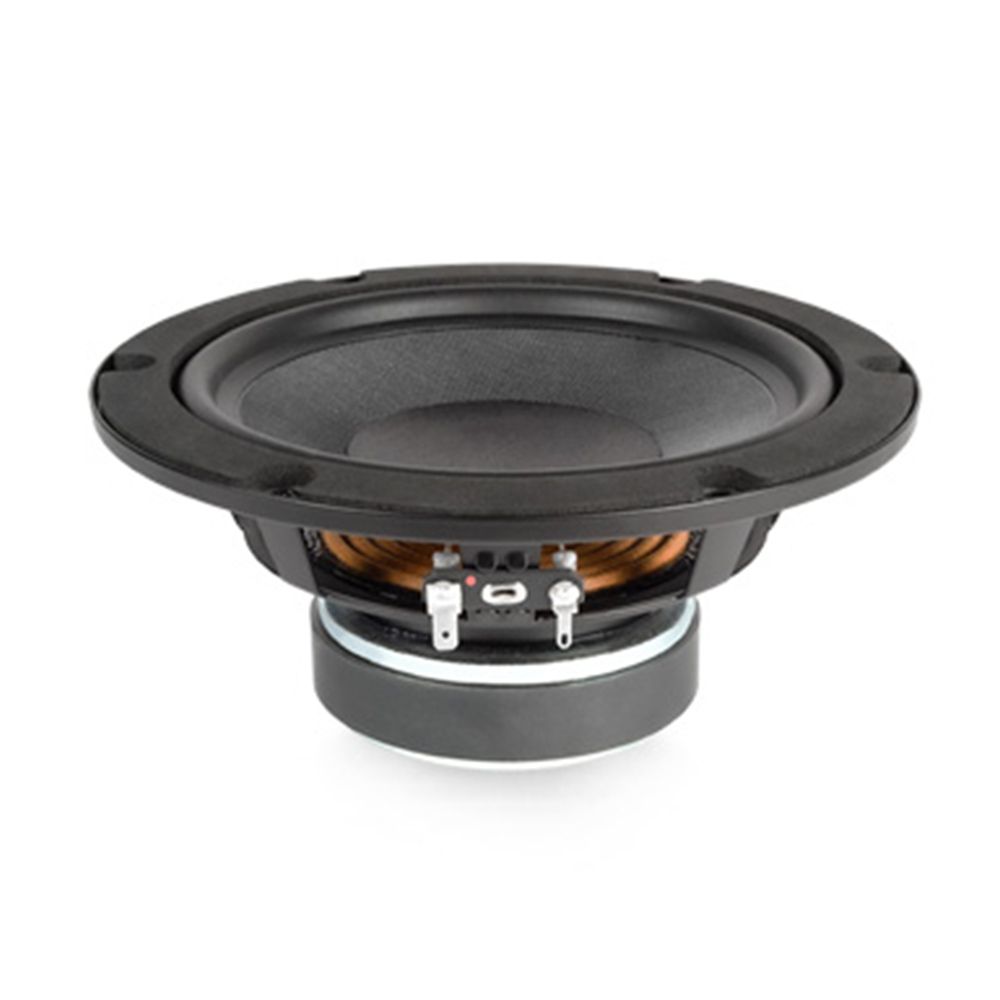

Faital Pro 6FE125 (8Ω, 6-Inch) Professional Woofer
RRP: $79.00 ex. GST
Key Features:
- Nominal Diameter: 160 mm (6 in)
- Nominal Impedance: 8 Ohm
- AES Power Handling: 100 W
- Maximum Power Handling: 200 W
- Sensitivity (1W/1m): 91 dB
- Frequency Range: 63÷5000 Hz
- Voice Coil Diameter: 32 mm (1.26 in)
- Magnet: Ferrite Ring
- Basket Material: Steel
Technical Data
| Fs | 61 Hz |
| Re | 5.4 Ohm |
| Qes | 0.60 |
| Qms | 6.0 |
| Qts | 0.55 |
| Vas | 15.1 dm^3 (0.53 ft^3) |
| Sd | 149 cm^2 (23.10 in^2) |
| Xmax | 5.25 mm |
| Xdamage | 13.15 mm |
| Mms | 14.0 g |
| Bl | 6.8 N/A |
| Le | 0.5 mH |
| Mmd | 11.9 g |
| Cms | 0.48 mm/N |
| Rms | 0.90 kg/s |
| Eta Zero | 0.53 % |
| EBP | 102 Hz |
