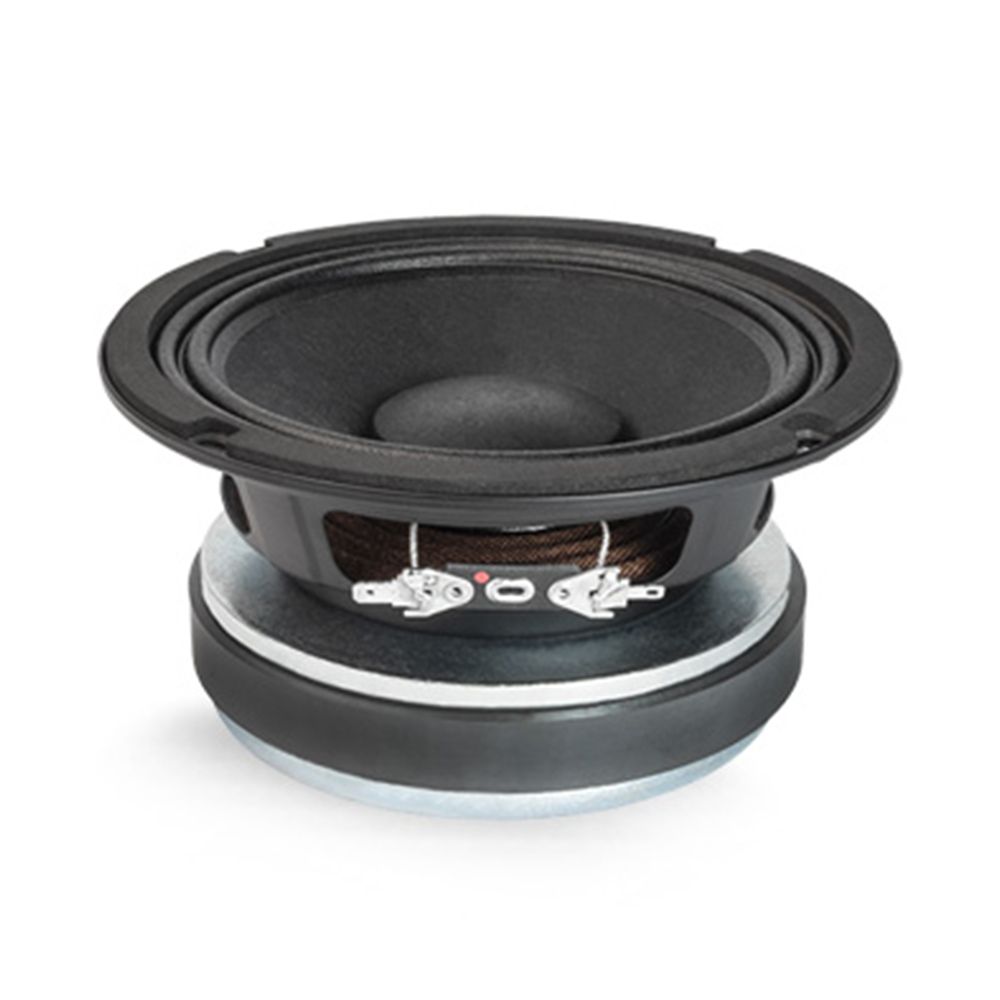

The Faital Pro 6FE300 4Ω 6-Inch Professional Woofer is a 160 mm loudspeaker driver with a nominal impedance of 4 Ohm. It provides 175 W AES power handling, 350 W maximum power handling, 92 dB sensitivity, and a frequency range of 100÷4000 Hz. The driver uses a 52 mm voice coil, ferrite ring magnet, steel basket, and M-Roll cone surround. Its 146 mm baffle cutout diameter and 81 mm depth support enclosure integration where these dimensions match the installation requirements.
Faital Pro 6FE300 (4Ω, 6-Inch) Professional Woofer
RRP: $119.00 ex. GST
Key Features:
- 160 mm (6 in) nominal diameter
- 4 Ohm nominal impedance
- 175 W AES power handling
- 350 W maximum power handling
- 92 dB sensitivity (1W/1m)
- 100÷4000 Hz frequency range
- 52 mm (2.05 in) voice coil diameter
- Ferrite Ring magnet and steel basket
- M-Roll cone surround
Technical Data
| Nominal Diameter | 160 mm (6 in) |
| Overall Diameter | 166.5 mm (6.56 in) |
| Bolt Circle Diameter | 155 mm (6.10 in) |
| Baffle Cutout Diameter | 146 mm (5.75 in) |
| Depth | 81 mm (3.19 in) |
| Flange and Gasket Thickness | 7 mm (0.28 in) |
| Net Weight | 2.8 kg (6.2 lb) |
| Nominal Impedance | 4 Ohm |
| Minimum Impedance | 3.4 Ohm |
| AES Power Handling | 175 W |
| Maximum Power Handling | 350 W |
| Sensitivity (1W/1m) | 92 dB |
| Frequency Range | 100÷4000 Hz |
| Voice Coil Diameter | 52 mm (2.05 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fiber |
| Winding Depth | 9.8 mm (0.39 in) |
| Magnetic Gap Depth | 6 mm (0.24 in) |
| Flux Density | 1.15 T |
| Magnet | Ferrite Ring |
| Basket Material | Steel |
| Demodulation | No |
| Cone Surround | M-Roll |
| NET Air Volume filled by Loudspeaker | 0.6 dm^3 (0.021 ft^3) |
| Spider Profile | 1x constant height waves |
| Fs | 98 Hz |
| Re | 3 Ohm |
| Qes | 0.43 |
| Qms | 9.8 |
| Qts | 0.41 |
| Vas | 4.4 dm^3 (0.15 ft^3) |
| Sd | 138 cm^2 (21.39 in^2) |
| Xmax | 3.90 mm |
| Xdamage | 16.7 mm |
| Mms | 16.0 g |
| Bl | 8.33 N/A |
| Le | 0.26 mH |
| Mmd | 14.2 g |
| Cms | 0.16 mm/N |
| Rms | 1.0 kg/s |
| Eta Zero | 0.94 % |
| EBP | 230 Hz |
