Faital Pro 6FE400 4Ω 6-Inch Professional Woofer is a 160 mm speaker driver for professional loudspeaker applications. It has a Nominal Impedance of 4 Ohm, 200 W AES Power Handling and 400 W Maximum Power Handling. Sensitivity is 93 dB at 1W/1m, with a Frequency Range of 100÷7000 Hz. The driver uses a 44 mm voice coil, Ferrite Ring magnet, Steel basket and Triple Roll cone surround.

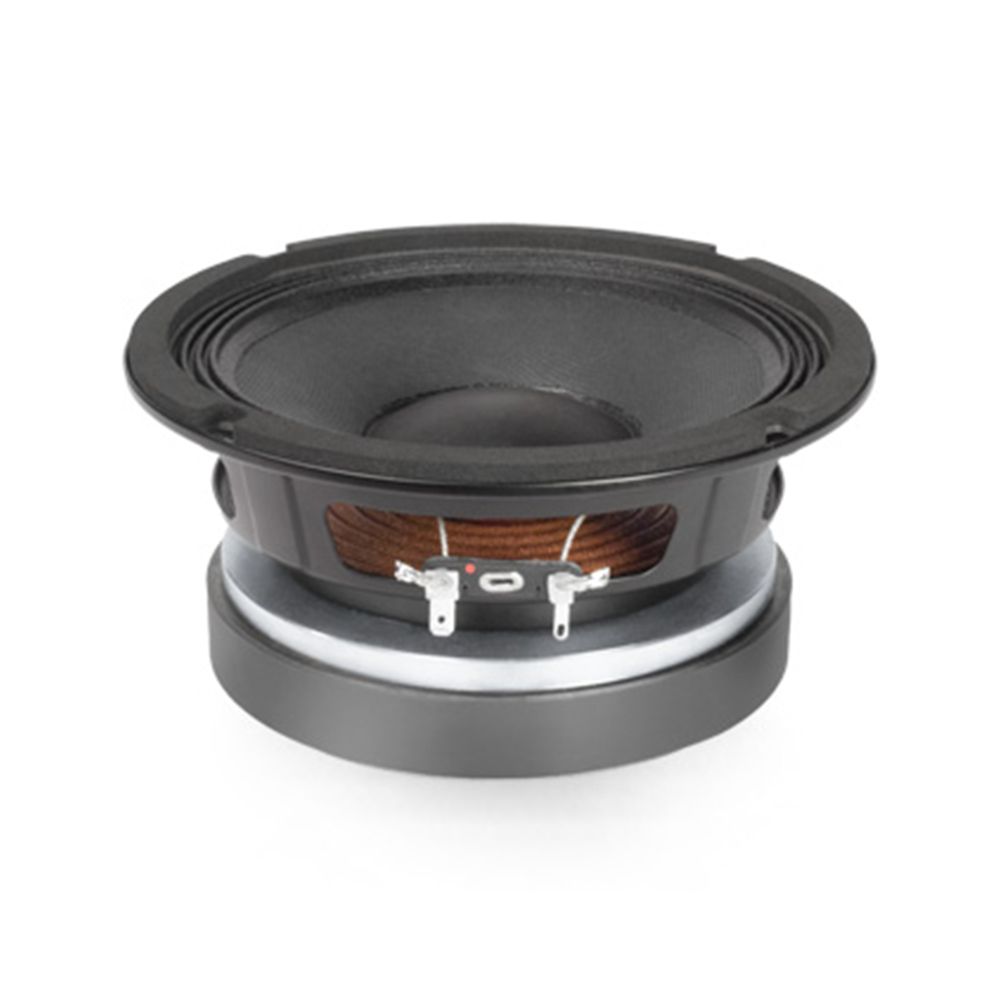

Faital Pro 6FE400 (4Ω, 6-Inch) Professional Woofer
RRP: $109.00 ex. GST
Key Features:
- Nominal Diameter: 160 mm (6 in)
- Nominal Impedance: 4 Ohm
- AES Power Handling: 200 W
- Maximum Power Handling: 400 W
- Sensitivity (1W/1m): 93 dB
- Frequency Range: 100÷7000 Hz
- Voice Coil Diameter: 44 mm (1.73 in)
- Magnet: Ferrite Ring
- Basket Material: Steel
- Cone Surround: Triple Roll
Technical Data
| Fs | 100 Hz |
| Re | 3.4 Ohm |
| Qes | 0.39 |
| Qms | 3.8 |
| Qts | 0.36 |
| Vas | 4.9 dm^3 (0.17 ft^3) |
| Sd | 141 cm^2 (21.86 in^2) |
| Xmax | 4.87 mm |
| Xdamage | 15.5 mm |
| Mms | 14.2 g |
| Bl | 8.8 N/A |
| Le | 0.42 mH |
| Mmd | 12.4 g |
| Cms | 0.18 mm/N |
| Rms | 2.4 kg/s |
| Eta Zero | 1.22 % |
| EBP | 254 Hz |
