The Faital Pro 6FE400 (8Ω, 6-Inch) Professional Woofer is a 160 mm driver with an 8 Ohm nominal impedance. It has 200 W AES power handling, 400 W maximum power handling, and 94 dB sensitivity at 1W/1m. The frequency range is 100÷7000 Hz, with a 44 mm voice coil, ferrite ring magnet, steel basket, and triple roll cone surround. The driver has a 146 mm baffle cutout diameter and 84 mm depth.

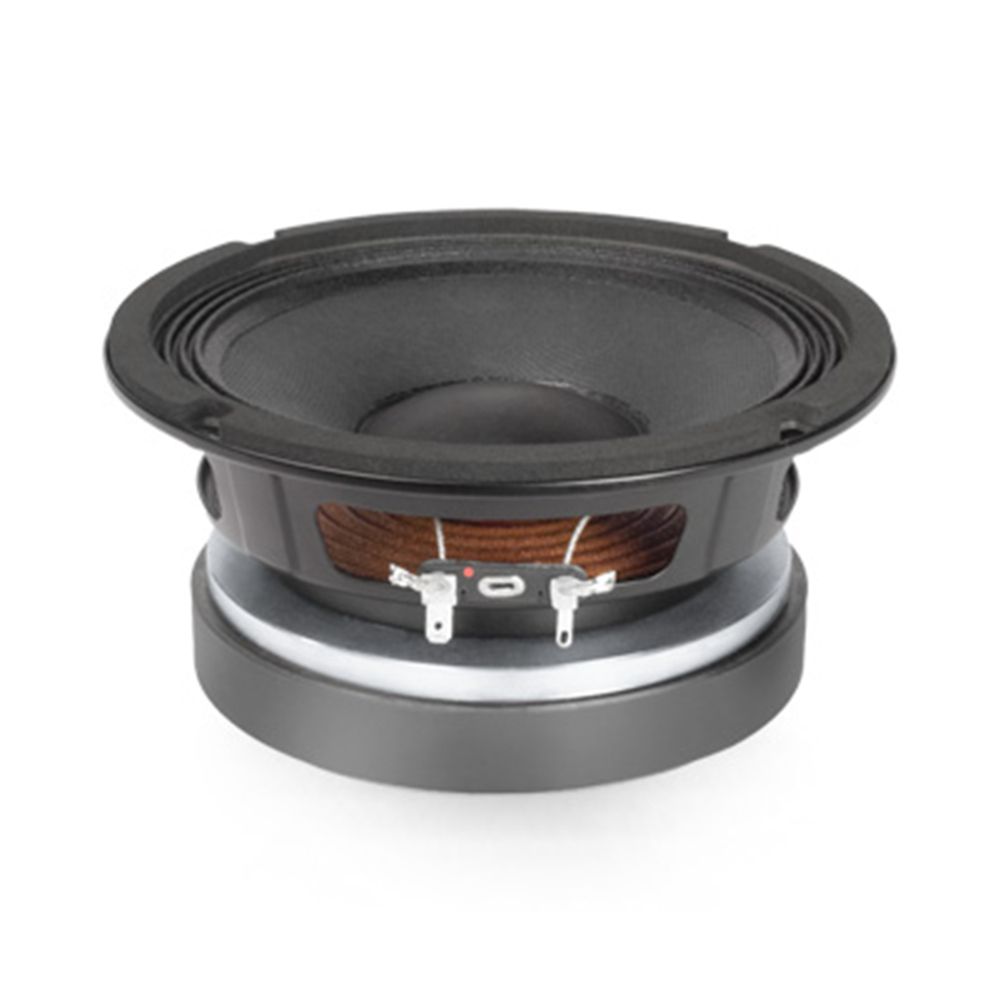

Faital Pro 6FE400 (8Ω, 6-Inch) Professional Woofer
RRP: $109.00 ex. GST
Key Features:
- Nominal Diameter: 160 mm (6 in)
- Nominal Impedance: 8 Ohm
- AES Power Handling: 200 W
- Maximum Power Handling: 400 W
- Sensitivity (1W/1m): 94 dB
- Frequency Range: 100÷7000 Hz
- Voice Coil Diameter: 44 mm (1.73 in)
- Magnet: Ferrite Ring
- Basket Material: Steel
- Cone Surround: Triple Roll
Technical Data
| Fs | 100 Hz |
| Re | 5.0 Ohm |
| Qes | 0.40 |
| Qms | 3.7 |
| Qts | 0.36 |
| Vas | 5.0 dm^3 (0.18 ft^3) |
| Sd | 141 cm^2 (21.86 in^2) |
| Xmax | 4.77 mm |
| Xdamage | 15.5 mm |
| Mms | 14.0 g |
| Bl | 10.5 N/A |
| Le | 0.42 mH |
| Mmd | 12.1 g |
| Cms | 0.18 mm/N |
| Rms | 2.4 kg/s |
| Eta Zero | 1.22 % |
| EBP | 251 Hz |
