The Faital Pro 6PR110 (8Ω) is a 160 mm (6 in) loudspeaker driver for applications requiring an 8 Ohm nominal impedance. It has 150 W AES power handling, 300 W maximum power handling, 96 dB sensitivity, and a stated frequency range of 100÷6000 Hz. The driver uses a 37 mm voice coil with an Al winding and Kapton former, a Ferrite Ring magnet, and an aluminum basket.

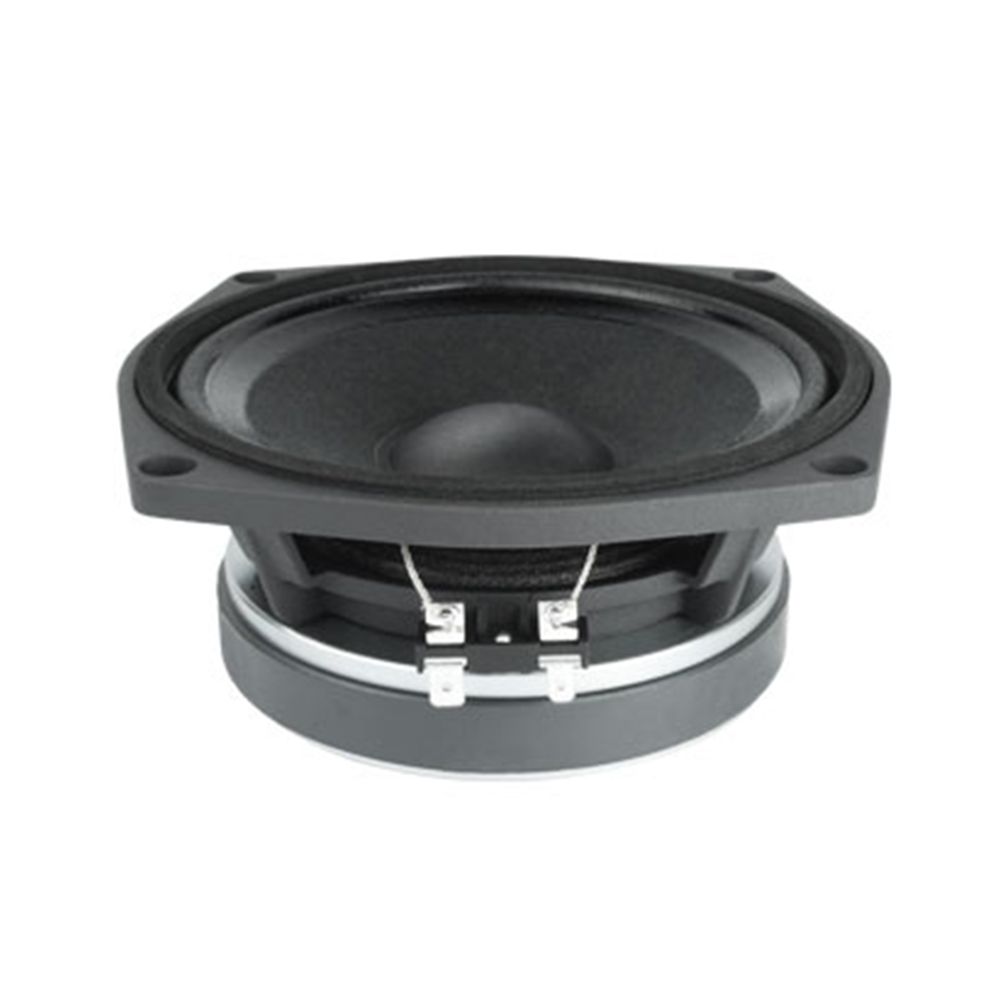

Faital Pro 6PR110 (8Ω, 6-Inch) Loudspeaker Driver
RRP: $139.00 ex. GST
Key Features:
- 160 mm (6 in) nominal diameter
- 8 Ohm nominal impedance
- 150 W AES power handling
- 300 W maximum power handling
- 96 dB sensitivity (1W/1m)
- Frequency Range: 100÷6000 Hz
- 37 mm (1.46 in) voice coil diameter
- Ferrite Ring magnet and aluminum basket
Technical Data
| Fs | 100 Hz |
| Re | 6 Ohm |
| Qes | 0.60 |
| Qms | 4.2 |
| Qts | 0.53 |
| Vas | 5.6 dm^3 (0.20 ft^3) |
| Sd | 137 cm^2 (21.28 in^2) |
| Xmax | 2.75 mm |
| Xdamage | 11.6 mm |
| Mms | 12.0 g |
| Bl | 8.5 N/A |
| Le | 0.22 mH |
| Mmd | 10.2 g |
| Cms | 0.20 mm/N |
| Rms | 1.8 kg/s |
| Eta Zero | 0.86 % |
| EBP | 167 Hz |
