The Faital Pro 6PR150 8Ω 6-Inch Professional Woofer is a 160 mm (6 in) loudspeaker driver for applications requiring a 150 W AES power handling rating. It has a nominal impedance of 8 Ohm, 97 dB sensitivity and a frequency range of 100÷5000 Hz. The driver uses a 52 mm (2 in) voice coil, Cu winding material, Glass Fiber former, Neodymium Ring magnet and Aluminum basket. Its 147 mm (5.78 in) baffle cutout diameter and 89 mm (3.50 in) depth support enclosure planning and replacement-driver purchasing.

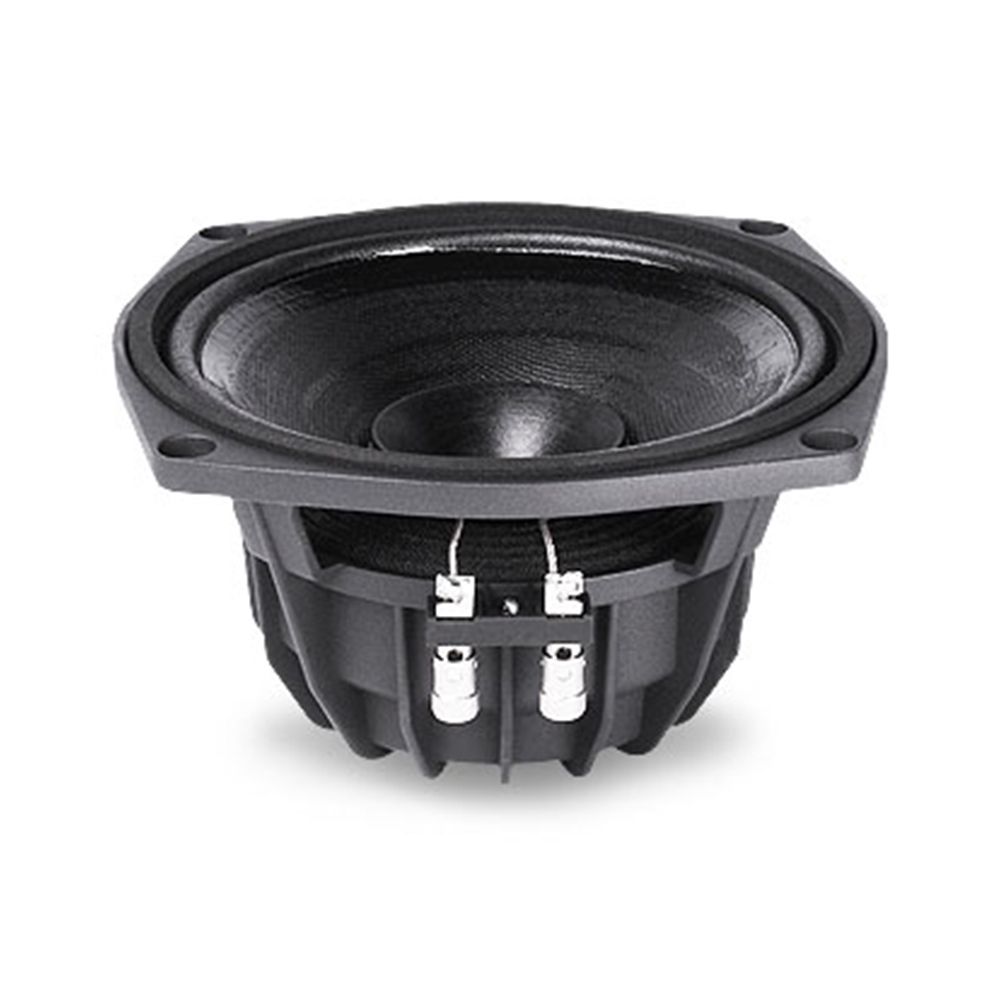

Faital Pro 6PR150 (8Ω, 6-Inch) Professional Woofer
RRP: $279.00 ex. GST
Key Features:
- Nominal Diameter: 160 mm (6 in)
- AES Power Handling: 150 W
- Maximum Power Handling: 300 W
- Sensitivity (1W/1m): 97 dB
- Frequency Range: 100÷5000 Hz
- Nominal Impedance: 8 Ohm
- Voice Coil Diameter: 52 mm (2 in)
- Magnet: Neodymium Ring
- Basket Material: Aluminum
- Cone Surround: Half Roll
Technical Data
| Fs | 100 Hz |
| Re | 5.5 Ohm |
| Qes | 0.35 |
| Qms | 8.8 |
| Qts | 0.34 |
| Vas | 4.9 dm^3 (0.17 ft^3) |
| Sd | 137 cm^2 (21.28 in^2) |
| Xmax | 2.65 mm |
| Xdamage | 11.6 mm |
| Mms | 13.5 g |
| Bl | 11.6 N/A |
| Le | 0.28 mH |
| Mmd | 11.7 g |
| Cms | 0.19 mm/N |
| Rms | 1.0 kg/s |
| Eta Zero | 1.38 % |
| EBP | 286 Hz |
