The Faital Pro 8HX150 8-Inch Coaxial Loudspeaker has a nominal diameter of 200 mm (8 in) and an 8 Ohm nominal impedance. Its LF section provides 250 W AES power handling, 500 W max power handling, 94 dB sensitivity and a 75÷4000 Hz frequency range. The unit has a 65 mm (2.56 in) voice coil, aluminum basket, ferrite ring magnet and triple roll cone surround. The loudspeaker has a 183 mm (7.20 in) baffle cutout diameter and 111.7 mm (4.40 in) depth.

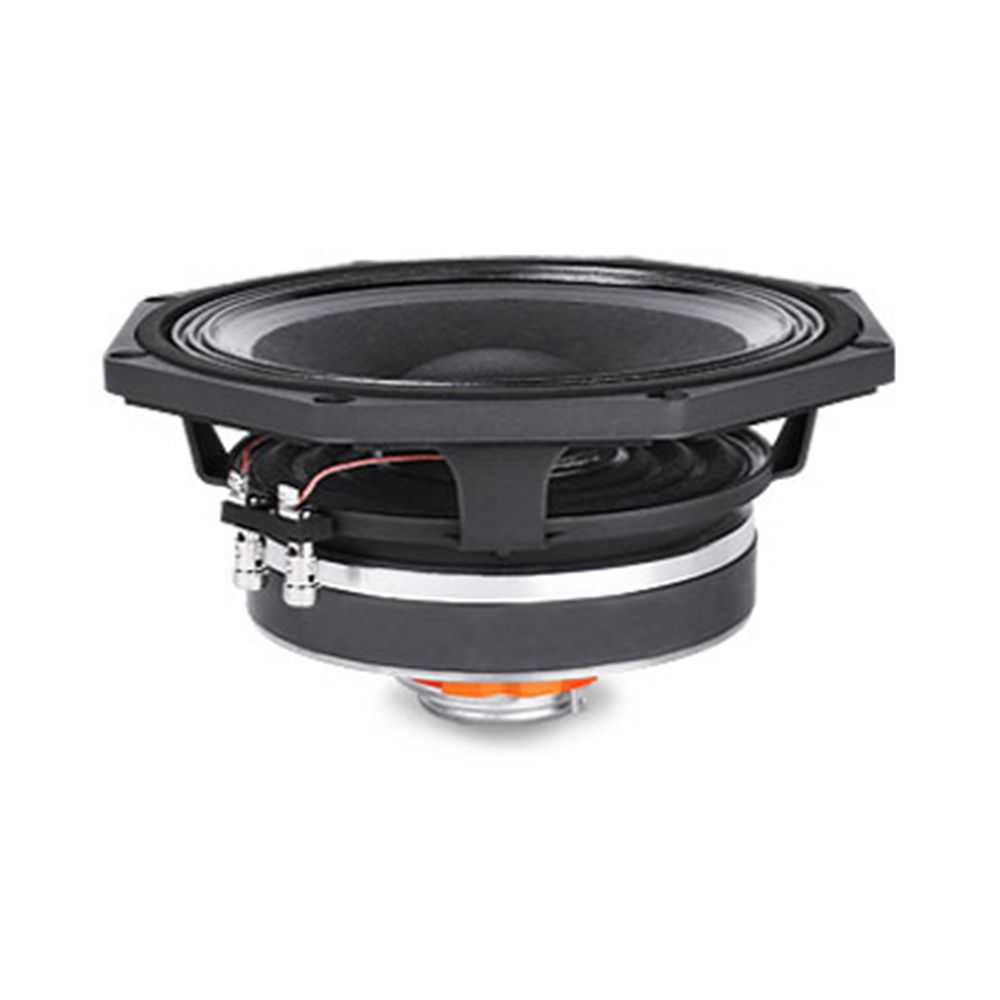

Faital Pro 8HX150 (8 Ohm, 8-Inch) Coaxial Loudspeaker
RRP: $409.00 ex. GST
Key Features:
- Nominal Diameter: 200 mm (8 in)
- Nom. Impedance: 8 Ohm
- AES Power Handling: 250 W
- Max Power Handling: 500 W
- Sensitivity (1W/1m): 94 dB
- Frequency Range: 75÷4000 Hz
- Voice Coil Diameter: 65 mm (2.56 in)
- Magnet: Ferrite Ring
- Basket Material: Aluminum
- Cone Surround: Triple Roll
Technical Data
| Nominal Diameter | 200 mm (8 in) |
| Overall Diameter | 223.75/207.9 mm (8.81/8.18 in) |
| Bolt Circle Diameter | 210 mm (8.27 in) |
| Baffle Cutout Diameter | 183 mm (7.20 in) |
| Depth | 111.7 mm (4.40 in) |
| Flange and Gasket Thickness | 10.7 mm (0.42 in) |
| Net Weight | 3.6 kg (7.9 lb) |
| Nom. Impedance | 8 Ohm |
| Minimum Impedance | 6.6 Ohm |
| AES Power Handling | 250 W |
| Max Power Handling | 500 W |
| Sensitivity (1W/1m) | 94 dB |
| Frequency Range | 75÷4000 Hz |
| Voice Coil Diameter | 65 mm (2.56 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fiber |
| Winding Depth | 12.5 mm (0.49 in) |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Flux Density | 1 T |
| Magnet | Ferrite Ring |
| Basket Material | Aluminum |
| Demodulation | No |
| Cone Surround | Triple Roll |
| NET Air Volume filled by Loudspeaker | 0.96 dm^3 (0.034 ft^3) |
| Spider Profile | 1x constant height waves |
| Shipping Box | 227 x 224 x 132 mm (8.9 x 8.8 x 5.2 in) |
| Shipping Weight | 4.3 kg (9.5 lb) |
