The Faital Pro 8HX210 8Ω 8-Inch Coaxial Loudspeaker is an 8-inch coaxial driver with separate LF and HF technical sections. The LF section has 200 W AES power handling, 94 dB sensitivity, and a 75÷4000 Hz frequency range, while the HF section has 35 W AES power handling, 104 dB sensitivity, and a 1700÷20000 Hz frequency range. It has a 210 mm bolt circle diameter, 181 mm baffle cutout diameter, and 123.2 mm depth. The driver uses an aluminum basket, ferrite ring LF magnet, neodymium ring HF magnet, and a 90° HF dispersion angle.

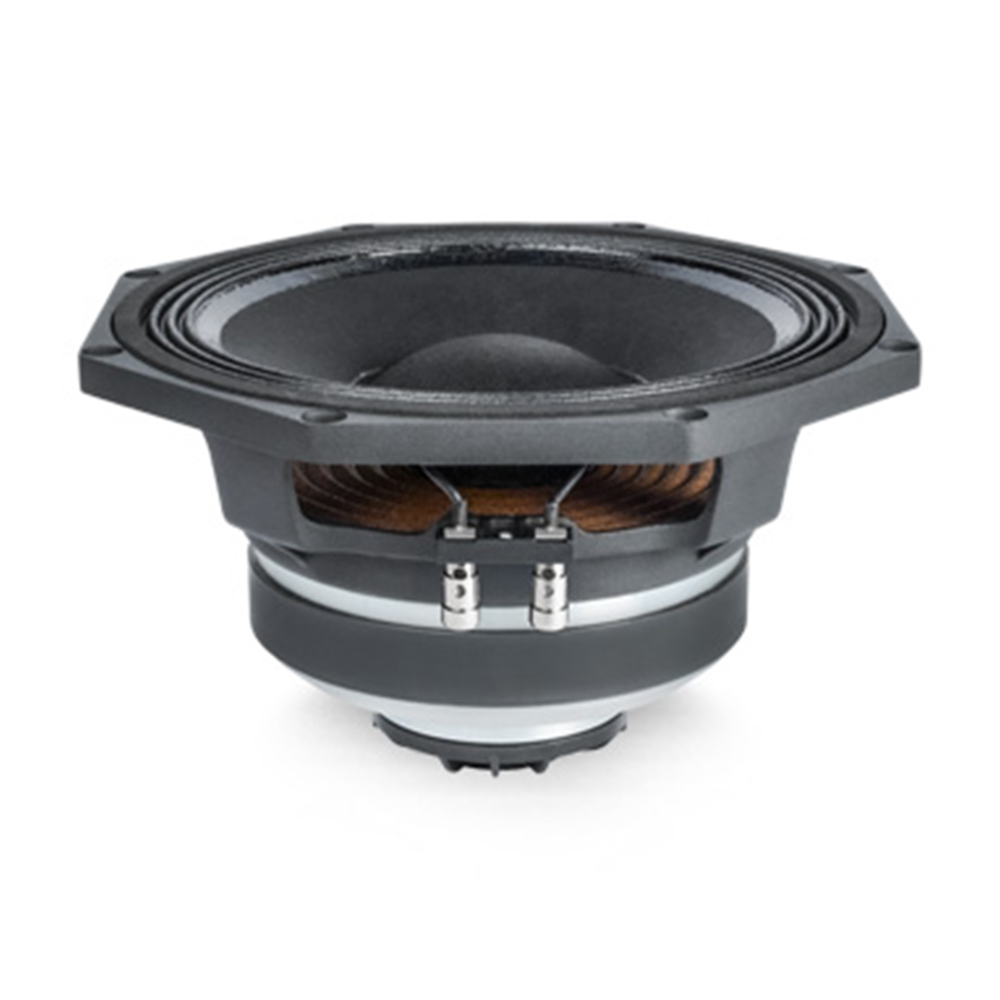

Faital Pro 8HX210 (8Ω, 8-Inch) Coaxial Loudspeaker
RRP: $509.00 ex. GST
Key Features:
- 8-inch coaxial loudspeaker
- 8 Ohm nominal impedance for LF and HF
- 200 W AES power handling LF
- 35 W AES power handling HF
- 94 dB sensitivity LF and 104 dB sensitivity HF
- LF frequency range: 75÷4000 Hz
- HF frequency range: 1700÷20000 Hz
- 90° HF dispersion angle
- Aluminum LF basket
- Ferrite Ring LF magnet and Neodymium Ring HF magnet
Technical Data
| Nominal Impedance LF | 8 Ohm |
| Nominal Impedance HF | 8 Ohm |
| Minimum Impedance LF | 6.4 Ohm |
| Minimum Impedance HF | 7 Ohm |
| AES Power Handling LF | 200 W |
| AES Power Handling HF | 35 W |
| Max Power Handling LF | 400 W |
| Max Power Handling HF | 70 W |
| Sensitivity LF | 94 dB |
| Sensitivity HF | 104 dB |
| Frequency Range LF | 75÷4000 Hz |
| Frequency Range HF | 1700÷20000 Hz |
| Voice Coil Diameter LF | 52 mm (2.05 in) |
| Voice Coil Diameter HF | 37 mm (1.46 in) |
| Former Material LF | Glass Fiber |
| Former Material HF | Kapton |
| Min. Cross. Freq. HF | 1.7 kHz |
| Dispersion Angle HF | 90° |
| Diaphragm Material HF | Ketone Polymer |
| Diaphragm Shape HF | Dome |
| Magnet LF | Ferrite Ring |
| Magnet HF | Neodymium Ring |
| Basket Material LF | Aluminum |
| Demodulation LF | No |
| Cone Surround LF | Triple Roll |
| NET Air Volume filled by Loudspeaker | 0.95 dm^3 (0.034 ft^3) |
| Spider Profile LF | 1x constant height waves |
| Fs | 83 Hz |
| Re [LF] | 5.3 Ohm |
| Re [HF] | 5.5 Ohm |
| Qes | 0.5 |
| Qms | 3.6 |
| Qts | 0.44 |
| Vas | 10.1 dm^3 (0.36 ft^3) |
| Sd | 217 cm^2 (33.67 in^2) |
| Xmax | 6.53 mm |
| Xdamage | 14.5 mm |
| Mms | 24.0 g |
| Bl | 11.86 N/A |
| Le | 0.5 mH |
| Mmd | 20.4 g |
| Cms | 0.15 mm/N |
| Rms | 3.5 kg/s |
| Eta Zero | 1.19 % |
| EBP | 166 Hz |
